Description

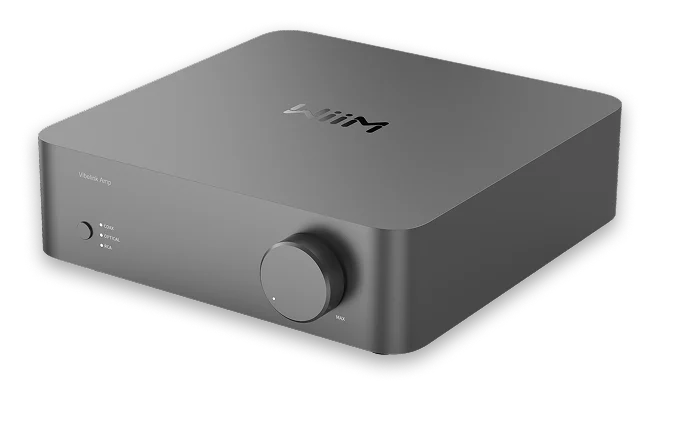

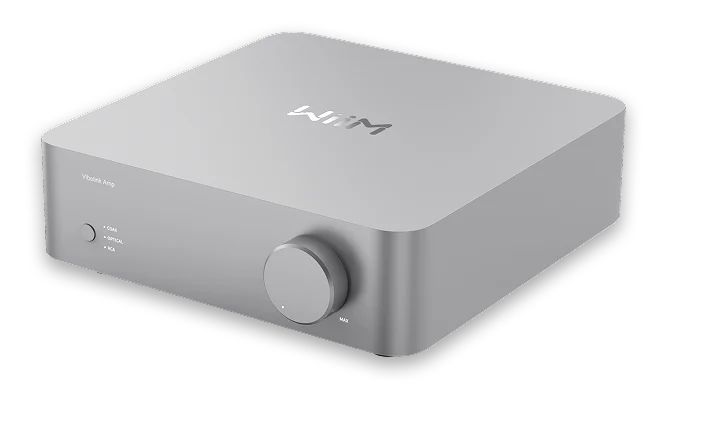

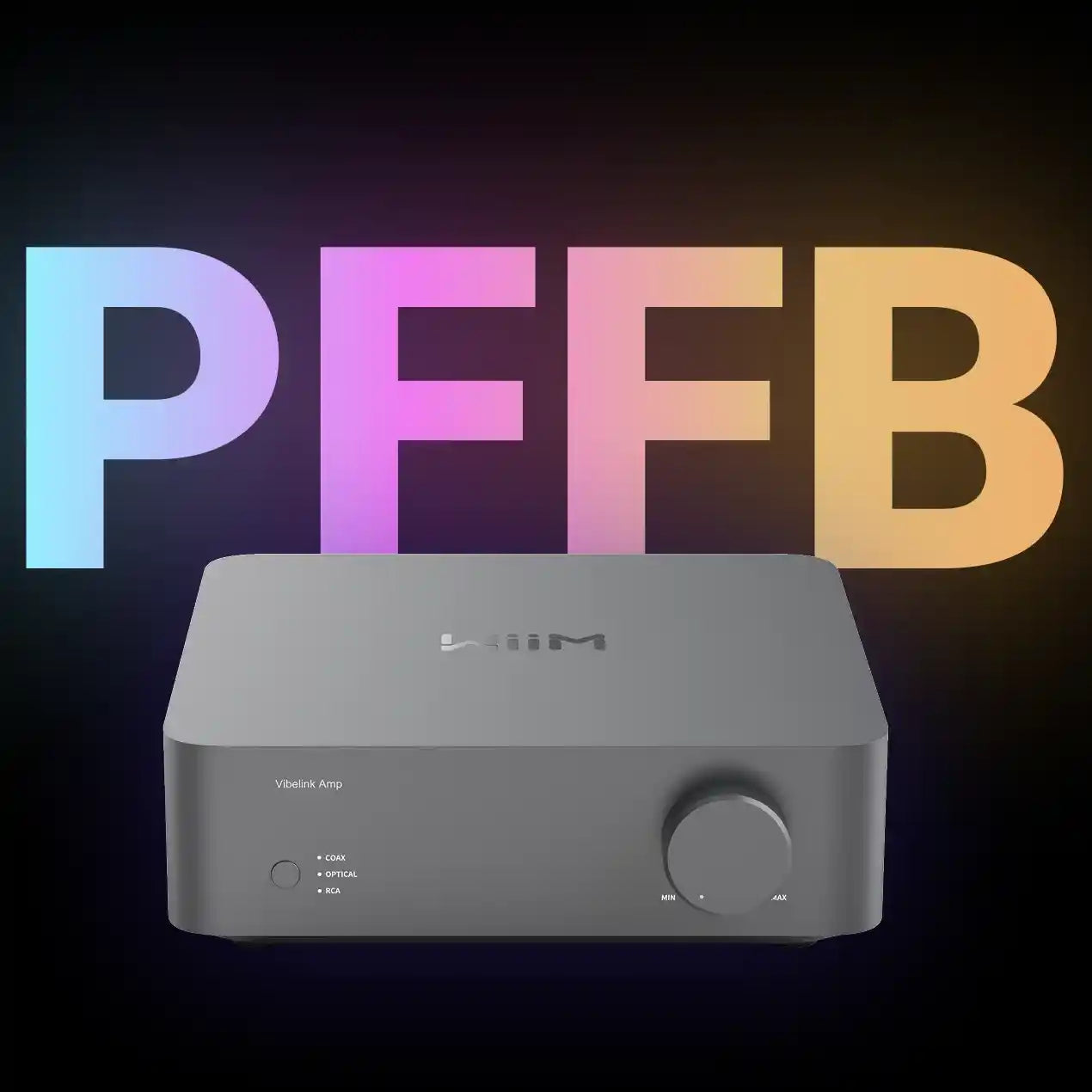

WiiM Vibelink Amplifier - 200W Stereo Power Amplifier
Power & Amplification
• Output Power : 100W per channel at 8Ω (stereo)
• Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology
• Total Harmonic Distortion (THD+N) : ≤0.0005%
• Signal-to-Noise Ratio (SNR) : ≥120dB
• Frequency Response : 20Hz – 20kHz ± 0.5dB
• Impedance Range : 3~8 ohms
Audio Processing
• Premium DAC : 9039Q2M high-performance DAC
• Bit-Perfect Playback : Supports up to 192kHz/24-bit audio
• Dynamic Range : ≥120dB for high-resolution sound
• Pure Analog Input : No ADC conversion, maintaining signal integrity
• Bit-Perfect Playback : Supports up to 192kHz/24-bit audio
• Dynamic Range : ≥120dB for high-resolution sound
• Pure Analog Input : No ADC conversion, maintaining signal integrity

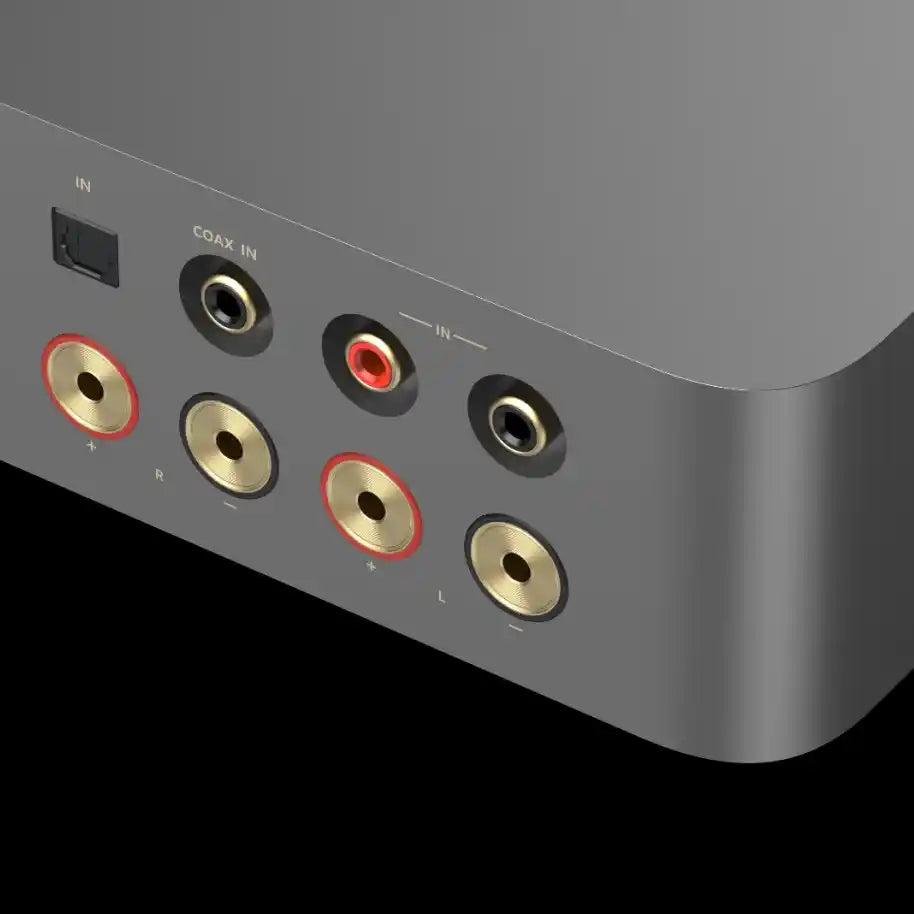

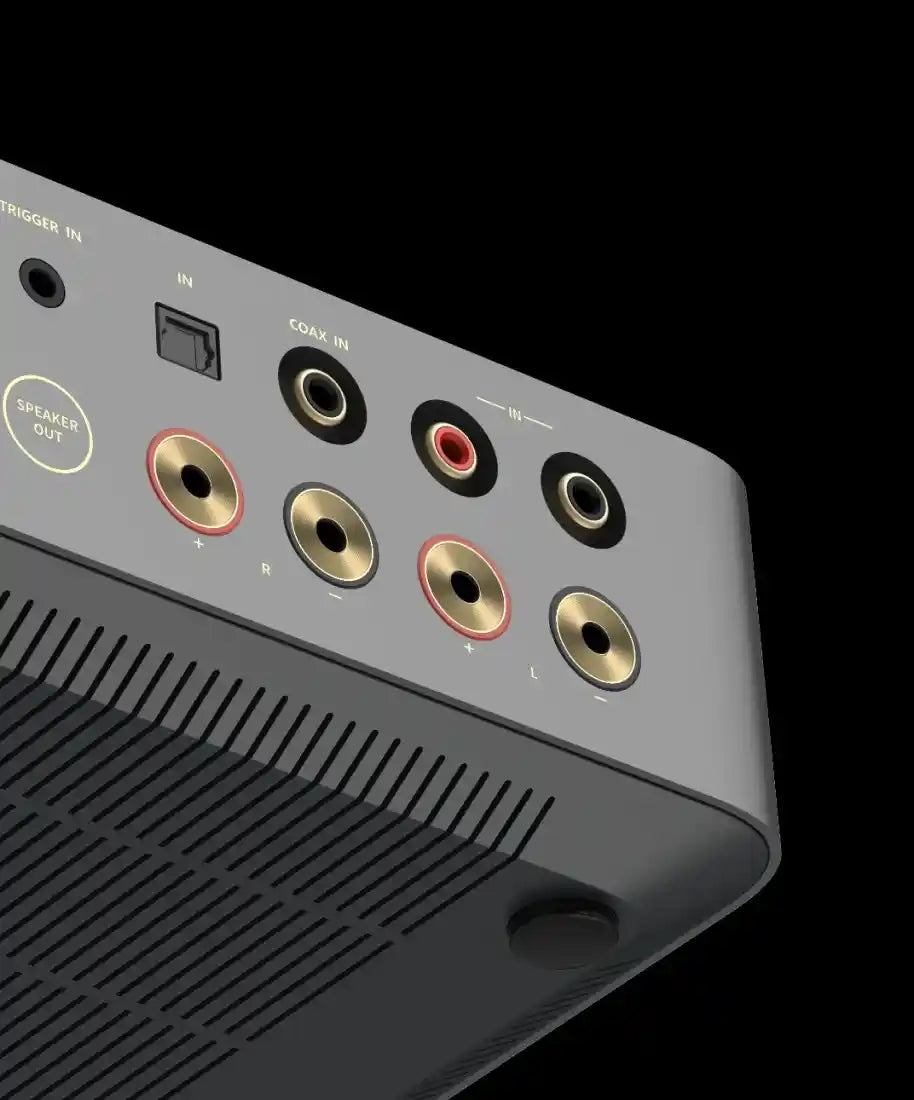

Input & Output Options
Analog Inputs:
• 1x RCA Stereo (Line-In, pure analog signal path)
Digital Inputs:
• 1x Optical (TOSLINK) – Up to 192kHz/24-bit
• 1x Coaxial (S/PDIF) – Up to 192kHz/24-bit
Speaker Outputs:
• Gold-plated binding posts (supports banana plugs or bare wire connections)
Trigger & Power Management:
• 12V Trigger In: Auto power-on with compatible devices
• Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity
• 1x RCA Stereo (Line-In, pure analog signal path)
Digital Inputs:
• 1x Optical (TOSLINK) – Up to 192kHz/24-bit
• 1x Coaxial (S/PDIF) – Up to 192kHz/24-bit
Speaker Outputs:
• Gold-plated binding posts (supports banana plugs or bare wire connections)
Trigger & Power Management:
• 12V Trigger In: Auto power-on with compatible devices
• Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity
Supported Audio Formats
• PCM up to 192kHz/24-bit (through digital sources)
Control Interfaces

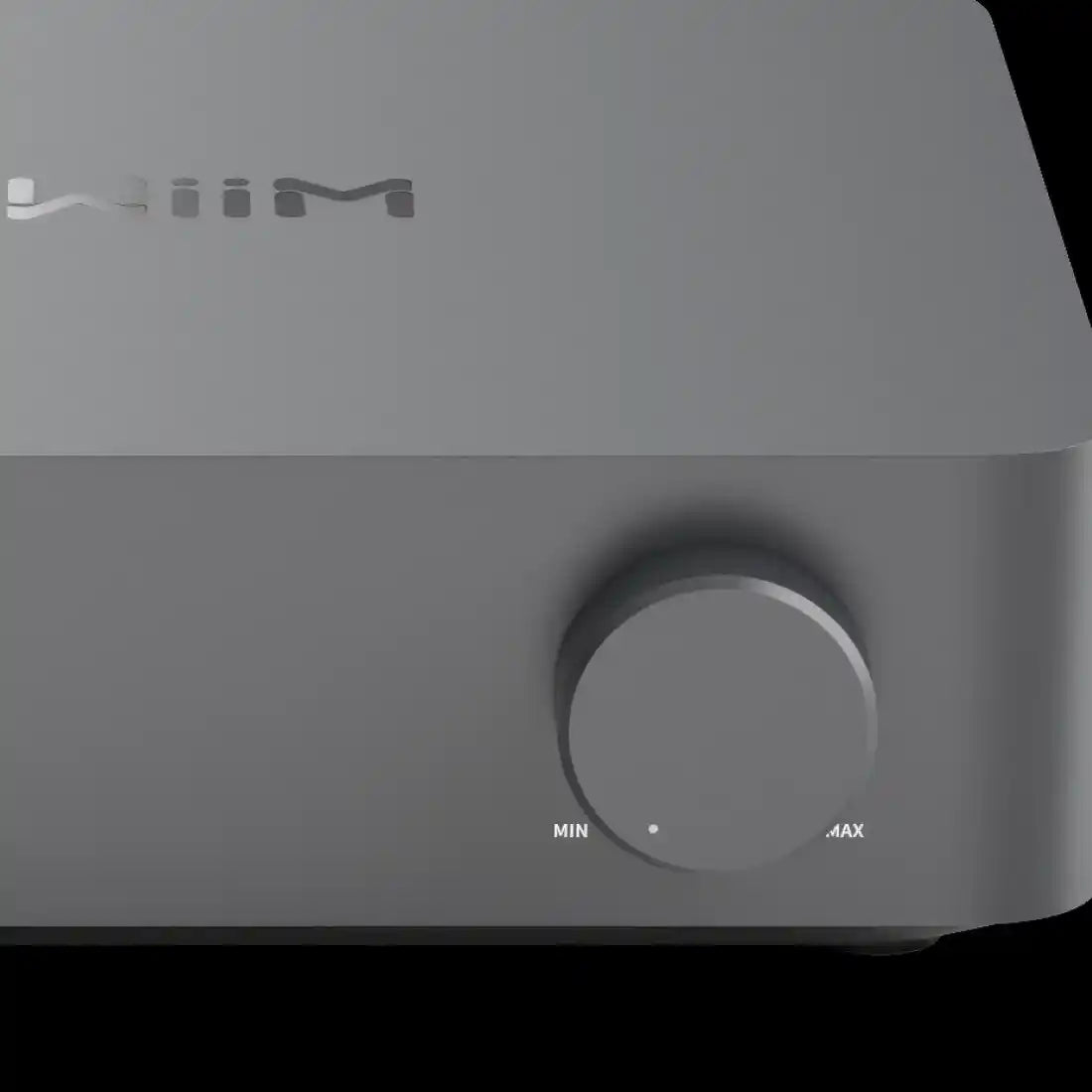

• Volume Knob: Adjusts volume

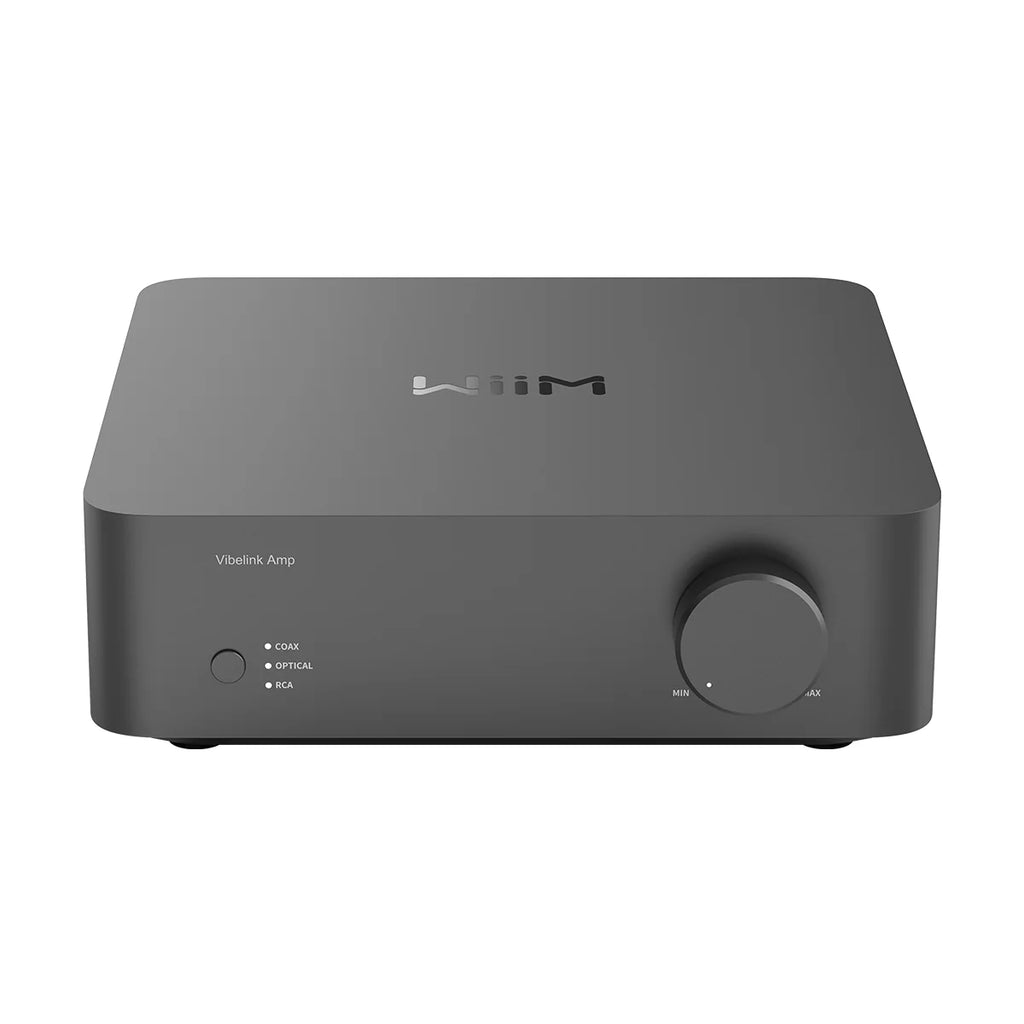

• LED Indicator: Three 4-color RGBW LED indicates source input and device status
Build & Design
• Chassis: Premium unibody aluminum for durability & heat dissipation
• Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control
• Cooling System: Passive, silent operation
Package Contents
• Use Guide x1
• Power Cable x1
• RCA Cable x1
• Optical Cable x1
• Banana Plugs x4
• Power Cable x1
• RCA Cable x1
• Optical Cable x1
• Banana Plugs x4
