Volumio LINEO5 5V / 5A Linear Power Supply
LINEO5 is a dedicated low-noise 5V/5A linear power supply for compatible Volumio components and other suitable 5V audio equipment, replacing a switch-mode adapter with a larger regulated supply.
LINEO5 is an accessory rather than a source component, and it should be treated that way. It provides a stable 5V DC output at up to 5A and is specifically listed by Volumio for RIVO, RIVO+, PRECISO, Primo V2, Primo V3 and Primo Plus.
The supply uses a substantial aluminium chassis with side heatsinks and ships with AC cables including AU/NZ plus the DC output lead. It is not compatible with INTEGRO or MOTIVO, which use different power requirements.
A Proper Power Supply Upgrade
Use only where the voltage and connector match
The value of LINEO5 is straightforward: it replaces the small external switching supply on compatible 5V components with a dedicated linear unit. It should never be treated as a universal power accessory simply because the connector fits.
Compatibility
Know which Volumio components it is intended for
Volumio currently lists compatibility with RIVO, RIVO+, PRECISO, Primo V2, Primo V3 and Primo Plus. INTEGRO and MOTIVO are specifically excluded.
Installation
Allow space for heat and cabling

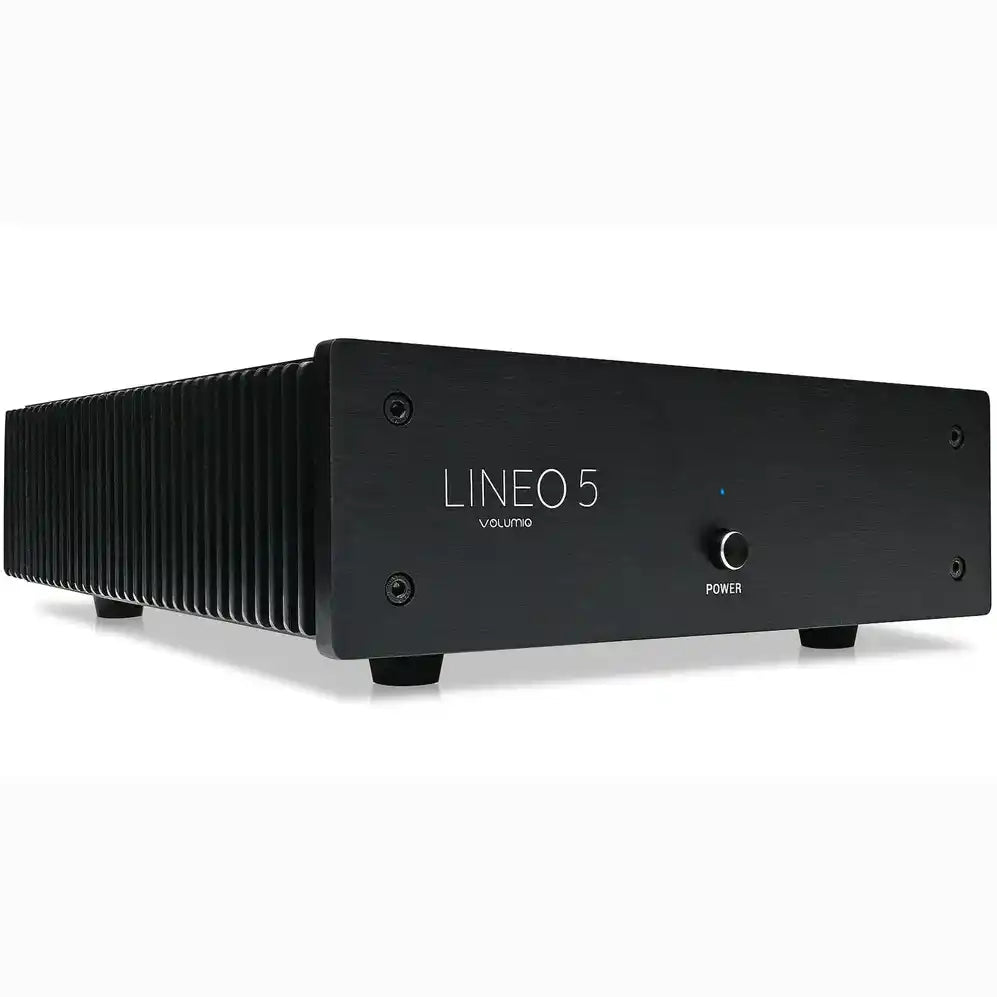

The chassis is 270 × 227 × 77mm and weighs around 4kg, so it needs more shelf space than the streamer it may be powering. Side-facing heatsinks should not be blocked in a tight cabinet.
Key Features
- 5V DC output
- Up to 5A output current
- Switchable 110-120V / 220-240V AC input
- Aluminium chassis with side heatsinks
- AU/NZ mains lead included
- 5.5 × 2.1mm centre-positive DC lead
- Compatible with selected Volumio 5V components
Specifications
| Specification | Details |
|---|---|
| Product type | Linear DC power supply |
| Input | 110-120V AC 60Hz or 220-240V AC 50Hz |
| Output | 5V DC |
| Maximum current | 5A |
| Maximum consumption | 90W at full load |
| Dimensions | 270 × 227 × 77mm |
| Weight | 4.0kg |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Compatibility
- Volumio RIVO
- Volumio RIVO+
- Volumio PRECISO
- Volumio Primo V2
- Volumio Primo V3
- Volumio Primo Plus
Not Compatible
- Volumio INTEGRO
- Volumio MOTIVO
In the Box
- LINEO5 linear power supply
- AC cables including AU/NZ
- Bipolar-to-5.5 × 2.1mm centre-positive DC cable
Important Notes
- Confirm voltage, current and polarity before connecting LINEO5 to any non-Volumio equipment.
- LINEO5 is not compatible with Volumio INTEGRO or MOTIVO.
- Display Stock tag preserved from the live TAE product.
The Audio Experts Take
LINEO5 is an accessory where compatibility has to be clear before it is recommended. On the supported Volumio 5V products it is a tidy, manufacturer-backed power upgrade with the right lead supplied; on an unrelated component it should not be sold on connector size alone.
Because the supply itself is large and heavy, allow proper shelf space and ventilation rather than hiding it behind the streamer.
