AUDIO
Audio playback
Bit-Perfect up to 192kHz/24 bit.
Analogue Input
1x Stereo RCA
Digital Inputs
SPDIF Coaxial and Optical
Subwoofer Output
1 x RCA
Headphone Output
High quality (jack 6.3mm)
Video output
HDMI

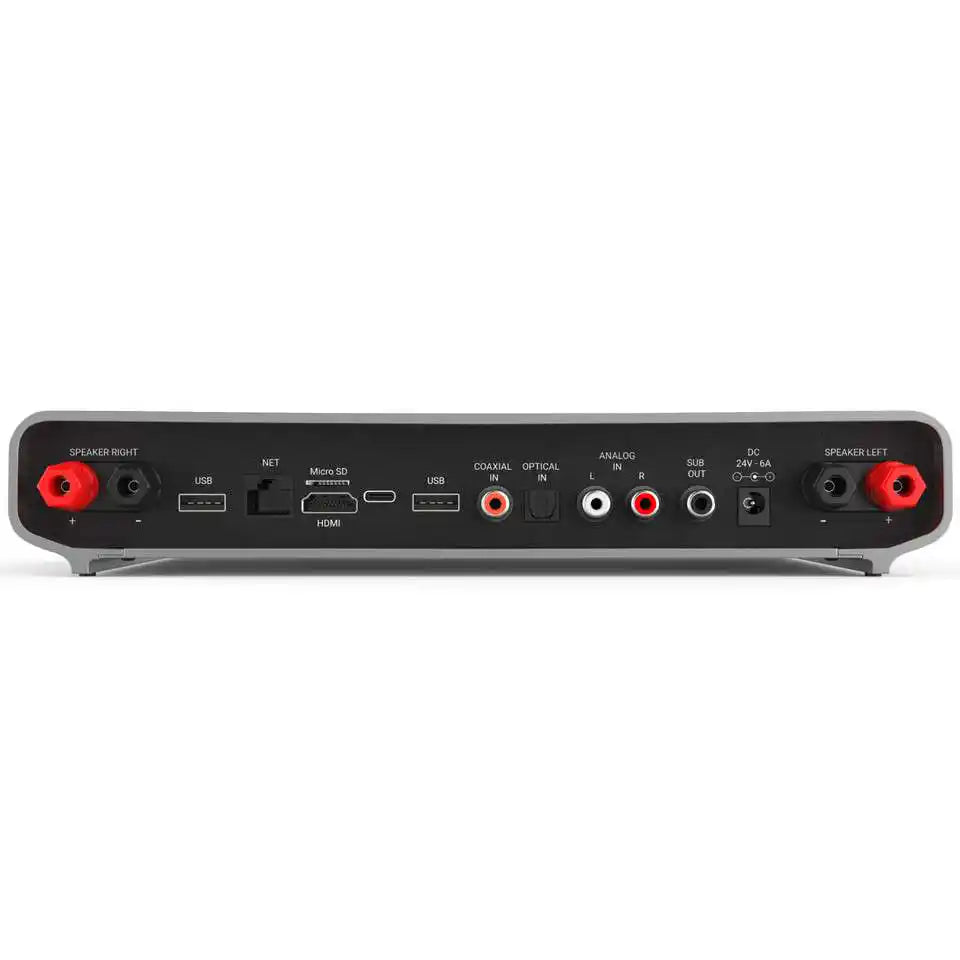

INPUT & OUTPUT
Speaker Amplifier
Sample frequency up to 192kHz/24bit resolution
Output Power 2x50W RMS with 8 Ohm load, 2x70W RMS with 4 Ohm load.
Powered by two MA12070P amplifiers from Infineon, in dual-mono configuration (PBTL Mode).
Output stage made with WIMA polypropylene capacitors and high saturation-current inductors.
Headphone amplifier
High-quality 6.3mm jack connector, with headphone insertion detection.
Sample frequency up to 192kHz/24bit resolution
Output Power 2x300mW RMS with 64Ohm load, 2x480mW with 32Ohm load.
Powered by PCM5122 DAC from Texas Instruments, together with a TPA6120A2 headphone amplifier from Texas Instruments.
Subwoofer output
Mono RCA connector
Sample frequency up to: 192kHz/24bit resolution
Signal level 2Vrms
Powered by PCM5121 DAC from Texas Instruments, together with an OPAMP-based summing circuit for the mono down-mix.
Analog input
Stereo RCA connector
Sample frequency up to: 192kHz/24bit resolution
Powered by PCM1861 ADC from Texas Instruments
Digital input
Coaxial RCA connector and optical TOSLINK connector
Sample frequency up to: 192kHz/24bit resolution
Powered by WM8805 from Wolfson Microelectronic (acquired by Cirrus Logic).
POWER & CONNECTIVITY
Power
2x50W RMS with 8 Ohm load, 2x70W RMS with 4 Ohm load.
USB
1x USB3.0, 1x USB 2.0
LAN
Gigabit 10/100/1000M
Wireless
Wi-Fi 802.11a/b/g/n/ac, 2X2 MIMO with RSDB
Bluetooth
5.0 APT-X, APT-X LL.
UPNP DLNA
Renderer with Open Home support
Supported Services
Airplay via Shairport Sync, Spotify & Spotify Connect, TIDAL & TIDAL Connect, QOBUZ
Available Plugins
Youtube, Squeezelite, Radio Paradise, Podcasts, Pandora, Fusion DSP, Roon Bridge, Soundcloud, Mixcloud
CPU
Amlogic S905D3, Quad Core 1.9 GHz
RAM
2 GB DDR4
Internal Storage
16 GB EMMCz
Power Supply
24 V CC, 6A
Included Accessories
PSU AC 100-240 V CA
DESIGN
Designer
Design Narratives Ltd.
Weight
2.7 kg
Dimensions
33.5 × 20.5 × 11 cm
