Valerion VisionMaster Max 4K RGB Triple Laser Home Cinema Projector

Valerion VisionMaster Max 4K RGB Triple Laser Home Cinema Projector

A 4K UHD RGB triple-laser home cinema projector combining 3,500 ISO lumens, advanced black-level control, optical zoom and vertical lens shift for serious big-screen movie viewing, streaming and gaming.

The VisionMaster Max sits at the top of Valerion's VisionMaster range. It pairs a wide-colour RGB laser light source with a dynamic iris, Enhanced Black Level (EBL) processing and stray-light control. The aim is to give large projected images the brightness and colour needed for HDR material while improving the darker scenes that can be challenging for many compact DLP projectors.

Its practical advantage is the combination of picture controls and installation flexibility. The 0.9–1.5:1 throw-ratio range and optical vertical lens shift allow more scope to position the projector around an existing screen than fixed-lens designs. That makes it relevant to both dedicated home cinemas and carefully planned multi-purpose rooms.

RGB Triple Laser and HDR Picture Performance

Colour and light output. The RGB triple-laser engine is rated at 3,500 ISO lumens and a claimed 110% Rec.2020 colour-gamut coverage. Those figures describe the light source and colour capability, rather than a guarantee of equal brightness in every picture mode. Screen size, screen gain, ambient light and calibration still determine the image seen from the sofa.

Black-level control. The NoirScene system combines a six-level precision iris, EBL processing and stray-light shielding. Valerion specifies 5,000:1 native contrast and up to 50,000:1 viewing contrast. These are different measures, so they should not be treated as interchangeable. The benefit to look for is more control over shadow detail and bright highlights in real film material.

Modern film formats. Dolby Vision, HDR10+, HDR10, HLG, IMAX Enhanced and Filmmaker Mode support give the projector a broad range of playback options. Dynamic tone mapping helps adapt HDR material to the projector's available light output. Final results still depend on the source, screen and picture settings.

Optical Placement Flexibility

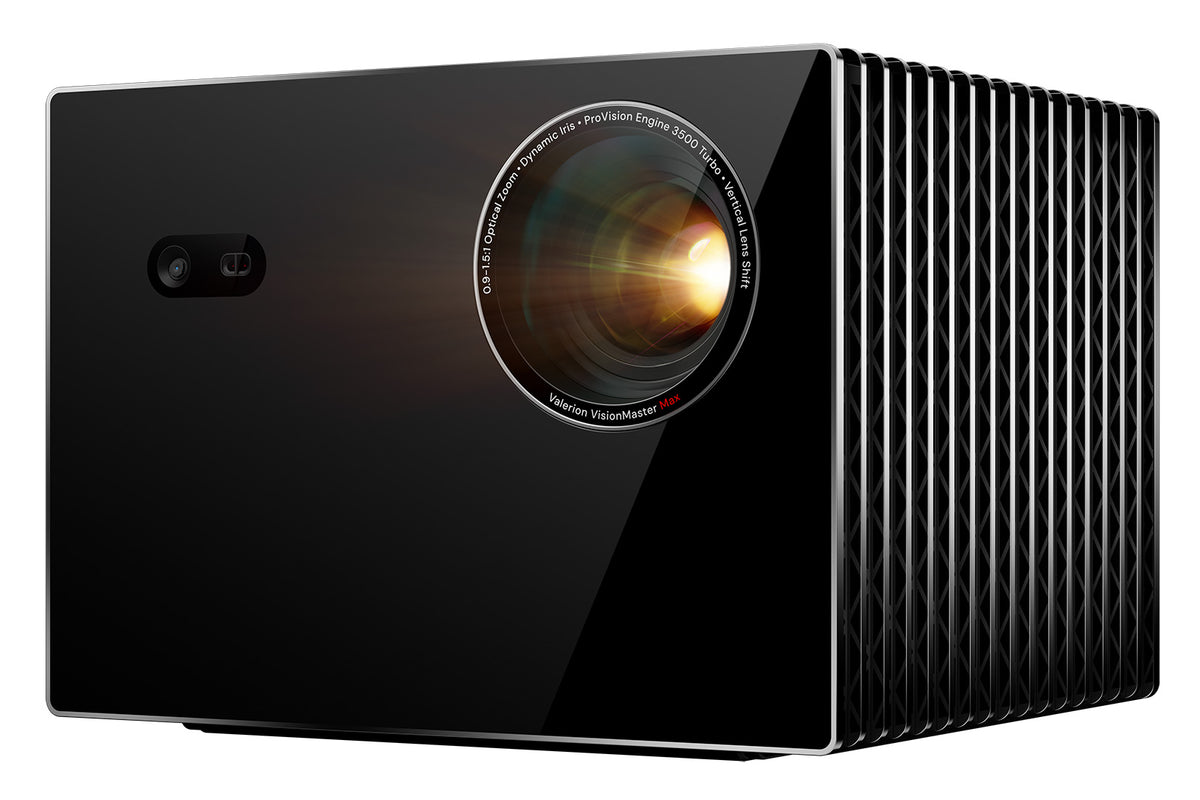

Zoom and lens shift. The standard lens provides a 0.9–1.5:1 throw ratio and optical vertical lens shift with a manufacturer-rated ±105% offset. This helps align the picture without relying entirely on digital keystone correction. An optional external lens system can extend the throw range, but it should not be assumed to be included.

Plan the screen first. Valerion lists image sizes from 40 to 300 inches. That is a supported range, not a recommendation to use the largest possible image in every room. For a satisfying HDR picture, screen width, viewing distance, room-light control and gain should be considered together. Check the actual lens-to-screen distance and mounting clearances before ordering a bracket or cutting cable routes.

Optical alignment over digital correction. Lens shift and correct physical positioning are preferable to heavy keystone correction for a permanent cinema installation. Keep the lens centred horizontally where practical and confirm the required vertical shift against the chosen screen height.

Movies, Streaming and Gaming

Built-in Google TV. Google TV brings supported streaming services directly to the projector, while AirPlay 2, Chromecast and Miracast provide casting options. Wi-Fi 6E and Gigabit Ethernet are available for network connection. For high-bitrate local files or a permanent cinema installation, a wired network is worth considering.

Responsive gaming. Published input-lag figures are 15ms at 4K/60Hz, 8ms at 1080p/120Hz and 4ms at 1080p/240Hz. Those are mode-specific measurements, so the fastest figure should not be read as a 4K gaming result. ALLM and game-oriented picture options are included.

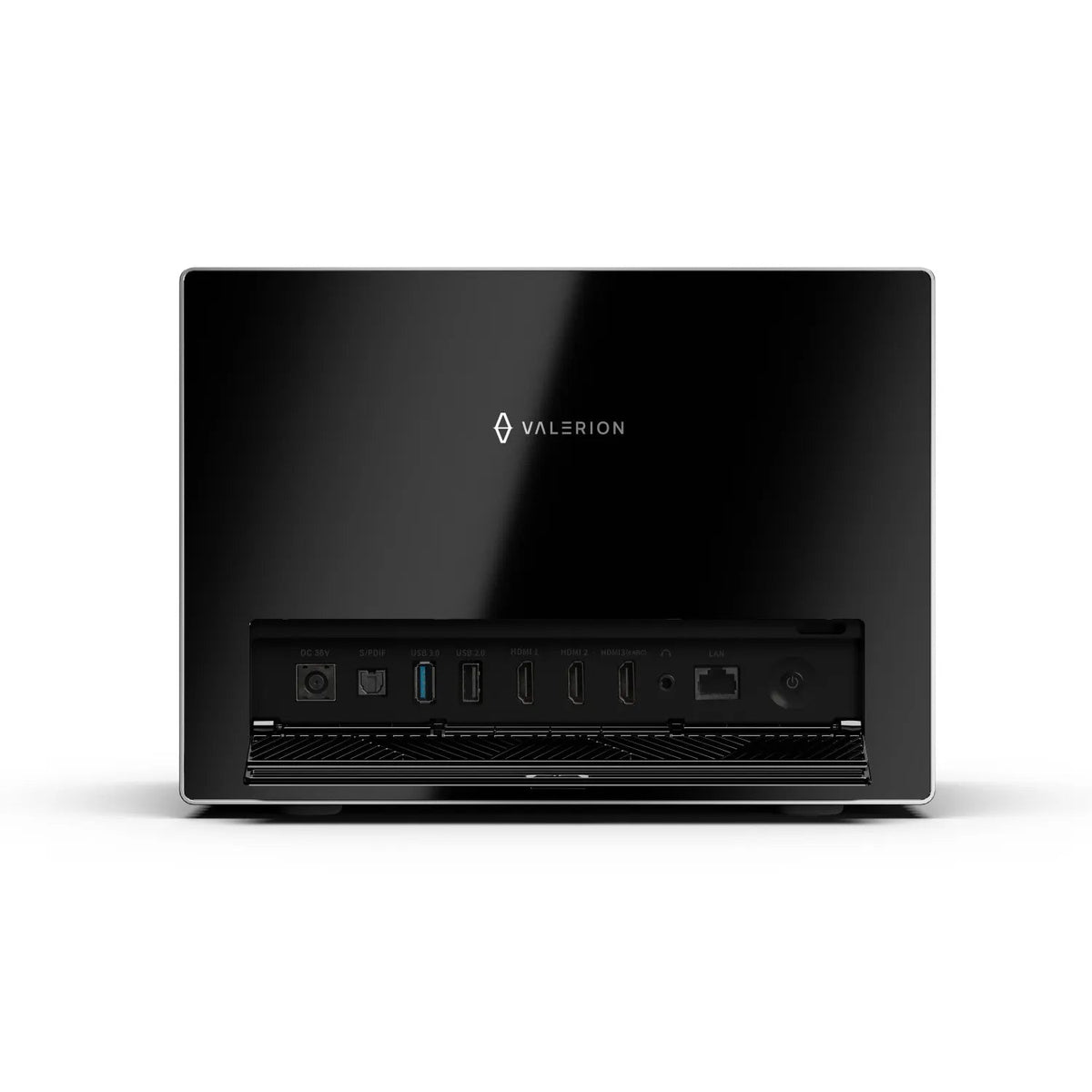

Audio and system integration. The built-in 2 x 12W speakers are useful for simple viewing, while HDMI eARC and optical audio output support integration with external audio equipment. A separate AV receiver and speaker system is the better match for a dedicated cinema. Confirm the HDMI and audio-return configuration for your chosen sources and receiver before cabling the room.

Key Features

• 4K UHD output from a 0.47-inch DLP DMD imaging platform with RGB triple-laser illumination.
• 3,500 ISO lumens and claimed 110% Rec.2020 colour-gamut coverage.
• NoirScene black-level system with six-level iris and EBL processing.
• 5,000:1 native contrast and up to 50,000:1 manufacturer-rated viewing contrast.
• 0.9–1.5:1 standard optical throw ratio and vertical optical lens shift.
• Dolby Vision, HDR10+, HDR10, HLG, IMAX Enhanced, Filmmaker Mode and active 3D.
• Google TV, Wi-Fi 6E, Gigabit Ethernet and casting support.
• Low-latency modes for 4K/60Hz and high-refresh-rate 1080p gaming.

Specifications

Detailed Technical Specifications

For those who like to drag out all the useful bits

Important Notes

• The 0.47-inch DMD is a DLP imaging device that produces a 3840 x 2160 UHD image; do not confuse displayed 4K UHD resolution with a native 3840 x 2160 imaging chip.
• 3,500 ISO lumens, native contrast and viewing contrast are different measurements. Screen gain, room lighting, picture mode and calibration affect real-world performance.
• Optional external lens accessories, ceiling mount, projection screen and external sound system should not be assumed included.
• Plan the throw distance, lens shift, ventilation, mounting structure, power and cable access before installation. The projector weighs 7.5kg.
• Contact The Audio Experts for current availability, Australian warranty details and projector-to-screen matching.

The Audio Experts Take

The VisionMaster Max is particularly interesting for customers who want a substantial 4K home cinema image but need more placement freedom than a fixed-throw lifestyle projector provides. Its optical zoom and vertical lens shift make it easier to design around a sensible screen position, while the iris and EBL system address an important issue for movie watching: maintaining useful depth and separation in dark scenes.

We would prioritise the screen and room plan before choosing a mounting location. A well-matched 110–130-inch screen in a controlled-light room may deliver a more balanced HDR result than chasing the maximum advertised image size. If you are building a dedicated cinema, allow for an AV receiver, proper surround speakers and wired network or HDMI connections. The Audio Experts can assist with screen selection, throw-distance checks, installation and picture setup.

Contact The Audio Experts to confirm current stock, Australian warranty and installation options.
