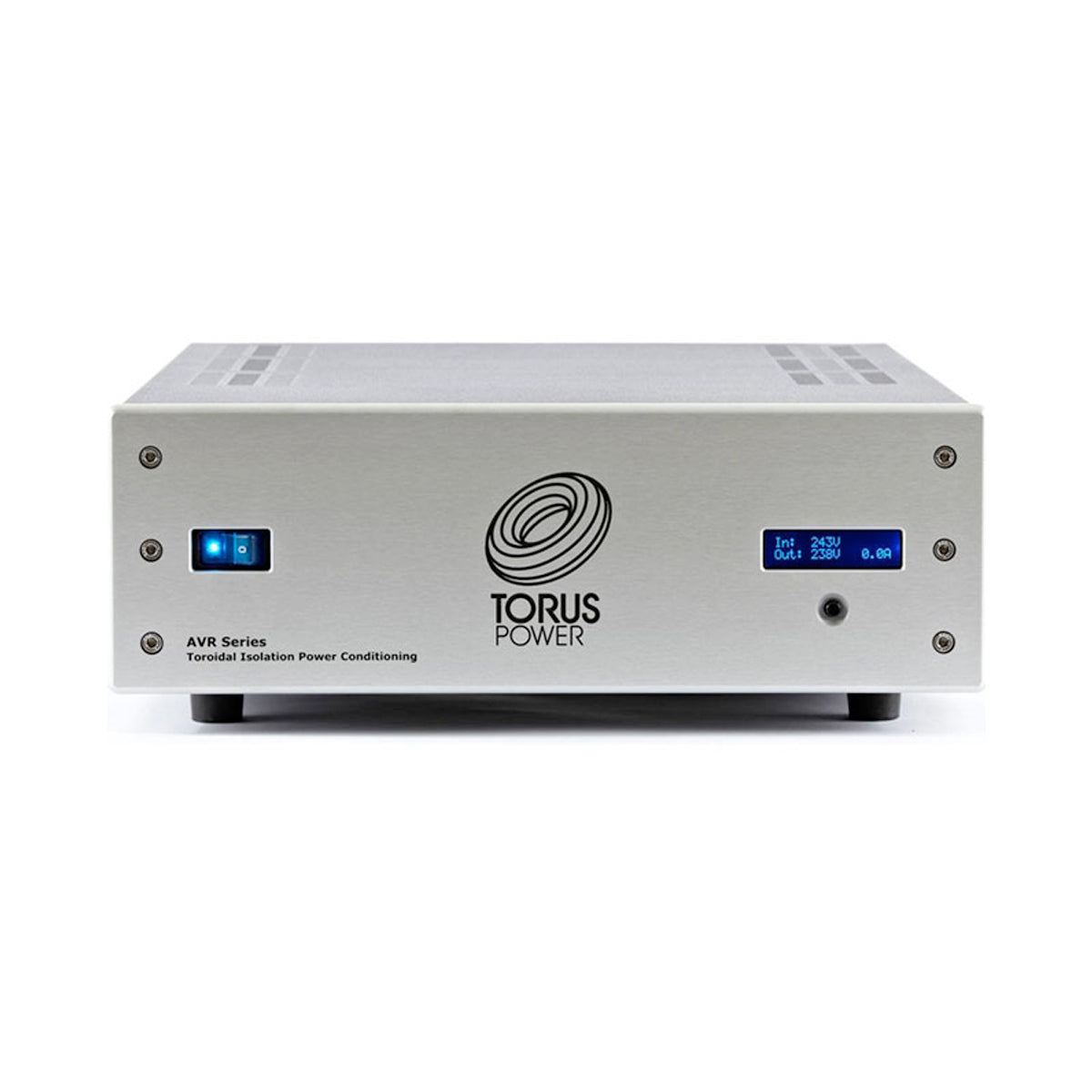

Torus Power AVR-2 Series
The Torus AVR Series Power Conditioner has the most feature-rich models in the Torus Power line-up, with enhanced Ethernet control and monitoring features. Performance and protection remains consistent with other models in the Torus line.
Custom Control of the Torus Power AVR-2 Series
- All features of the AVR Series
- Individually addressable outlet zones
- Power-up sequencing with selectable delay time between zones
- Scheduling features allows automatic control (on/off) of any outlet zone
- Schedule up to 6 events per day per zone
- Automatic reboot feature allows remote restart of routers and modems if internet connection lost
- Schedule remains active when internet connection is lost, if system power maintained
SPECIFICATIONS
| MODEL |
AVR2 8 AUS |
AVR2 16 AUS |
AVR2 30 AUS |
AVR2 45 AUS |
| FACEPLATE |
19″ RACK MOUNT (RK), 17″ SILVER (CS), 17″ BLACK (CB) |
| CHASSIS |
4U |
5U |
| INPUT |
240 VAC (Operating Range 170 — 270V) |
| OUTPUT VOLTAGE |
220 — 240 VAC ± 10 V |
| INPUT CURRENT LIMITING* |
8A (C) |
16A (C) |
2 X 30A (F) |
2 X 45A (F) |
| OUTPUT CURRENT |
8A |
16A |
30A |
45A |
| POWER VA |
1,920 |
3,840 |
7,200 |
10,800 |
| FREQUENCY |
50 / 60 Hz |
| NO. OUTLETS |
5 |
7 |
8 |
| INLET 250V |
IEC 15A NEMA C14 |
IEC 20A NEMA C20 |
Hubbell Twist-lock |
| 30A NEMA L6-30P |
50A 2PW |
| OUTLET 250V AUS SOCKET |
10 A |
20A |
| WEIGHT LB |
77 |
123 |
188.5 |
220 |
| WEIGHT KG |
35.0 |
56.0 |
85.5 |
100 |
| SIZE MM |
|
| Width |
483 |
483 |
483 |
483 |
| Depth |
483 |
559 |
559 |
660 |
| Height |
203 |
249 |
249 |
249 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
