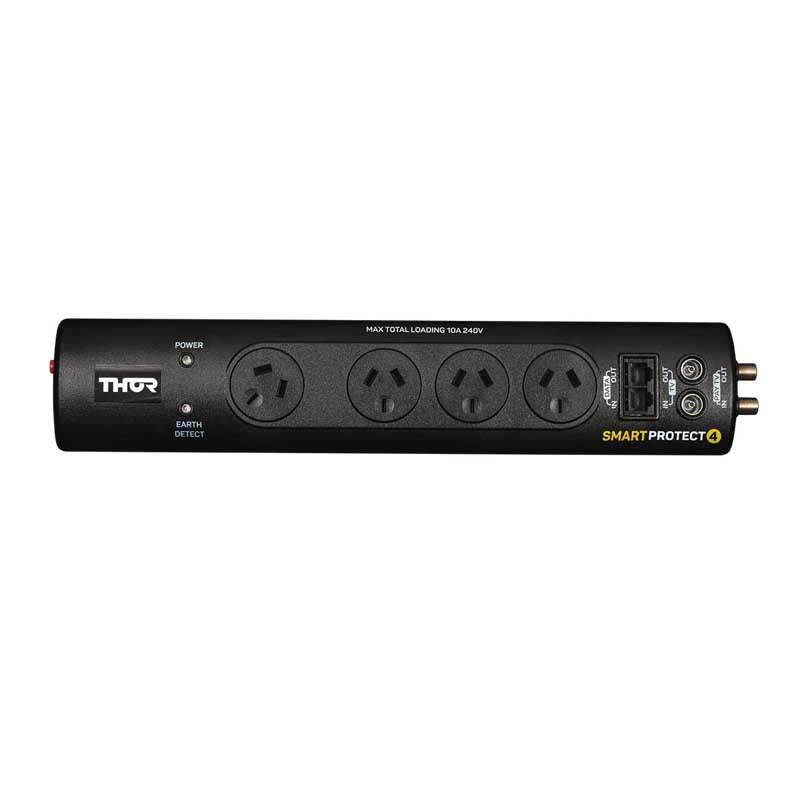

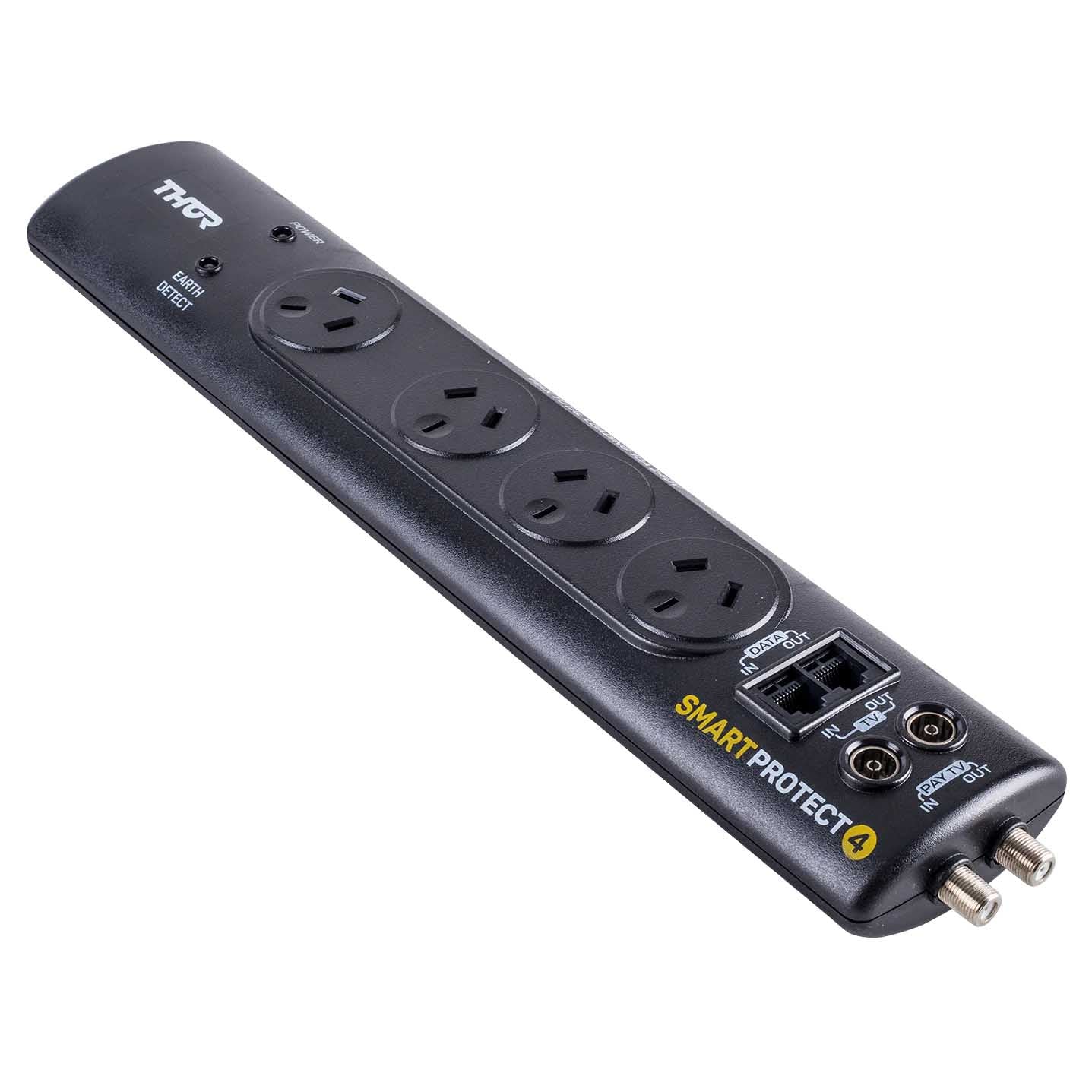

Thor E1/45U - 4Way Filtered Board with Better Filtration and USB

SMART TECHNOLOGY POWER PROTECTION AND

Filtration

• Universal Filter and Surge Protector with 4 Outlets 2 Xturbo chagrge USB (4.8A) with space saving angle plug for power packs.
• Earth detection & protection LED’s, Coax/F-TypeAerial and RJ45 Data Protection.
• 1.2 metre extension cord with a space saving flat head plug,
• The Thor E1/45U provides a powerful barrier against transient spikes and interferences which are major causes ofhardware and data failure.
• Comes with multiple application identity tags, 6-year product replacement warranty and $75,000 connected equipmentwarranty.

Features

• 4 Protected Outlets
• 2 USB ports (Massive 4.8A Fast Charging)
• Earth Detection Circuit
• Large Plug Adaptor
• Aerial Protection
• Pay TV Protection
• Date/Voice Protection
• 1.2m Cable Length
• Fire Retardent
• 6 Year Replacement Warranty

Ideal For

• Home Theatre

• High Definition TV

• Bedroom/Office AV

• Home office IT system

• Phone or other portable electronics charging
• Office computer system

Protects

• OLED/LCD TV
• HIFI AND HOME THEATRE
• ACTIVE / PASSIVE SPEAKERS
• COMPUTERS - LAPTOP & TABLETS
• PRINTERS & SCANNERS

TECHNICAL SMARTS

• Product Dimensions: 430mm (L) x 35mm (H) x 75mm (W)
• Supply voltage 240/V AC 50/Hz
• Maximum current rating 10amps/2400W(VA)
• Clamping voltage 275V AC
• Reaction time less than 1 nanosecond
• Maximum translent spike impulse current 125,000 amps (equivalent to 31,200 amps using UL 1449 standard)
• Maximum energy dissipation 3670 Joules (equivalent to 1240 Joules using UL1449 standard)
• Protection modes (all 4 outlets protects on all 3 conductors). Active/Neutral, Active/Earth, Neutral/Earth
• EMI/RFI noise reduction filter type
• Total number of protected AC outlets: 4
• Total number of protected USB ports: 2
• Pay TV'F' type connection: 1 in and 1 out
• AV/TV antenna coax connection: 1 in and 1 out
• RJ 45 data protection: 1 in and 2 out
• Earth potential rise protection
• Earth leakage range less than 1 milli amp
• Operating conditions: Indoor/AC mains
• Operating temperatures: -10C/+60C
• Cable length: 1.2m
• Model No: E1/45U
