Description
POWER PROTECTION AND FILTRATION

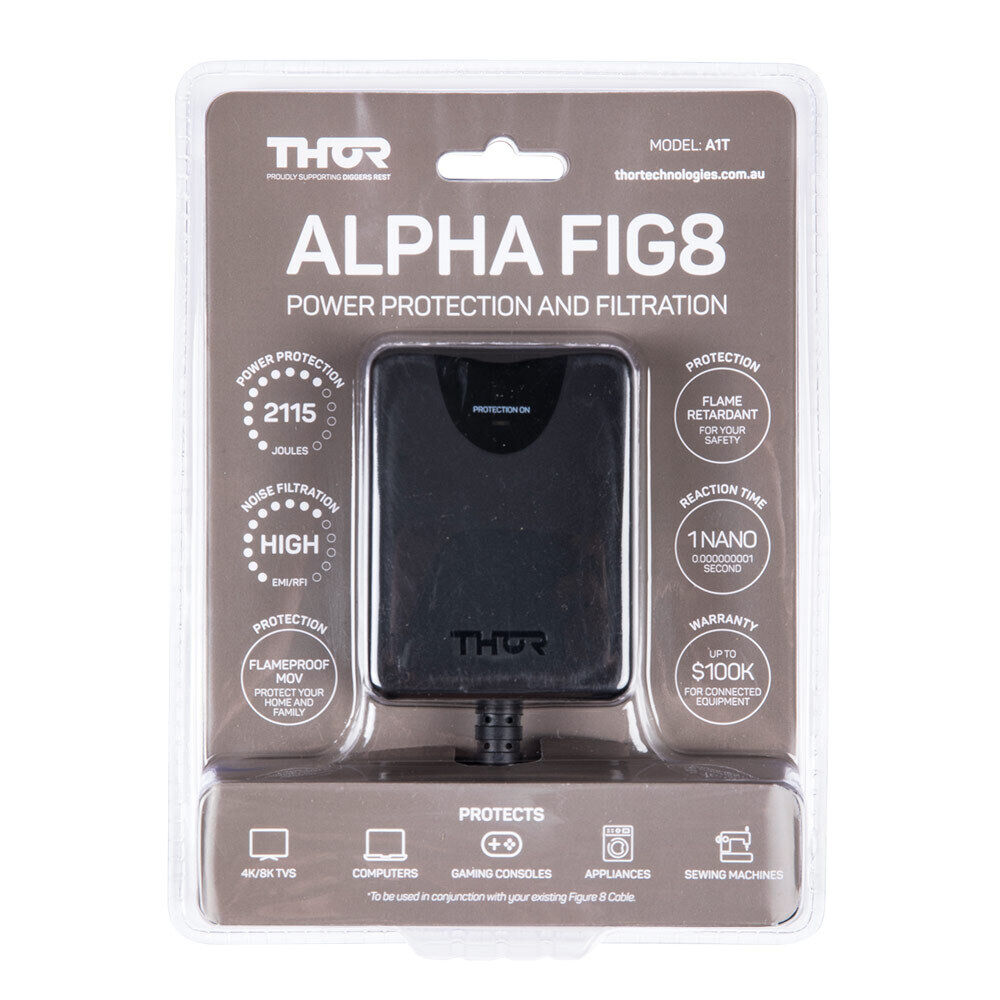

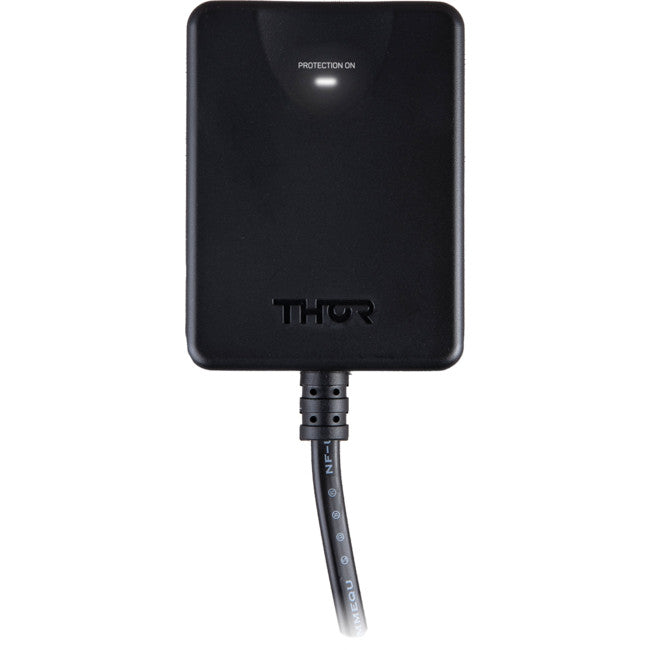

ALPHA FIG8 is the affordable way to have power protection for your most valuable electrical equipment. The new slimline design now means you can have surge protection and filtration anywhere.
ALPHA FIG8 is the latest addition to the Thor Technologies product range and includes newly developed Mains Super Filter (MSF) technology.
The MSF is aimed at ensuring only the cleanest power is delivered to your investment. This benefit means dirty power
is not robbing your connected equipment of its performance. The effects of unwanted dirty power or interference is reduced or eliminated.
Now including Flameproof MOV
Flameproof MOV ensures the main protection components will not catch fire while protecting from dangerous surges. The choice of Flameproof components and the added flame retardant housing safeguards ensures your home and family will always be safe.
- Inline protected outlet
- Power LED
- Alarm buzzer which detects if a surge circuit is damaged
- Flame proof MOV
- Flame retardant housing

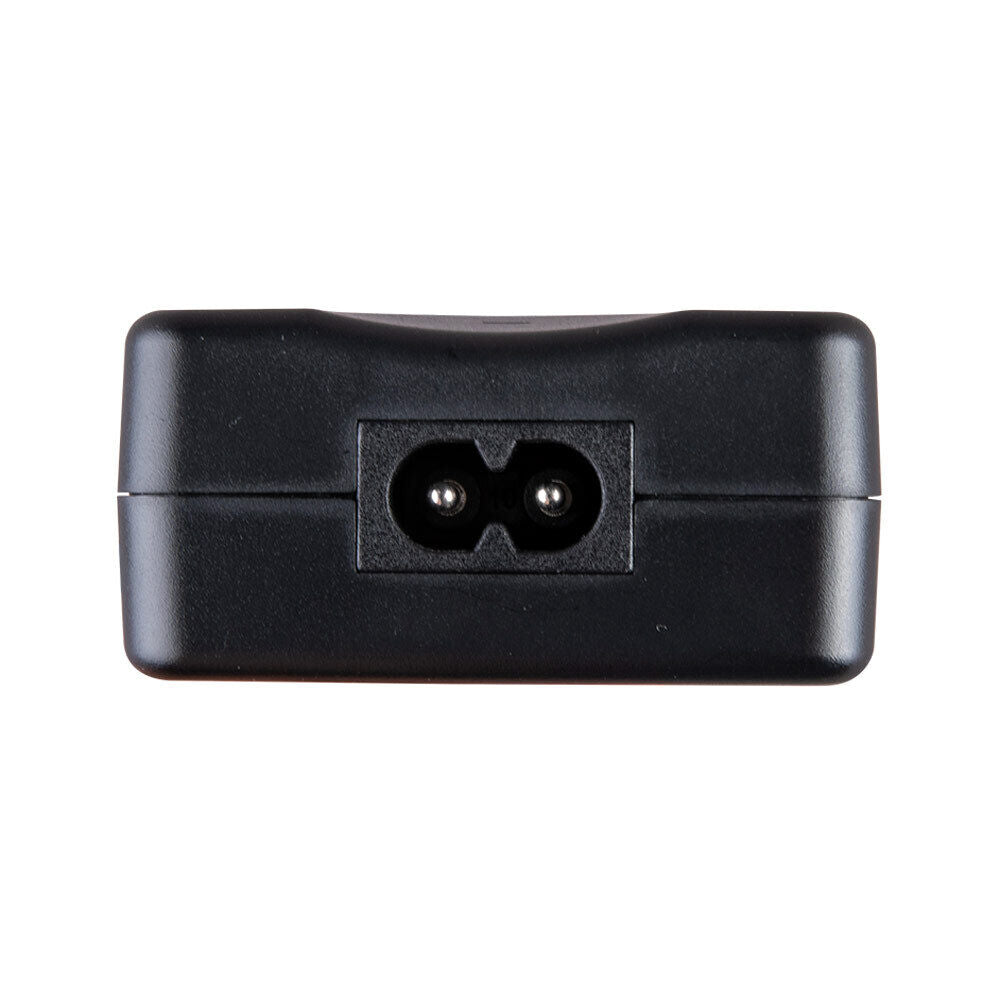

- Figure 8 connector
TV Mountable
The ALPHA FIG8’s slimline design enables it to be installed on a TV mount bracket, so it is out of sight.
Please note
The ALPHA FIG8 is used in conjunction with your existing Figure 8 Cable or Manufacturers supplied Figure 8 Cable.
TECHNICAL SMARTS
Model No: A1T
- Supply voltage 230/240V 50Hz
- Maximum current rating 2.5amps/600W (VA)
- Clamping/Let Through Voltage 510VAC
- Reaction time less than 1 nanosecond
- Maximum energy dissipation 2115 Joules (equivalent to 705 Joules using UL1449 standard)
- Protection modes (1 outlet protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth
- Total number of protected AC outlets: 1
- Earth potential rise protection
- Earth leakage range less than 1 milli amp
- Operating conditions: Indoor/AC mains
- Operating temperatures: -10C/+60C
