TAOC High Carbon Insulator
High-Carbon Cast-Iron
TAOC High Carbon Insulator is a trusted brand who believes in "Controlling" rather than "damping" vibrations as the foundation of audio is the setup.
TAOC is Aisin Takaoka's brand of high-grade audio equipment established in 1983. A member of the Toyota group of companies, Aisin Takaoka is one of the world's top casting companies and is the largest producer of cast-iron automobile parts in Japan.
The common driving force behind all TAOC products is cast-iron. Their focus is on the damping of the graphite contained in cast-iron.
Following are the different varieties of Taoc High Carbon Insulators:-
TITE-25MF (set of four)
This is a hybrid insulator made of molded maple, a new material that gives richness to the sound, and high-carbon cast-iron, which enhances the freshness of the sound.
-
25 mm high x50mm diameter
- Weight : 250g per insulator
- Recommended load: 10kg or more/set of four
- Wooden portion: Molded maple with black finish
-
cast-iron portion: High-carbon cast-iron with urban gray finish
25WF (set of four)
These insulators are best to use as legs for players and amplifiers to provide more power to your sound. They are made of a combination of high-carbon cast-iron and a special felt material. Replace this with the standard insulator on your audio equipment for a clearer and more powerful sound.
- 22mm high x50mm diameter
- Weight: 250g per insulator
- Recommended load: 10kg or more/set of four
- Matte black finish
-
With felt

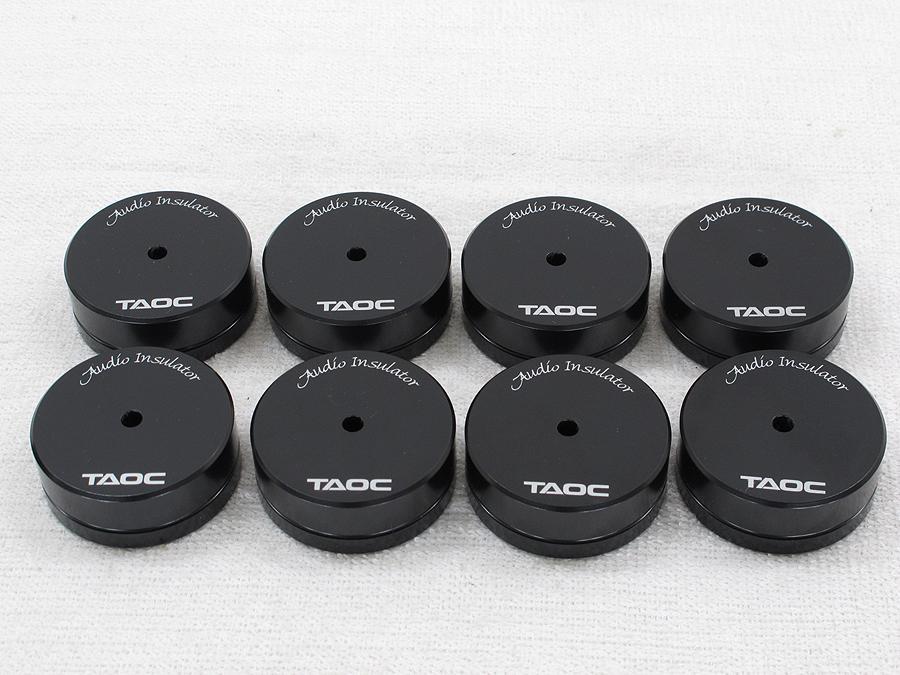

TITE-25GS (set of eight)
These gradation cast iron insulators are designed for a broad range of uses. They add brightness to the sound of your system. Ideal for both speakers and amplifiers.
-
20mm high x50mm diameter
-
Weight:250g per insulator
-
Recommended load: 10kg or more/set of four
-
Matte black finish

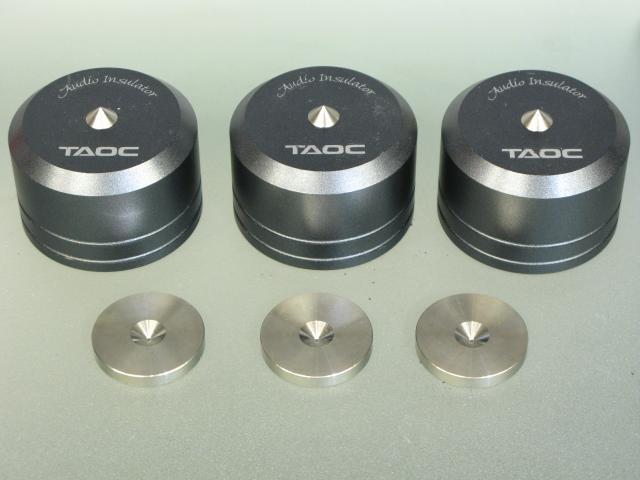

TITE46GP (set of three)
The TITE-46GP clear up fogginess in the mid to low ranges to create a sound with an excellent sense of depth.
-
45mm high x60mm diameter
-
Plate : 5mm high x35mm diameter
-
Weight : 800g per insulator
-
Recommended load: 20kg or more/set of three
-
Urban gray finish

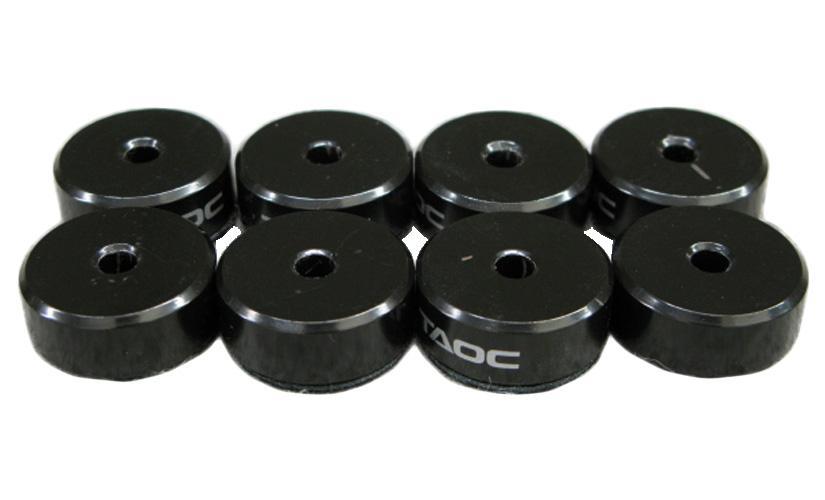

TITE13GS (set of eight)
TITE-13GS is a smaller version of the insulator used in the TAOC speaker system "FC3100" to be used for small-size speakers. It comes with high-quality felt material that users can attach to suit their sound tastes. Idealfor speakers. Great for damping and control vibrations on a broad range of audio and video equipment.
- 10mm high x25mm diameter
- Weight: 250g per insulator
- Recommended load: 5-15kg/set of four
- Matte black finish
-
Felt attachment

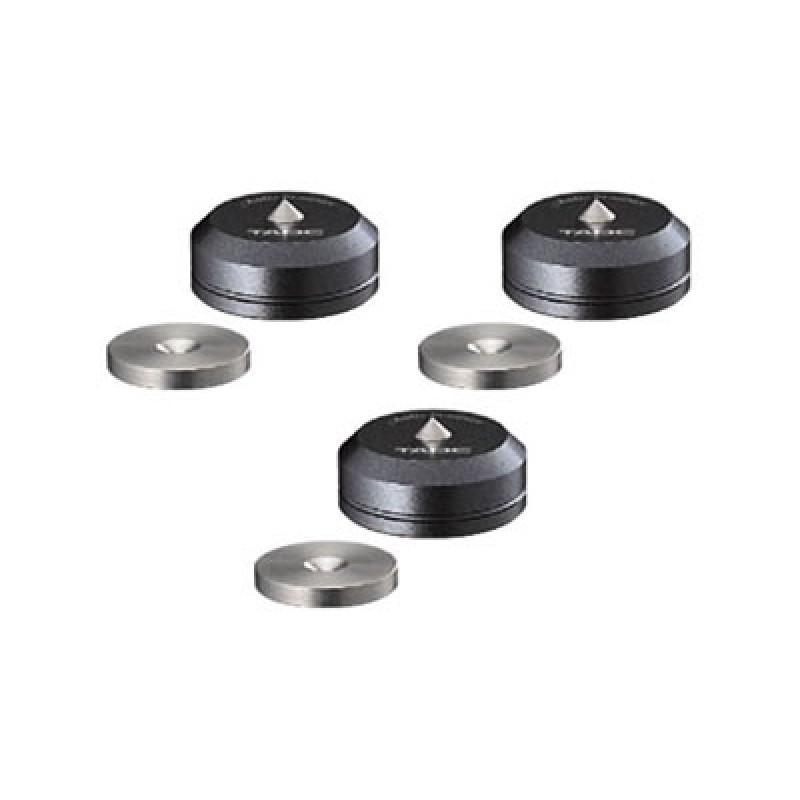

TITE25GP (set of three)
- 25mm high x50mm diameter
- Plate : 5mm high x35mm diameter
- Weight : 250g per insulator
- Recommended load: 10kg or more/set of three
-
Urban gray finish

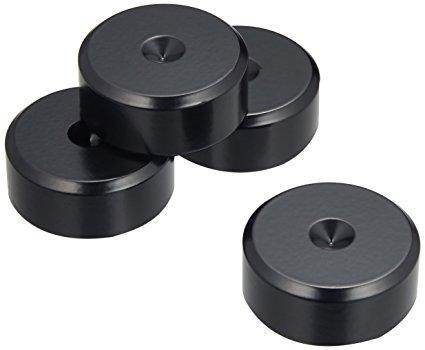

PTSG (set of four)
Made of gradation cast-iron, these plates are effective in reducing and controlling vibrations.
-
16mm high x40mm diameter
-
Weight: 130g per insulator
-
Recommended load: 10kg or more/set of four
-
Matte black finish
-
With felt
PTSN (set of four)
-
5mm high x35mm diameter
-
Weight: 35g per insulator
-
Recommended load: 5kg or more/set of four
-
Stainless steel
