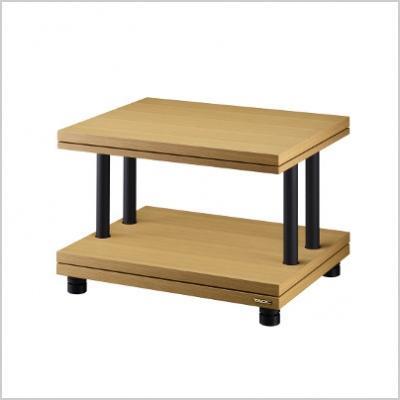

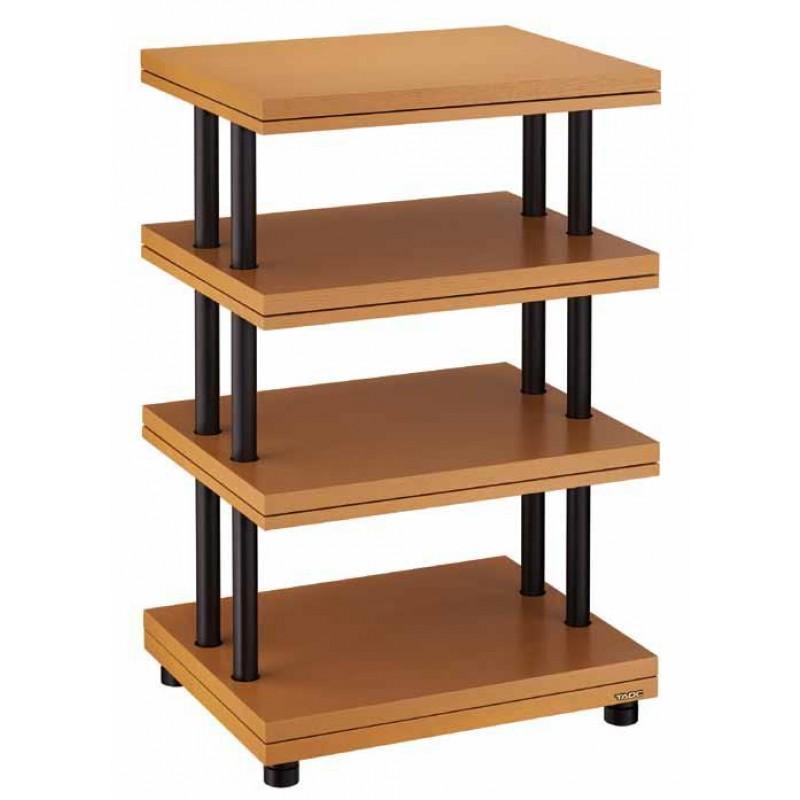

TAOC CSR Equipment Rack
Made in Japan
TAOC CSR Equipment Rackis a vibration damping rack for all audio equipment. The tranquility realized by their superb damping effect greatly expands the range of musical expression.
Taoc believes in "Controlling" rather than "damping" vibrations as the foundation of audio is the setup. The common driving force behind all TAOC products is cast-iron. Their focus is on the damping of the graphite contained in cast-iron.
TAOC's parent company,Aisin Takaoka, is ahigh-grade audio equipment company established in 1983 in Japan. It is a member of the Toyota group of companies. Aisin Takaoka is the largest producer of cast-iron automobile parts in Japan and one of the world's top casting companies.
TAOC CSR Design
- Shelf board sizes were determined to achieve the perfect balance with your equipment and also deliver great aesthetic appeal as a rack.
- They have been styled to look their best when placed side by side.
- Poles were positioned to facilitate handling of your equipment.
Ease of use
- Easy-assembly construction.
- Choose the shelf board spacing and the number of rack shelves to suit your equipment.
- The leg construction was designed to facilitate the moving of your rack.
Performance
- Poles are filled with cast iron powder.
- The shelf board comprises a five-layer construction with a cast-iron-powder-filled honeycomb core.
- Shelf boards are supported by spike insulators (four) in a floating support configuration.
- Levels of pole vibration from applied vibration shock
Other
- Excellent load-bearing capacity - 100kg per shelf.
- Shelf board surfaces are finished with sliced natural wood (white oak) veneer, which is gentle in sound as well as visual terms.
Specifications

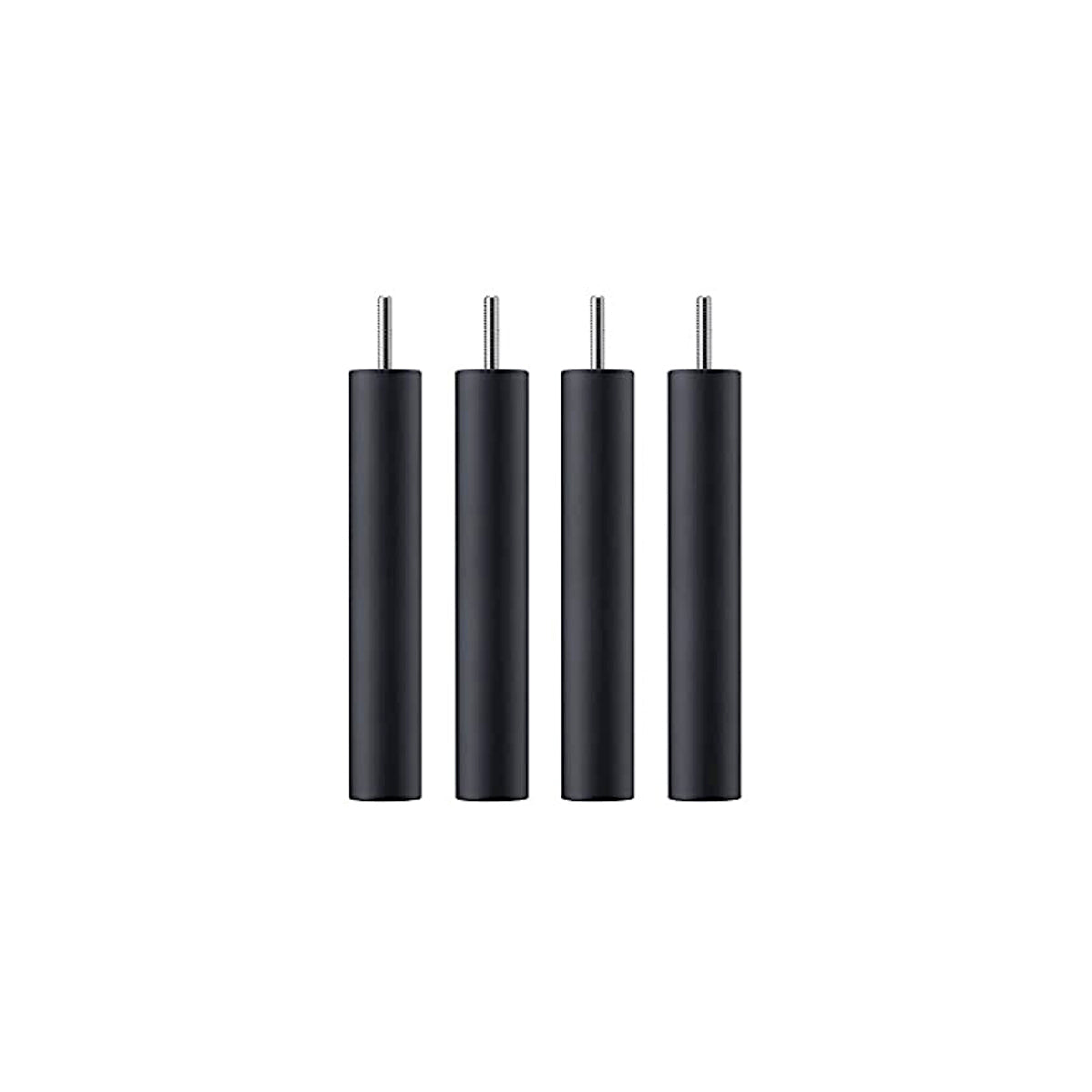

- Poles: Steel pipe filled with cast iron powder.
- Shelf boards: five-layer construction with a cast-iron-powder-filled honeycomb core
W620 x H27 x D500
- Holding board: High-density MDF
W: 620 x H: 18 x D: 500mm
(for top and middle shelves)
W: 620 x H: 30 x D: 500mm
(for bottom shelf)
- Shelf board support: Spikes and plates
- Legs: Cast iron spikes and cupped plates
Finish
- Shelf boards: Sliced natural wood veneer finish
- Holding boards: High-density MDF
