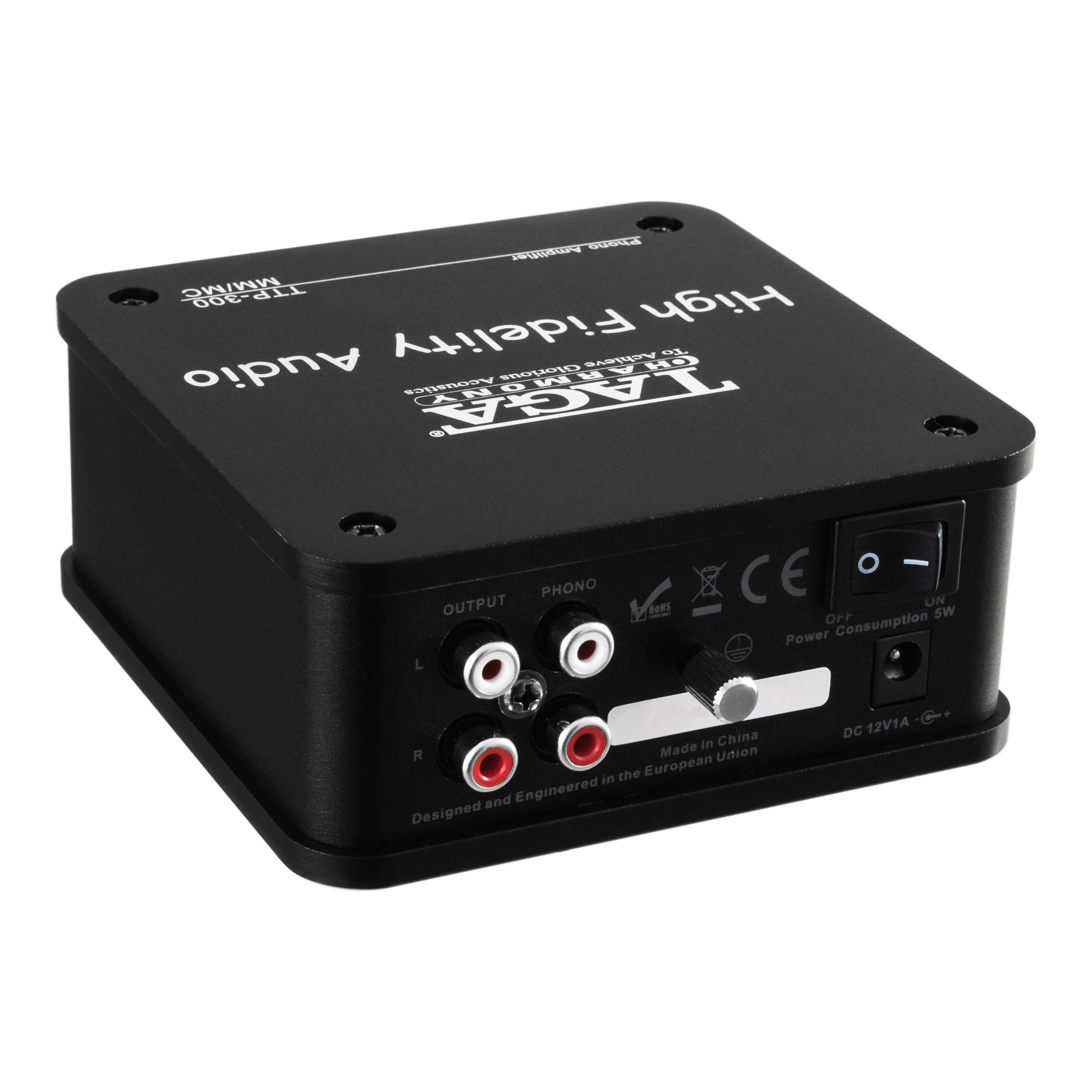

Taga Harmony TTP-300 MM/MC Phono Amplifier
DESCRIPTION:
Taga Harmony TTP-300 is a miniature phono amplifier, which accepts turntables equipped with both MM and MC cartridges so you can enjoy music from your favorite vinyl records.
The analogue output allows easy connection to a line input of your amplifier.
Key features:
-
Front MM/MC selector for easy switching
-
Very rigid and luxurious steel-aluminum casing provides perfect shielding of the phono stage
-
Very accurate RIAA equalization
-
Integrated Circuits with very low noise level
-
Extremely low output impedance
SPECIFICATIONS:
| Design | Phono amplifier MM/MC |
| Analog inputs | Phono (MM/MC) |
| Phono input voltage | MM: 300mV @ 3mV/1kHz MC: 300mV @ 0.3mV/1kHz |
| Gain | MM: 40dB MC: 60dB |
| Noise floor | MM: 86dB (94dB A-weighted) MC: 68dB (75dB A-weighted) |
| RIAA Equalisation | 20Hz - 20kHz / max. 0.5dB |
| Analog outputs | RCA Pre-Out (max 9.5V/1kHz) |
| Frequency response | 20Hz - 35KHz (0.5dB) |
| Total Harmonic Distortions | MM: 0.01% MC: 0.05% |
| Signal/Noise ratio | 129dB (A-Weighted) |
| Features / accessories | DC power adapter |
| AC power / power consumption | DC 12V, 1A AC 100-240V 50/60Hz, 5W |
| Dimensions (H x W x D) | 5.4 x 11.3 x 11.3 cm (adapter 2.3 x 4.3 x 9.7 cm) |
| Weight | 0.7 kg / pc. |
