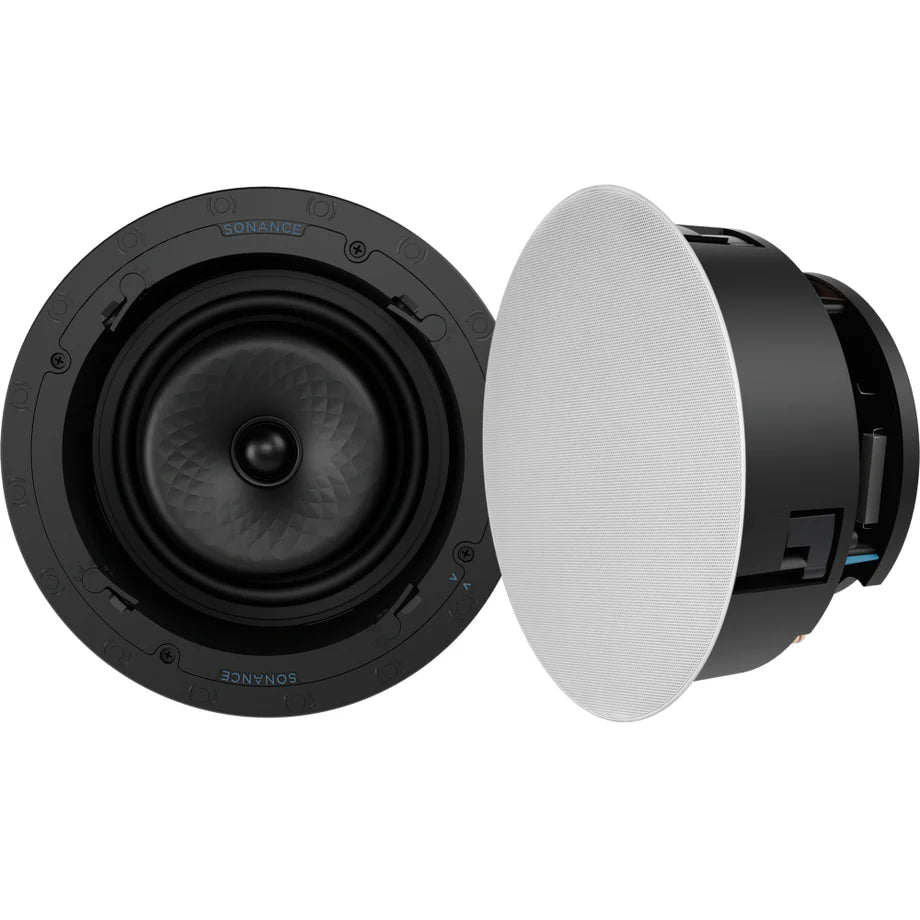

Sonance VX82R 8" Visual Experience In-Ceiling Speakers (Pair)
High-Fidelity Architectural Sound with Pivoting Driver Assembly and Micro Trim Grille
The Sonance VX82R is a premium 8-inch in-ceiling speaker pair from Sonance’s Visual Experience Series, designed for customers who want serious sound quality with a clean architectural finish. It combines a coincident woofer-and-tweeter design with a pivoting assembly, letting installers aim the sound where it matters most.
This is the kind of ceiling speaker that makes a room feel “finished”. Big, effortless sound, strong vocal clarity, and a refined top end, all while staying visually subtle with a white micro trim grille.
Why VX82R is a Big Step Up
Large-format drivers with real control
Ceiling speakers often sound great directly underneath them… and thin everywhere else. The VX82R tackles that with a larger 8" woofer for scale and body, and a tweeter design that stays smooth and controlled at real listening levels.
This makes it ideal for:
- Open-plan living areas
- High ceilings
- Larger rooms where smaller ceiling speakers run out of steam
- Systems where you want music to feel full and present, not “background only”
Coincident Driver Design
Better imaging from a ceiling speaker
The VX82R places the tweeter and woofer on a coincident axis, helping the speaker behave more like a single point source. In plain English: it improves coherence, making vocals and instruments sound more natural and more “locked together”.
That translates into:
- Cleaner stereo imaging
- More consistent sound across the room
- Better clarity at lower volumes
Pivoting Woofer + Tweeter Assembly
Aim the sound where people actually sit
The VX82R uses a pivoting driver assembly that can be angled to direct output toward the listening position.
It helps:
- Reduce “sound falling straight down”
- Improve clarity and presence in seating areas
- Make background audio feel evenly spread instead of patchy
Designed for Fast, Clean Installation
Flex Frame + RotoLock mounting
The VX82R system is built for neat, repeatable installs, including a two-stage Flex Frame process and RotoLock clamps for secure ceiling mounting.
This is especially helpful for:
- Multi-room projects
- Renovations where cutting happens before hardware arrives
- Larger installs where speed and consistency matter
Specifications
| Specification | Details |
|---|---|
| Product Type | 2-way in-ceiling speakers (pair) |
| Woofer | 8" textured polypropylene cone, rubber surround |
| Tweeter | 1.2" cloth dome, ferrofluid-cooled, acoustic back chamber |
| Driver Configuration | Coincident woofer and tweeter assembly |
| Pivoting Assembly | Yes, +/- 13° pivot |
| Frequency Response | 38Hz – 20kHz (±3dB) |
| Nominal Impedance | 8 ohms |
| Minimum Impedance | 6 ohms |
| Power Handling | 5W minimum, 125W maximum |
| Sensitivity | 90dB SPL |
| Mounting System | Flex Frame (1 or 2-stage) with 4 x RotoLock clamps |
| Cutout Diameter | 10.125" (257mm) |
| Overall Diameter | 11.52" (292.6mm) |
| Depth | 5.51" (140mm) |

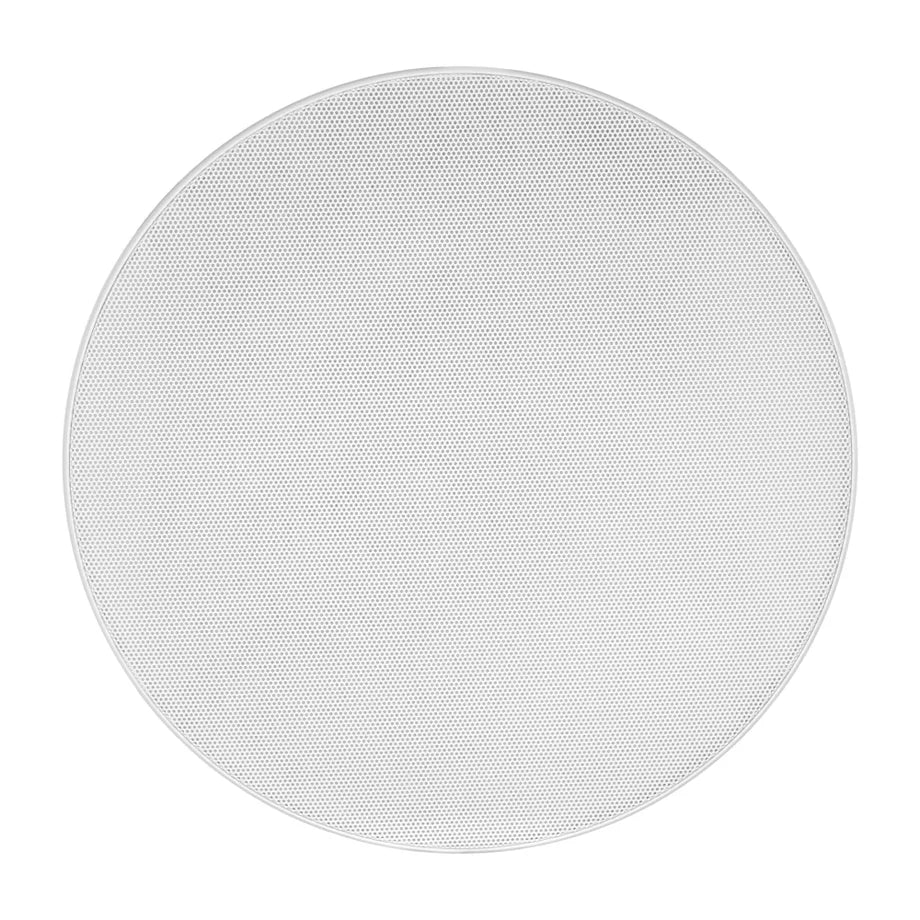

| Grille | White micro trim grille |
| Shipping Weight | 20.0 lbs |
Detailed Technical Specifications
For those who like to see exactly how it’s built and how it works
View full technical specifications
Model and Package
- Model: VX82R
- Sold as: Pair
Driver System
- Woofer: 8" (203mm) textured polypropylene cone
- Woofer surround: Rubber surround
- Tweeter: 1.2" (30mm) cloth dome
- Tweeter cooling: Ferrofluid-cooled
- Tweeter enclosure: Acoustic back chamber
- Driver layout: Coincident woofer and tweeter
Aiming and Dispersion
- Pivoting assembly: Yes
- Pivot range: +/- 13°
- Pivot design: Pivoting sinusoidal textured waveguide
Electrical and Performance
- Frequency response: 38Hz – 20kHz (±3dB)
- Nominal impedance: 8 ohms
- Minimum impedance: 6 ohms
- Power handling: 5W minimum; 125W maximum
- Sensitivity: 90dB SPL
Installation and Mounting
- Mounting system: Flex Frame
- Flex Frame staging: 1 or 2-stage
- Clamping system: 4 x RotoLock clamps
Dimensions and Cutout
- Overall diameter: 11.52" (292.6mm)
- Depth: 5.51" (140mm)
- Cutout diameter: 10.125" (257mm)
Finish
- Grille: White micro trim grille
Shipping
- Shipping weight: 20.0 lbs
The Audio Experts Take
The VX82R is for customers who want ceiling speakers to feel like a real upgrade, not a compromise. The 8" woofer gives it scale, the coincident design helps it image cleanly, and the pivoting assembly makes it far more forgiving in real-world rooms. In open-plan spaces especially, this speaker pair can deliver that “effortless everywhere” sound that cheaper models simply can’t.
📦 Brand new
🛡 Full Australian warranty
📍 Available in store and via professional installation at The Audio Experts
