Description

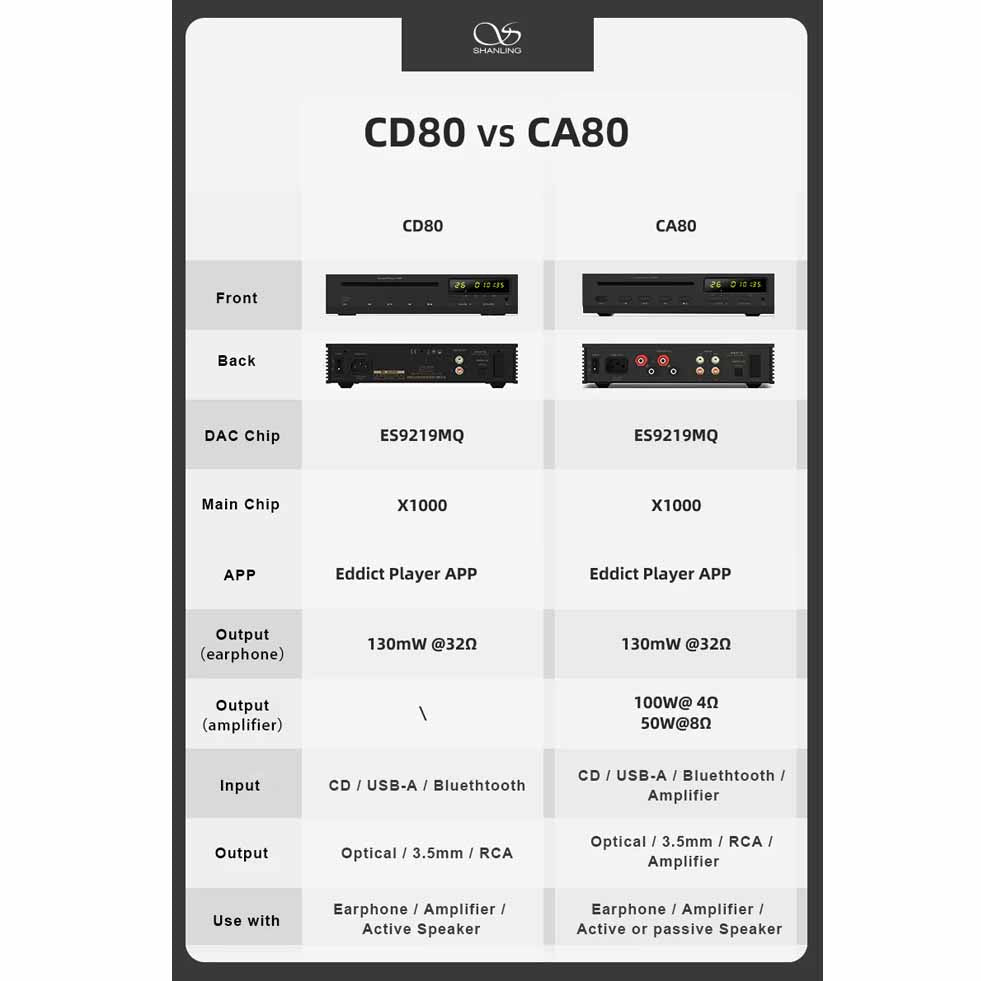

CA80 is the CD80 with an Integrated Amplifier Built-In
Designed with classic 1990s CD players in mind, the CD80 keeps it all simple. There is no touch screen, only mechanical buttons and a digital tube display for familiar controls. Even the CD drive is an old-school slot loader, with proper damping for vibration-free CD playback.
Small and sleek body makes for an easy fit into all types of spaces. From small bedroom night tables, over cramped office desks, to Hi-Fi rigs that have one too many components already.
Specifications
General:
- Dimension & Weight: 250 x 205 x 52 mm
- Platform: Ingenic X1000
- DAC Chip: ESS ES9219MQ
- Bluetooth version: Bluetooth 5.0 with LDAC, AAC, SBC
- Display: Digital Tube Display
- Control: On player Buttons, IR Remote, Eddict Player App
- Inputs: CD Disc, USB Drive, Bluetooth

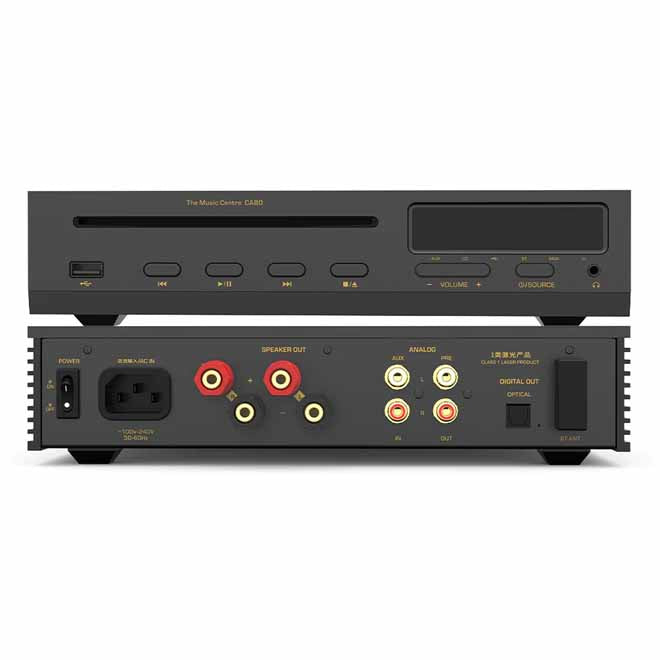

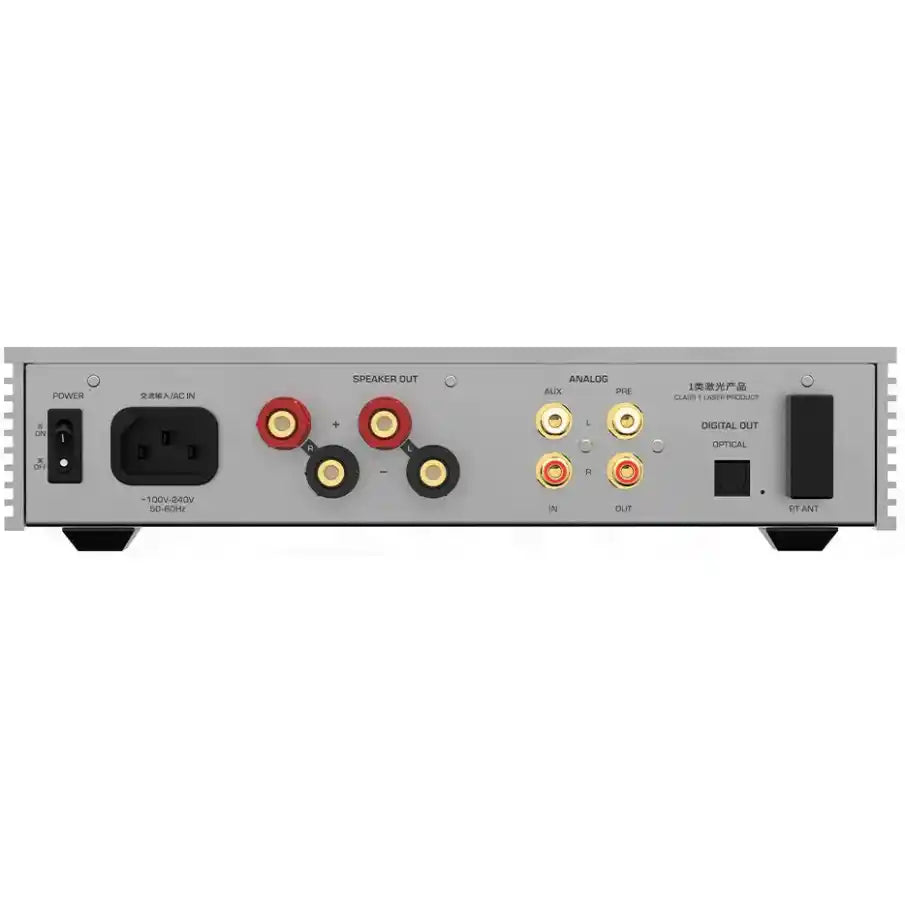

- Outputs: RCA Pre-Out, Optical SPDIF, 3.5mm HP Jack, Speaker Terminals (CA80 only)
- USB Drive Compatible Formats:
- DSD, DXD, APE, FLAC, ALAC, WAV, AIFF, AIF, DTS, MP3, WMA, AAC, OGG,MP2, M4A, AC3, OPUS, TAK, CUE
- USB Drive Hi-Res Support: Up to 32-bit, 384 kHz & DSD256
Headphone Output:
- Headphone Output: 130mW @ 32Ω
- Frequency Response: 20Hz to 40kHz (-0.2dB)
- THD+N: 0.0015%
- Channel Separation: 75 dB @ 32Ω
- Dynamic Range: 119 dB
- Signal to noise ratio: 118 dB
- Output Impedance: less than 1Ω
RCA Outputs
- Output Level: 2.0 VRMS
- Frequency Response: 20Hz to 40kHz (-0.2dB)
- THD+N: 0.0008%
- Channel Separation: 110 dB
- Dynamic Range: 117 dB
- Signal to noise ratio: 116 dB
Speaker Output
- Output Power: 2 x 50w @ 8Ω / 2 x 100w @ 4Ω
- Frequency Response: 20Hz to 40kHz (-0.2dB)
- THD+N: 0.003%
- Separation: 80 dB @ 32Ω
- Signal to noise ratio: 108 dB
