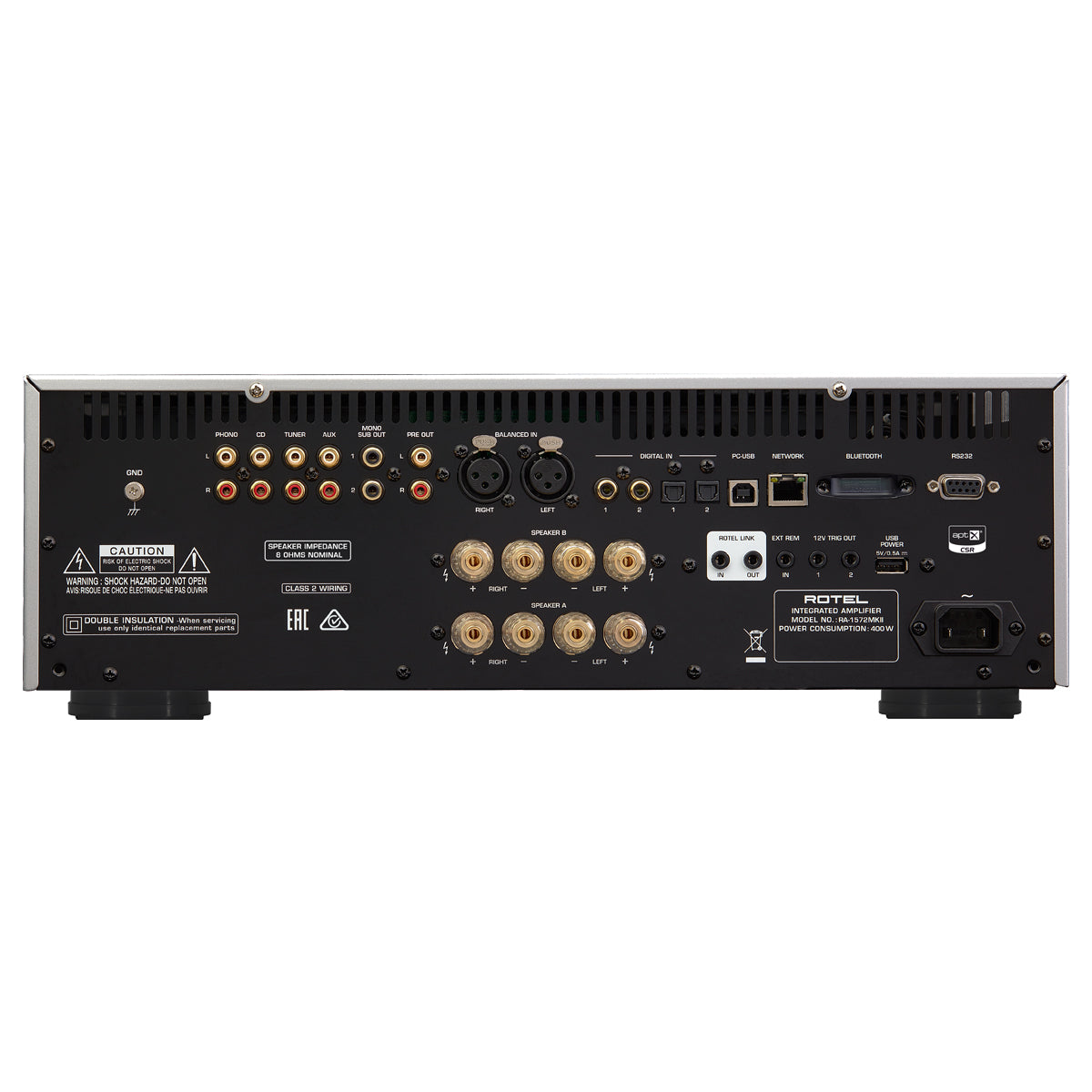

Rotel RA1572 Integrated Amplifier
Rotel RA1572 Integrated Amplifier
Rotel RA1572 Integrated Amplifier

Rotel RA1572 Integrated Amplifier

Vendor

Rotel

Type

Integrated Amplifier

SKU

Categories
This product is available.
Quantity must be 1 or more
Regular price
$2,799.00
Sale price
$2,799.00

Rotel RA1572

The circuitry draws on a high capacity power supply based on a Rotel custom designed and in-house manufactured oversized toroidal transformer. In addition to providing an abundance of voltage and current for all operating stages, the transformer’s toroidal shape helps prevent stray radiation patterns from corrupting audio signals as they pass through adjacent circuit stages. Subsequent power supply segments built with tight-tolerance parts including T-Network capacitors provide the exact voltage and current requirements to ensure stress-free signal reproduction.



Features



  • Builds on the features of the hugely popular RA1570
  • DSD capable 32-bit AKM DAC
  • aptX Bluetooth built-in
  • 120 wpc Class AB power
  • MM Phono input
  • RS-232 and IP control



Specifications

Continuous Power Output (20Hz - 20kHz, < 0.03%, 8 ohms): 120 watts/channel

Total Harmonic Distortion (20Hz - 20kHz, 8 ohms): < 0.03%

Intermodulation Distortion (60Hz : 7kHz, 4:1): < 0.03%



Frequency Response

Phono Input: 20Hz - 20kHz, ±0.5 dB
Line Level Inputs: 10Hz - 100kHz, ±0.5 dB
Damping Factor (20Hz - 20kHz, 8 ohms): 300



Input Sensitivity / Impedance

Phono Input (MM): 2.1mV / 47k ohms
Line Level Inputs (RCA): 270mV / 100k ohms
Line Level Inputs (XLR): 440mV / 50k ohms



Input Overload

Phono Input (MM): 32mV
Line level Inputs (RCA): 4V
Line Level Inputs (XLR): 5.5V



Preamplifier Output / Impedance: 1.5V / 470 ohms



Signal to Noise Ratio (IHF "A" weighted)

Phono Input (MM): 80dB
Line Level Inputs: 100dB



Digital section

Frequency response: 10Hz - 95kHz (±2.0 dB, Max)
Signal to Noise Ratio (IHF "A" weighted): 100dB
Input Sensitivity / Impedance: 0 dBFs / 75 ohms
Preamplifier Output Level: 1.3V (at -20 dB)
Coaxial / Optical Digital Signals: SPDIF LPCM (up to 192kHz 24bit)
PC-USB: USB Audio Class 1.0 (up to 96kHz 24bit)
USB Audio Class 2.0 (up to 384kHz 32bit) - Driver installation required
DSD and DoP support
