Rega Planar 1 Plus Turntable
Ultimate plug and play Rega turntable with built in moving magnet phono stage
The Rega Planar 1 Plus takes everything that makes the Planar 1 such an easy recommendation and adds the one feature most modern systems actually need: a high quality moving magnet phono stage built in. That means you can connect it directly to any standard line input on an amplifier, powered speakers, or an all in one system and get proper vinyl sound without buying a separate phono preamp.
This is a true plug and play deck that still behaves like a serious hi fi component. Rega keep setup simple with the RB110 tonearm’s pre set bias, a factory fitted Carbon moving magnet cartridge, and a drive system designed for low noise and stable speed. You also get Rega’s key engineering upgrades: a 24 V low noise synchronous motor with a new motor PCB and aluminium pulley, the advanced EBLT belt as standard, a high mass phenolic platter for flywheel effect, and a precision brass main bearing designed to improve fit and reduce stress while minimising energy transfer.
Built in phono stage, what it actually does

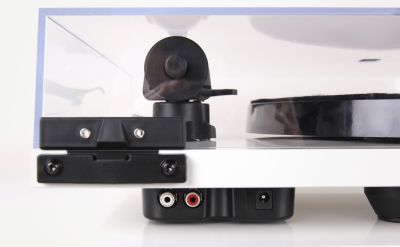

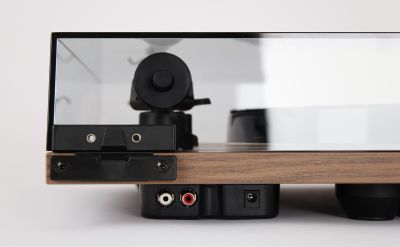

A cartridge produces a tiny signal that normally requires a dedicated phono stage. The Planar 1 Plus includes a built in moving magnet phono preamp designed to amplify that signal to a suitable line level for any normal input. This makes the Planar 1 Plus ideal for modern amplifiers and powered speakers that do not have a phono input.
Finish options

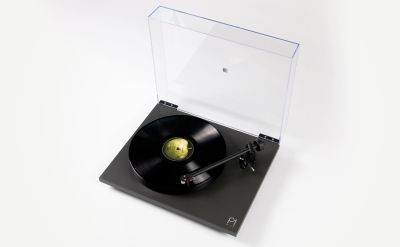

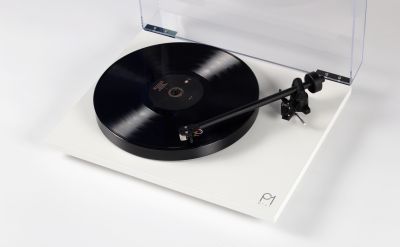

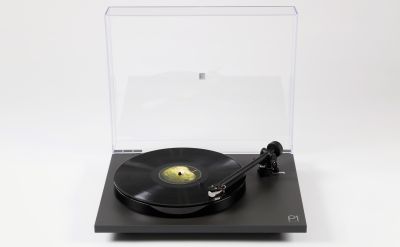

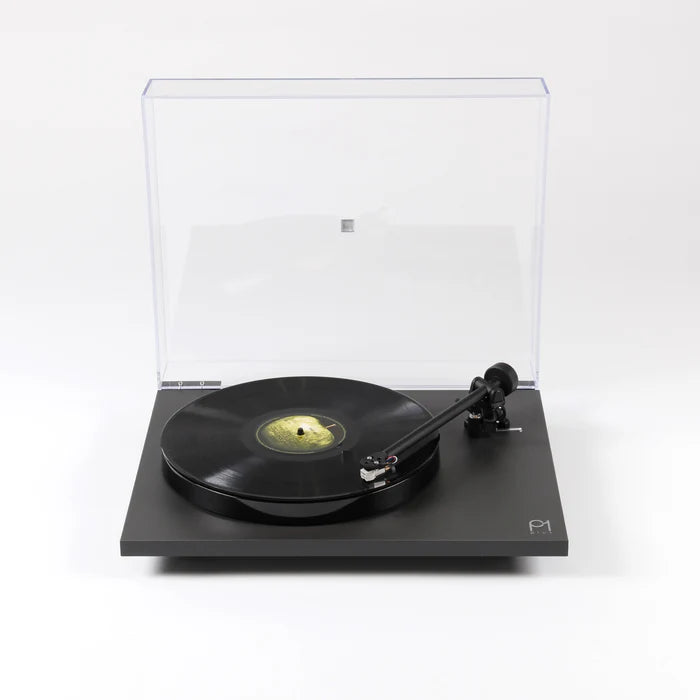

- Matt Black

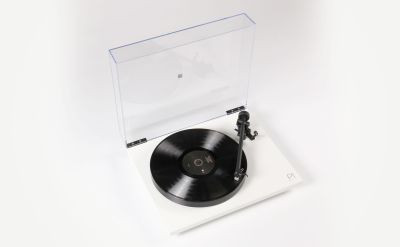

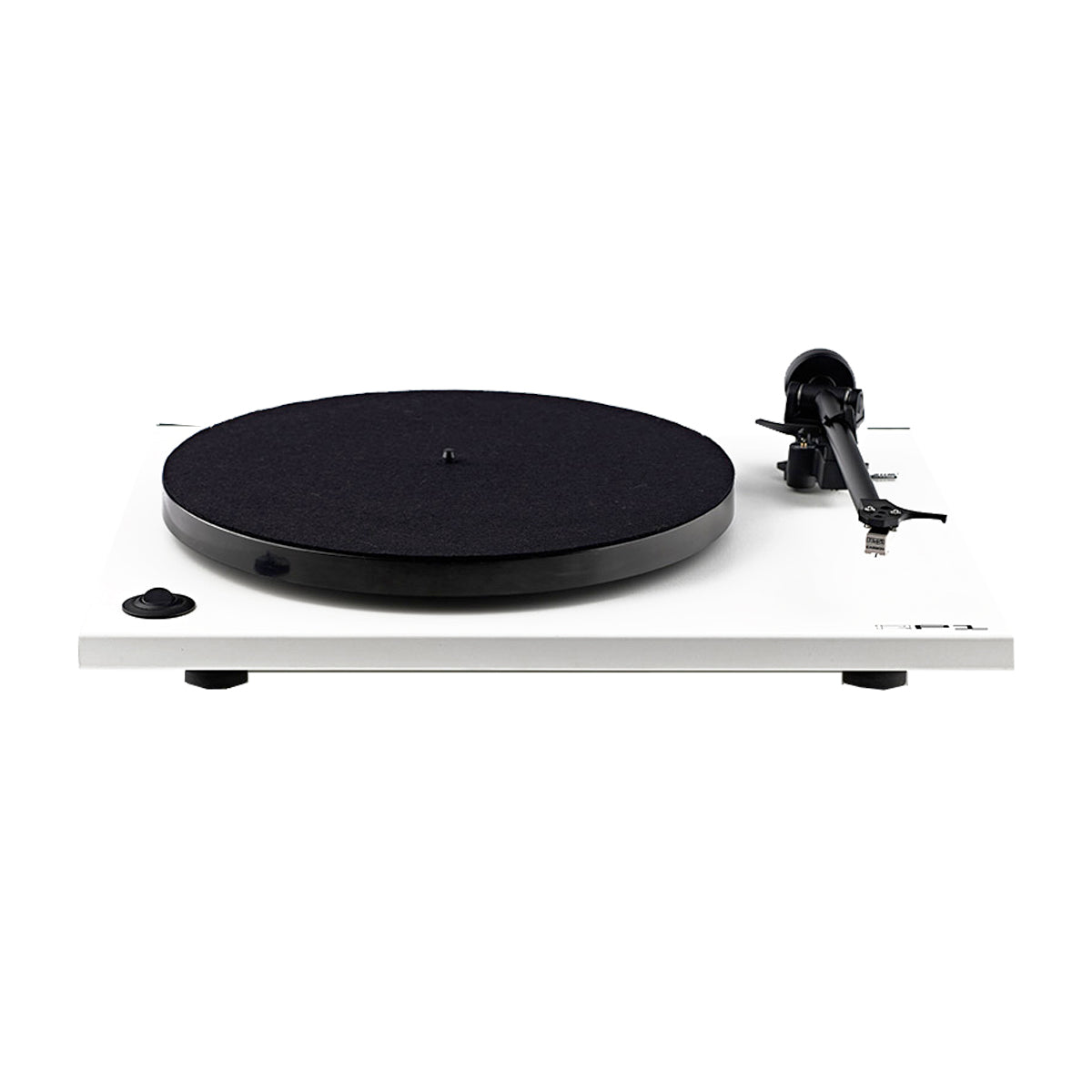

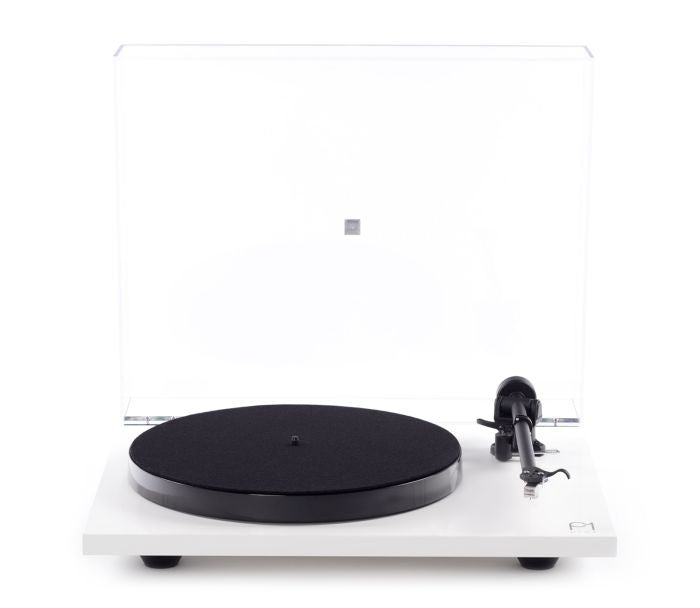

- Matt White

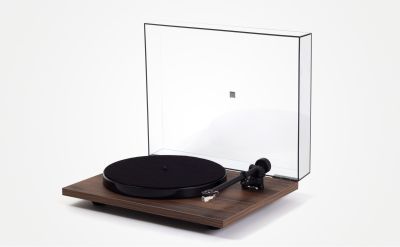

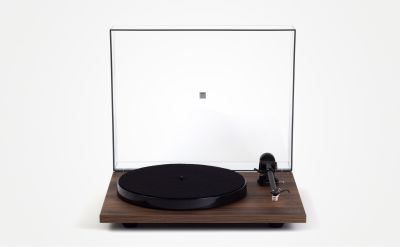

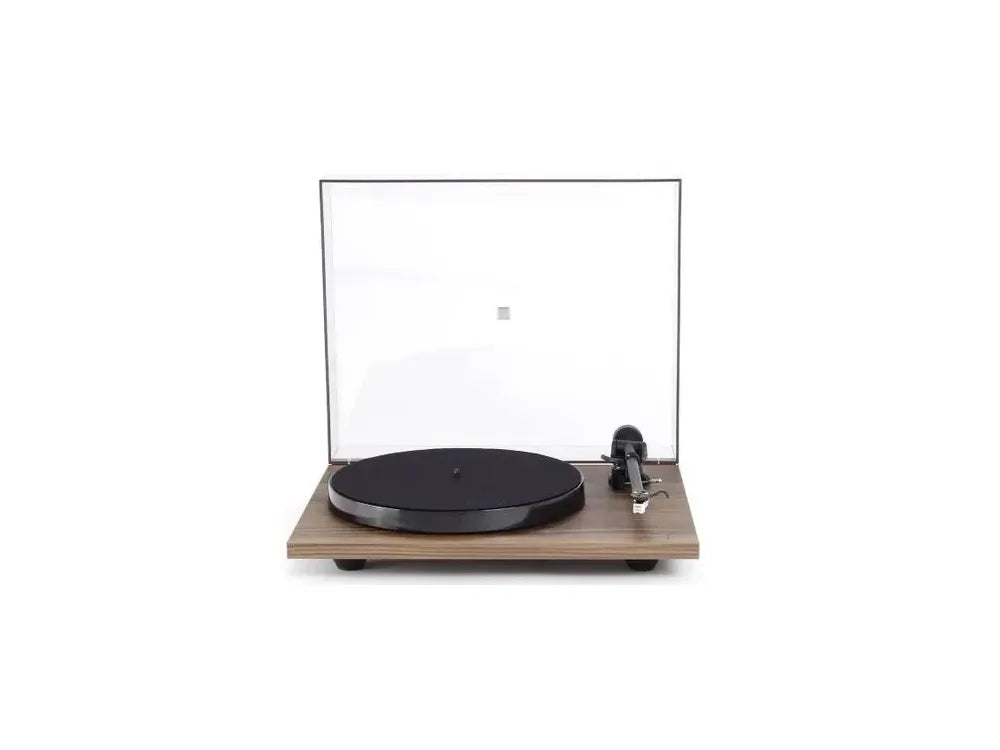

- Walnut Effect supplied with smoked dust cover as standard
Tonearm and cartridge
RB110 tonearm
The RB110 uses Rega designed ultra low friction bearings and a pre set bias system to remove setup stress and keep performance consistent. The stiffer redesigned headshell improves usability and rigidity, and the 111 g plug and play counterweight makes initial setup fast and repeatable.
Rega Carbon moving magnet cartridge, factory fitted
Carbon is designed to be easy to live with while delivering far more performance than most entry level cartridges. It is tolerant of real world records, tracks securely, and uses a user replaceable stylus for simple long term ownership.

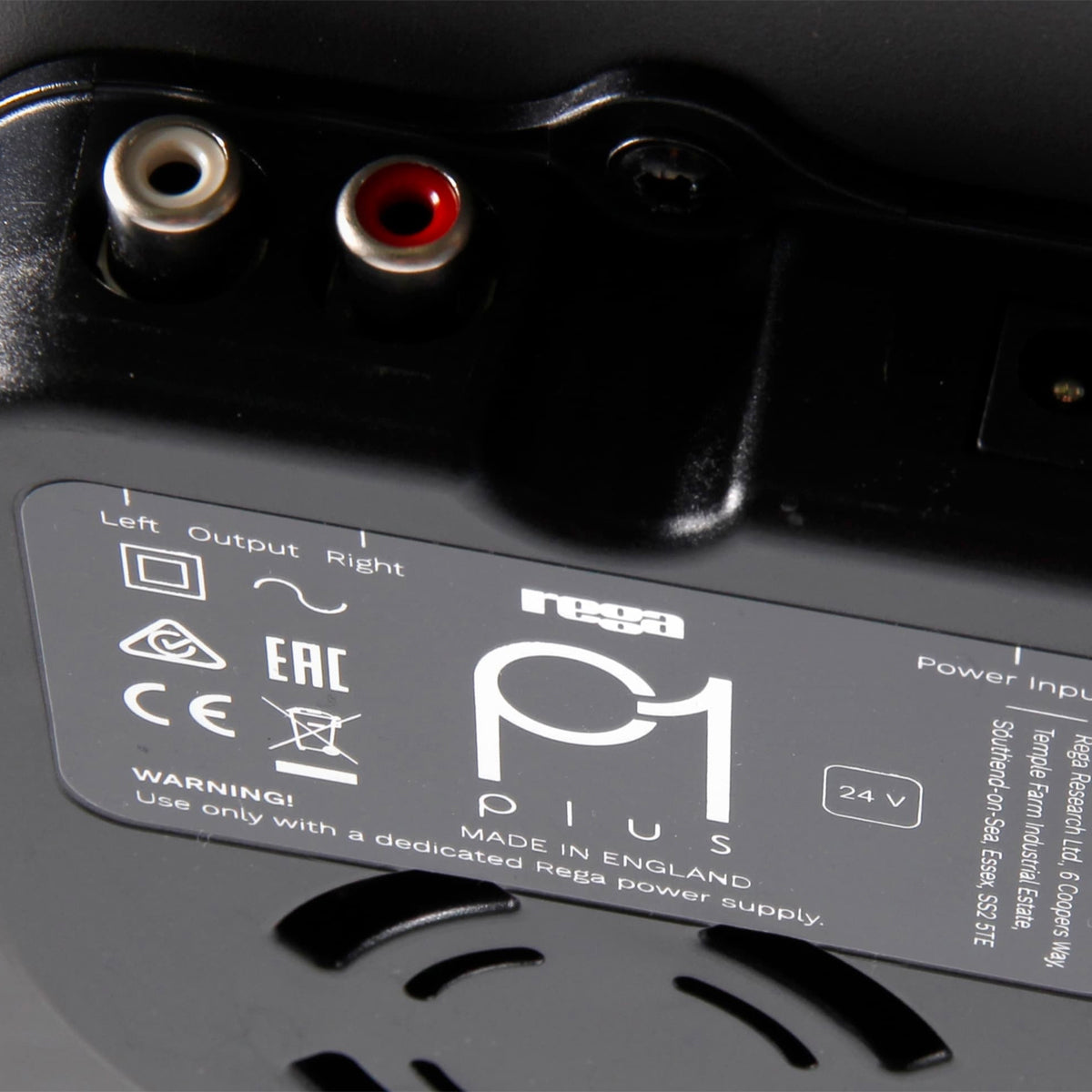

Connection and setup notes
- Connect to a line input: AUX, CD, Tuner, Line In
- Do not connect to a phono input: the Planar 1 Plus already amplifies the cartridge signal

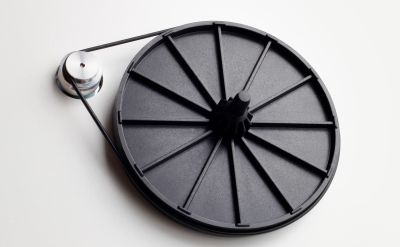

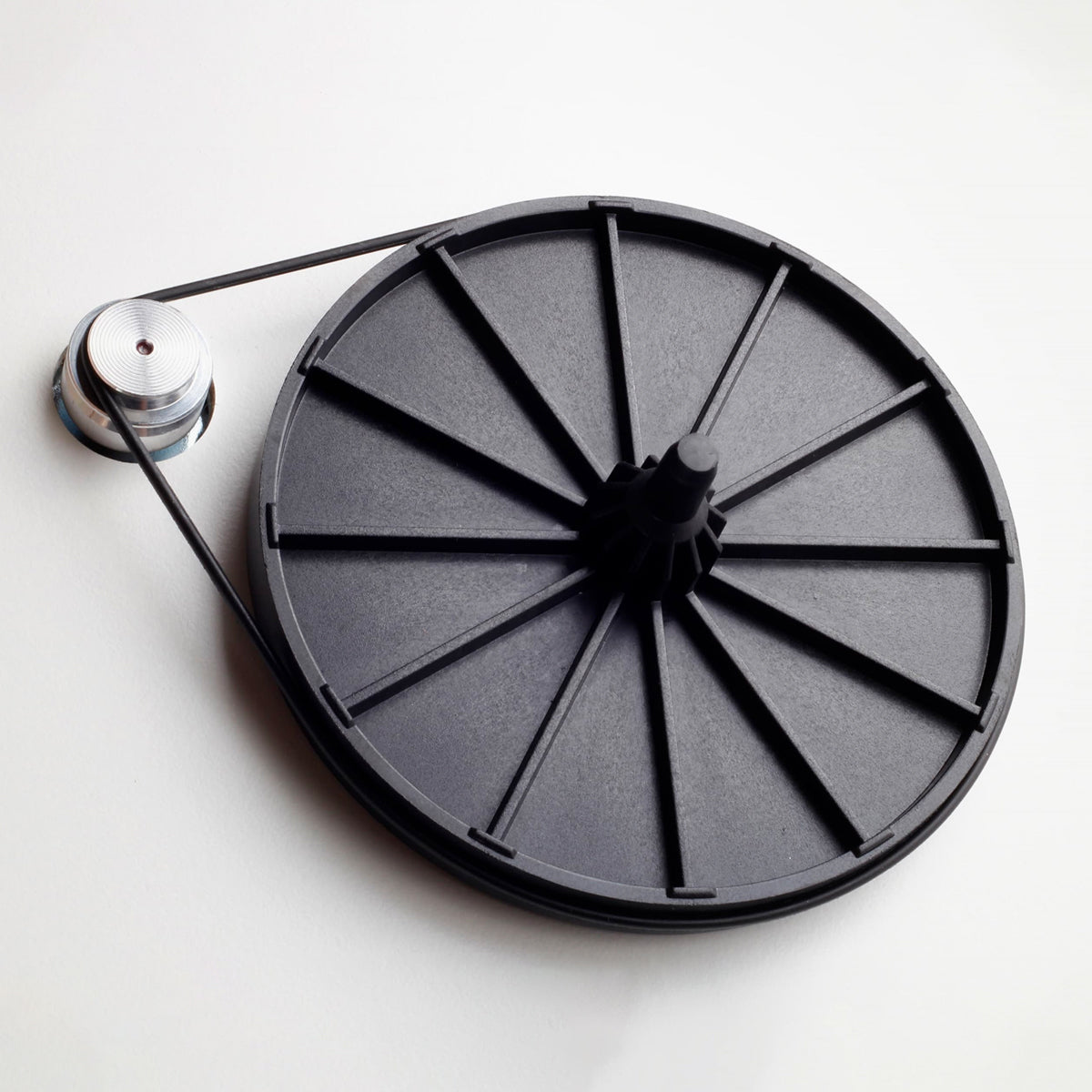

- Speed change: manual belt change between 33⅓ and 45 steps on the pulley, easiest by lifting the platter
- Placement: use a stable, level surface and avoid placing the turntable on the same surface as speakers
What is included
- Rega Planar 1 Plus turntable
- Hand assembled RB110 tonearm
- Factory fitted Rega Carbon moving magnet cartridge
- RCA to RCA lead supplied
- Dust cover smoked dust cover supplied as standard with Walnut Effect finish
- Lifetime limited warranty against manufacturing defects
Detailed technical specifications
Turntable and chassis
| Specification | Detail |
|---|---|
| Drive type | Belt drive |
| Speeds | 33⅓ and 45 RPM |
| Speed change | Manual belt change on stepped pulley |
| Motor | 24 V synchronous AC motor, low noise design |
| Motor control | New motor PCB |

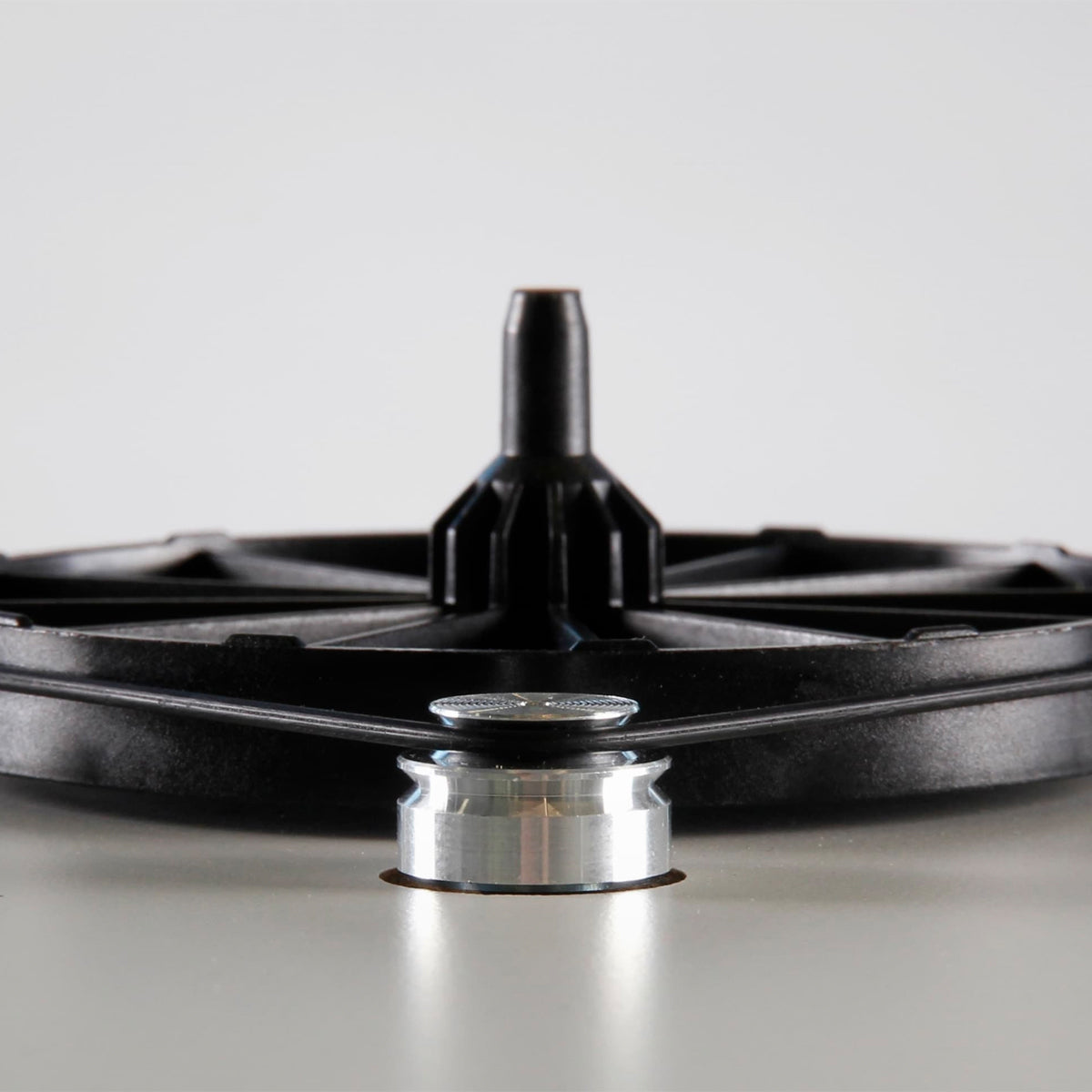

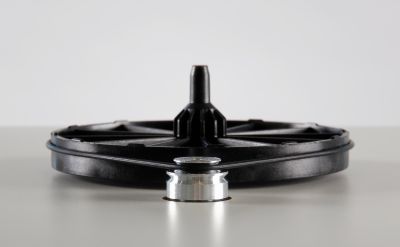

| Pulley | Aluminium pulley |
| Drive belt | Advanced EBLT belt supplied as standard |
| Platter | 23 mm high mass phenolic resin platter, flywheel effect |
| Main bearing | Precision brass main bearing housing |
| Isolation | Custom Rega foot design to increase stability and reduce vibration transfer |
| Motor cover tray | Motor cover tray with integrated cooling |
| On off switch | Underside mounted switch |
| Dimensions with lid closed | 447 × 117 × 360 mm |
| Weight | 4.35 kg |
| Finishes | Matt Black, Matt White, Walnut Effect |

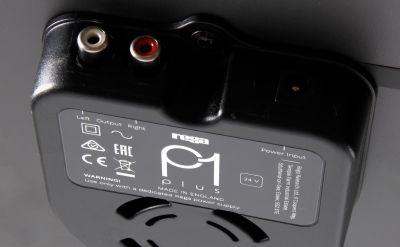

Built in phono stage specifications
| Specification | Detail |
|---|---|
| Phono stage type | Moving magnet phono preamplifier, built in |
| Gain | 40 dB |
| Input load | 47 kΩ in parallel with 220 pF |
| RIAA accuracy | ± 0.4 dB from 100 Hz to 20 kHz |
| Frequency response | 14 Hz at minus 3 dB to 100 kHz at minus 0.6 dB |
| Signal to noise ratio | 75 dB A weighted, referenced to maximum output |
| Maximum output level | 370 to 410 mV |
| Output impedance | 1 kΩ |
Tonearm and cartridge
| Specification | Detail |
|---|---|
| Tonearm | Hand assembled RB110 tonearm with pre set bias |
| Bearings | Rega designed ultra low friction bearings |
| Balance weight | 111 g plug and play counterweight |
| Cartridge | Rega Carbon moving magnet, factory fitted |
| Cartridge output | 2.5 mV at 1 kHz |
| Tracking force range | 2 g to 3 g recommended playing range |
| Cantilever | Carbon |
| Stylus | User replaceable |
| Cartridge mass | 5.0 g |
Power
| Specification | Detail |
|---|---|
| Power supply | Rega PS1, 24 V AC, 350 mA |
| Power consumption | 3.4 W maximum |
