Parasoud JC3+ Phono Stage - Black

• Designed by John Curl - creator of the legendary Vendetta Research phono preamp

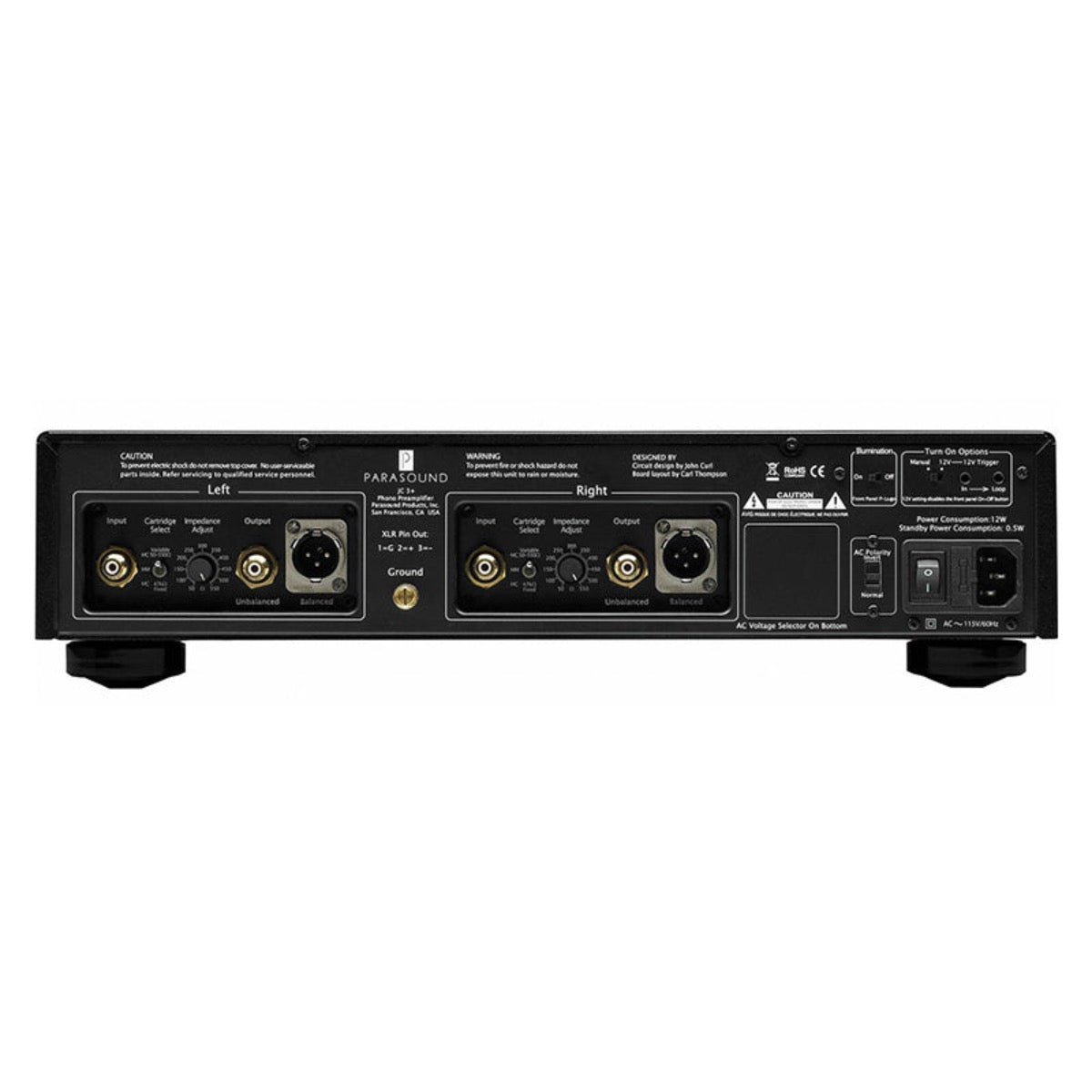

• Inputs and outputs use Vampire brand 24k gold-plated RCA jacks
• Balanced outputs use Neutrik brand premium XLR jacks
• MM 47k ohm, MC 47k ohm or MC variable 50-550 Ohms
• RIAA accurate within 0.2 dB
• Exclusively Vishay-Dale resistors in the audio path

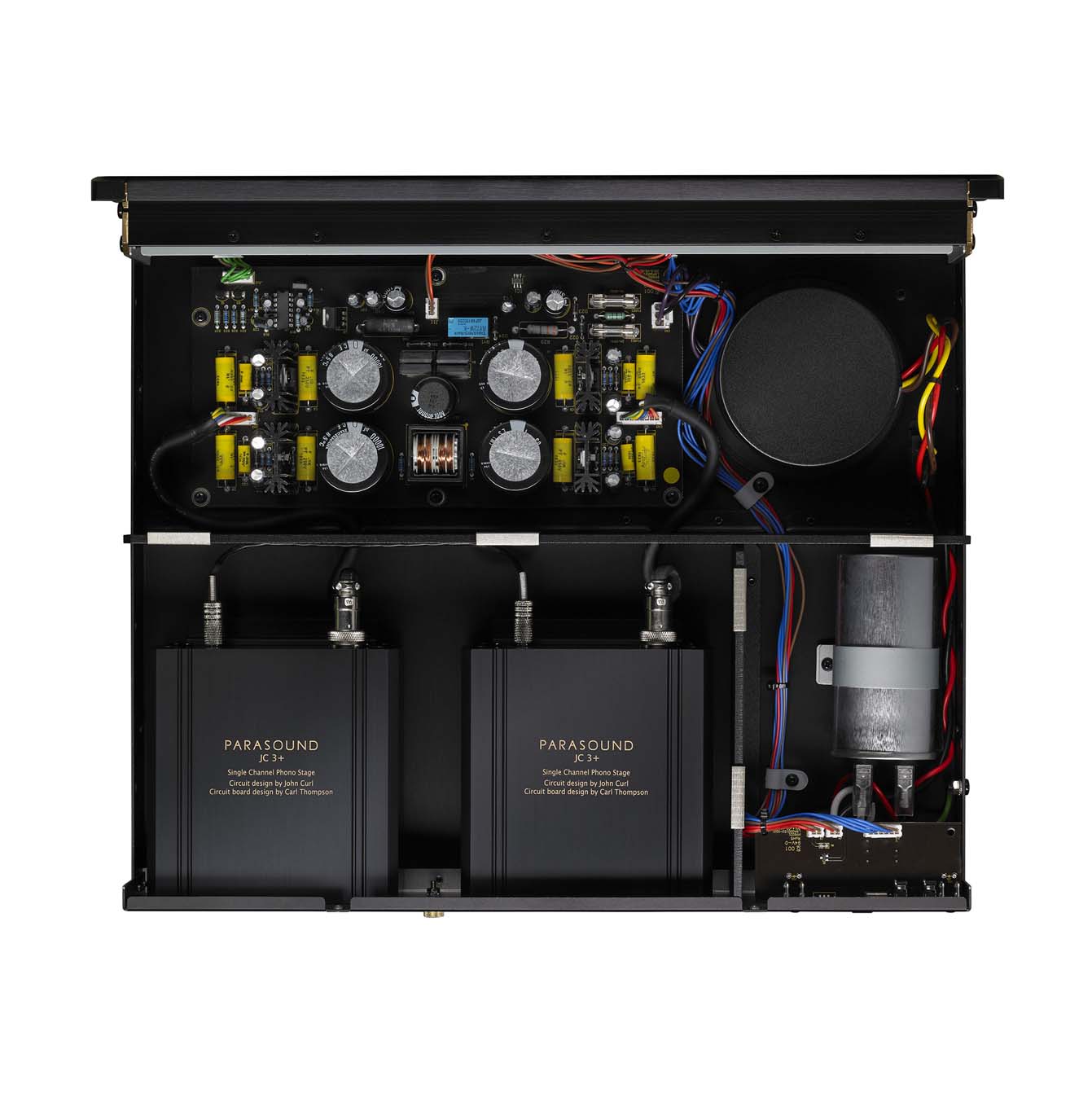

• Triple shielding; low-carbon mild steel partitions isolate the power supplies & AC wires
• Dual mono design; each audio channel is separately enclosed in its own extruded aluminum enclosure
• Separate high speed-soft recovery rectifiers, filter caps and voltage regulators for each channel
• Mono switch can improve sound of mono and older LPs
• Built-in AC line conditioner to prevent AC noise from polluting the circuits
• AC polarity reverse switch can reduce hum in many systems
• Non-magnetic aluminum rear panel for purest sound
• Turn On Options switch: manual or auto with 12v trigger input
• Premium detachable heavy gauge IEC AC cord

How the JC 3+ improves on the original JC 3:

• Variable MC load adjust independent for each channel from 50-550 ohms with dual gang potentiometers specially made for Parasound by Vishay.
• Curl-Thompson tweaked circuits to further reduce the JC 3 silent background noise.
• 24k gold plated copper traces on phono module boards for utmost conductivity and most transparency/detail in the music.
• 47% larger low ESR power supply filter caps greater reserve for head-snapping dynamics.
• Ability to turn off illumination of the front panel P logo.
• Now Available in Black.

Specifications

Frequency Response
20 Hz - 20 kHz, +/- 0.2 dB

Total Harmonic Distortion
< 0.01% at 1 kHz

Signal to Noise Ratio, MM
> 87 dB, input shorted, IHF A-weighted
> 78 dB, input shorted, unweighted

Signal to Noise Ratio, MC
> 87 dB, input shorted, IHF A-weighted
> 67 dB, input shorted, unweighted

Interchannel Crosstalk
72 dB at 1 kHz

Input Impedance
MM: 47k Ω
MC: 50 - 550 Ω variable, 47k Ω fixed

Output Impedance
Unbalanced: < 100 Ω
Balanced: < 100 Ω per leg

Input Capacitance
150 pF

Input Sensitivity at 1 kHz
MM: 4mV for 1 V output
MC: 600µV for 1 V output

Total Gain
MM: 48 dB
MC: 64 dB

XLR Pin Identification
1 = Ground (Shield)
2 = Positive
3 = Negative (Return)

AC Power Requirement
Standby: 1 watt
Power On: 12 watts
115 or 230 VAC 50 - 60 Hz
(Selected on Chassis Bottom)

Dimensions
Width: 437mm
Depth: 350mm
Height, with feet: 105mm
Height, without feet: 89mm

Weight
Net: 8.6 Kg
Shipping: 11.8 Kg
