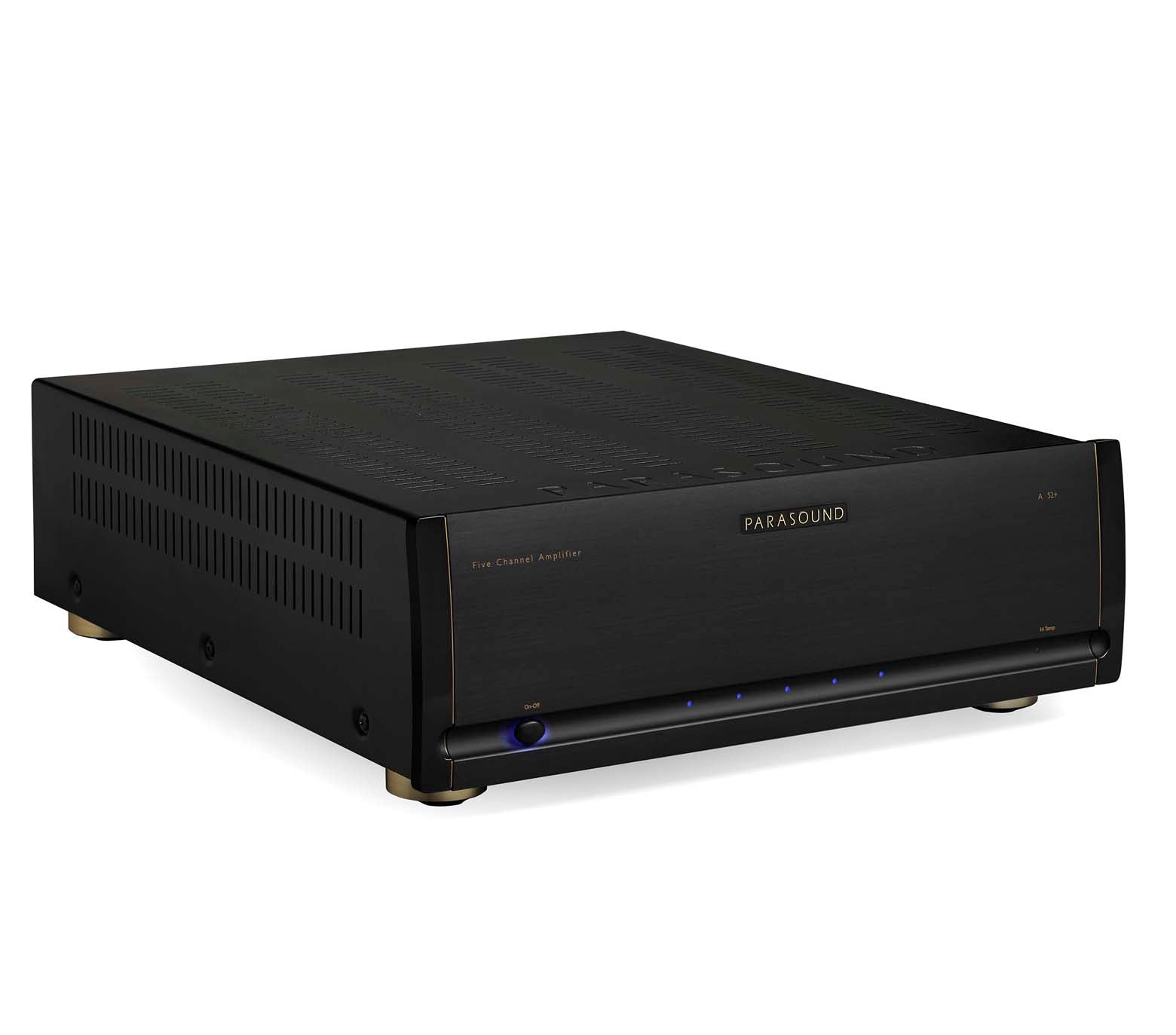

Parasound HALO A52+ Home Theatre Power Amplifier
Features
- 180 watts RMS x 5 @ 8 Ω
- 255 watts RMS x 5 @ 4 Ω
- 225 watts RMS x 2 @ 8 Ω
- 350 watts RMS x 2 @ 4 Ω
- Class A/AB circuitry designed by legendary John Curl
- Direct coupled - no capacitors or inductors in audio path ensures the cleanest signal
- Balanced XLR inputs with discrete circuits
- Full power is rated all the way down to 5Hz for unrestricted low-end bass
- Custom 1.5 kVA encapsulated toroid power transformer with independent secondary windings for each channel
- Hand-matched JFETs for input stage
- Hand-matched MOSFETs for driver stage
- Beta-matched 15 amp, 60 MHz bipolar output transistors (3 pairs per channel)
- 100,000 µF power supply filter capacitance
- DC Servo and relay protection circuits
- Auto turn on by audio signal or 12V trigger
- Heavy-duty 24k gold-plated, 5-way speaker terminals
- 3U chassis with updated cosmetics, rack mountable with HRA3 (sold separately)
Specifications
Power Output - All 5 Channels Driven
180 watts x 5, 8 Ω
255 watts x 5, 4 Ω
Power Output - 2 Channels Driven
225 watts x 2, 8 Ω
350 watts x 2, 4 Ω
Power measurements parameters with 120VAC
0.05% THD, RMS continuous power,
full audio band (20 Hz - 20 kHz)
Current Capacity:
45 amperes peak, per channel
Dynamic Headroom:
>1.5dB
Slew Rate
> 130 volts per microsecond
Frequency Response
5 Hz - 100 kHz, +0/-3 dB
20 Hz - 20 kHz, +0/-0.3 dB
Total Harmonic Distortion (THD)
< 0.05 % at full power
< 0.03 % at typical listening levels
IM Distortion
< 0.04 %
TIM
Unmeasurable
Interchannel Crosstalk
> 78 dB at 1 kHz
> 63 dB at 20 kHz
Input Impedance
Unbalanced: 47 kΩ
Balanced: 94 kΩ, 47 kΩ per leg
Input Sensitivity for 28.28 V Output into 8 Ω
Unbalanced: 1 V
Balanced: 1 V per leg
Total Gain: 29 dB
S/N Ratio
> 112 dB, input shorted, IHF A-weighted
> 102 dB, input shorted, unweighted
Damping Factor
> 1100 at 20 Hz
DC Trigger Requirements
+9 Vdc to +12 Vdc, 5 mA
Audio Trigger Requirements
2 mV - 10 mV
XLR Pin Identification
1 = Ground (Shield)
2 = Positive
3 = Negative (Return)
Dimensions
Width: 437 mm
Height without feet: 133 mm
Height with feet: 149 mm
Depth: 508 mm
Depth with cables: 540 mm
Net Weight
25 kg
Shipping Weight
31.3 kg
Power Requirement
Standby: 1 Watt
Idle: 125 Watts
Maximum: 1500 Wattsh
