Parasound HALO A21+ 2CH Power Amplifier - Black

No reviews

Price:
Sale price$7,999.00

Tax included

 More payment options

Description

Parasound Halo A21+

Changes from the original A 21→A 21+

  • 250 → 300 Watts (8Ω)
  • 400 → 500 Watts (4Ω)
  • 750 → 1000 Watts (bridged)
  • Filter cap: 88,000 uF → 108,000 uF
  • S/N: 112dB → 115 dB
  • THD (at full power): 0.2% → 0.1%
  • Crosstalk (20kHz): 63dB → 70dB
  • Transformer size: 1.2 kVA → 1.3 kVA
  • Weight: 60 LB → 71 LB
  • Refined Halo cosmetic with aluminum end caps & gold highlights

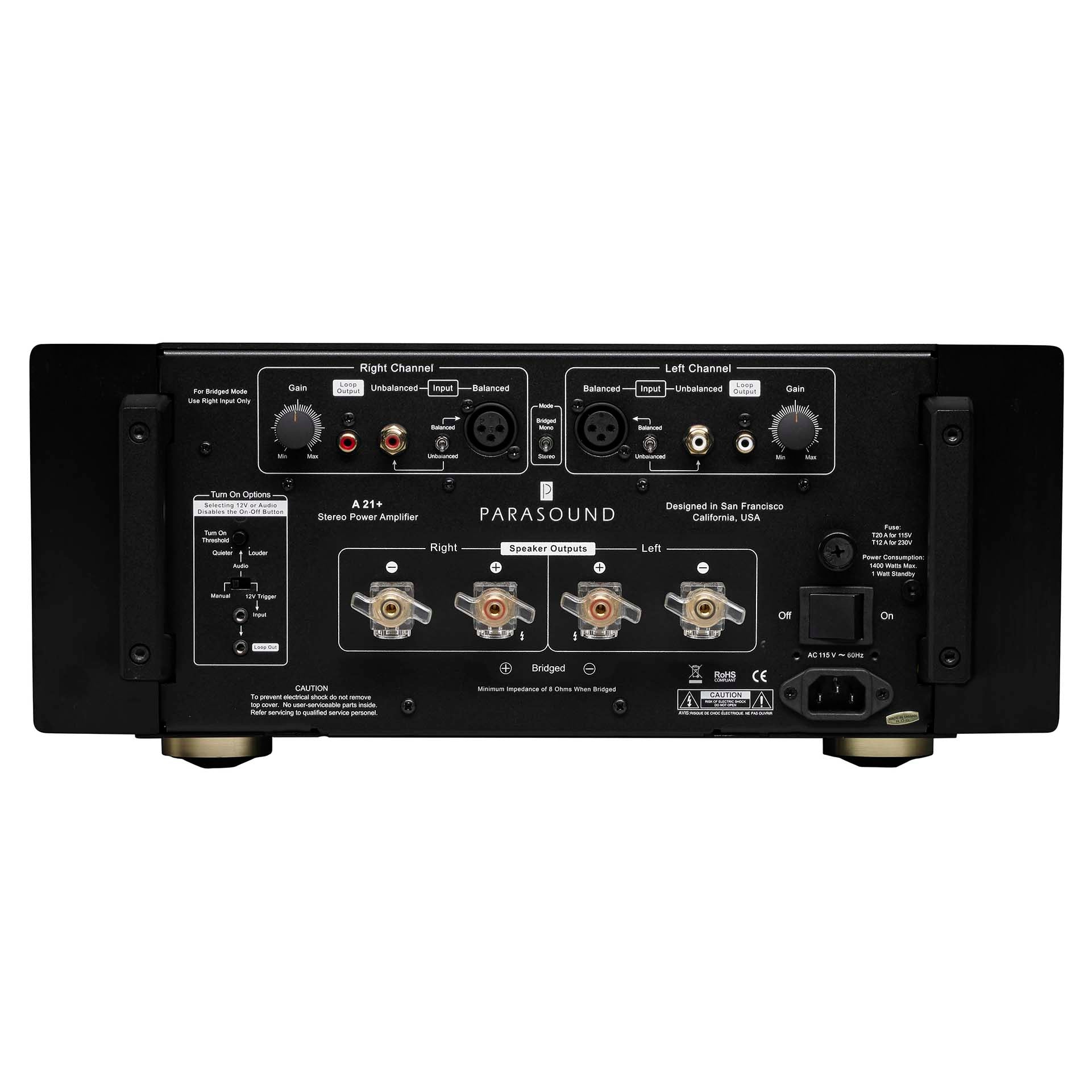

  • Updated rear panel with heavy duty speaker terminals from JC 5
  • Upgraded internal gold on gold audio connections
  • Updated auto turn on circuit

All Features

  • 300 watts x 2 @ 8 Ω RMS, both channels driven
  • 500 watts x 2 @ 4 Ω RMS, both channels driven
  • 1000 watts x 1 @ 8 Ω, in bridged mode
  • Circuitry designed by legendary John Curl
  • High bias Class A/AB operation
  • 60 amperes peak current per channel
  • Stable with speaker impedance dips to 1.5 Ω
  • Balanced inputs with discrete circuits
  • CHK Infinium, custom 5-way speaker binding posts
  • Gold-plated RCA input & loop output jacks
  • Direct-coupled signal path, no capacitors or inductors
  • DC Servo and relay protection circuits
  • AC turn-on inrush surge protection with relay bypass
  • JFET input stage, MOSFET driver stage
  • 16 beta-matched 15 ampere, 60 MHz bipolar output transistors

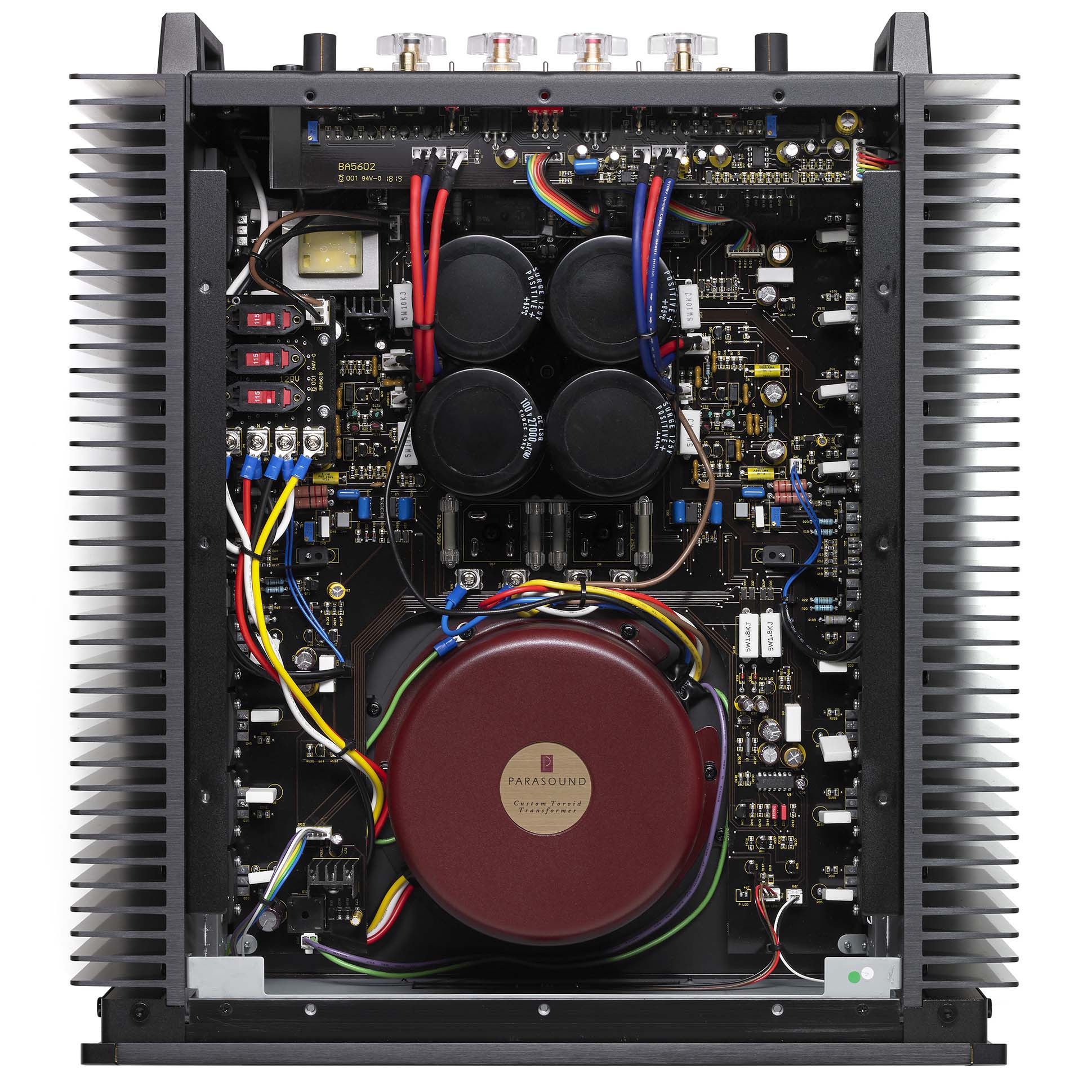

  • 1.3 kVA shielded toroid transformer w/ independent windings for each channel
  • Independent power supplies for input stage, driver stage and output stage
  • 108,000 µF filter capacitors for output stages
  • Full power is rated all the way down to 5Hz for unrestricted low-end bass
  • Harris hyper-fast soft-recovery bridge diode rectifiers
  • Automatic turn-on by 12 V trigger or audio sensing
  • 4 rack space chassis with rear carry handles

Specifications

Power Output – Stereo Mode (0.1% THD)
300 watts x 2, 8 Ω both channels driven
500 watts x 2, 4 Ω both channels driven

Power Output – Bridged Mode (0.1% THD)
1000 watts x 1, 8 Ω
Bridged 4 Ω operation is not recommended

Power measurement are at 120 VAC:
0.1% THD, RMS continuous power,
full audio band (20 Hz - 20 kHz)

Current Capacity
60 amps peak, per channel

Slew Rate
> 130 volts per microsecond

Frequency Response
5 Hz - 100 kHz, +0/-3 dB
20 Hz - 20 kHz, +0/-0.25 dB

Total Harmonic Distortion (THD)
< 0.1 % at full power
< 0.03 % at typical listening levels

IM Distortion
< 0.04 %

TIM
Unmeasurable

Inter-channel Crosstalk
> 80 dB at 1 kHz
> 70 dB at 20 kHz

Input Impedance
Unbalanced: 33 kΩ
Balanced: 66 kΩ,(33 kΩ per leg)

Total Gain
29 dB

Input Sensitivity for 28.28 V Output into 8 Ω
Unbalanced: 1 V
Balanced: 1 V per leg

S/N Ratio
> 115 dB, input shorted, IHF A-weighted
> 110 dB, input shorted, unweighted

Damping Factor
> 1100 at 20 Hz

DC Trigger Requirements
+9 Vdc to +12 Vdc, 5 mA

Audio Trigger Requirements
2 mV - 10 mV

XLR Pin Identification
1 = Ground (Shield)
2 = Positive
3 = Negative (Return)

Dimensions
Width: 448 mm
Height without feet: 181 mm
Height with feet: 197 mm
Depth: 508 mm
Depth with cables: 546 mm

Net Weight
32.2 kg

Shipping Weight
39.9 kg

Power Requirement
Standby: 1 Watt
Idle (no music playing): 160 Watts
Typical Listening levels: 300 Watts
Maximum: 1400 Watts
