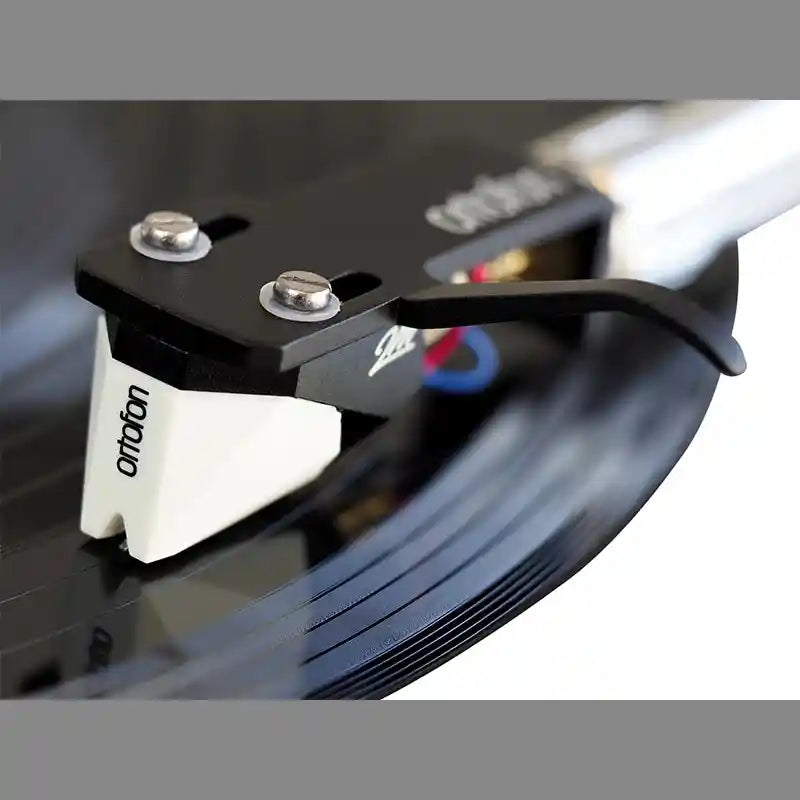

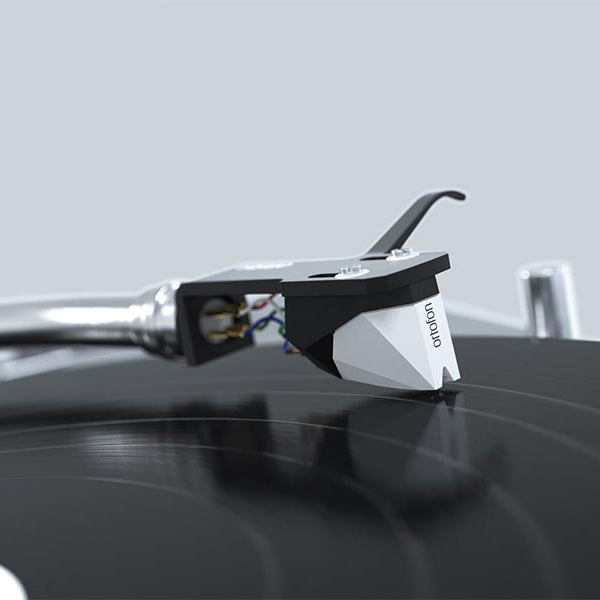

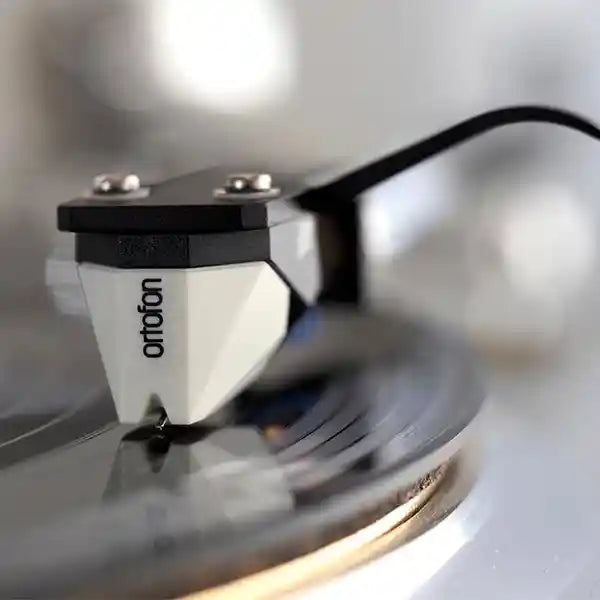

Step into an Era of Authenticity with the 2M Mono Pre-mounted cartridge, thoughtfully crafted to perfectly suit the intricacies of playing mono microgroove LP vinyl records. The 2M Mono Pre-mounted is mounted on a classic Ortofon SH-4 headshell, making setup with your turntable easy. Immerse yourself in the authentic nostalgia of mono vinyl records brought to life.
Compatibility

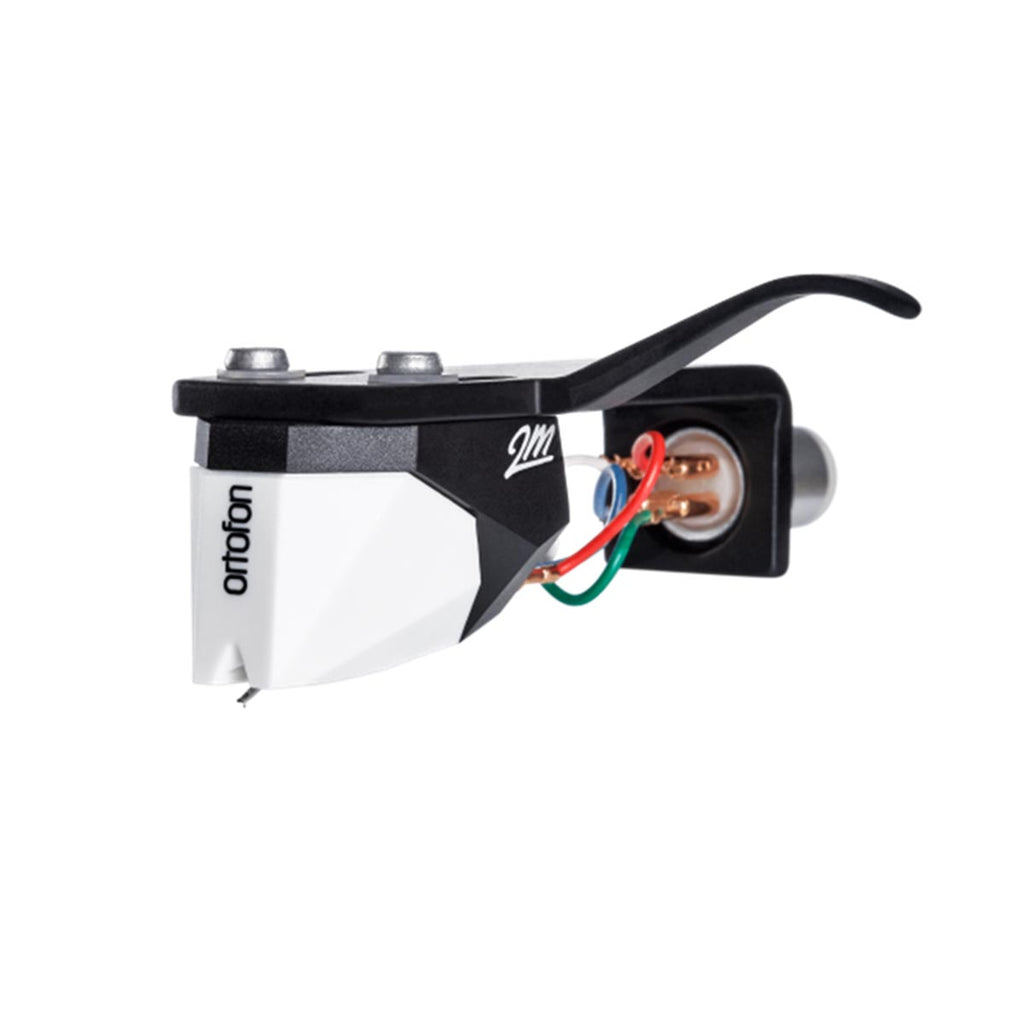

The 2M Mono Pre-mounted is a practical and elegant solution for you who wish direct and easy mounting and replacement on their S-shaped tonearm. The quality of the SH-4 headshell is sturdy and rigid, yet the design emphasizes a slim and delicate form factor. The strong, lightweight headshell has an ergonomic design with a long finger lift that is easy to pick up.
Stylus
Embark on an elevated mono experience with the 2M Mono Cartridge. Designed to bring out the best in your mono microgroove LP vinyl records, it features a stylus tipped with an R 18µm Nude Spherical diamond. This engineered feature is an optimal solution for playing mono microgroove LP vinyl records and is ideal for achieving exceptional playback quality and capturing the essence of vintage mono soundscapes.
Output
The 2M Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.
Specs
-
Output voltage at 1 kHz, 5cm/sec
4 mV
-
Frequency response 20 Hz - 20 kHz
3 / - 1 dB
-
Tracking ability at 315Hz at recommended tracking force
70 µm
-
Compliance, dynamic, lateral
18 µm/mN
-
Stylus type
Nude Spherical
-
Stylus tip radius
R18 µm
-
Tracking force range
1.6-2.0 g (16-20 mN)
-
Tracking force, recommended
1.8 g (18 mN)
-
Tracking angle
20°
-
Internal impedance, DC resistance
700 Ohm
-
Cartridge colour
Black/White
-
Cartridge weight
7.2 g
-
Premounted cartridge weight
16.7 g
-
Recommended load resistance
47 kOhm
-
Internal inductance
350 mH
-
Recommended load capacitance
150-300 pF
