Onkyo A-9110 Stereo Amplifier

Integrated Stereo Amplifier

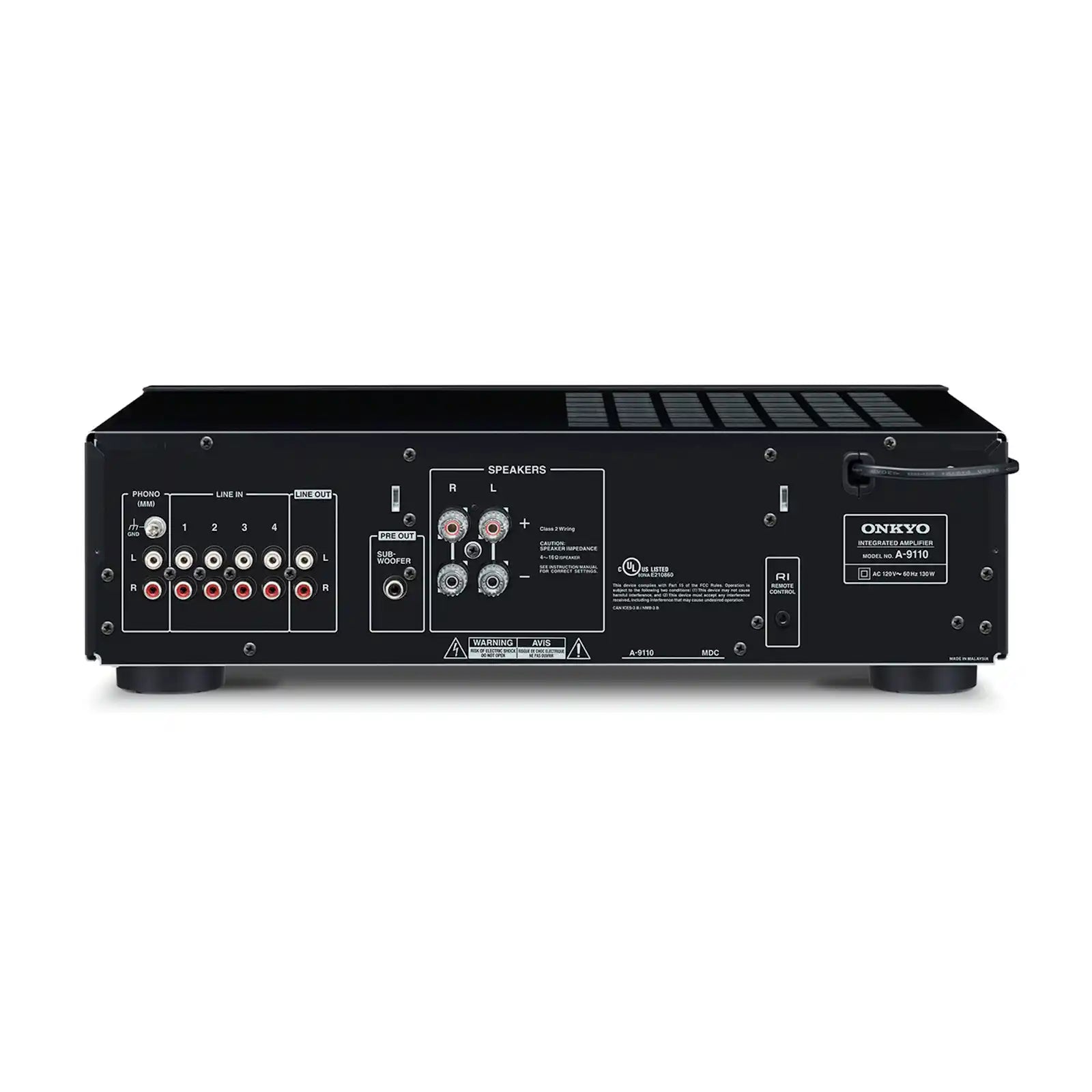

Onkyo builds on the success of its A-9010 pre-main amp with the new A-9110 Integrated Stereo Amplifier, a component that refines an original amp design that’s won an excellent critical and commercial reputation for dynamic, musical sound. Lively dynamics, deep bass, and layered detail emerge from warm and expressive tuning. WRAT delivers high-current power stability via large custom capacitors, while low-NFB amps capture the depth and spatiality of analog and hi-res recordings. Five RCA inputs including MM phono stage connect your sources while high-quality speaker-posts reveal Onkyo’s hi-fi heritage and careful attention to detail. The A-9110 invites you into each album, the hours passing comfortably in pure analog sound.

Stable High-Current Power with Wide-range Amplifiers

Dynamic changes in music cause impedance to fluctuate. If power can't be delivered when impedance drops, sound quality suffers. Onkyo's solution is WRAT, specifically its high-output EI transformer, huge custom-made main audio capacitors, and carefully selected high-quality parts. High-current stability controls the speaker-drivers for accurate and assured reproduction of dynamic musical passages. Further, the A-9110 features Onkyo's time-proven low-negative-feedback amplifier topology that distinguishes the timbral warmth, fullness, and vibrancy of the recording. This circuitry captures a wide frequency spectrum with uncommonly low distortion.

Sounds Clearer at Low Volumes

When playing music at low volume, the signal normally drops close to the component's noise floor. The signal picks up noise, which is amplified, and the result is muffled sound. To avoid this, the A-9110 features Optimum Gain Volume Circuitry, a volume circuit that requires less than half the usual amount of attenuation. The signal never approaches the noise floor, so you can enjoy clearest sound at low volume.

Phase Matching Bass Boost

Most pre-main amps have a loudness button designed to boost low-mid frequency sound. However, conventional designs are prone to phase-shift, which degrades the clarity of the vocal frequency band. Onkyo's Phase Matching Bass Boost function eliminates phase-shift between low- and mid-range frequency bands above 300 Hz. Bass response is enhanced without compromising vocal clarity, and that's something especially useful when playing music at low volume where bass and high-frequency sounds are more difficult to hear.

Thick and Rigid Chassis Tames Resonance

Every hi-fi component generates electromechanical resonance. This translates into signal noise, and that impacts on the sound coming out of your speakers. To combat the negative effects of vibration, the A-9110 features a rigid metal chassis that's 1.3 times thicker than the A-9010 at 1/16" (1.6 mm). Working together with large, wide-spaced insulators, unwanted resonance is virtually eliminated.

Specifications

Power Output	50 W + 50W (4 Ohms, 20 Hz-20 kHz, 0.9% THD, 2 Channels Driven, FTC)
Total Harmonic Distortion + Noise	0.05% (8 ohms, 1 kHz, half power)
Damping Factor	95 (1 kHz, 8 ohms)
Line	200 mV/47 k-ohms
Phono MM	4 mV/47 k-ohms
Line out	0.2 V/2.3 k-ohms
Phono Overload	70 mV (MM, 1 kHz, 0.5%)
Frequency Response	10 Hz-100 kHz/+1 dB, -3 dB (Direct Mode)
Bass	±10 dB, 100 Hz
Treble	±10 dB, 10 kHz
Signal-to-Noise Ratio	103 dB (IHF-A, Line In, Speaker Out) 78 dB (IHF-A, Phono In, Speaker Out)
Speaker Impedance	4 ohms–16 ohms

General

Power Supply	AC 120 V, 60 Hz
Power Consumption	140 W
Standby Power Consumption	0.1 W
Dimensions (W x H x D)	435 x 129 x 330 mm)
Weight	7.0 kg
