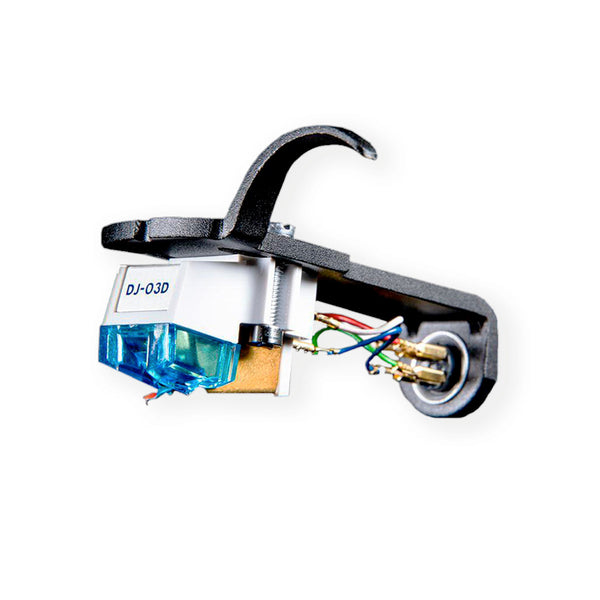

Nagaoka DJ-03HD DJ Cartridge with Headshell

Nagaoka DJ-03HD DJ Cartridge with Headshell

The DJ-03HD is a high-output moving-magnet DJ cartridge supplied pre-mounted to a headshell, designed for turntables with compatible removable headshell tonearms.

This is a cartridge upgrade where setup matters. Correct overhang, alignment, tracking force and phono-stage loading are all part of getting the result the cartridge is capable of delivering.

Cartridge Design

Its 6mV output and 3–5g recommended tracking-force range are aimed at reliable cueing, backspin and light scratching rather than delicate audiophile use.

System Matching and Setup

Use the manufacturer's recommended tracking-force range and a standard 47kΩ phono input where specified. Tonearm effective mass, headshell weight and available counterweight range should also be checked before installation.

Key Features

• Type: Moving magnet DJ cartridge with headshell
• Output: 6mV
• Tracking force: 3–5g
• Use: DJ playback, cueing, backspin and light scratching
• Origin: Made in Japan
• Replacement stylus: G JN-03D

Specifications

Detailed Technical Specifications

For those who like to drag out all the useful bits

Important Notes

• Cartridge alignment, tracking force and anti-skate should be set correctly after installation.
• Check tonearm and phono-stage compatibility before ordering.
• Replacement stylus compatibility is model-specific.

The Audio Experts Take

For a compatible DJ deck, the appeal is straightforward: cartridge and headshell arrive as one practical package, with a robust tracking-force range and replaceable stylus.
