NAD M22v2 Stereo Power Amplifier
NAD M22v2 Stereo Power Amplifier has the latest nCore amplifier technology to provide a nearly ideal amplifier with distortion below measurement. It has ultra-high damping factor and unconditional stability with any speaker.
Features
- Output Power: 2 x 250w into 4/8Ω continuous, both channels 20-20k
- Dynamic power: 355w into 8Ω, 640w into 4Ω, 620w into 2Ω
- Peak output current: >50A

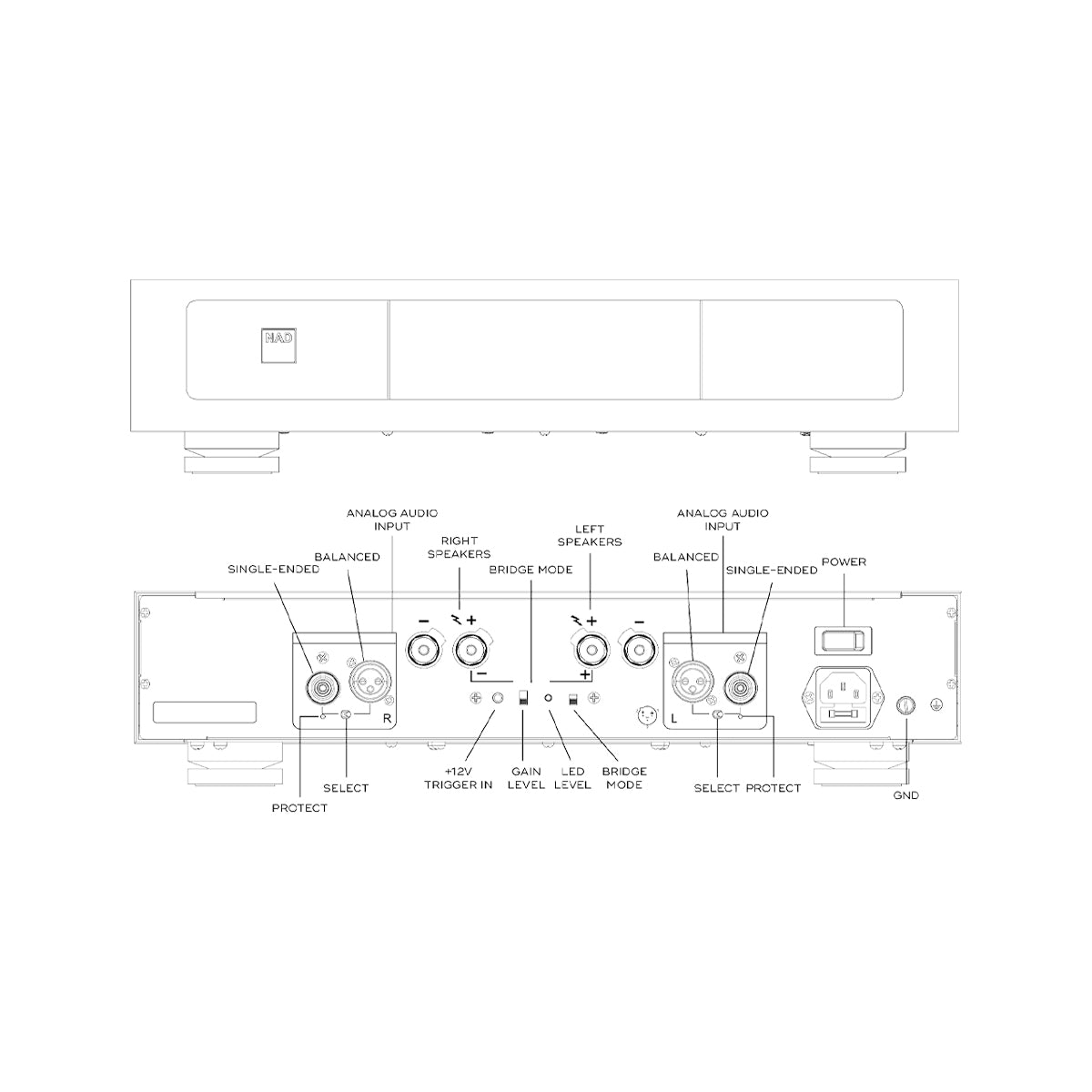

- Inputs: 1pr x balanced XLR, 1pr x unbalanced RCA
- Outputs: L & R 5-way speaker terminals
- Control: 12v trigger in, detachable IEC power cord
- Dimensions / Weight: 435 W x 103 H x 379 D in mm, 8.9kg
Specifications
- 200 watts x 2 channels into 8 ohms (20-20,000 Hz) at 0.003% THD
- 4-ohm stable for use with a wide range of speakers
- innovative nCore® Class D technology offers robust output, energy efficiency, compact size, accurate sound, and minimal distortion
- PowerDrive™ circuit with automatic speaker impedance sensing delivers maximum dynamic, clean power output regardless of speaker load
- high-current, low-distortion power supply for clean sound
- all-discrete circuitry offers minimal noise and distortion
- 1 pair of balanced XLR and unbalanced RCA preamp inputs (switchable)
- 1 pair of speaker binding posts
- signal-to-noise ratio: 100 dB
