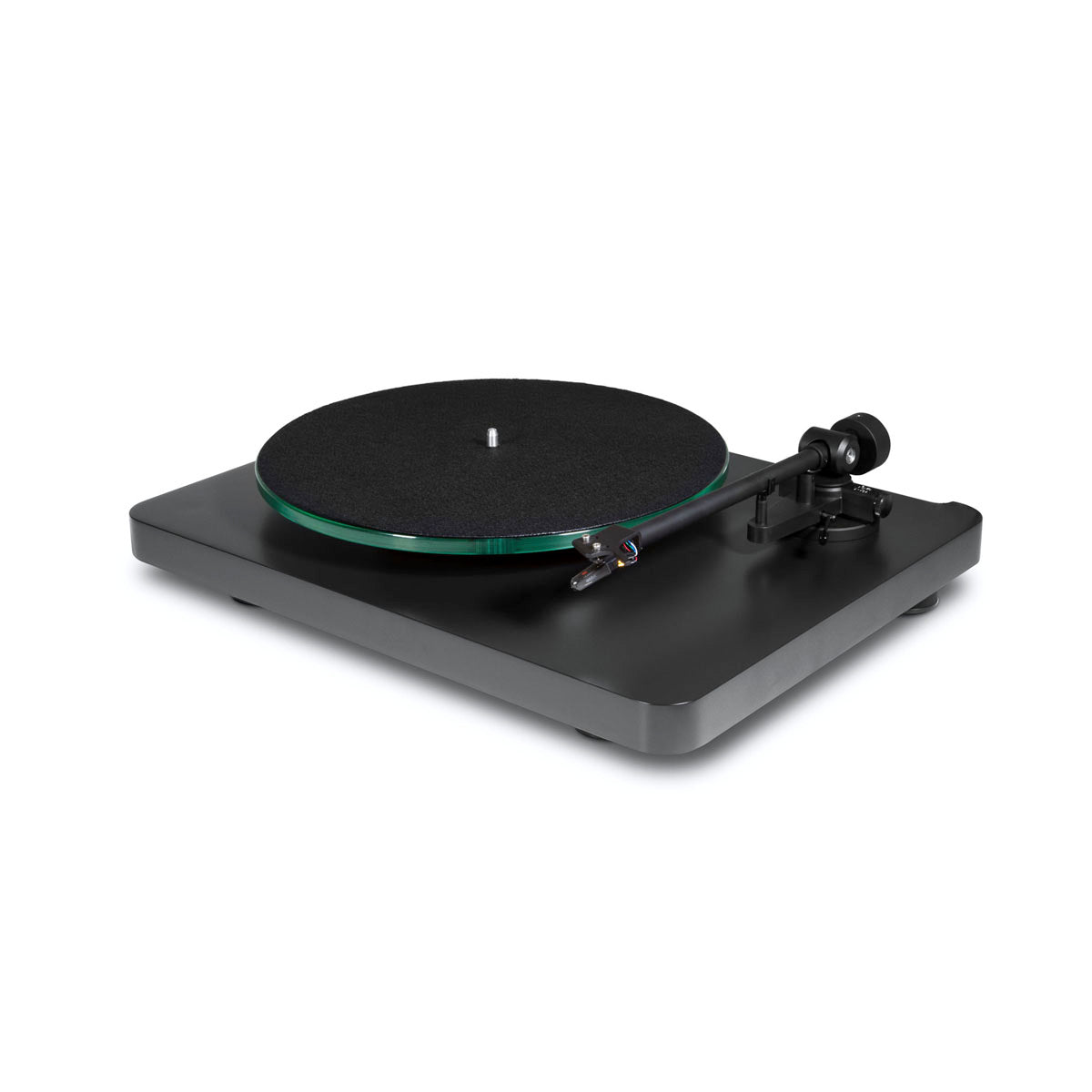

NAD C558 Turntable with Ortofon OM10 cartridge
The NAD C558 is a full-featured, belt-driven model targeted for record enthusiasts everywhere. Pre-fitted with an Ortofon OM10 phono cartridge, the C558 turntable features a belt drive for maximum noise isolation, as well as a precision AC motor with isolated AC power supply that has universal voltage. Complimented by a glass platter with felt pad, a MDF plinth, and a low resonance dust cover, the C558 delivers an outstanding listening experience unlike any other.
Specificationsturn
General
- Nominal speed
- 33/45 rpm, manual speed change
- Speed variance
- 33rpm: ± < 0.50%, 45rpm: ± < 0.45%
- Wow and flutter
- 33rpm: ± < 0.15%, 45rpm: ± < 0.15%
- Downforce range
- 0 – 30 mN, 0 – 3.0 grams
ToneArm
- Operation
- Manual
- Length
- 230 mm
- Overhang
- 18 mm
- Effective tonearm mass
- 9.5 g
- Cable capacitance
- 150-400pF
Cartridge
- Frequency Range
- 20-22.000Hz
- Output Voltage
- 4mV
- Tracking Force Recommended
- 15mN
- Cartridge Weight
- 5g
- Stylus Type
- 20μm/mN – elliptical
Dimensions Unit Dimension (WxHxD) – Gross
435 x 340 x 125 mm
Net weight
5.5 kg
Shipping weight
8 kg
