Monitor Audio W180 8-inch In-wall Speaker
8-inch two-way in-wall speaker for larger stereo, surround and distributed-audio zones where more scale is required from each wall position.
W180 is the larger companion to the W165 concept. The 8-inch bass-mid driver gives it more cone area, making it useful in larger rooms or applications where fewer speaker locations need to cover more space.
Installation and System Planning
That does not automatically make it the better choice in every room. Wall space, listening distance and the number of speakers in the zone should decide between W165 and W180, with a subwoofer still useful when deep bass is an important part of the brief.
Key Features
- Brand: Monitor Audio
- Range: Basics
- Frequency Response: 50 Hz – 25 kHz
- Nominal Impedance: 6 ohms
- Sensitivity (1W@1M): 90 dB
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | W180 |
| Product Type | In-Wall Speaker |
| Range | Basics |
| Frequency Response | 50 Hz – 25 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 90 dB |
| Maximum SPL | 111.6 dBA |
| Power Handling (RMS) | 120 W |
| Recommended Amplifier Requirements | 30 – 120 W |
| Drive Unit Complement | 8-inch MMP II cone bass driver, 1-inch C-CAM Gold Dome tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB) |
| Overall Dimensions (Including Grille) | 441 x 288 mm |
| Overall Depth (Including Grille) | 104 mm |
| Mounting Depth | 100 mm |
| Cut-Out Hole Dimensions | 387 x 234 mm |
| Fixing Type | 6 position Tri-Grip dog fixings |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 3.08 kg |
| Pre-Construction Bracket | WB8 Pre-Construction Bracket (Green) |
| Back Box | WCBOX-L |
| Sold As | Single Unit |
| Warranty | Lifetime |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- In-wall speaker
- Monitor Audio Basics range
- Designed for high-performance sound, ease-of-drive, and wide dispersion

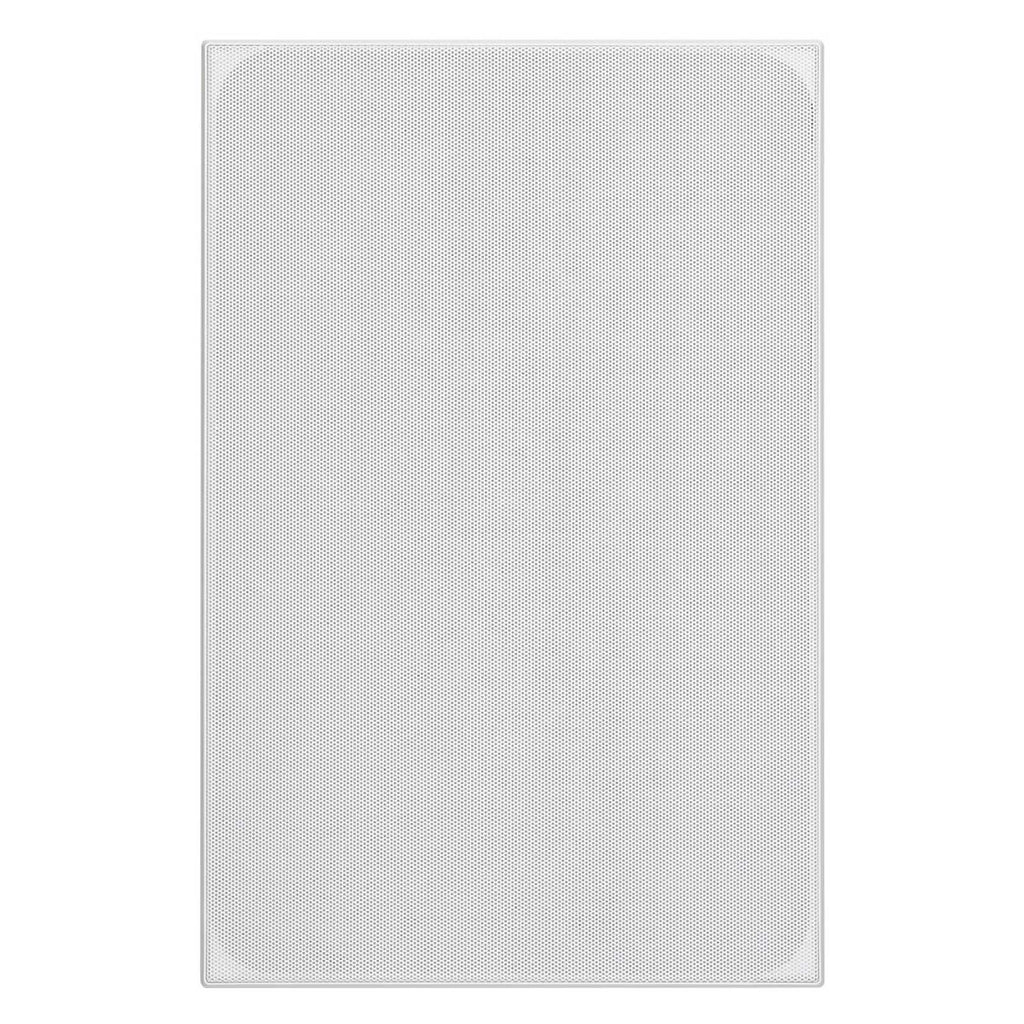

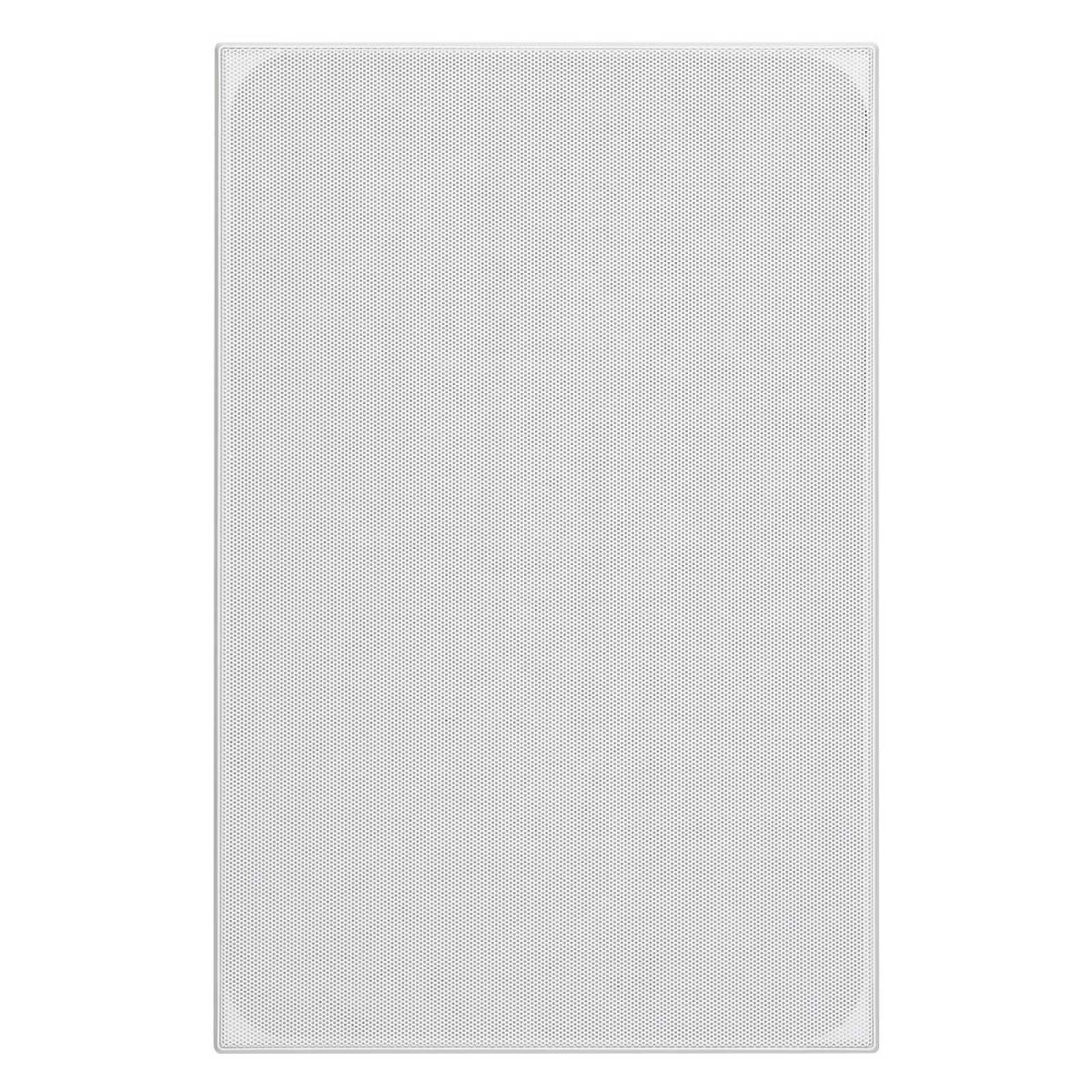

- Single speaker supplied with grille
- Lifetime warranty included
Driver Configuration
- 8-inch MMP II cone bass driver

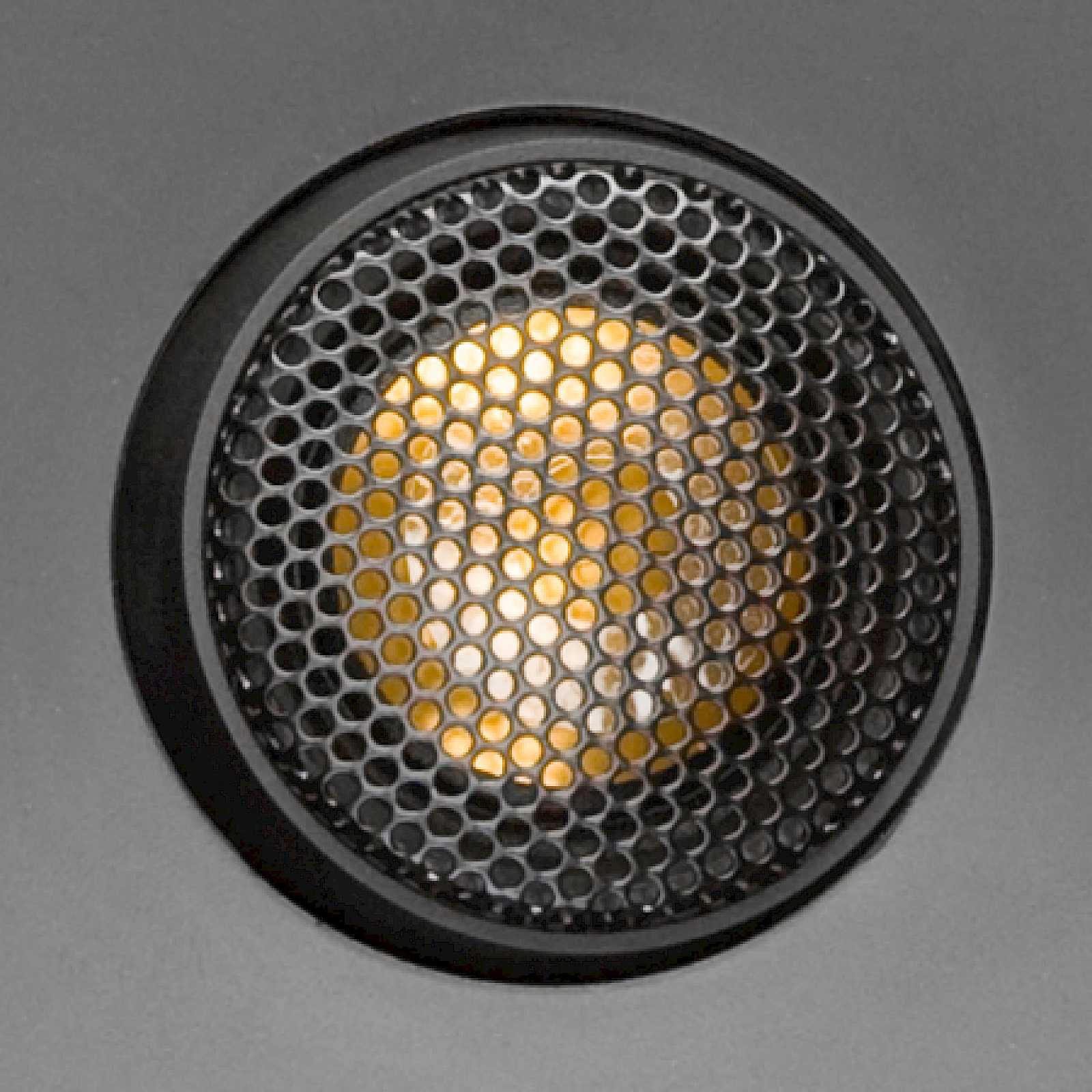

- 1-inch C-CAM Gold Dome tweeter
Performance
- Frequency response: 50 Hz – 25 kHz
- Nominal impedance: 6 ohms
- Sensitivity: 90 dB
- Maximum SPL: 111.6 dBA
- Power handling: 120 W RMS
- Recommended amplifier power: 30 – 120 W
Adjustment and Set-Up
- Pivoting tweeter
- HF level switch: +3 dB 0 dB -3 dB
Installation
- Overall dimensions including grille: 441 x 288 mm
- Overall depth including grille: 104 mm
- Mounting depth: 100 mm
- Cut-out hole dimensions: 387 x 234 mm
- Fixing type: 6 position Tri-Grip dog fixings
- Construction material: Mineral filled ABS, RoHS compliant
Accessories
- WB8 Pre-Construction Bracket (Green)
- WCBOX-L back box
Weight and Warranty
- Weight: 3.08 kg
- Sold as a single unit
- Lifetime warranty
The Audio Experts Take
The W180 is the larger choice in this straightforward in-wall range and is useful when you want a little more scale from each speaker. It suits bigger zones or installations where fewer, more capable wall speakers are preferable to a larger number of smaller models. Talk to The Audio Experts about room size and amplifier pairing if you are deciding between the W165 and W180.
Brand new. Contact us for current availability and matching advice.
