Description

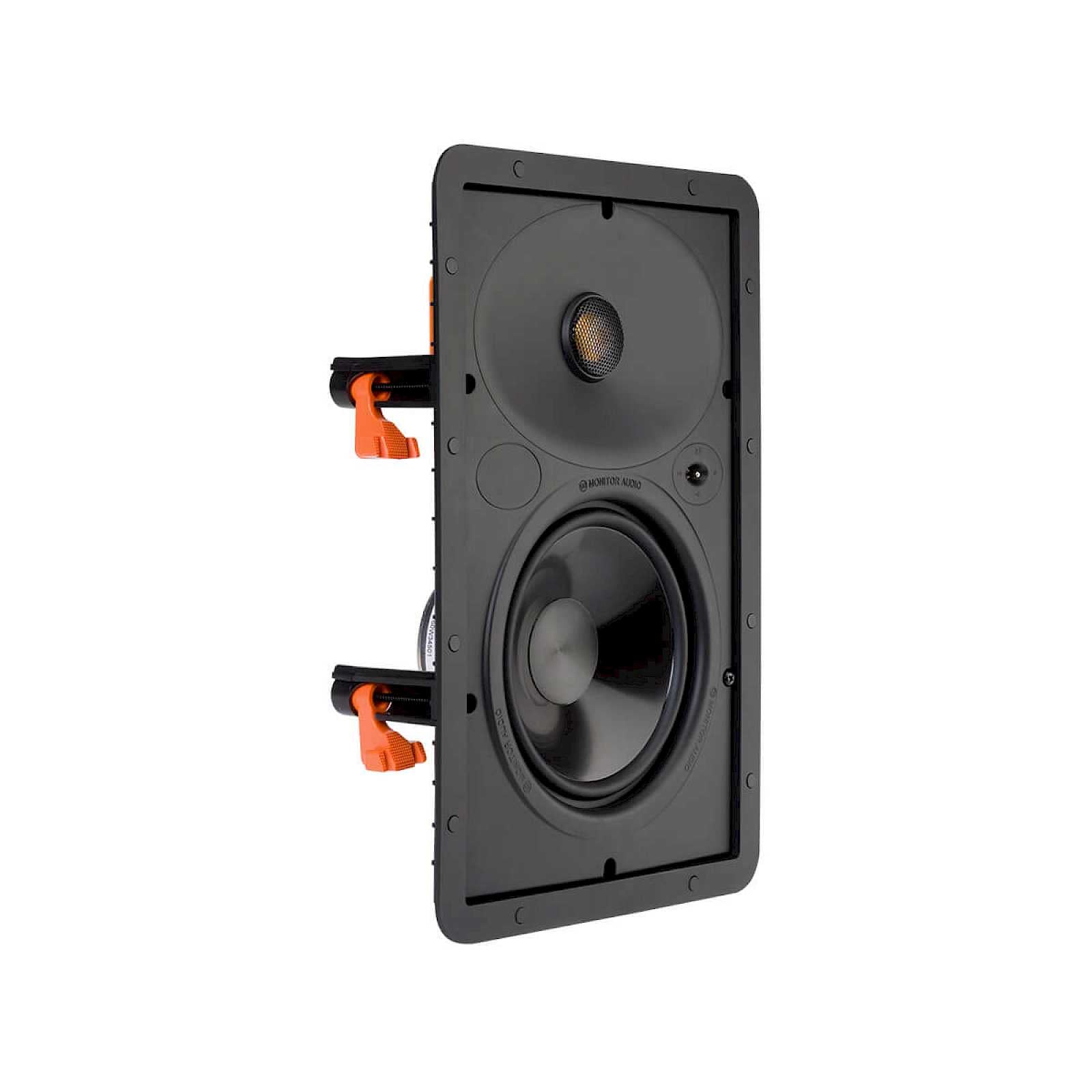

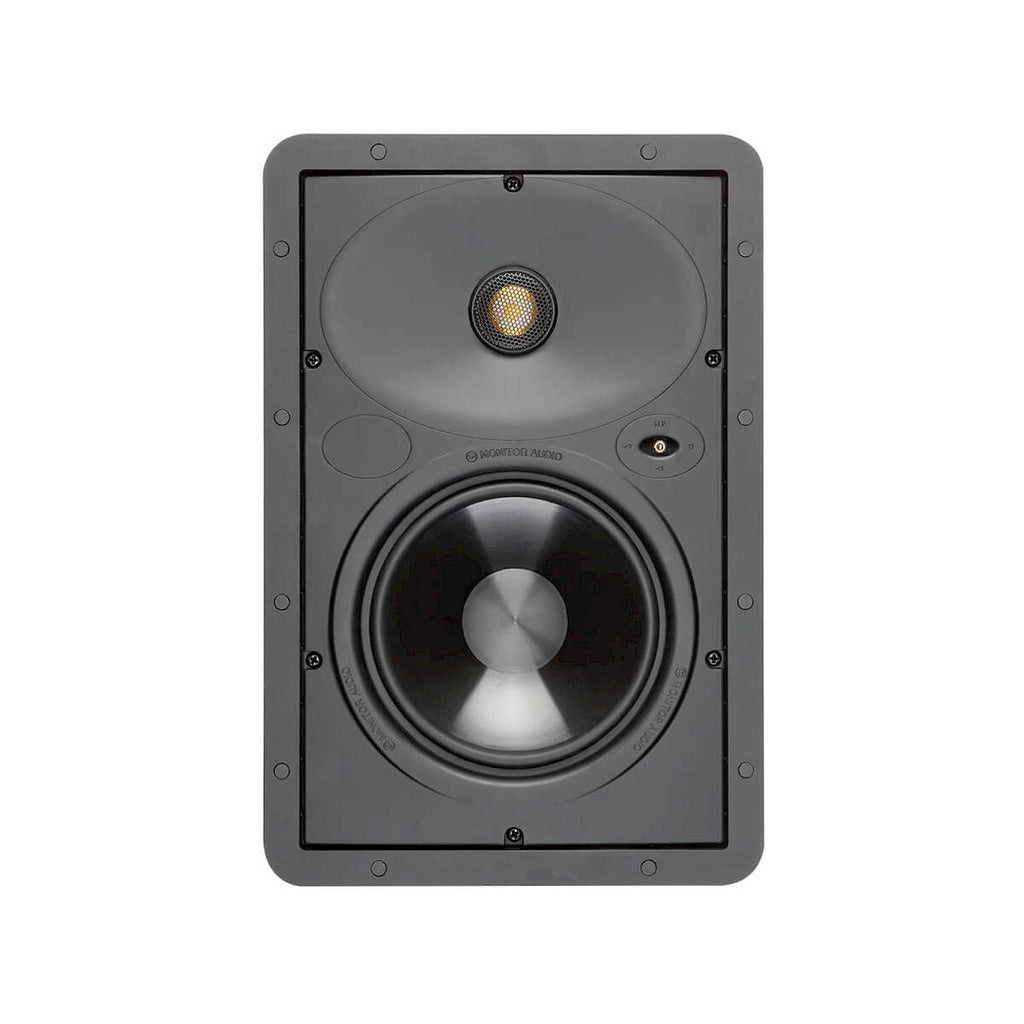

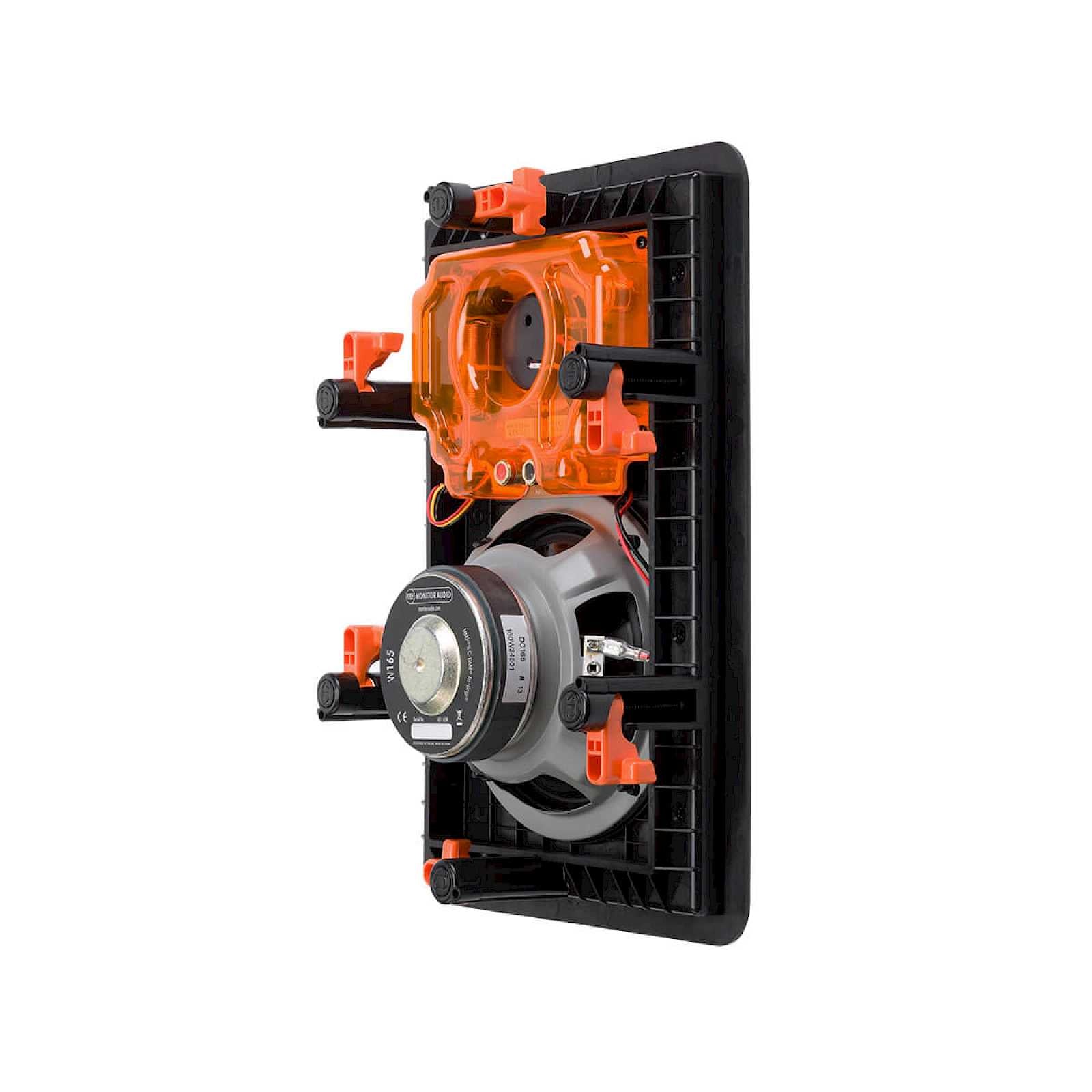

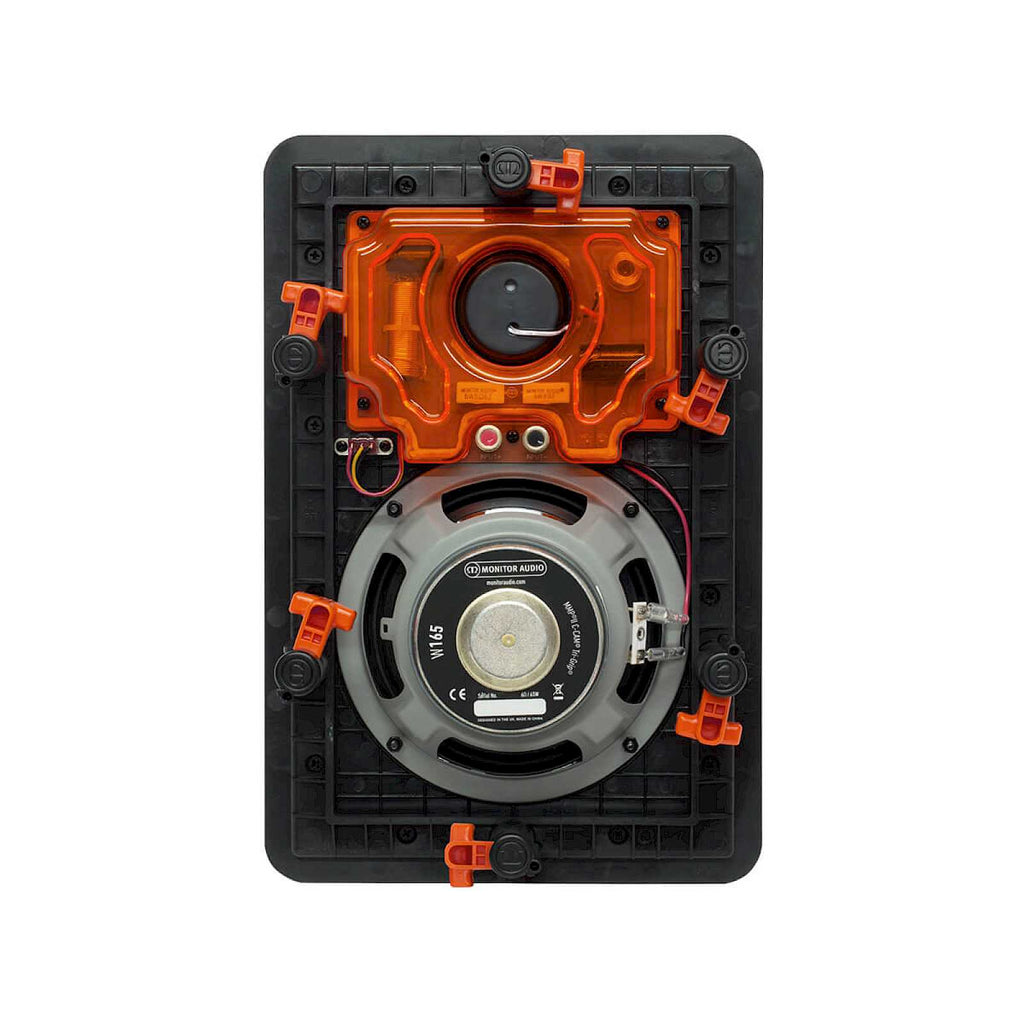

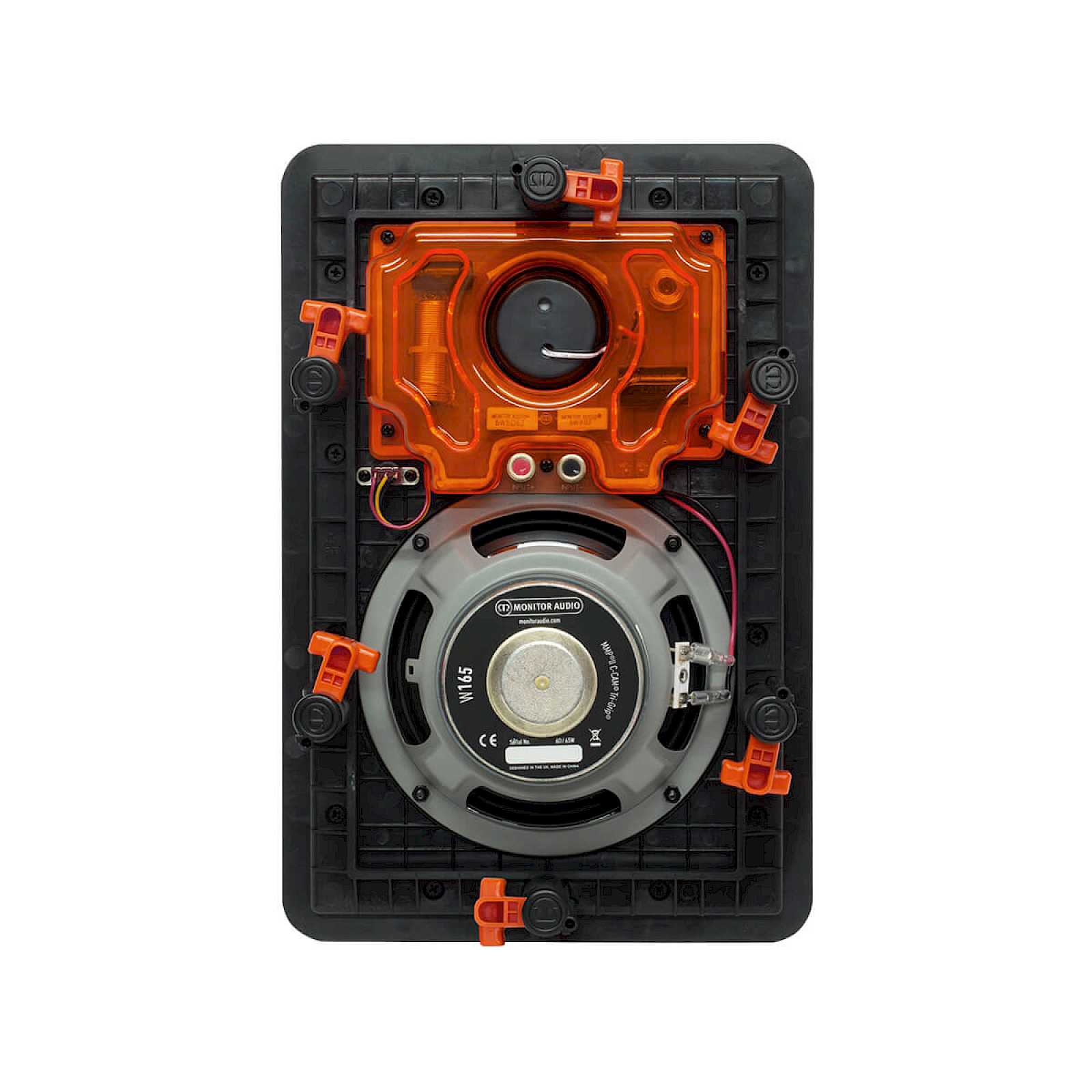

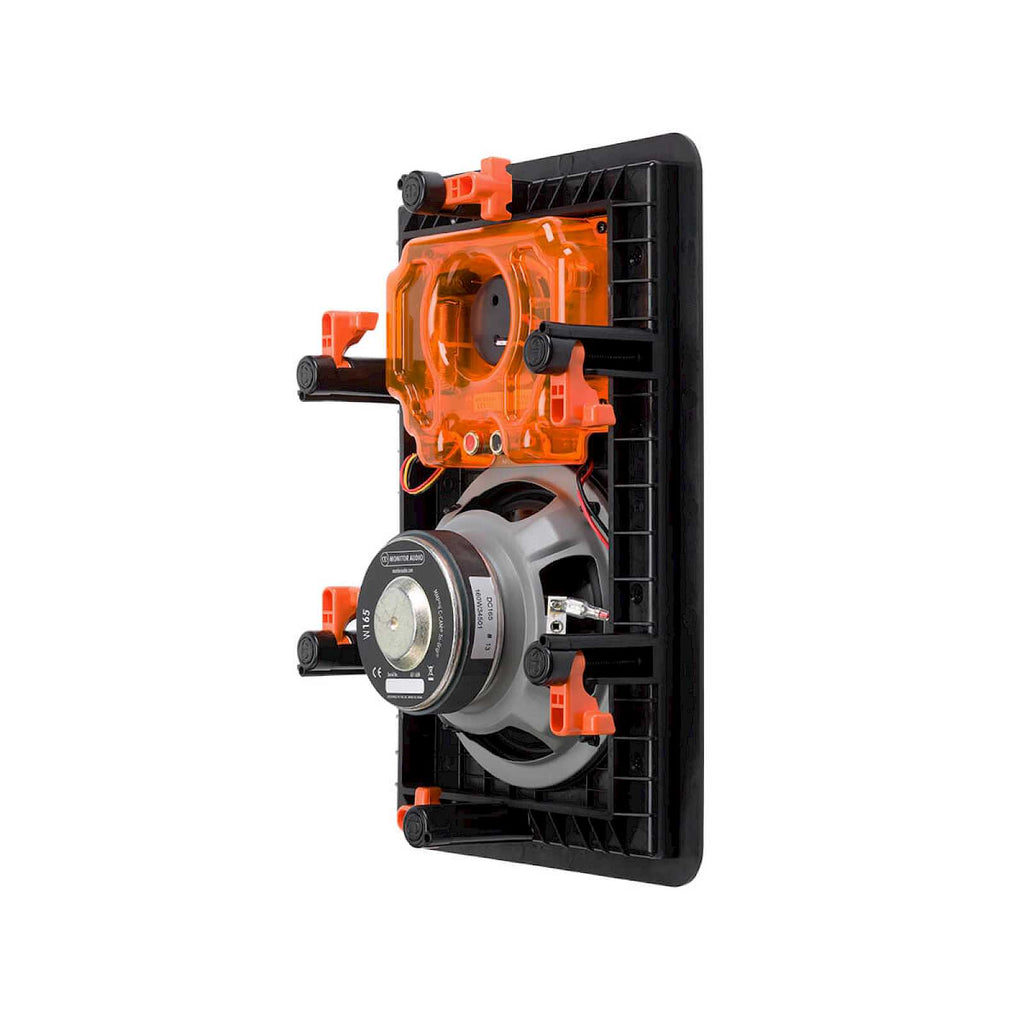

Monitor Audio W165 6.5-inch In-wall Speaker
6.5-inch two-way in-wall speaker with a pivoting tweeter for straightforward stereo, surround and distributed-audio installations.
W165 is a conventional architectural speaker for rooms that need clean appearance and sensible coverage without the complexity of the Creator Series. The pivoting tweeter gives some flexibility to aim high frequencies towards the listening area after the speaker position has been fixed.
Where It Fits
It works well in pairs for music zones or as surround channels in a home theatre. For larger rooms, the W180 offers a bigger driver, while multiple W165s may be preferable when even coverage across a wider area is the priority.
Key Features
- Brand: Monitor Audio
- Range: Basics
- Frequency Response: 60 Hz – 25 kHz
- Nominal Impedance: 6 ohms
- Sensitivity (1W@1M): 88.5 dB
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | W165 |
| Product Type | In-Wall Speaker |
| Range | Basics |
| Frequency Response | 60 Hz – 25 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 88.5 dB |
| Maximum SPL | 107.4 dBA |
| Power Handling (RMS) | 65 W |
| Recommended Amplifier Requirements | 20 – 65 W |
| Drive Unit Complement | 6 1/2-inch MMP II cone bass driver, 1-inch C-CAM pivoting Gold Dome tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB) |
| Overall Dimensions (Including Grille) | 370 x 250 mm |
| Overall Depth (Including Grille) | 96 mm |
| Mounting Depth | 92 mm |
| Cut-Out Hole Dimensions | 332 x 213 mm |
| Fixing Type | 6 position Tri-Grip dog fixings |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 2.21 kg |
| Pre-Construction Bracket | WB6 Pre-Construction Bracket |
| Sold As | Single Unit |
| Warranty | Lifetime |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- In-wall speaker
- Monitor Audio Basics range
- Designed for easy driveability and wide dispersion

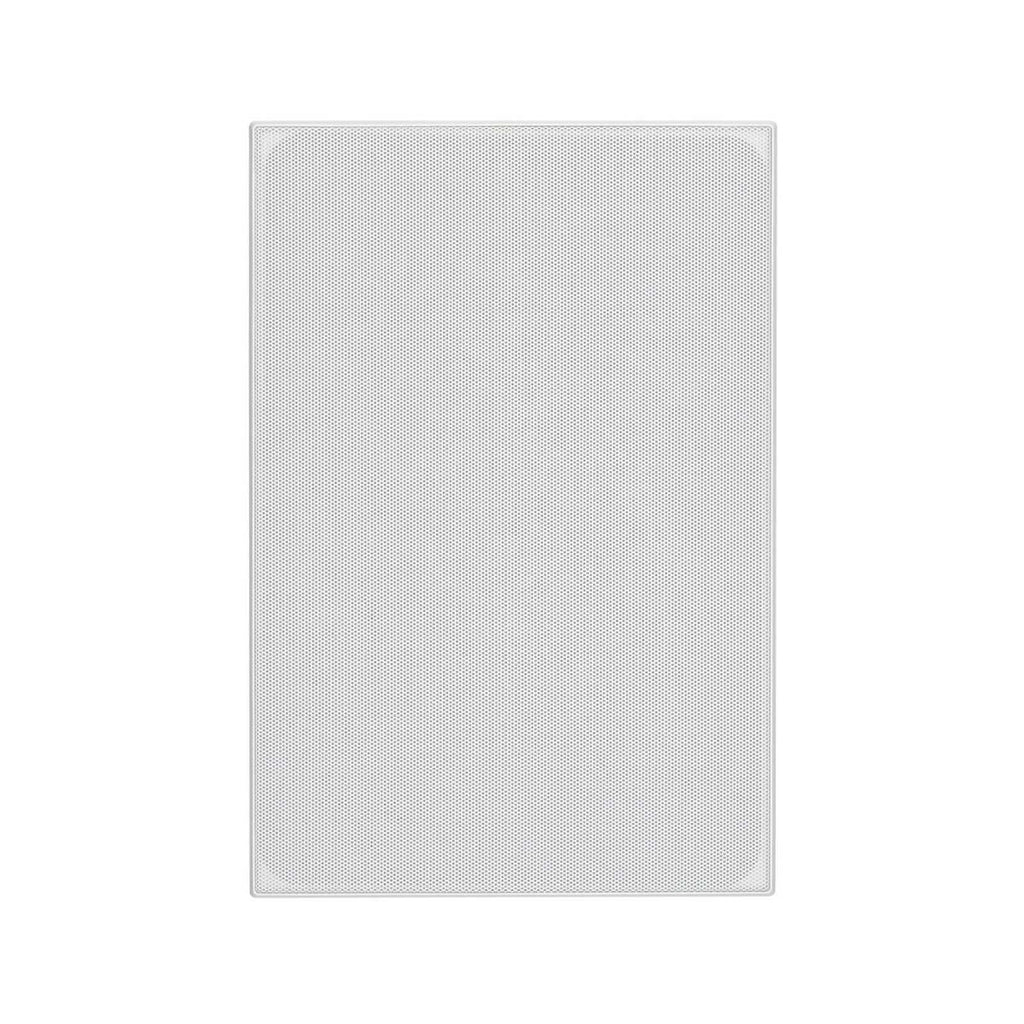

- Single speaker supplied with grille
- Lifetime warranty included
Driver Configuration
- 6 1/2-inch MMP II cone bass driver
- 1-inch C-CAM pivoting Gold Dome tweeter
Performance
- Frequency response: 60 Hz – 25 kHz
- Nominal impedance: 6 ohms
- Sensitivity: 88.5 dB
- Maximum SPL: 107.4 dBA
- Power handling: 65 W RMS
- Recommended amplifier power: 20 – 65 W
Adjustment and Set-Up
- Pivoting tweeter
- HF level switch: +3 dB 0 dB -3 dB
Installation
- Overall dimensions including grille: 370 x 250 mm
- Overall depth including grille: 96 mm
- Mounting depth: 92 mm
- Cut-out hole dimensions: 332 x 213 mm
- Fixing type: 6 position Tri-Grip dog fixings
- Construction material: Mineral filled ABS, RoHS compliant
Accessories
- WB6 Pre-Construction Bracket
Weight and Warranty
- Weight: 2.21 kg
- Sold as a single unit
- Lifetime warranty
The Audio Experts Take
The W165 is a straightforward 6.5-inch in-wall speaker for rooms where clean appearance and sensible coverage matter more than building a flagship hidden system. It can suit stereo zones, surrounds or general distributed audio, with the pivoting tweeter helping aim the high frequencies towards the listening area. If you are working from plans, The Audio Experts can help determine quantity and position.
Brand new. Contact us for current availability and matching advice.
