Description

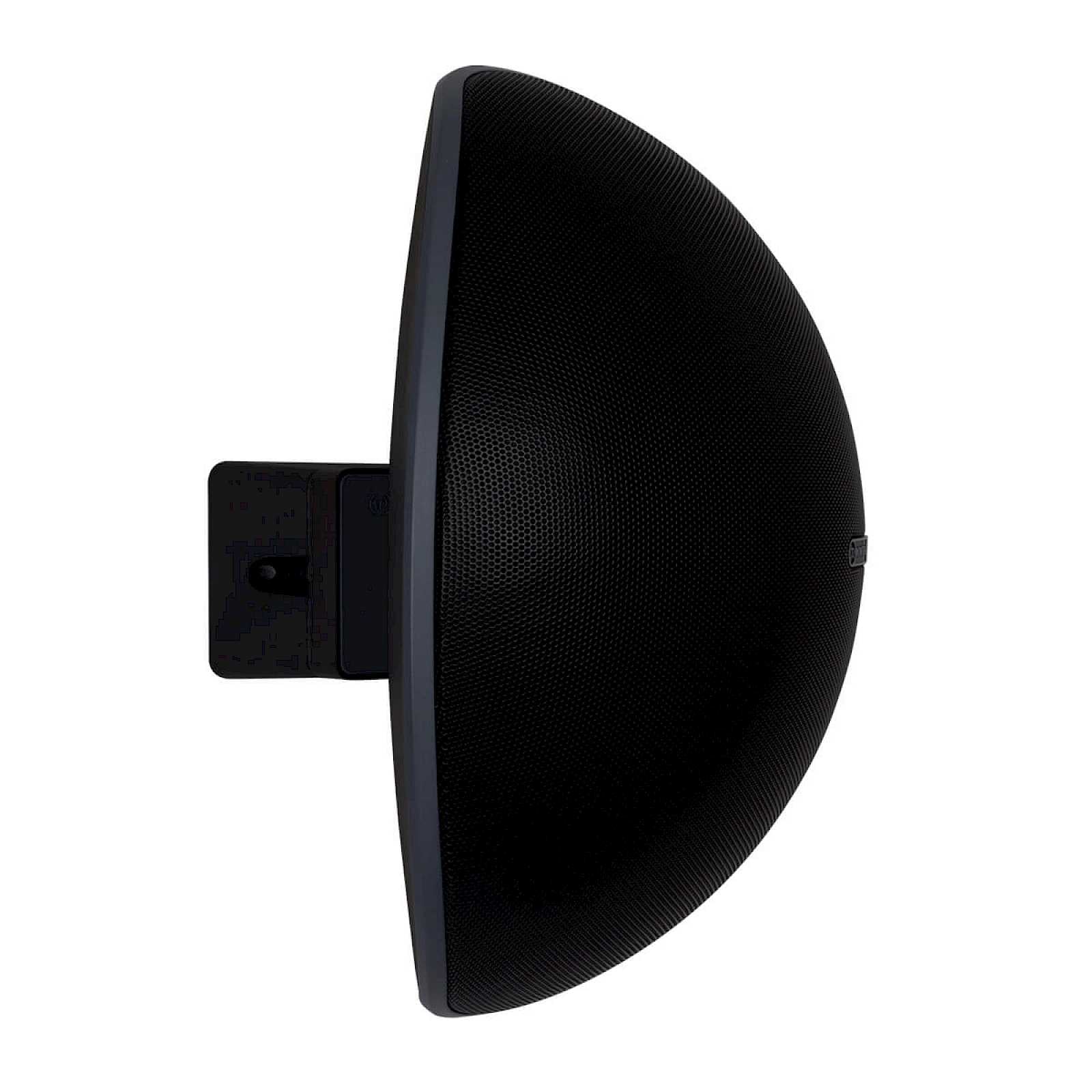

Monitor Audio Vecta V240 Indoor/Outdoor Speaker
Weather-resistant Vecta V240 speaker with dual C-CAM drivers, controlled-dispersion tweeter system and dedicated mounting hardware for design-led indoor or outdoor installations.
Vecta V240 is built for installations where the speaker remains visible, so cabinet shape, bracket system and cable management are part of the appeal. It can be mounted to suit patios, exterior walls and other areas where a conventional rectangular outdoor speaker would be visually intrusive.
Installation and System Planning
The mounting system also lets the installer aim coverage towards the listening zone. Plan speaker height, orientation and the choice of V-MOUNT or V-CORNER around the architecture before running the cable.
Key Features
- Brand: Monitor Audio
- Series: Vecta
- System Format: 2-way (3 driver)
- Frequency Response (-6 dB): 70 Hz – 25 kHz
- Sensitivity (1W@1M): 88 dB
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | V240 |
| Product Type | Indoor / Outdoor Speaker |
| Series | Vecta |
| System Format | 2-way (3 driver) |
| Frequency Response (-6 dB) | 70 Hz – 25 kHz |
| Sensitivity (1W@1M) | 88 dB |
| Nominal Impedance | 4 ohms |
| Minimum Impedance | 3.8 ohms @ 240 Hz |
| Maximum SPL | 108 dBA (each) |
| Power Handling (RMS) | 100 W |
| Recommended Amplifier Requirements | 25 – 100 W |
| Bass Alignment | Sealed cabinet |
| Crossover Frequency | 2.5 kHz |
| Connection | Gold plated push terminals – attached to bracket |
| Environmental Protection Rating | IP55 -25° to 65° C / -13° to 149° F |
| Bracket Pivot Angle | Wall: 25 degrees. Wedge: Additional 32.5. Total Max: 45 |
| Drive Unit Complement | 2 x 4-inch drivers featuring C-CAM metal cone technology, 25 mm (1-inch) C-CAM dome tweeter |
| Dimensions (H x W x D) | 336 x 243.2 x 150 mm |
| Weight | 2.55 kg |
| Finishes | Black or White (Signal White, RAL 9003) |
| Sold As | Single Unit |
| Warranty | Lifetime |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- Indoor / outdoor speaker
- Vecta range
- Compact curved tapered-back cabinet

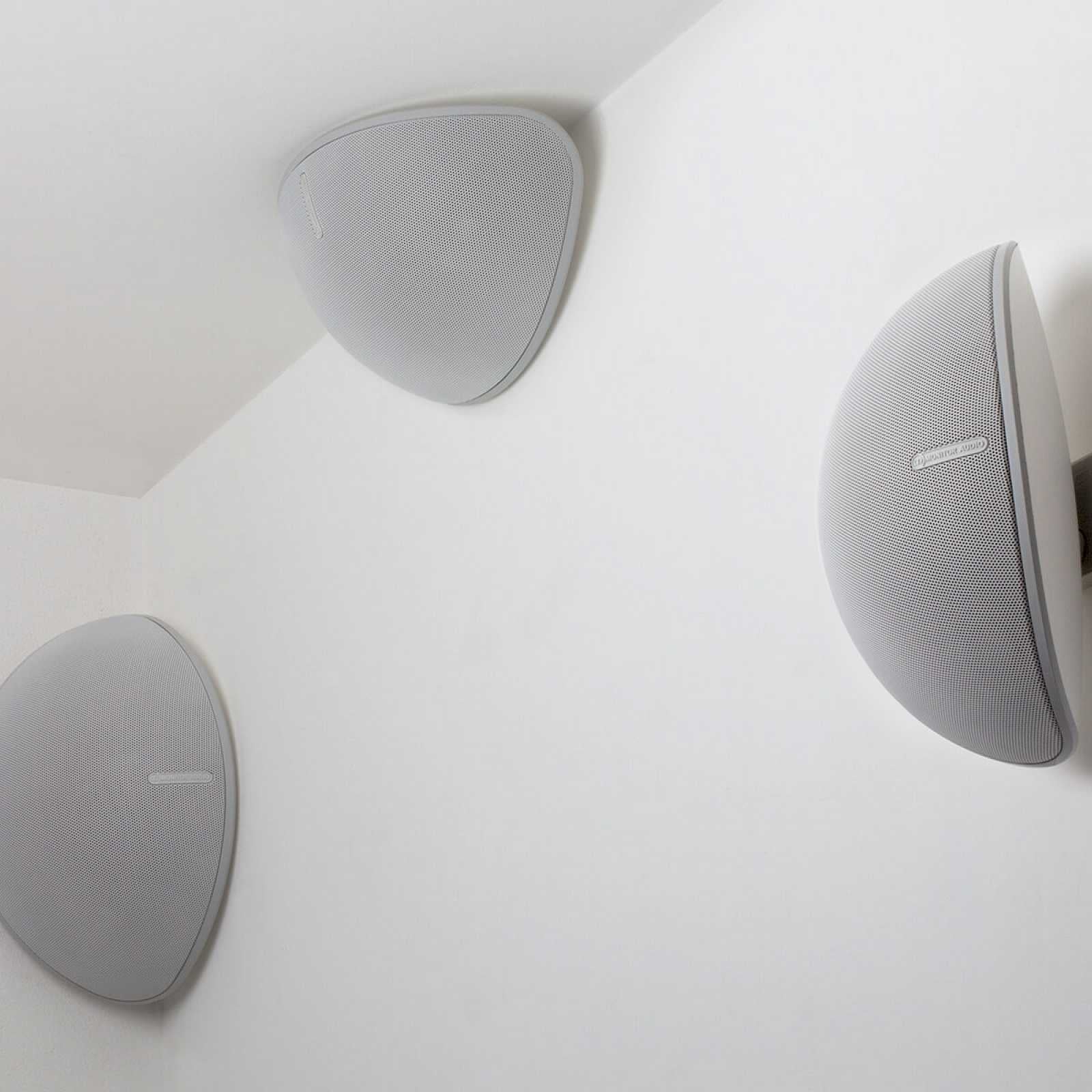

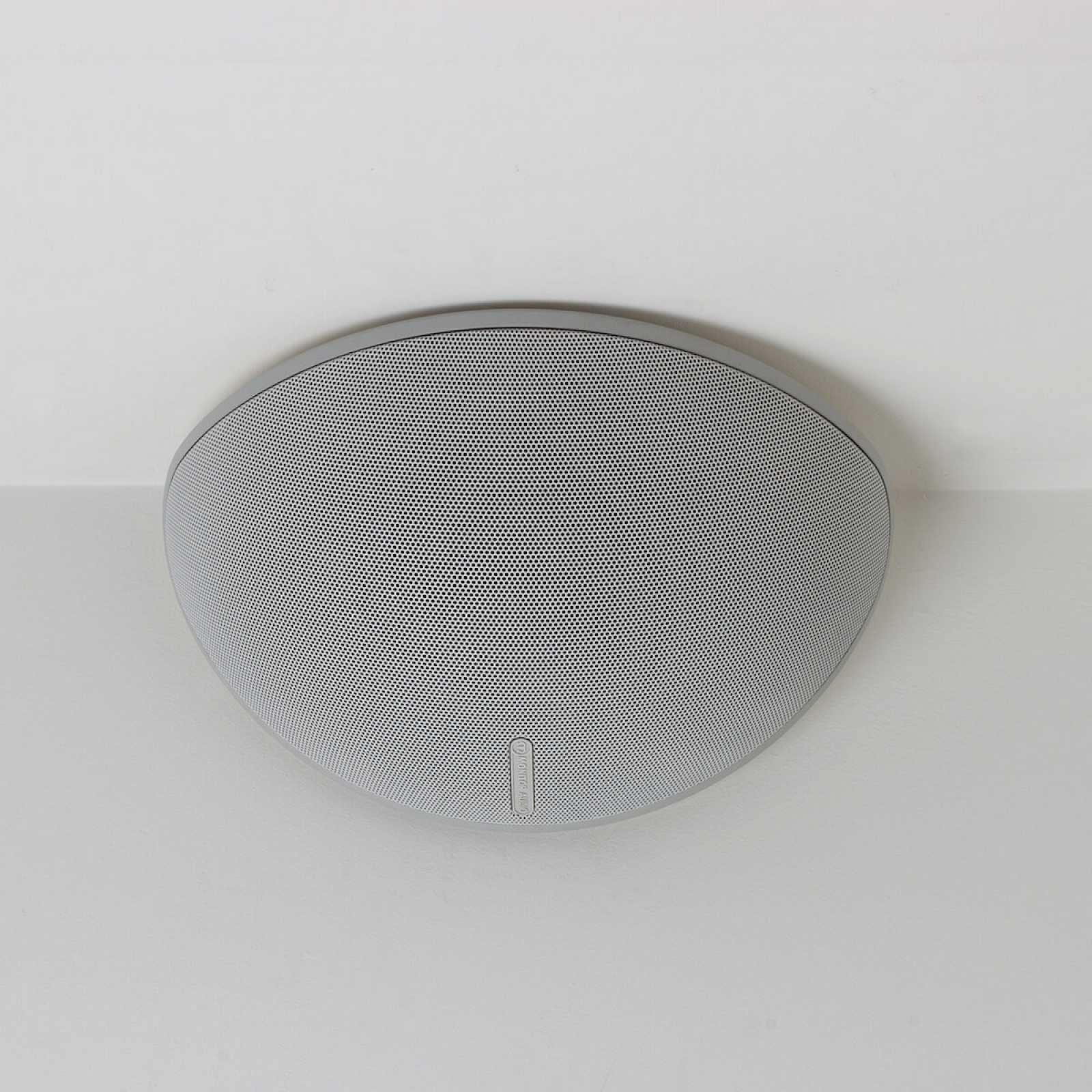

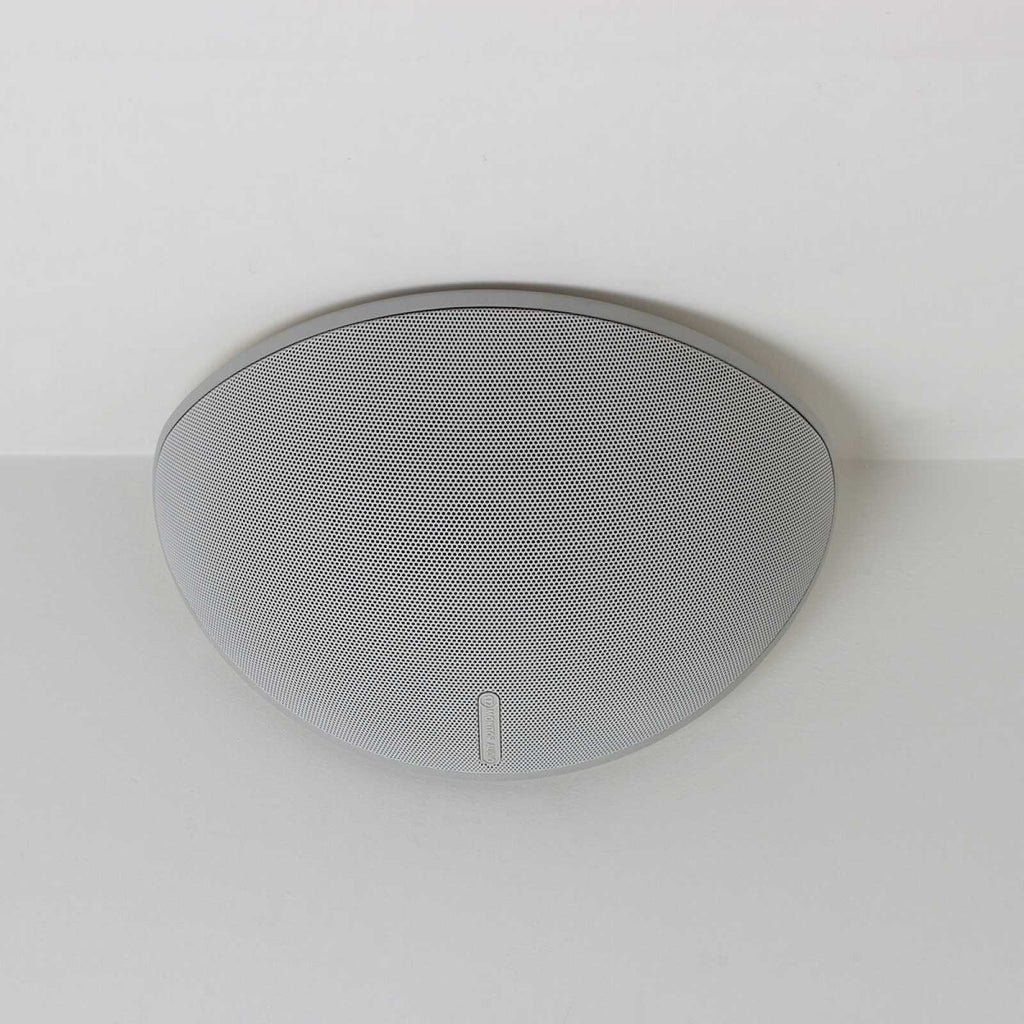

- Designed for wall, corner, or under-eaves mounting
- Available in black or white
- Lifetime warranty
Driver Configuration
- 2 x 4-inch drivers with C-CAM metal cone technology
- 1 x 25 mm (1-inch) C-CAM dome tweeter
- Horn-loaded tweeter design for improved off-axis consistency
Performance
- Frequency response: 70 Hz – 25 kHz
- Sensitivity: 88 dB
- Nominal impedance: 4 ohms
- Minimum impedance: 3.8 ohms @ 240 Hz
- Maximum SPL: 108 dBA each
- Power handling: 100 W RMS
- Recommended amplifier power: 25 – 100 W
- Crossover frequency: 2.5 kHz
- Sealed cabinet alignment
Installation
- Horizontal or vertical mounting
- Single-point automatic connection system
- Hidden wiring once installed
- Speaker drops onto bracket and secures with a single screw
- Can be angled by 25 degrees

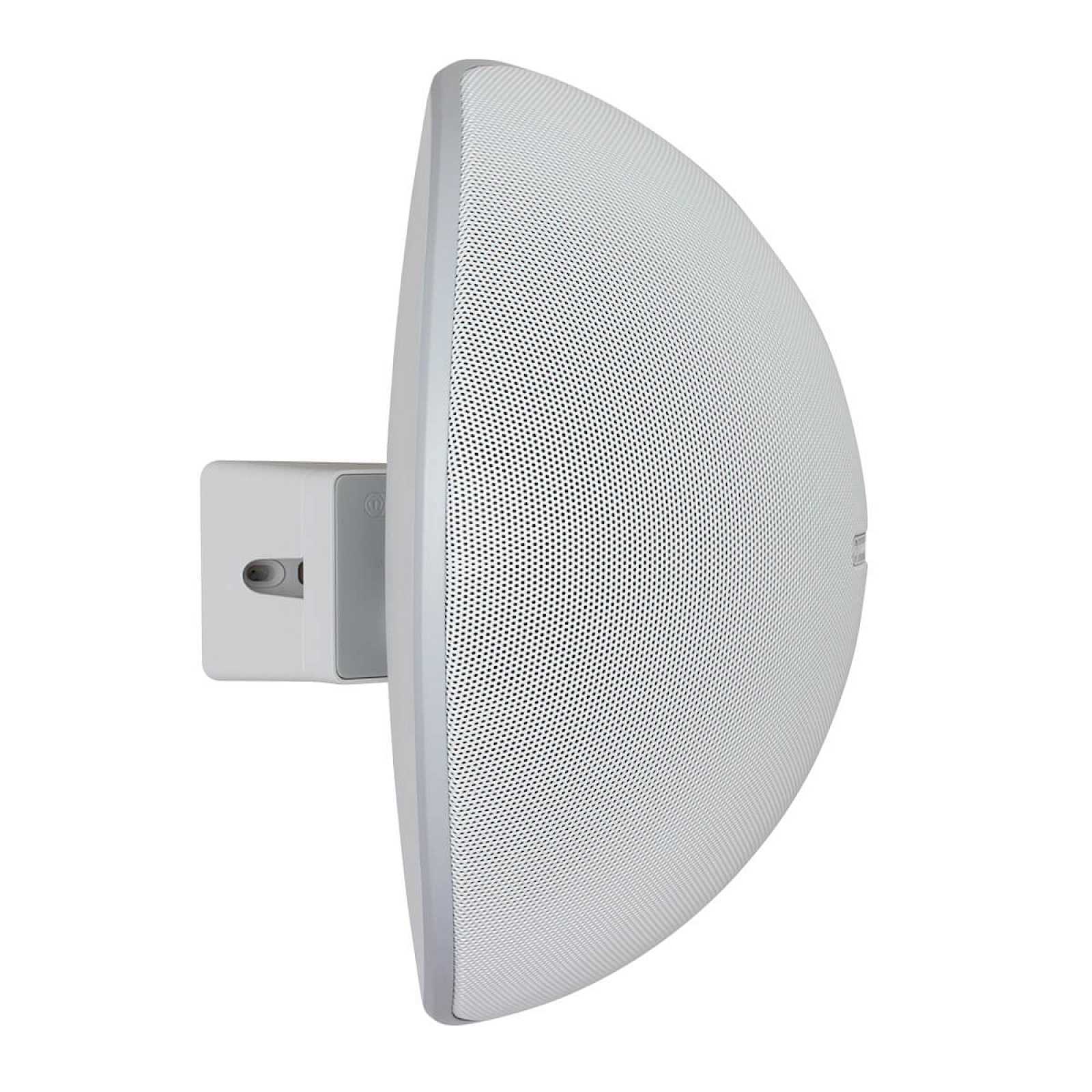

- Optional wedge adds 32.5 degrees tilt
- Total maximum bracket movement: 45 degrees
- Gold plated push terminals attached to bracket
Environmental Protection
- IP55 environmental protection rating
- Operating range: -25° to 65°C / -13° to 149°F
- High-density ABS enclosure
- Rustproof grille
- Completely sealed weatherproof cabinet designed to prevent ingress of water and dirt
Accessories
- Compatible with V-MOUNT
- Compatible with V-CORNER
- Brackets sold separately
The Audio Experts Take
The Vecta V240 is a good choice when the outdoor speaker is going to remain visible and the finish of the installation matters. Its dedicated mounting system lets the speaker sit neatly against the architecture while keeping cable routing tidy. Choose the mounting position around the listening area, and ask The Audio Experts if you want help with brackets, quantity or amplifier pairing.
Brand new. Contact us for current availability, bracket selection, and system matching advice.
