Monitor Audio WSS430 Super Slim In-Wall Speaker
Highest-performance shallow-depth WSS in-wall speaker for premium cinema and stereo systems where wall depth is tightly restricted.
WSS430 is intended for projects where a normal-depth in-wall speaker cannot be used but the front channels still need a higher level of capability. It gives designers a way to work around shallow cavities without abandoning a concealed speaker layout.
Installation and System Planning
The best application is a planned front stage or stereo installation where screen position, wall structure and subwoofer support are known in advance. If the room can accept a conventional-depth Creator model, it is worth comparing both approaches before choosing the shallow option.
Key Features
- Brand: Monitor Audio
- Series: Creator Series
- Speaker Type: Super Slim In-Wall Speaker
- Range Position: Flagship WSS model
- Tweeter: 1 x 1-inch MPD high-frequency transducer
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | WSS430 |
| Product Type | In-Wall Speaker |
| Series | Creator Series |
| Speaker Type | Super Slim In-Wall Speaker |
| Range Position | Flagship WSS model |
| Tweeter | 1 x 1-inch MPD high-frequency transducer |
| Tweeter Feature | Rotatable for portrait or landscape application |
| Bass-Mid Drivers | 3 x 3-inch bass-mid drivers |
| Driver Materials | Dished C-CAM cones |
| Mounting Depth | 50mm |
| Pre-Construction Bracket | WB3 Pre-Construction Bracket (Dark Blue) |
| Terminals | Gold-plated sprung push terminals |
| Fixing System | Tri-Grip II |

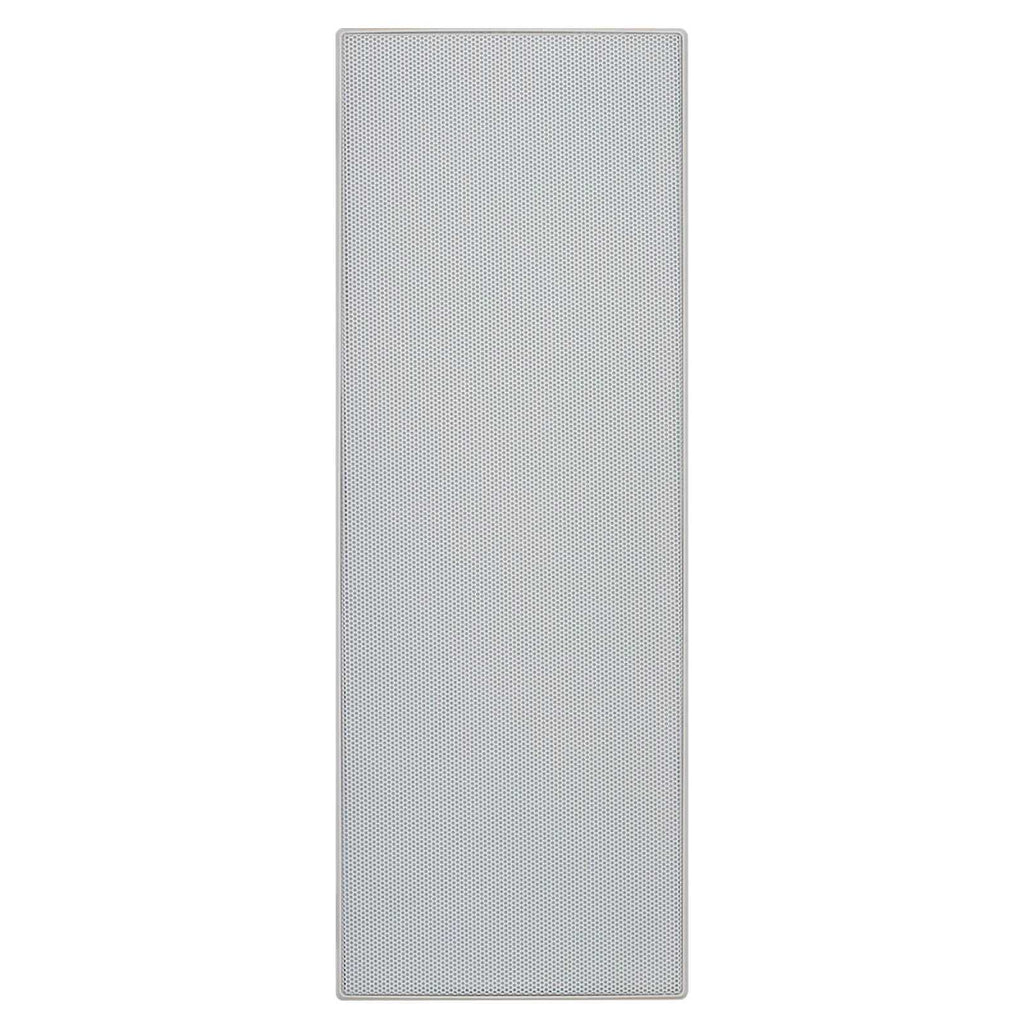

| Grille | Paintable grille |
| Sold As | Single Unit |
| Warranty | Lifetime |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- In-wall speaker
- Creator Series
- Super Slim architectural speaker
- Flagship model in the WSS range
- Designed for critical audiophile and cinema use
- Portrait or landscape installation possible
Driver Configuration
- 1 x 1-inch MPD high-frequency transducer
- 3 x 3-inch bass-mid drivers
- Dished C-CAM cones
- High-strength Neo magnets
- Larger voice coils
Acoustic Highlights
- MPD tweeter technology derived from Platinum II
- High frequencies extending beyond 50kHz
- Rotatable tweeter for better dispersion in landscape orientation
- Designed to challenge traditional high-end box-speaker performance
Installation
- Mounting depth: 50mm
- Suitable for 2-inch stud constructions
- Gold-plated sprung push terminals
- Tri-Grip II fixing system
- Compatible with WB3 Pre-Construction Bracket (Dark Blue)
- Paintable grille
Warranty
- Lifetime warranty
The Audio Experts Take
The WSS430 is the model to look at when a shallow wall still has to support a serious front-stage or stereo installation. It is designed for projects where conventional-depth in-wall speakers are ruled out by construction, but sound quality remains a priority. At this level, send us the room and wall details so we can check the speaker layout, subwoofer plan and amplification together.
Brand new. Contact us for current availability, bracket advice, and system matching guidance.
