Monitor Audio Super Slim WSS230 In-wall Speaker
Mid-range shallow-depth WSS in-wall speaker for screen walls and other installations where conventional in-wall depth is unavailable.
WSS230 gives a shallow-wall project more capability than the entry WSS model while retaining the same space-saving concept. It can be installed vertically or horizontally, which is useful when speakers need to fit around a television or projection screen.
Installation and System Planning
Use the available wall area and channel role to decide orientation. In a cinema front stage, keeping left, centre and right speakers at sensible heights and positions is more important than forcing every speaker into the same orientation.
Key Features
- Brand: Monitor Audio
- Series: Creator Series
- Speaker Type: Super Slim In-Wall Speaker
- Frequency Response (-6dB): 75Hz – 30kHz
- Nominal Impedance: 8 ohms
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | WSS230 |
| Product Type | In-Wall Speaker |
| Series | Creator Series |
| Speaker Type | Super Slim In-Wall Speaker |
| Frequency Response (-6dB) | 75Hz – 30kHz |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W@1M) | 87dB |
| Maximum SPL | 105.6dBA |
| Power Handling (RMS) | 60W full range / 100W with crossover set to 100Hz @ 12dB/Octave |
| Recommended Amplifier Requirements | 10 – 100W |
| Drive Unit Complement | 3 x 3-inch C-CAM cone bass-mid drivers, 1 x 25mm (1-inch) C-CAM Gold Dome tweeter |
| Crossover Recommendation | 100Hz minimum at 12dB/Octave, 24dB/Octave optimum |
| Overall Dimensions | 385 x 140.5mm |
| Overall Depth (Including Grille) | 54.25mm |
| Cut-Out Dimensions | 346 x 101mm |
| Mounting Depth | 50mm |
| Connection | Gold-plated sprung push terminals for bare wire up to 3mm² |
| Fixing Type | 6 position Tri-Grip dog leg fixings |
| Construction Material | Mineral filled ABS plastic, RoHS2 compliant, painted steel grille |
| Weight | 1.4kg |
| Pre-Construction Bracket | WB3 Pre-Construction Bracket (Dark Blue) |
| Sold As | Single Unit |
| Warranty | Lifetime |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- In-wall speaker
- Creator Series
- Super-slim architectural speaker
- Step-up model above WSS130
- Portrait or landscape installation
- Supplied with trim-less paintable grille
- Lifetime warranty
Driver Configuration

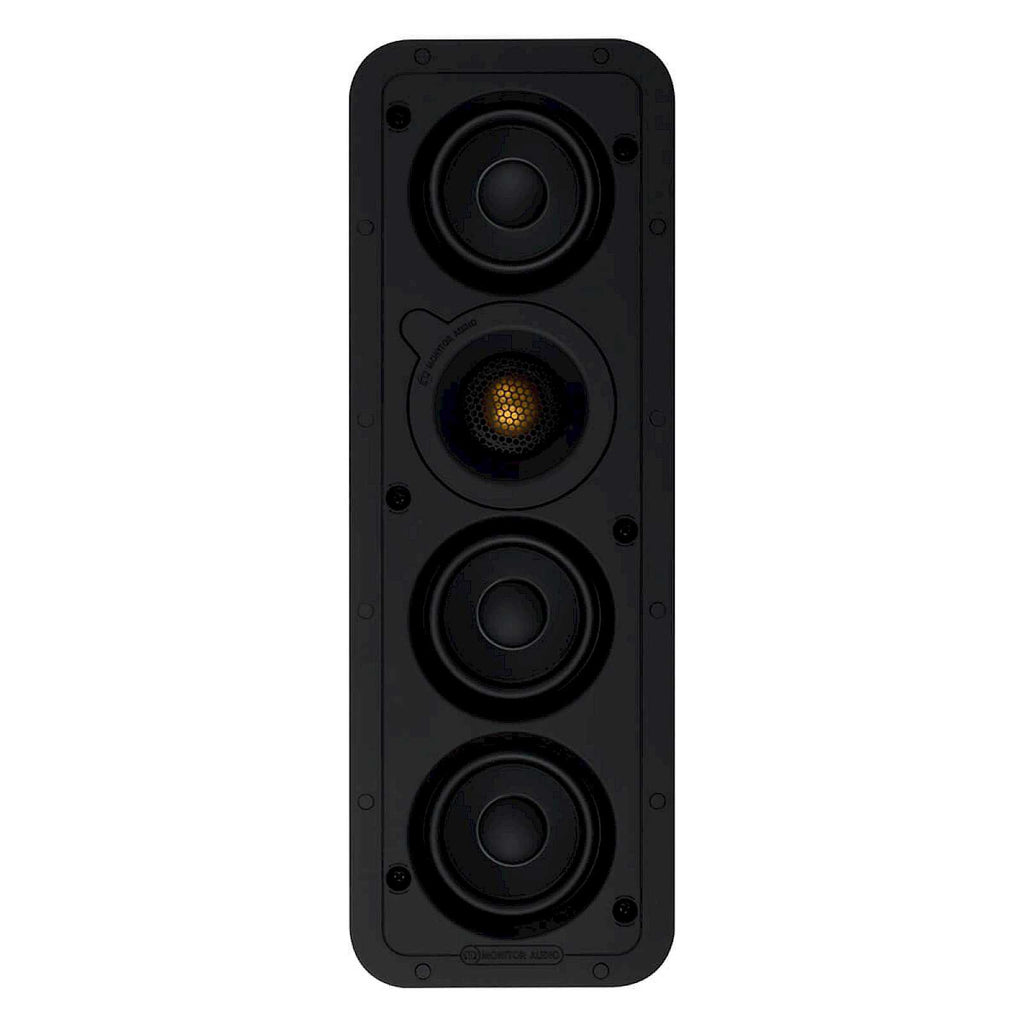

- 3 x 3-inch C-CAM cone bass-mid drivers
- 1 x 25mm (1-inch) C-CAM Gold Dome tweeter
Performance
- Frequency response (-6dB): 75Hz – 30kHz
- Sensitivity: 87dB
- Nominal impedance: 8 ohms
- Maximum SPL: 105.6dBA
- Power handling: 60W full range 100W with crossover set to 100Hz @ 12dB/Octave
- Recommended amplifier power: 10 – 100W
- Crossover recommendation: 100Hz minimum at 12dB/Octave 24dB/Octave optimum
Installation
- Overall dimensions: 385 x 140.5mm
- Overall depth including grille: 54.25mm
- Cut-out dimensions: 346 x 101mm
- Mounting depth: 50mm

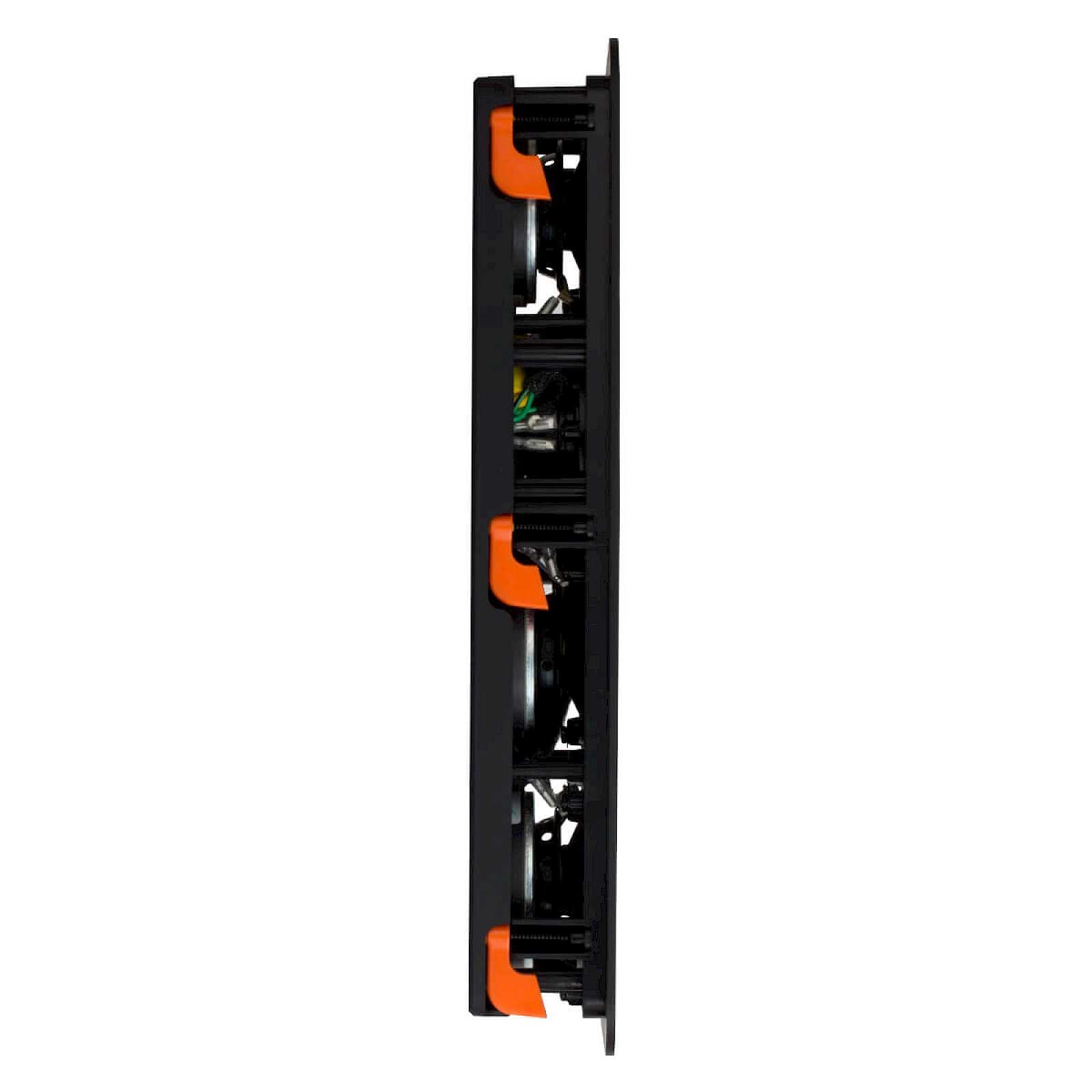

- 6 position Tri-Grip dog leg fixings
- Gold-plated sprung push terminals for bare wire up to 3mm²
- Compatible with WB3 Pre-Construction Bracket (Dark Blue)
Finish and Protection

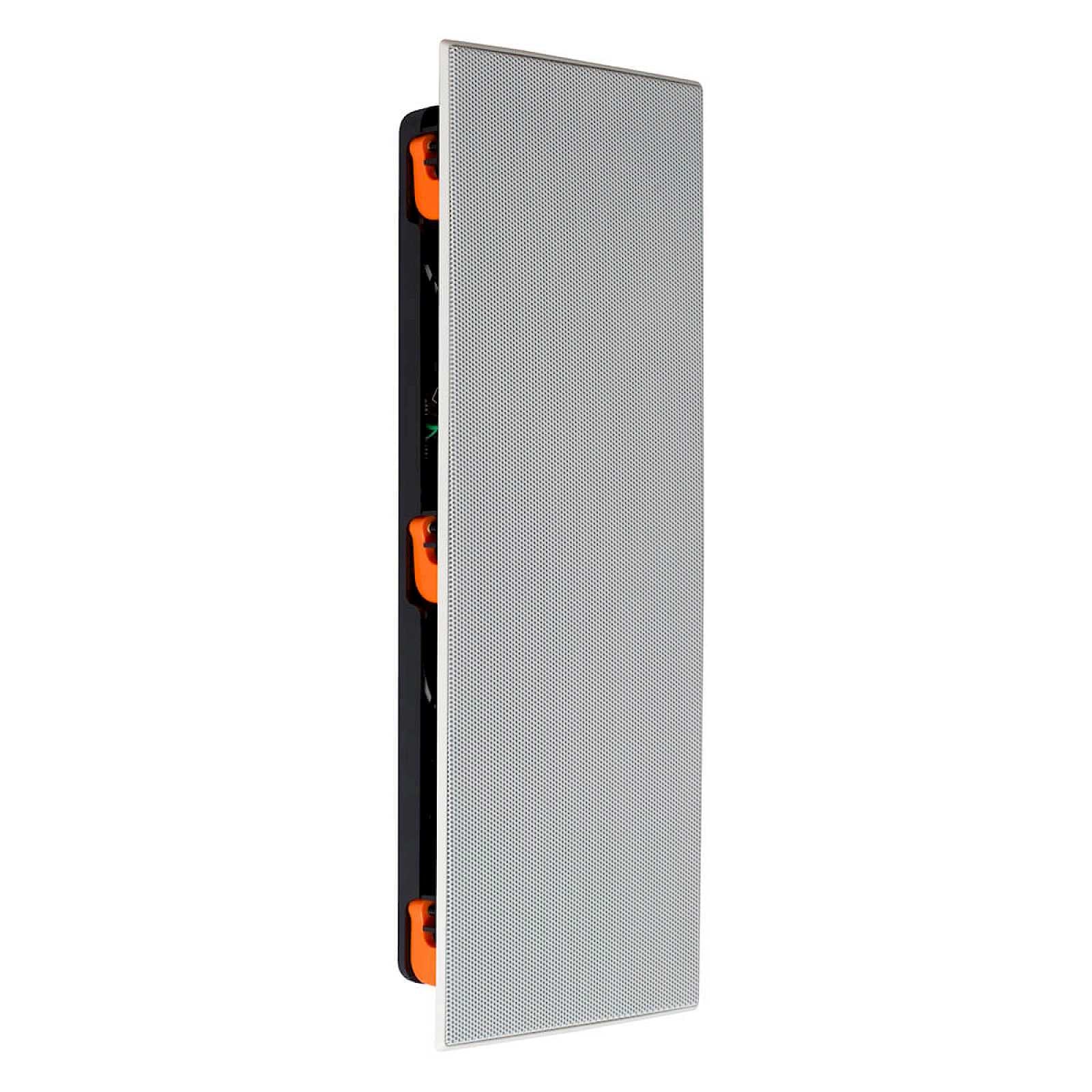

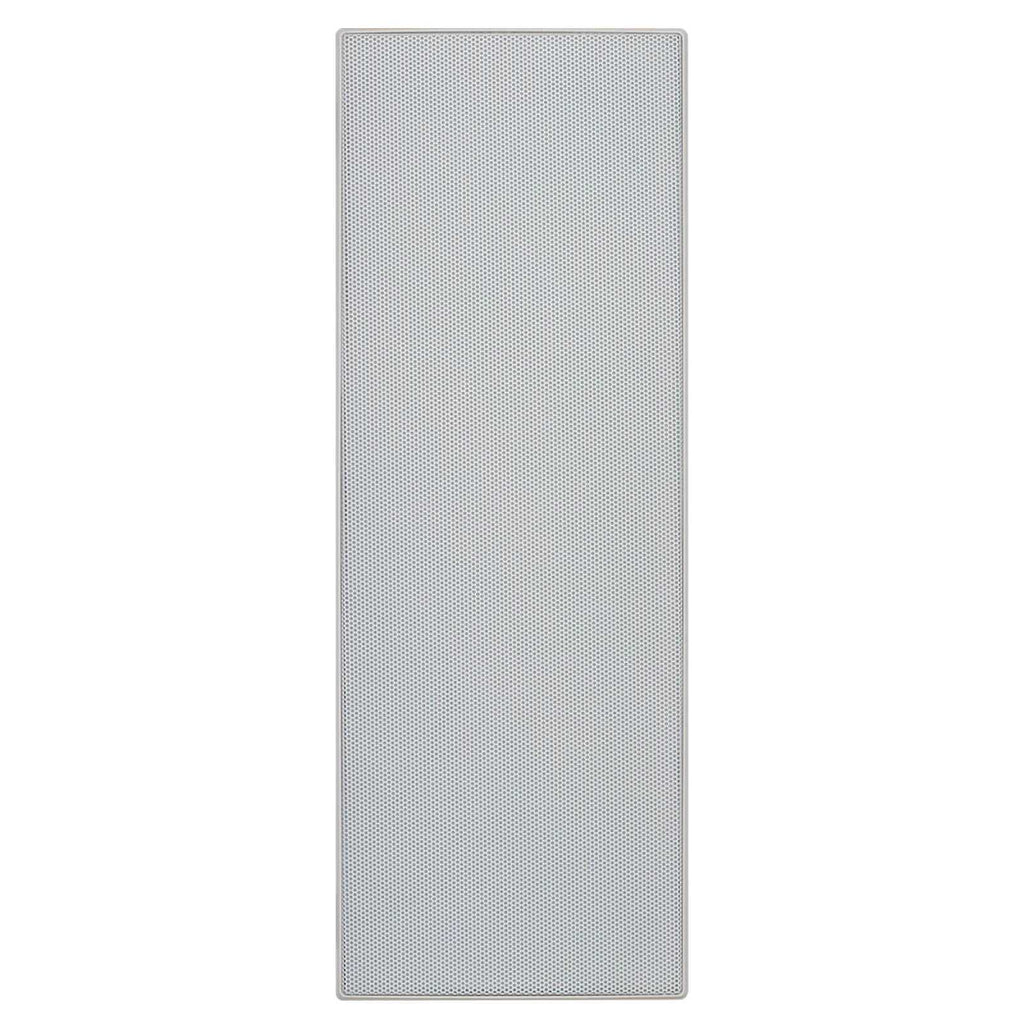

- Trim-less paintable grille
- Replacement scrim supplied for post-decoration finish
- Protective cover for drivers and crossover during installation
- Painted steel grille
- Rare-earth magnetic grille attachment
Weight and Warranty
- Weight: 1.4kg
- Sold as a single unit
- Lifetime warranty
The Audio Experts Take
The WSS230 gives you a little more capability within the same shallow-wall idea, making it useful for higher-quality rooms where installation depth is still tight. The reason to choose it is the combination of slim construction and a more ambitious speaker design, not simply because it is the next model up. The Audio Experts can help decide whether the WSS range is the right compromise for the wall construction.
Brand new. Contact us for current availability, bracket advice, and matching guidance.
