Monitor Audio Super Slim CSS230 In-ceiling Speaker

Monitor Audio CSS230 In-Ceiling Speaker

Super-slim in-ceiling speaker with three 3-inch C-CAM bass-mid drivers, a 19mm C-CAM Gold Dome tweeter, and an ultra-shallow 50mm mounting depth for tight-install spaces.

The CSS230 is really about solving difficult installs cleanly. Monitor Audio positions it as a super-stealthy Creator Series speaker built to deliver consistent sound quality with exceptional installation versatility. With just 50mm mounting depth and a 211mm cut-out, it is clearly aimed at jobs where a normal architectural speaker simply will not fit comfortably.

It is the sort of speaker that makes sense when ceiling depth is limited by framing, pipework, cabling, or other site constraints, but the job still needs a proper architectural audio solution rather than a compromise throwaway option.

Super Slim Design for Tight Ceiling Spaces

A smarter option when depth is the real problem

The big selling point here is the depth. The CSS230 has a 54mm overall depth and 50mm mounting depth, which puts it in a very different category to most ceiling speakers.

Monitor Audio’s own material says it was built for places like 2-inch stud frames or areas where pipework and cabling reduce available depth. That makes it a very practical architectural speaker for tricky renovations, apartment work, shallow cavities, and ceiling spaces where the install brief is tight before you even start.

Three 3-Inch Drivers and Gold Dome Tweeter

Compact on depth, but still built as a proper full-range speaker

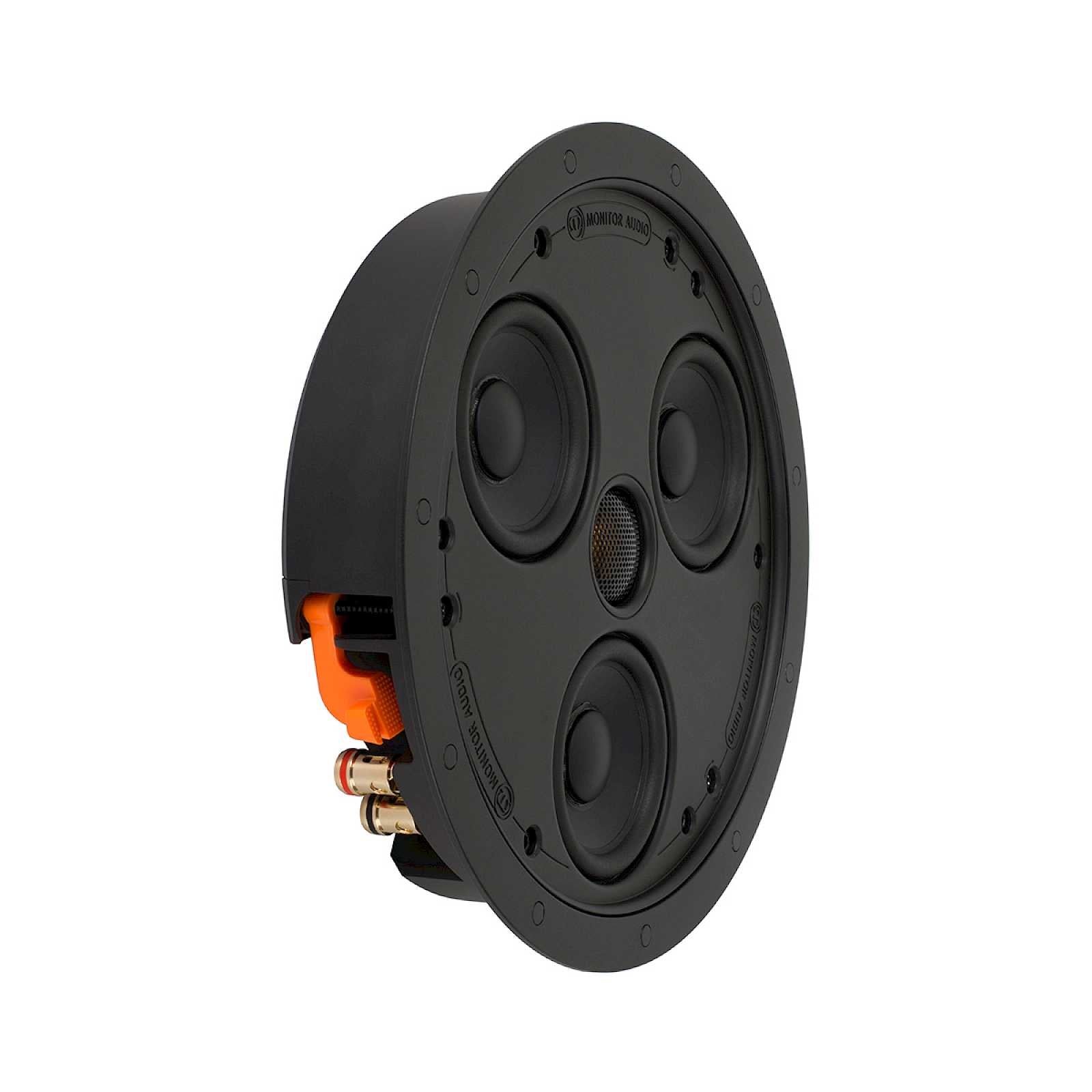

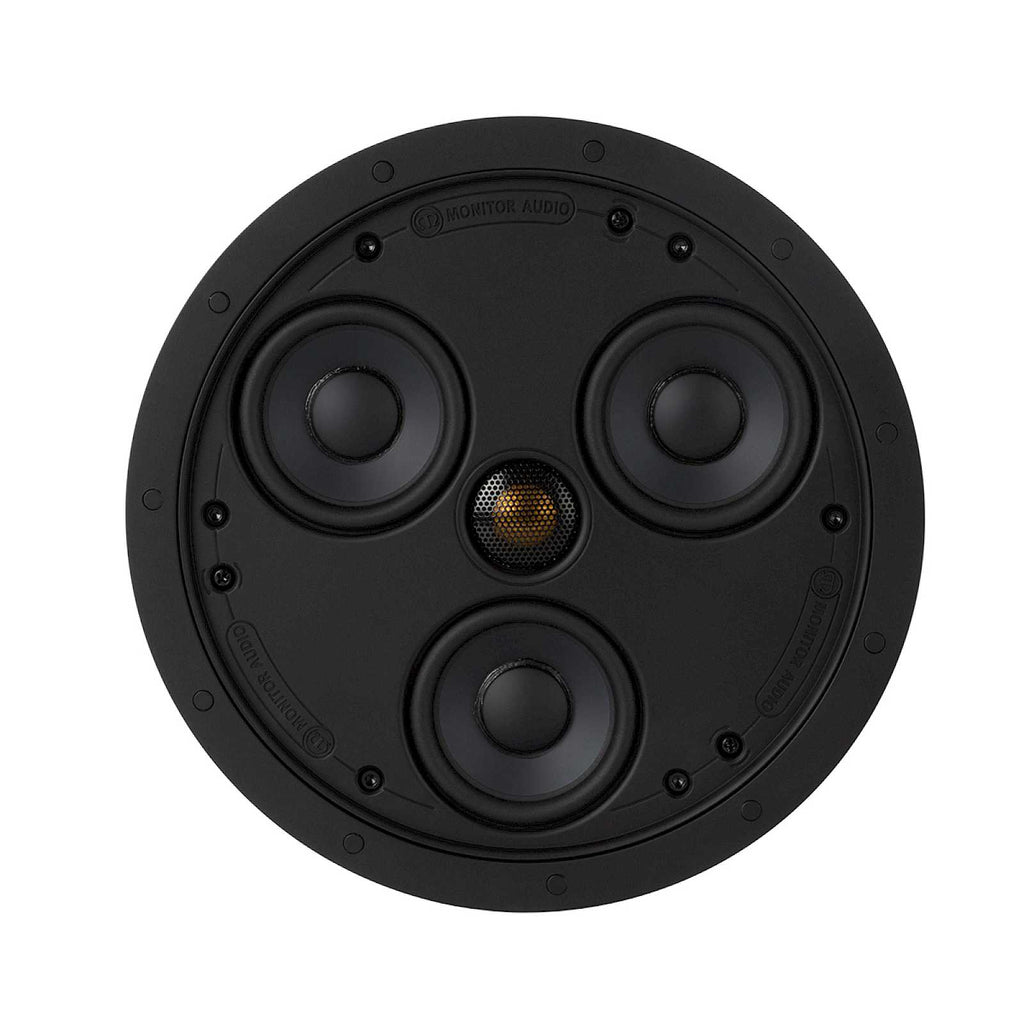

The CSS230 uses 3 x 3-inch C-CAM cone bass-mid drivers and 1 x 19mm (3/4-inch) C-CAM Gold Dome tweeter. That is a more ambitious layout than a typical shallow ceiling speaker, and it is there to help the CSS230 keep some real hi-fi credibility despite the compact form factor.

The published spec is 100Hz – 30kHz in sealed “CP” form, or 85Hz – 30kHz open-back, with 86dB sensitivity, 8-ohm nominal impedance, and 40W RMS full-range power handling. Monitor Audio also lists 60W when crossed over at 100Hz @ 12dB/Octave.

Built for Controlled, Practical Installation

Useful when speaker depth matters more than outright cone size

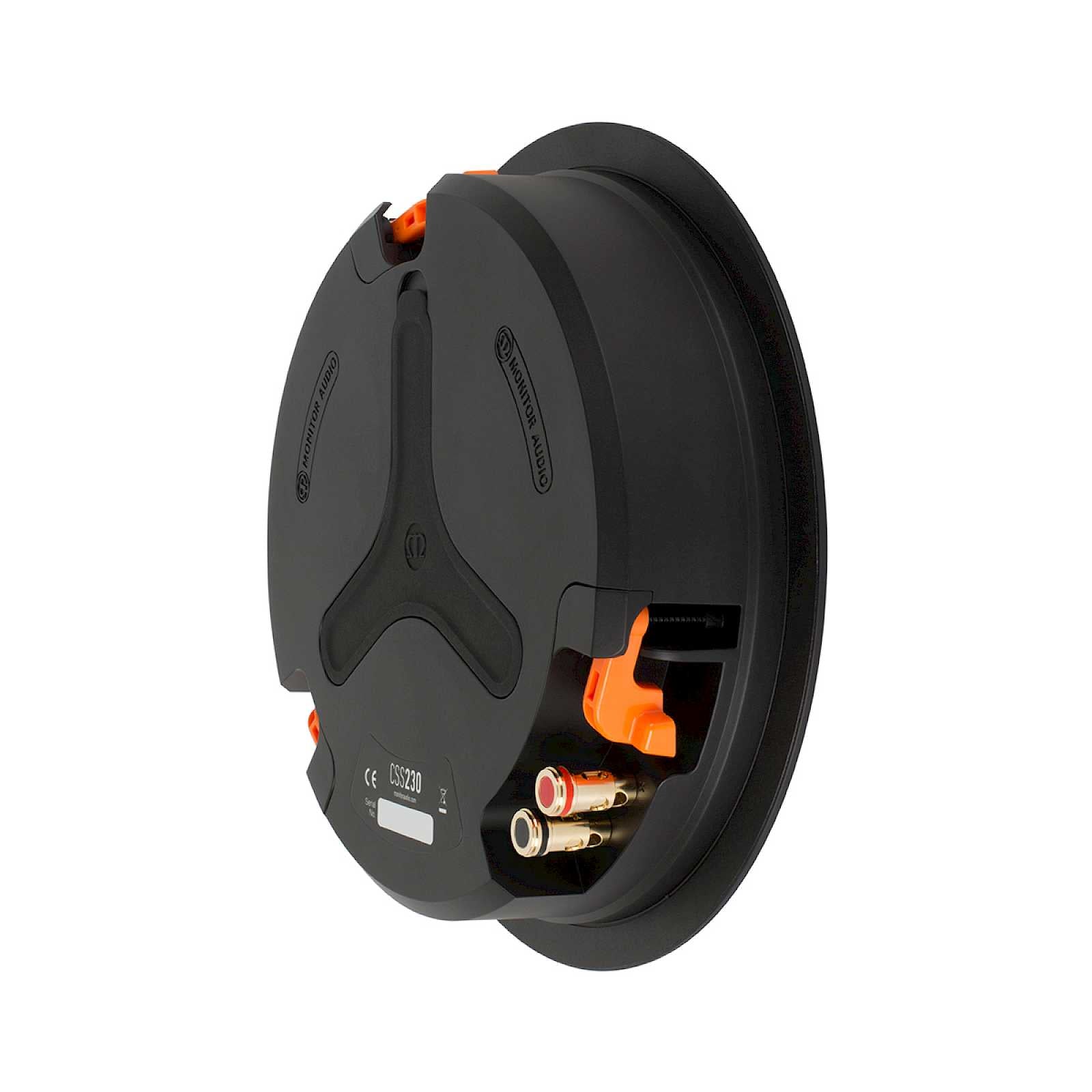

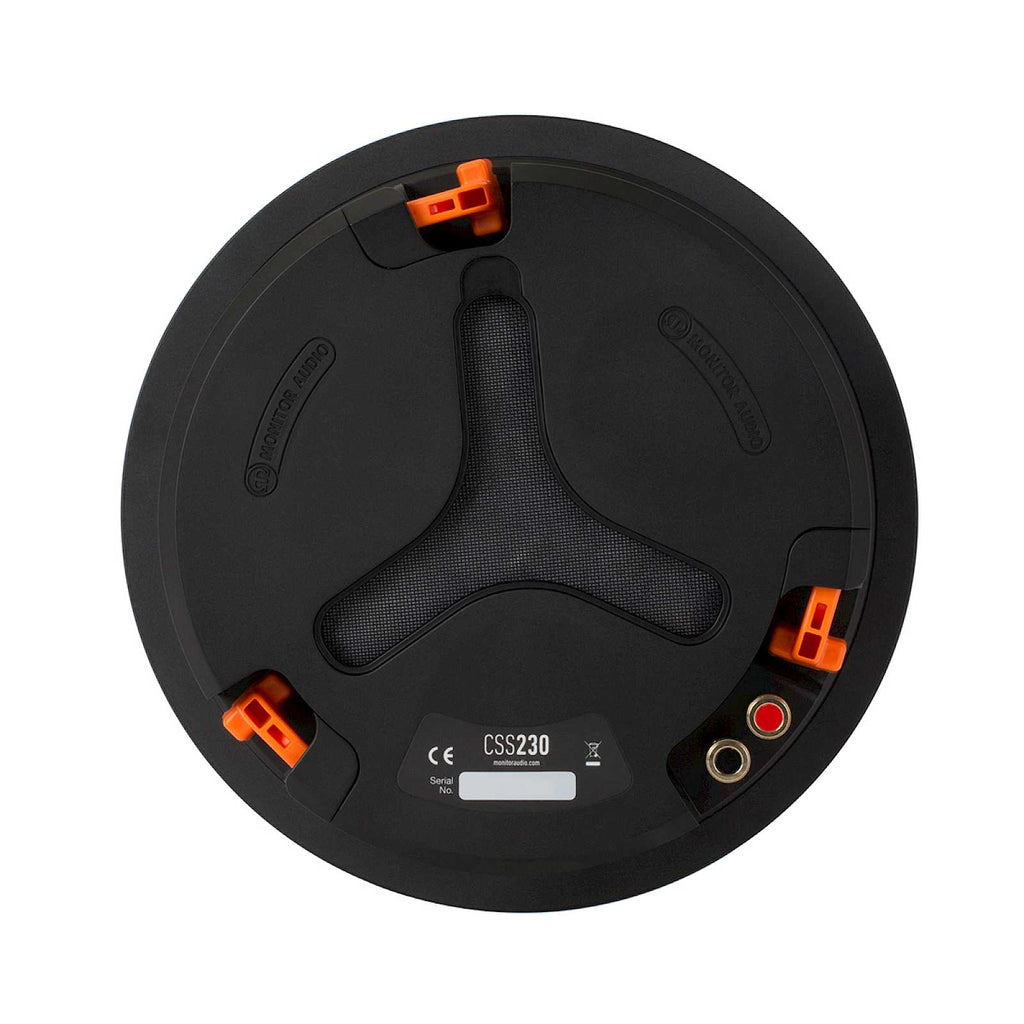

The CSS230 uses gold-plated sprung push terminals for bare wire up to 4mm² and 3-position Tri-Grip dog leg fixings.

In practical terms, this is not the ceiling speaker you pick for maximum bass weight. It is the one you pick when the install conditions are awkward and you still want a speaker that feels properly engineered rather than compromised junk.

Good Accessory Support and Premium Grille Compatibility

More flexibility in the finish once the speaker choice is locked in

The CSS230 is supplied with a CM-Round Grille in white, with an optional square grille measuring 249 x 249mm. It is also one of the models Monitor Audio lists as compatible with the PG6-R Premium Round Grille.

That is useful because it means the CSS230 is not just about squeezing a speaker into a shallow cavity. You can still tailor the visible finish a bit, whether the room suits a standard round grille, a square grille, or the more decorative premium option.

Specifications

Detailed Technical Specifications

For those who like to drag out all the useful bits

The Audio Experts Take

The CSS230 makes a lot of sense when the brief is basically, “We do not have the depth for a normal speaker, but we still want something respectable.” That is where this thing earns its keep. The 50mm mounting depth is the headline, but the real value is that Monitor Audio has still given it a proper multi-driver layout and sensible accessory support.

What we like here is that it solves a real install problem without looking like a throwaway compromise product. You would not choose it over a deeper, more substantial speaker if the cavity allowed for that, but in shallow ceilings and tight spaces it looks like a very smart answer.

Brand new. Contact us for current availability, grille options, and matching advice.
