Description

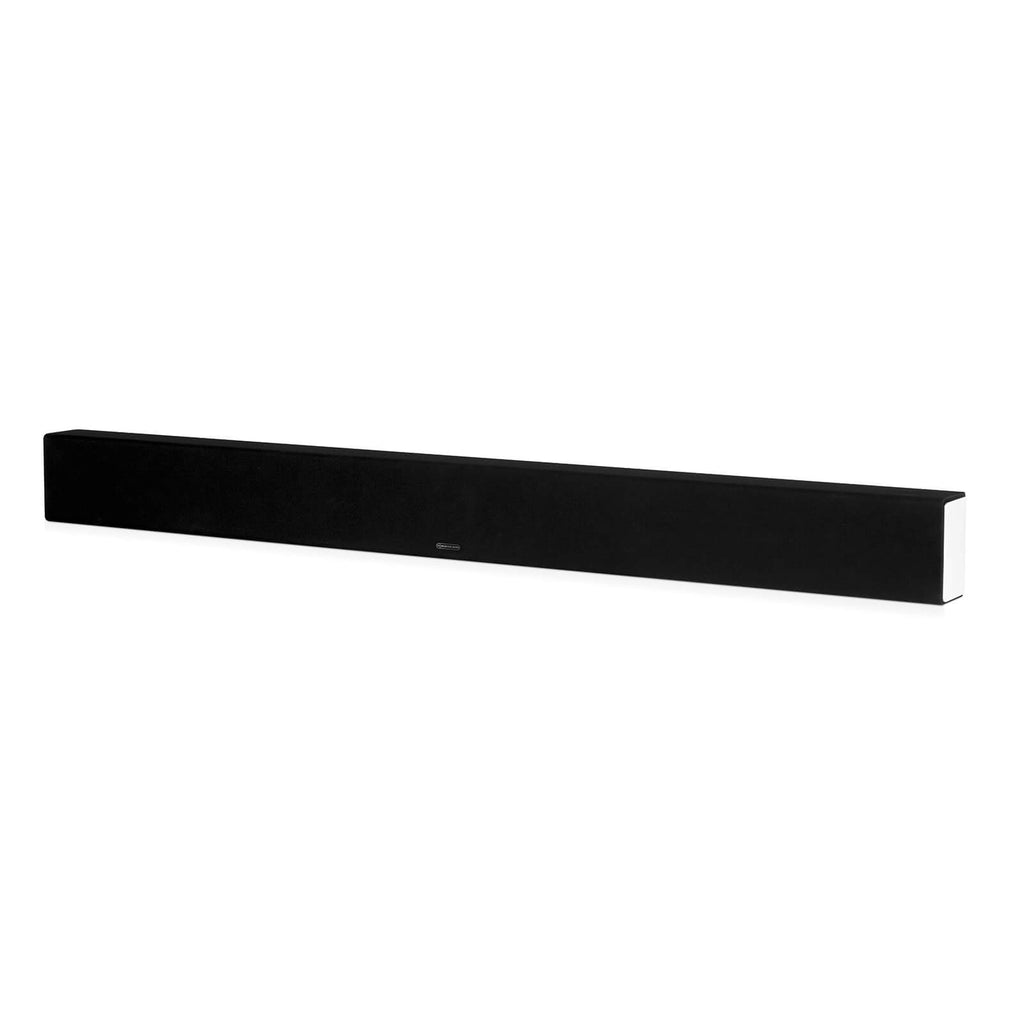

Monitor Audio SB-4 Passive Soundbar
Large passive three-channel Monitor Audio soundbar intended for 70-inch and larger televisions in cleaner home theatre installations.
SB-4 is the largest model in the range and is proportioned for big screens where a shorter soundbar would look undersized. Like the smaller models, it is a passive left/centre/right speaker and requires an AV receiver or suitable amplification.
Installation and System Planning
Use it when separate front speakers would create too much visual clutter but you still want a conventional surround system behind the television. A subwoofer and correctly positioned surrounds complete the system more effectively than asking the soundbar to handle every channel and the deepest bass.
Key Features
- Brand: Monitor Audio
- TV Compatibility: Designed for 70-inch screens and larger
- System Format: 3-channel soundbar with separate left, centre, and right arrays
- Frequency Response (-3 dB): 70 Hz – 30 kHz
- Sensitivity (1W@1M): 87 dB
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | SB-4 |
| Product Type | Passive Soundbar |
| TV Compatibility | Designed for 70-inch screens and larger |
| System Format | 3-channel soundbar with separate left, centre, and right arrays |
| Frequency Response (-3 dB) | 70 Hz – 30 kHz |
| Sensitivity (1W@1M) | 87 dB |
| Nominal Impedance | 8 ohms |
| Recommended Power (RMS) | 80 W |
| System Power Handling (RMS) | 100 W (high-pass filter at 100 Hz) |
| Recommended Amplifier Power | 30 – 100 W |
| Crossover Frequency | 80 – 120 Hz |
| Maximum SPL | 104 dB (108.8 dB all channels driven) |
| Bass Alignment | Auxiliary Bass Reflex (ABR) Loading |
| Drive Unit Complement | All channels: 2 x 4-inch C-CAM bass/mid drivers, 2 x 1-inch C-CAM Gold Dome tweeters |
| Cabinet Dimensions (Including Feet) | 145 x 1562 x 89 mm |
| External Dimensions (Including Bracket) | 145 x 1562 x 100 mm |
| Bracket | BSB |
| Weight | 12 kg |
| Sold As | Single Unit |
| Warranty | Lifetime |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- Passive soundbar
- Designed for 70-inch screens and larger
- Three separate left, centre, and right channel arrays
- Black finish
- Lifetime warranty
Driver Configuration
- All channels: 2 x 4-inch C-CAM bass/mid drivers, 2 x 1-inch C-CAM Gold Dome tweeters
- Auxiliary Bass Reflex loading
Performance
- Frequency response: 70 Hz – 30 kHz
- Sensitivity: 87 dB
- Nominal impedance: 8 ohms
- Recommended power: 80 W RMS
- System power handling: 100 W with high-pass filter set to 100 Hz
- Recommended amplifier power: 30 – 100 W
- Crossover frequency: 80 – 120 Hz
- Maximum SPL: 104 dB, or 108.8 dB with all channels driven
Cabinet and Installation
- Cabinet dimensions including feet: 145 x 1562 x 89 mm
- Dimensions including bracket: 145 x 1562 x 100 mm
- Bracket: BSB
- Weight: 12 kg
The Audio Experts Take
The SB-4 is intended for very large televisions where a smaller soundbar would look undersized and provide less front-stage scale. Because it is passive, treat it as the left, centre and right speakers of a home theatre rather than as a self-contained TV speaker. Pair it with the right AV receiver and subwoofer, and talk to The Audio Experts if you want help with the complete layout.
Brand new. Contact us for current availability, amplifier matching, and subwoofer pairing advice.
