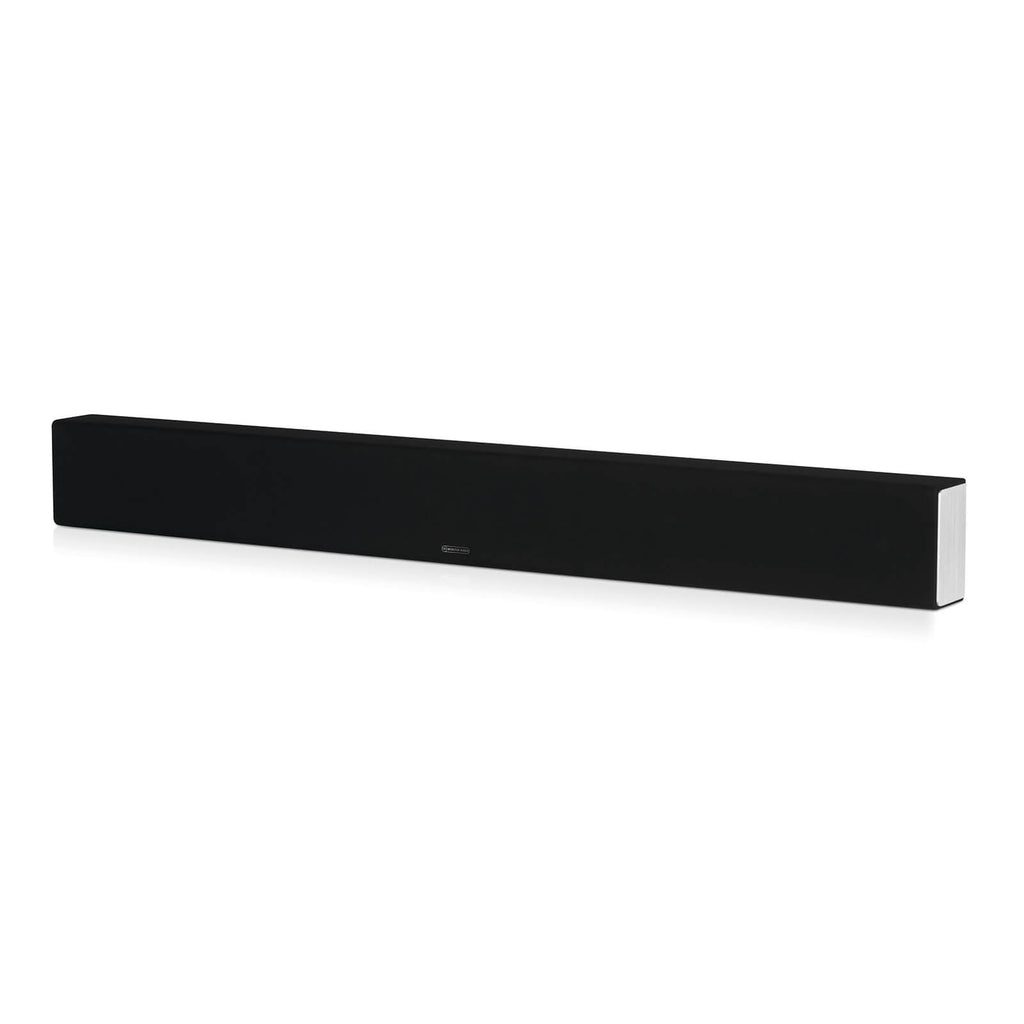

Monitor Audio SB-3 Passive Soundbar
Passive three-channel Monitor Audio soundbar sized for televisions above roughly 60 inches, combining the front left, centre and right speakers in one cabinet.
SB-3 is the middle size in Monitor Audio’s passive soundbar family. It keeps the front of a larger television installation visually simple while still allowing the system to use a normal AV receiver, surrounds and subwoofer.
Installation and System Planning
Screen width and mounting height should guide the choice between SB-2, SB-3 and SB-4. The soundbar should sit close enough to the screen for dialogue and picture to feel connected, with the subwoofer handling the lowest frequencies.
Key Features
- Brand: Monitor Audio
- TV Compatibility: Designed for TVs above 60 inches
- System Format: 3-channel soundbar with separate left, centre, and right arrays
- Frequency Response (-3 dB): All channels: 80 Hz – 30 kHz
- Sensitivity (1W@1M): Left and right channels: 84 dB / Centre channel: 87 dB
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | SB-3 |
| Product Type | Passive Soundbar |
| TV Compatibility | Designed for TVs above 60 inches |
| System Format | 3-channel soundbar with separate left, centre, and right arrays |
| Frequency Response (-3 dB) | All channels: 80 Hz – 30 kHz |
| Sensitivity (1W@1M) | Left and right channels: 84 dB / Centre channel: 87 dB |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS) | Left and right channels: 40 W / Centre channel: 80 W |
| System Power Handling (RMS) | All channels: 100 W (high-pass filter set to 100 Hz) |
| Recommended Amplifier Power | All channels: 30 – 100 W |
| Crossover Frequency | All channels: 80 – 120 Hz |
| Maximum SPL | 104 dBa (108.8 dBa all channels driven) |
| Bass Alignment | Auxiliary Bass Reflex (ABR) Loading |
| Drive Unit Complement | Left and right channels: 2 x 4-inch C-CAM bass/mid drivers, 2 x 1-inch C-CAM Gold Dome tweeters / Centre channel: 2 x 4-inch C-CAM bass/mid drivers, 1 x 1-inch C-CAM Gold Dome tweeter |
| Cabinet Dimensions (Including Feet) | 145 x 1310 x 89 mm |
| External Dimensions (Including Bracket) | 145 x 1310 x 100 mm |
| Bracket | BSB |
| Weight | 9.1 kg |
| Sold As | Single Unit |
| Warranty | Lifetime |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- Passive soundbar
- Designed for TVs above 60 inches
- Three separate left, centre, and right channel arrays
- Black finish
- Lifetime warranty
Driver Configuration
- Left and right channels: 2 x 4-inch C-CAM bass/mid drivers, 2 x 1-inch C-CAM Gold Dome tweeters
- Centre channel: 2 x 4-inch C-CAM bass/mid drivers, 1 x 1-inch C-CAM Gold Dome tweeter
- Auxiliary Bass Reflex loading
Performance
- Frequency response: 80 Hz – 30 kHz
- Sensitivity: Left and right 84 dB / Centre 87 dB
- Nominal impedance: 8 ohms
- Power handling: Left and right 40 W RMS / Centre 80 W RMS
- System power handling: 100 W with high-pass filter set to 100 Hz
- Recommended amplifier power: 30 – 100 W
- Crossover frequency: 80 – 120 Hz
- Maximum SPL: 104 dBa, or 108.8 dBa with all channels driven
Cabinet and Installation
- Cabinet dimensions including feet: 145 x 1310 x 89 mm
- Dimensions including bracket: 145 x 1310 x 100 mm
- Bracket: BSB
- Weight: 9.1 kg
System Matching
- Can be partnered with a Monitor Audio subwoofer for larger rooms
- Can deliver full-range TV audio in smaller rooms without a subwoofer
The Audio Experts Take
The SB-3 carries the same passive three-channel idea into larger television installations, making it a better visual and acoustic match once the screen moves beyond the SB-2 size range. It requires an AV receiver or amplifier and works best when the rest of the surround system is planned around it. We can help confirm whether the SB-3 or SB-4 is the better fit for your screen and room.
Brand new. Contact us for current availability, amplifier matching, and subwoofer pairing advice.
