Description

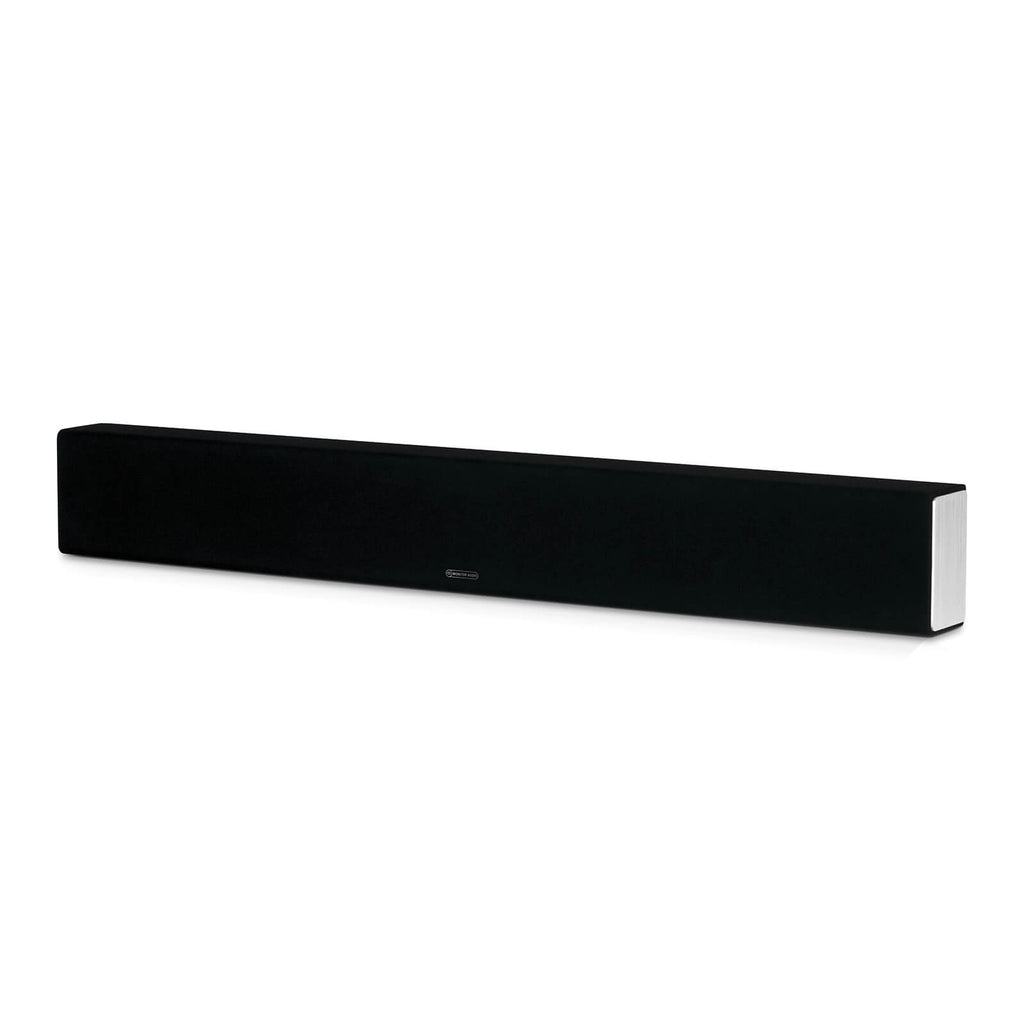

Monitor Audio SB-2 Passive Soundbar
Passive three-channel Monitor Audio soundbar designed to provide left, centre and right channels beneath or around approximately 50 to 60-inch televisions.
SB-2 is a passive LCR speaker, so it connects to an AV receiver or suitable amplifier rather than operating as a self-contained powered soundbar. It is useful when the room needs a cleaner front stage but you still want conventional home theatre electronics and separate surround channels.
Where It Fits
The slim enclosure is not intended to replace a subwoofer for deep bass. In most cinema systems, pair it with a suitable sub and choose the receiver around the complete speaker layout.
Key Features
- Brand: Monitor Audio
- TV Compatibility: Designed for 50–60 inch TVs
- System Format: 3-channel soundbar with separate left, centre, and right arrays
- Frequency Response (-3 dB): 90 Hz – 30 kHz
- Sensitivity (1W@1M): 84 dB
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | SB-2 |
| Product Type | Passive Soundbar |
| TV Compatibility | Designed for 50–60 inch TVs |
| System Format | 3-channel soundbar with separate left, centre, and right arrays |
| Frequency Response (-3 dB) | 90 Hz – 30 kHz |
| Sensitivity (1W@1M) | 84 dB |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS) | 40 W |
| System Power Handling (RMS) | 100 W (high-pass filter set to 100 Hz) |
| Recommended Amplifier Power | 30 – 100 W |
| Crossover Frequency | 80 – 120 Hz |
| Maximum SPL | 104 dB (108.8 dB all channels driven) |
| Bass Alignment | Auxiliary Bass Reflex (ABR) Loading |
| Drive Unit Complement | 3 x 4-inch (100 mm) C-CAM cone bass/mid drivers, 3 x 1-inch (25 mm) C-CAM Gold Dome tweeters |
| Cabinet Dimensions (Including Feet) | 145 x 1110 x 89 mm |
| External Dimensions (Including Bracket) | 145 x 1110 x 100 mm |
| Optional Bracket | BSB |
| Weight | 7.64 kg |
| Sold As | Single Unit |
| Warranty | Lifetime |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- Passive soundbar
- Designed for 50–60 inch TVs
- Three separate left, centre, and right channel arrays
- Black finish
- Lifetime warranty
Driver Configuration
- 3 x 4-inch (100 mm) C-CAM cone bass/mid drivers
- 3 x 1-inch (25 mm) C-CAM Gold Dome tweeters
- Sealed ABR loading per channel
Performance
- Frequency response: 90 Hz – 30 kHz
- Sensitivity: 84 dB
- Nominal impedance: 8 ohms
- Power handling: 40 W RMS
- System power handling: 100 W with high-pass filter set to 100 Hz
- Recommended amplifier power: 30 – 100 W
- Crossover frequency: 80 – 120 Hz
- Maximum SPL: 104 dB, or 108.8 dB with all channels driven
Cabinet and Installation
- Cabinet dimensions including feet: 145 x 1110 x 89 mm
- Dimensions including bracket: 145 x 1110 x 100 mm
- Integrated silicon feet
- Optional dedicated BSB wall bracket
System Matching
- Can be partnered with a Monitor Audio subwoofer for larger rooms
- Can deliver full-range TV audio in smaller rooms without a subwoofer
The Audio Experts Take
The SB-2 is a passive three-channel soundbar for a cleaner front stage around roughly 50 to 60-inch televisions. It still needs an AV receiver or suitable amplification, and a subwoofer is normally worth considering because the bar is designed to keep the front of the room slim. Talk to The Audio Experts if you want the soundbar, receiver and subwoofer sized as one system.
Brand new. Contact us for current availability, amplifier matching, and subwoofer pairing advice.
