Monitor Audio Pre-Construction Flush Fit Kit with Grille

Monitor Audio Pre-Construction Flush Fit Kit with Grille

Flush-fit architectural installation solution for the Monitor Audio CF230, using the pre-construction bracket system and matching round or square grille options for a cleaner, near-invisible finish.

This setup is aimed at projects where the visual finish matters just as much as the audio. Monitor Audio describes the CF230 as its most visually discreet speaker system and says the pre-construction options create clean lines with no shadow-creating edges, while the grille can be painted to match the ceiling so the speaker disappears further into the background.

Monitor Audio does not appear to list this as one single standalone product title on its current site. The closest current match is the CF230 used with the CFB3-R or CFB3-SQ pre-construction bracket, with round and square grille options available.

Designed for a Seamless Flush-Fit Finish

A cleaner answer for architectural installs where visible trim is the wrong look

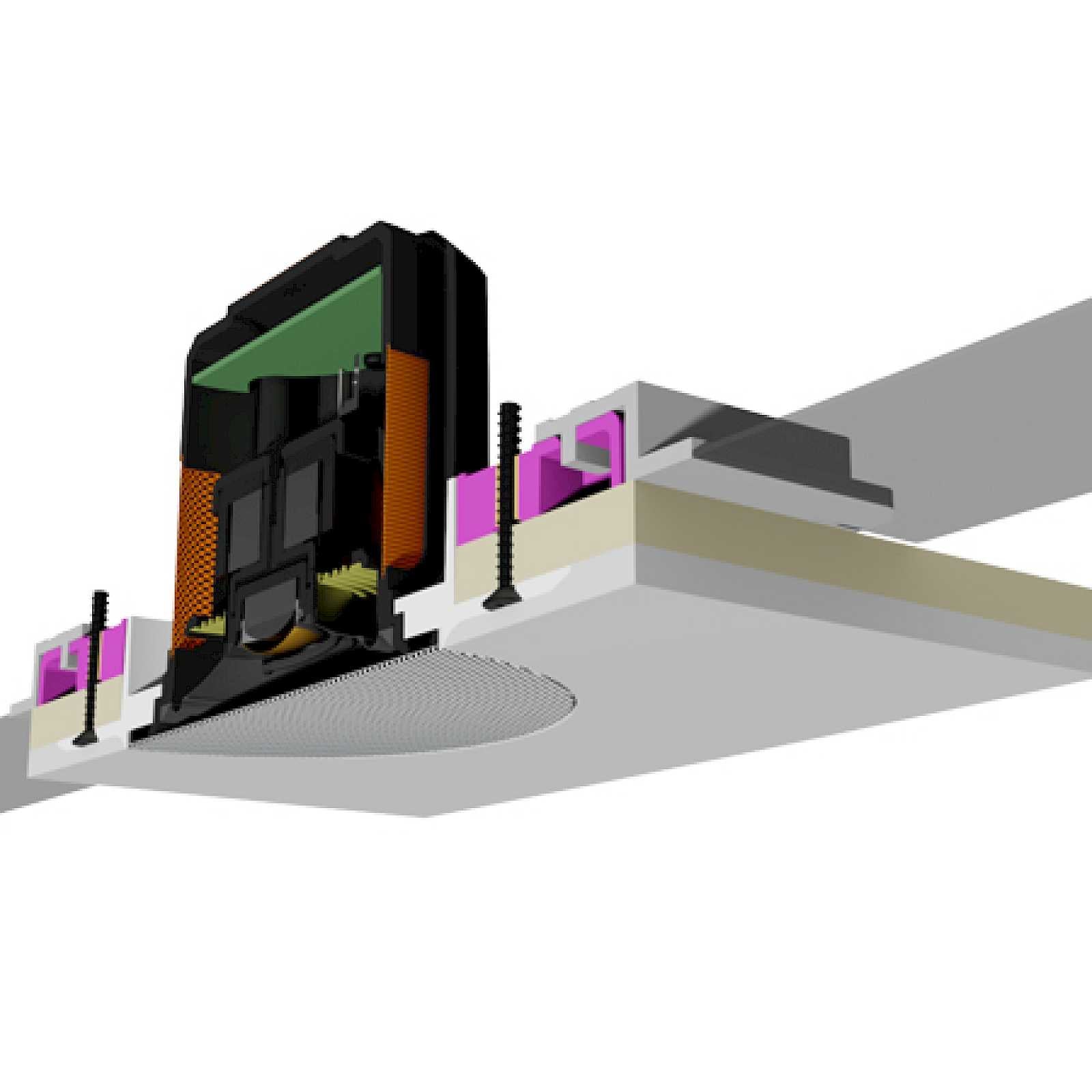

The whole point of this system is the finish. In a pre-construction setup, the CFB3-R and CFB3-SQ brackets enable a seamless flush-fit appearance for the CF230. That gives builders, architects, and installers a much tidier result than a more conventional visible-edge ceiling speaker.

That makes it a strong option for high-end living spaces, design-led renovations, cleaner media rooms, and projects where the speaker needs to stay visually quiet.

Round or Square Grille Options

More flexibility depending on the room and ceiling design

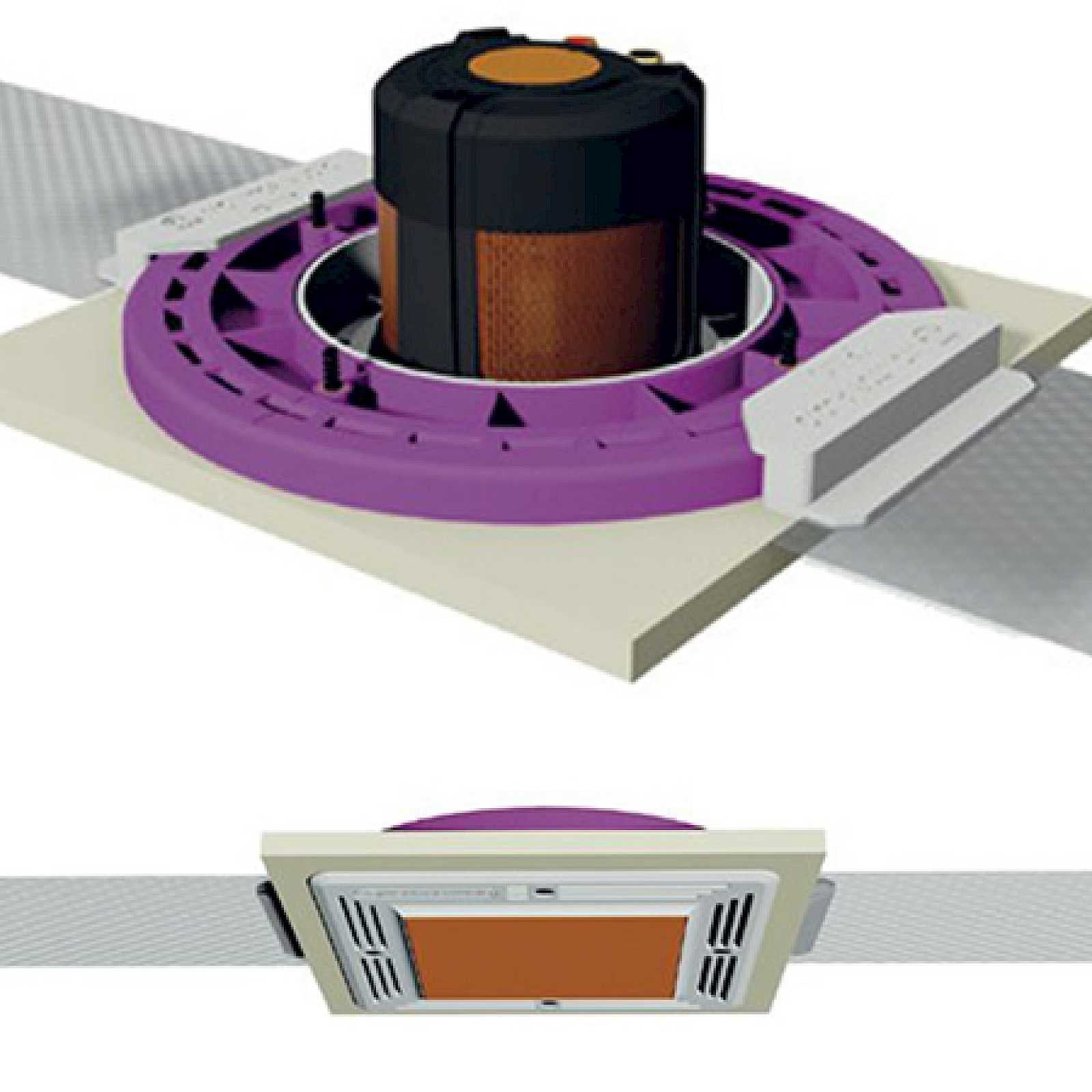

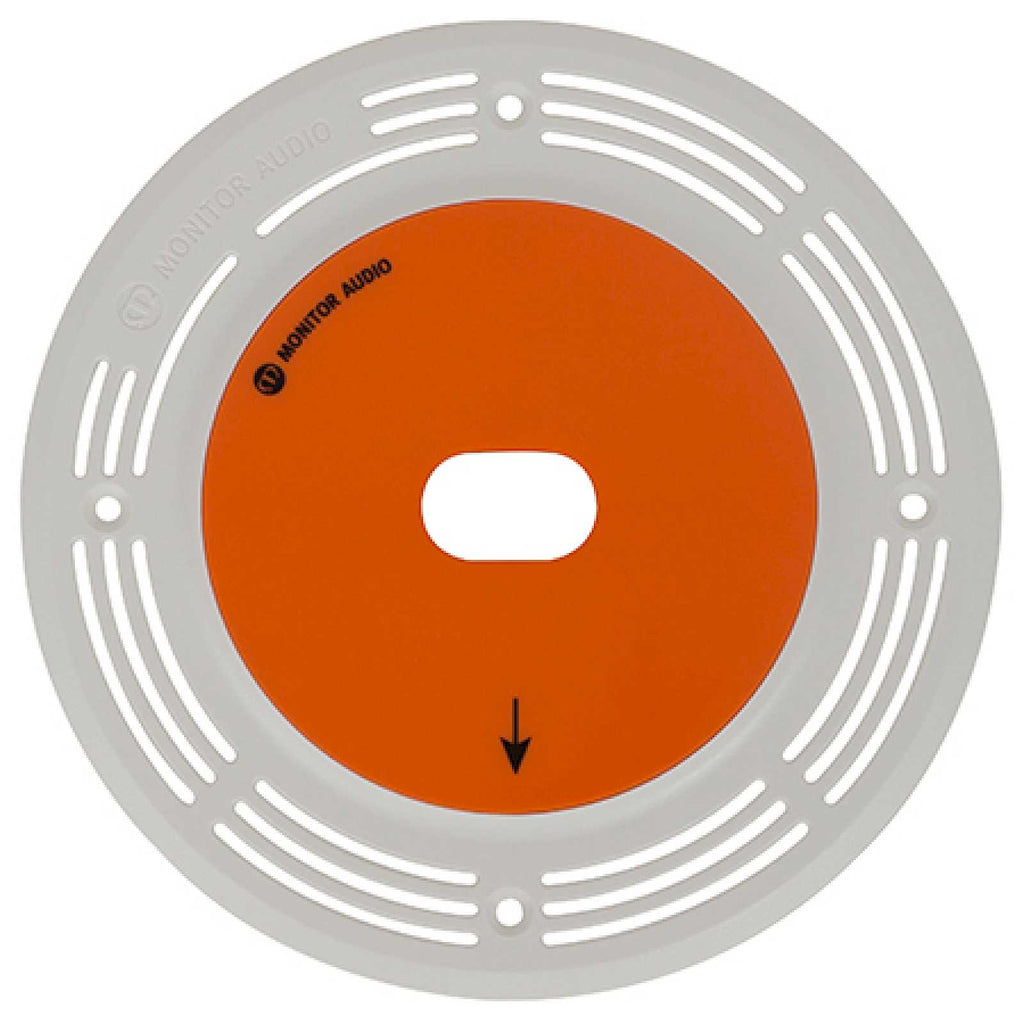

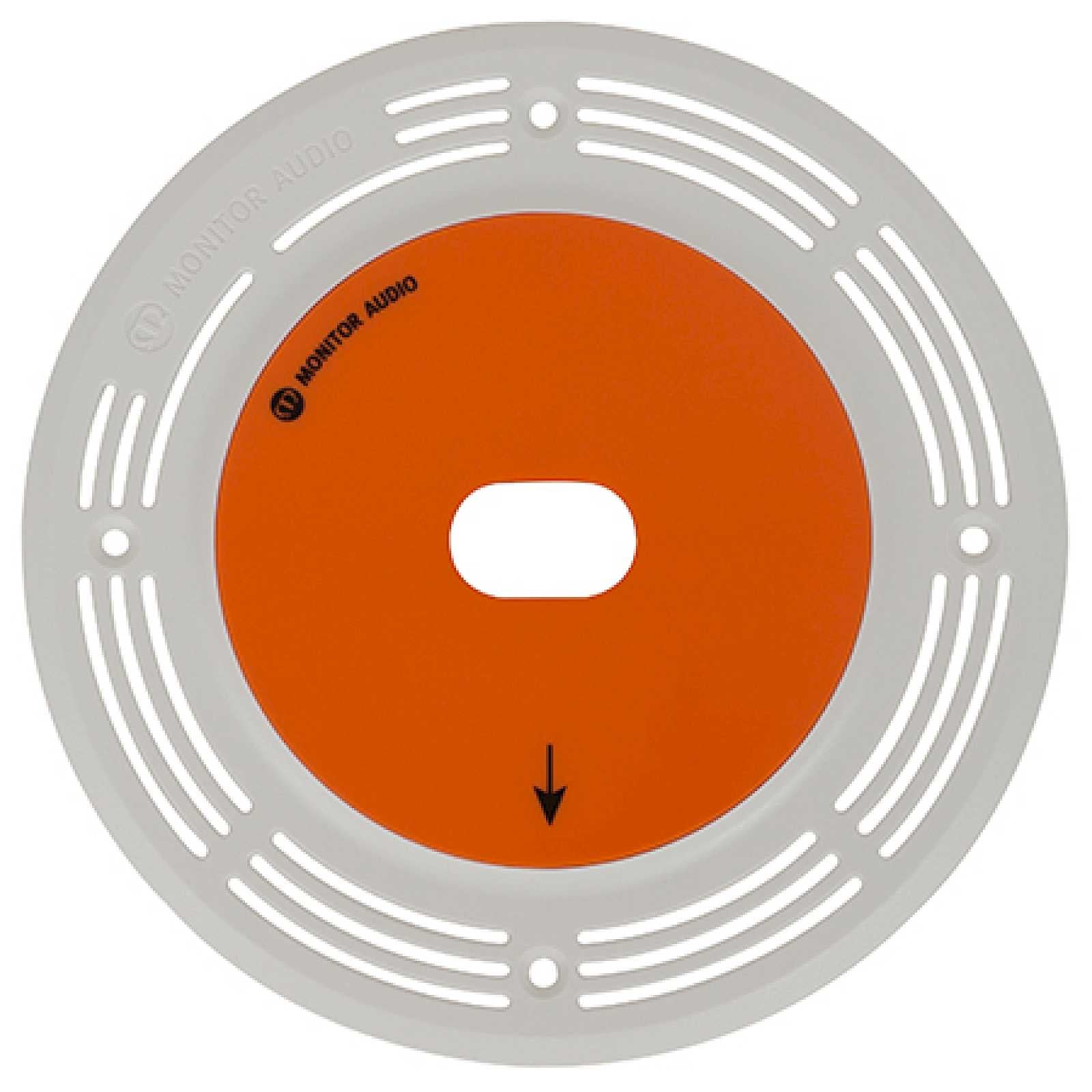

The CF230 supports both round and square grille options. The associated pre-construction brackets are split accordingly, with the CFB3-R for round and the CFB3-SQ for square.

That is useful because some rooms suit a classic round speaker look, while others work better with a square grille that lines up more neatly with lighting, vents, or ceiling details. The grille can also be painted to match the ceiling finish.

Built Around the CF230 Speaker Platform

A discreet install system that still delivers proper sound

The CF230 uses a specially designed coincident driver with a 3-inch C-CAM bass-mid driver and 19 mm C-CAM Gold Dome tweeter, giving it compact dimensions but proper audio quality. Monitor Audio describes it as beautifully discreet while still delivering superb sound from an incredibly compact driver.

It can be used on its own or in multiples, and is available in mono or stereo formations, which makes the flush-fit concept more flexible than just a one-room specialty solution.

Pre-Construction Rather Than Retrofit

The right choice when the finish is being planned early

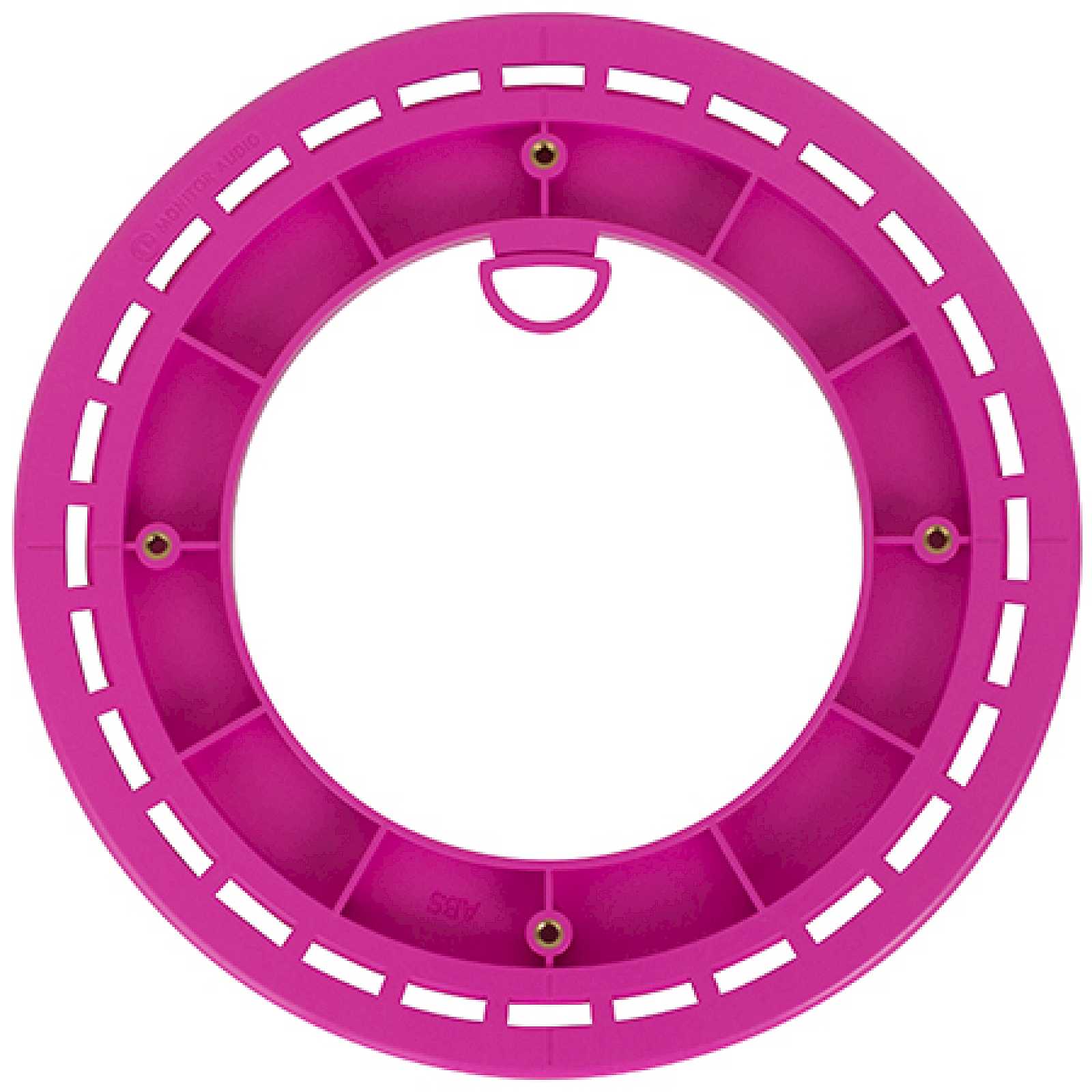

The CFB3-R and CFB3-SQ are for pre-construction flush-fit installs, while the CFB3-KIT is the retrofit bracket.

That distinction matters because this page is really about the cleaner, built-in look achieved during the earlier install stage, not the quicker retrofit path used after plasterboard is already in place.

Specifications

Detailed Technical Specifications

For those who like to drag out all the useful bits

The Audio Experts Take

This makes sense when the brief is not just put a speaker in the ceiling, but make the speaker disappear properly. The value here is the finish. The flush-fit bracket and grille approach gives a much cleaner result than a standard trim-based ceiling speaker, especially in rooms where the ceiling design matters.

What we like here is that it is not just about looks. The CF230 platform still gives you a proper compact speaker system behind the finish, so you are not trading the whole result away just to get a neater ceiling line. For the right project, it is a very smart architectural solution.

Brand new. Contact us for current compatibility, round or square flush-fit options, and project advice.
