Monitor Audio IWS-10 In-wall Subwoofer
Passive 10-inch in-wall subwoofer for concealed low-frequency support in custom stereo and home theatre installations.
IWS-10 is designed for rooms where a freestanding subwoofer would interfere with the interior or floor plan. The bass driver lives in the wall, leaving the visible room much cleaner while still allowing the system to extend below the main speakers.
Installation and System Planning
Because it is passive, the matching subwoofer amplifier and installation enclosure are part of the design. Wall position, cavity construction and cable route need to be decided before installation, especially if multiple in-wall subs are being used for more even room coverage.
Key Features
- Brand: Monitor Audio
- Frequency Response: 28 Hz, 120 Hz (when mounted in optimum enclosure)
- Nominal Impedance: 8 ohms
- Sensitivity (1W@1M): 86 dB
- Maximum SPL: Single unit 109.8 dB; Pair 115.8 dB
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | IWS-10 |
| Product Type | In-Wall Subwoofer |
| Frequency Response | 28 Hz, 120 Hz (when mounted in optimum enclosure) |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W@1M) | 86 dB |
| Maximum SPL | Single unit 109.8 dB; Pair 115.8 dB |
| Power Handling (RMS) | 150 W |
| Cut-Out Dimensions | 280 x 280 mm (11 x 11") |
| Mounting Depth | 89.98 mm (3 1/2") |
| Fixing Type | 4 position Tri-Grip dog leg fixings |
| Connection | Gold plated "push" type terminals |
| Construction Material | Mineral Filled ABS Plastic (RoHS2 Compliant) |
| Overall Dimensions (H x W x D) | 302 x 302 x 92.28 mm |
| Overall Dimensions (Including Grille) | 314.21 x 314.21 x 100.78 mm |
| Weight | 3.8 kg |
| Sold As | Single Unit |
| Warranty | Lifetime |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- In-wall subwoofer
- Designed for wall, ceiling, and floor installation

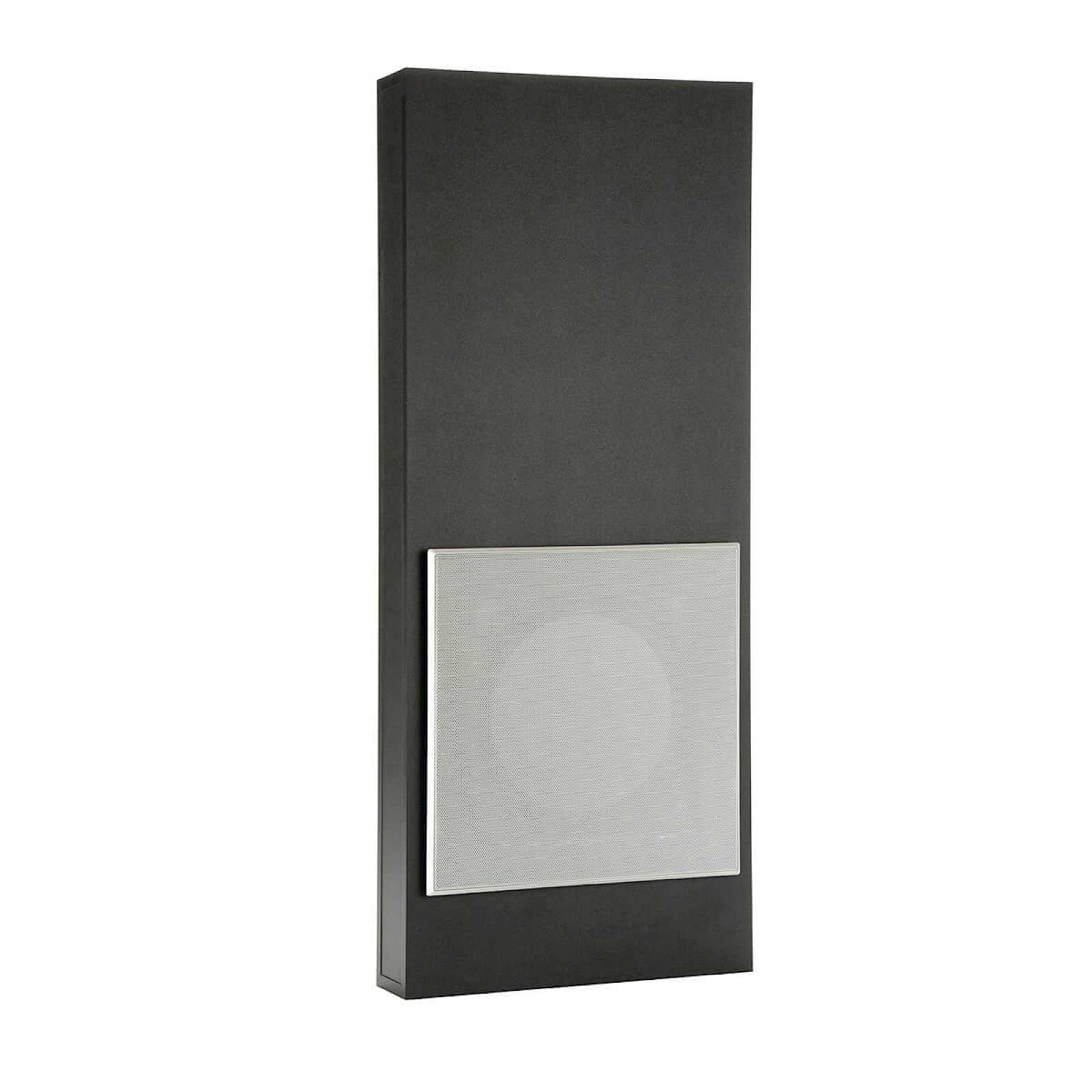

- Ideally partnered with IWB-10 back box

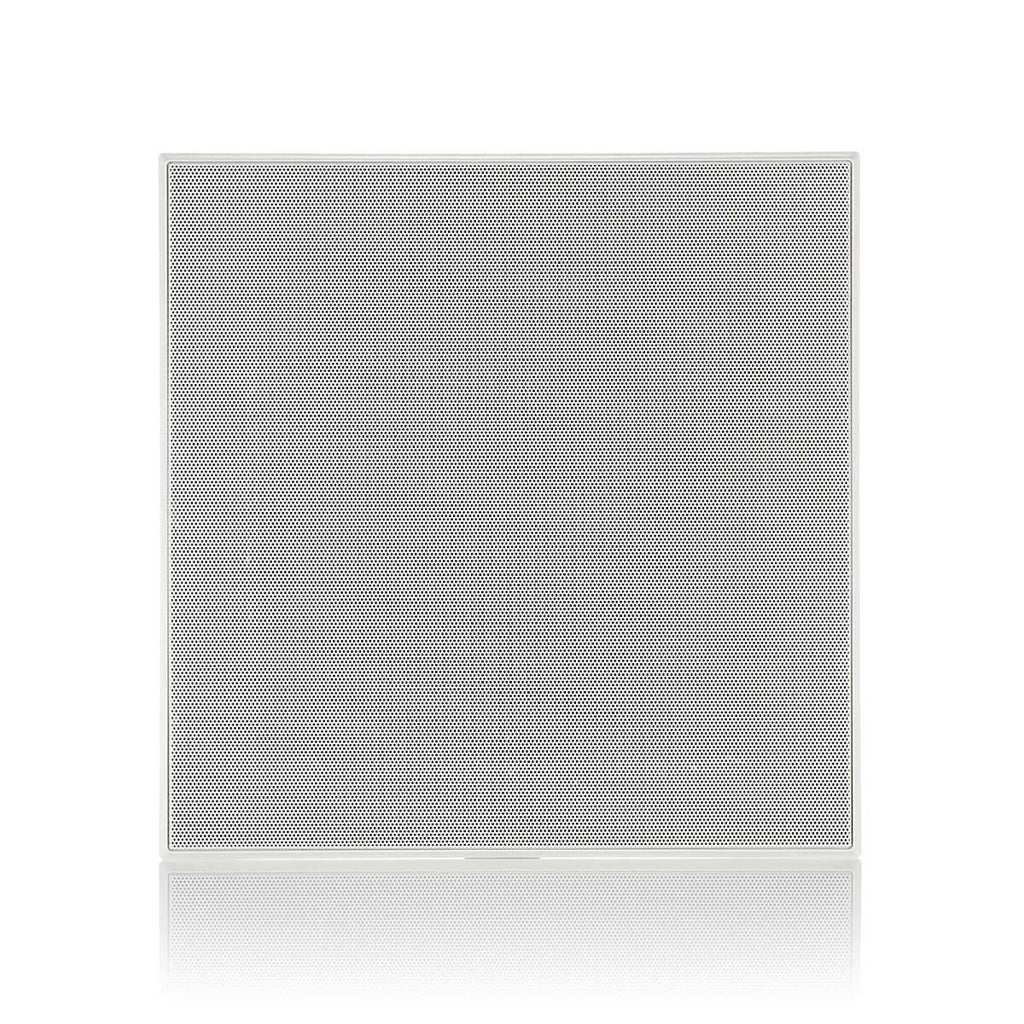

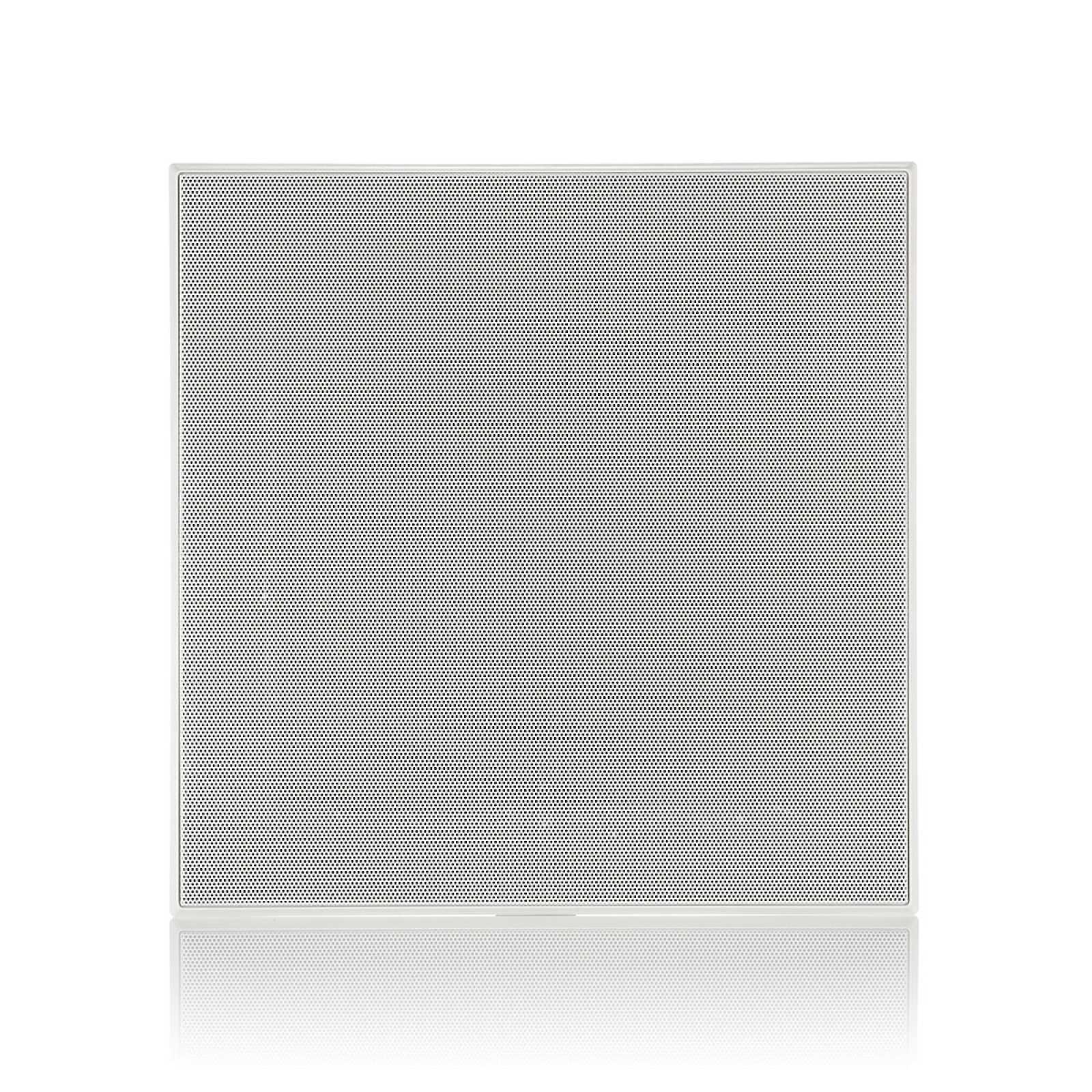

- Trim-less paintable grille and frame edge
- Lifetime warranty
Driver Configuration

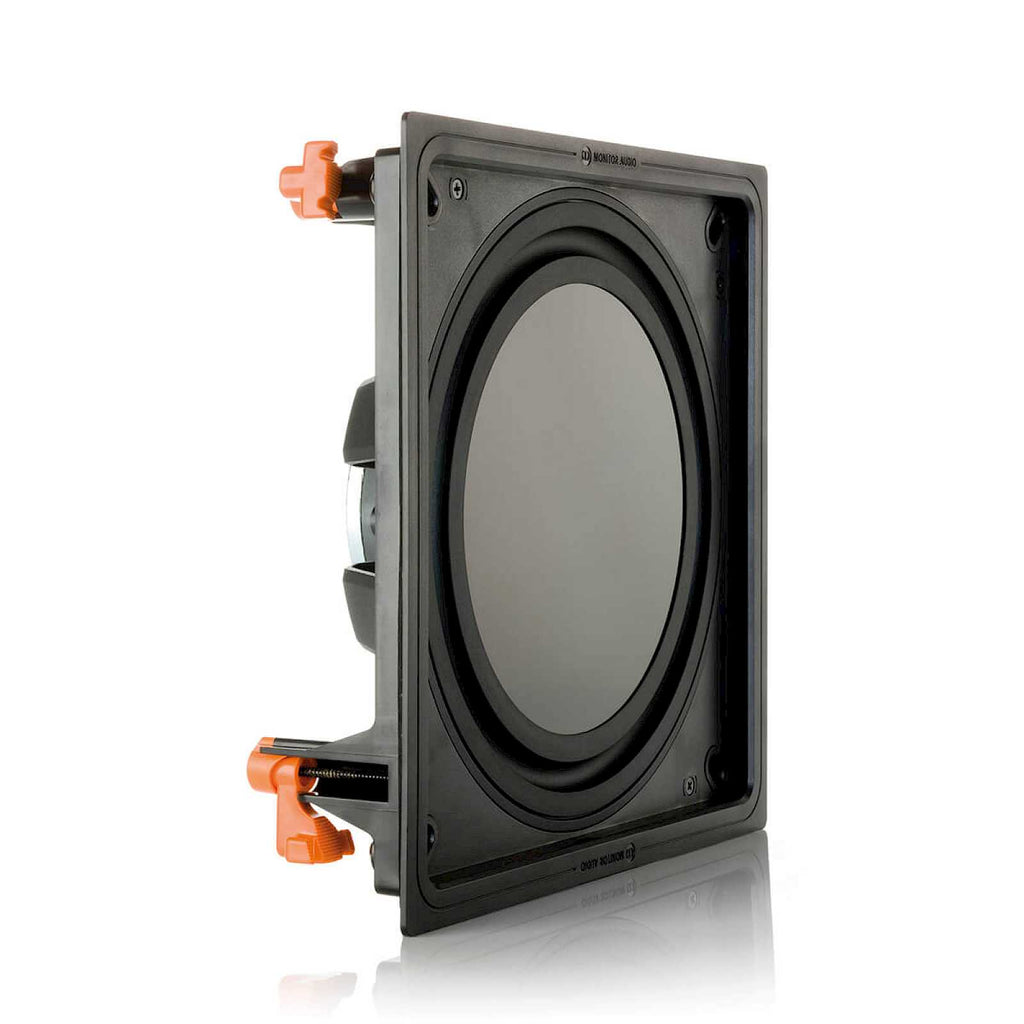

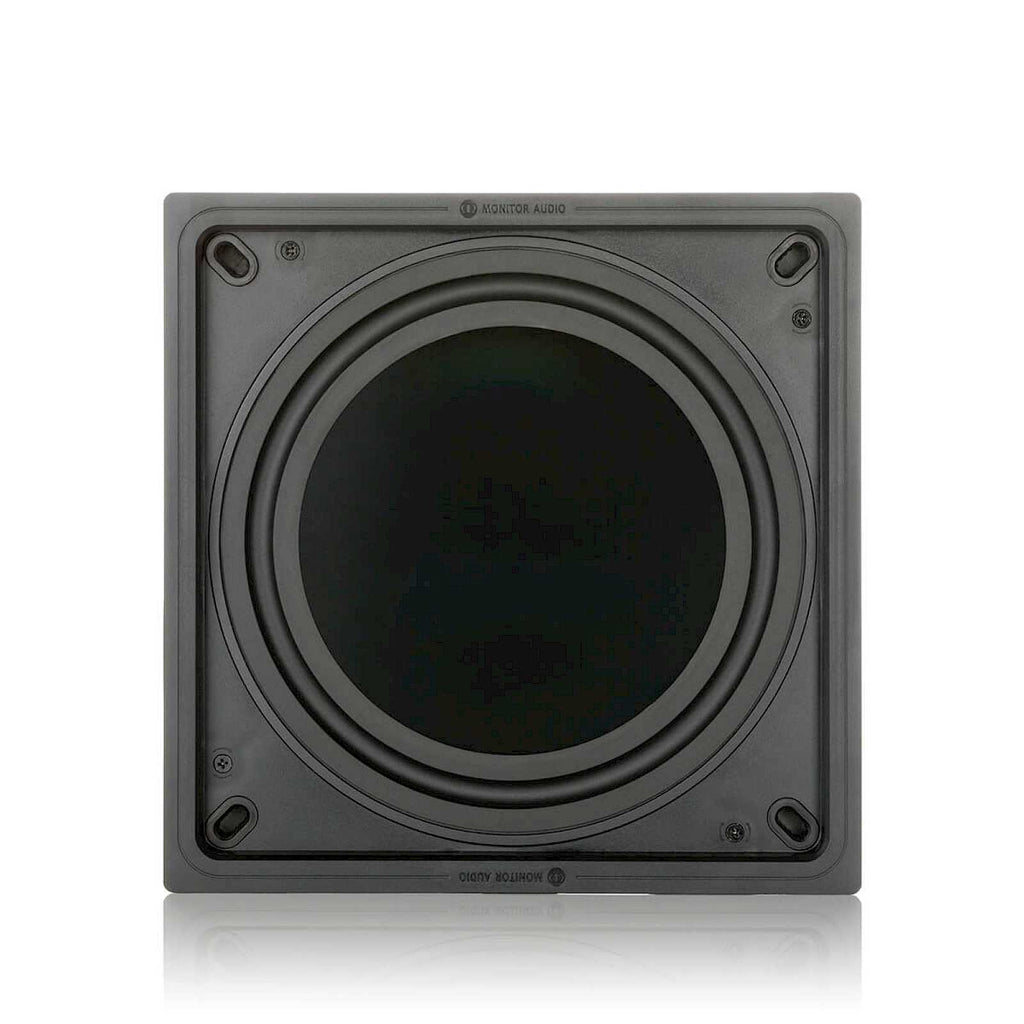

- 10-inch flat RDT diaphragm
- 10 mm (3/8-inch) RDT material
- Technology derived from Monitor Audio Platinum series
- Large vented pole for airflow and heat dissipation
Performance
- Frequency response: 28 Hz, 120 Hz (when mounted in optimum enclosure)
- Nominal impedance: 8 ohms
- Sensitivity: 86 dB
- Maximum SPL: Single unit: 109.8 dB Pair: 115.8 dB
- Power handling: 150 W RMS
Installation
- Cut-out dimensions: 280 x 280 mm
- Mounting depth: 89.98 mm

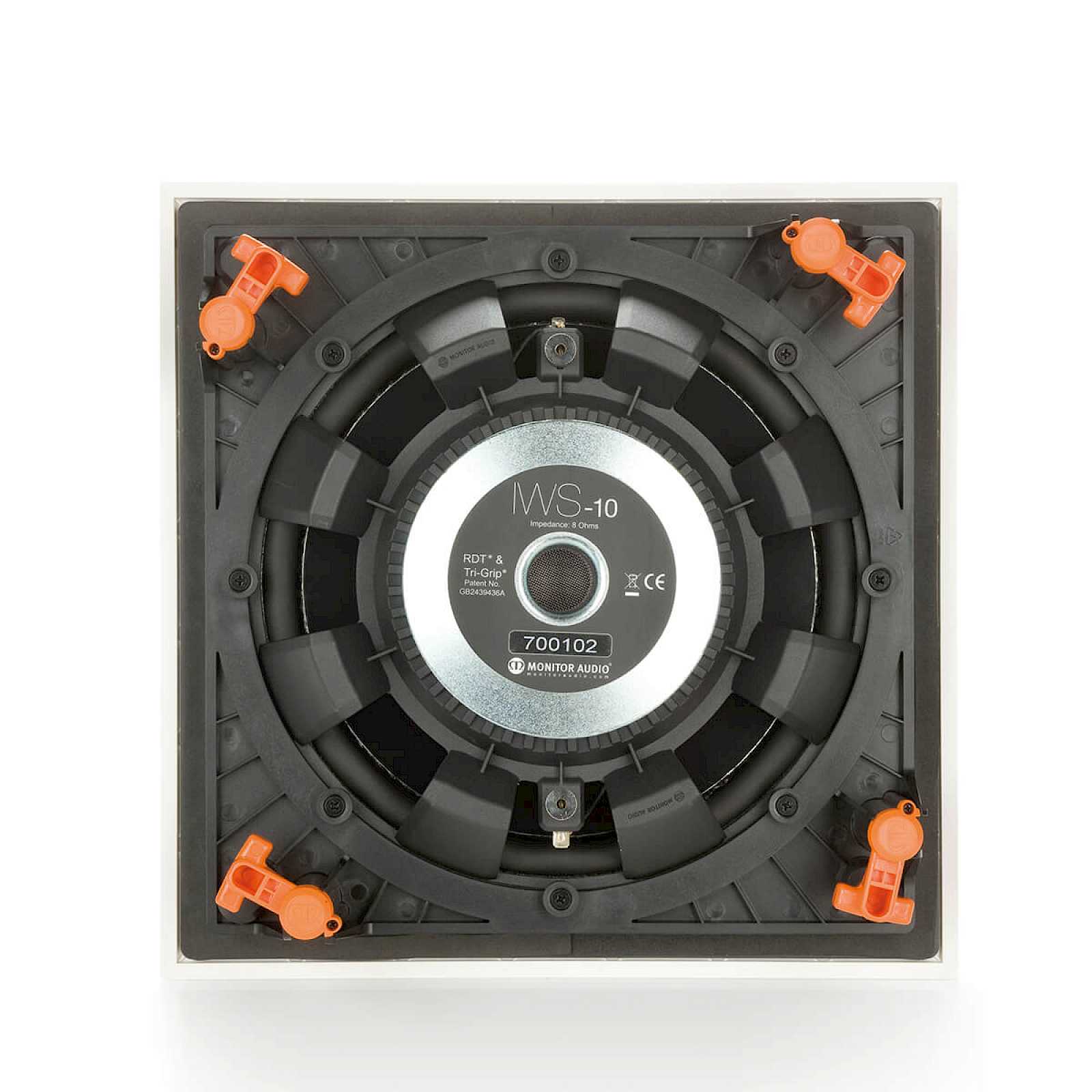

- 4 position Tri-Grip dog leg fixings
- Gold plated push terminals
- Construction material: Mineral Filled ABS Plastic (RoHS2 Compliant)
Dimensions and Weight
- Overall dimensions: 302 x 302 x 92.28 mm
- Overall dimensions including grille: 314.21 x 314.21 x 100.78 mm
- Weight: 3.8 kg
- Sold as a single unit
The Audio Experts Take
The IWS-10 is for systems that need genuine low-frequency support without a subwoofer cabinet in the room. Because it is passive and built into the wall, the matching amplifier, enclosure, cable route and location all need to be planned as part of the installation. We recommend discussing the complete bass system with The Audio Experts before the wall is closed.
Brand new. Contact us for current availability, back-box advice, and system matching guidance.
