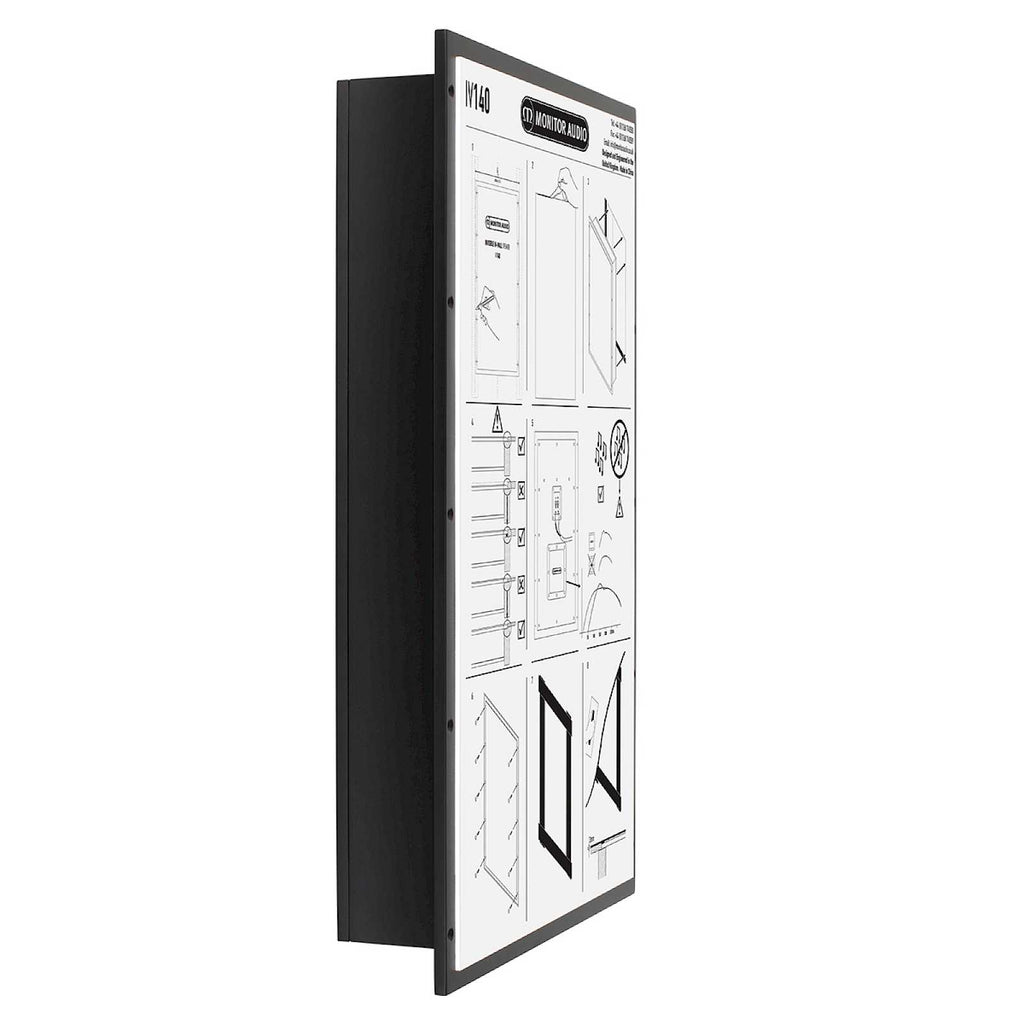

Monitor Audio IV140 Invisible In-Wall Speaker

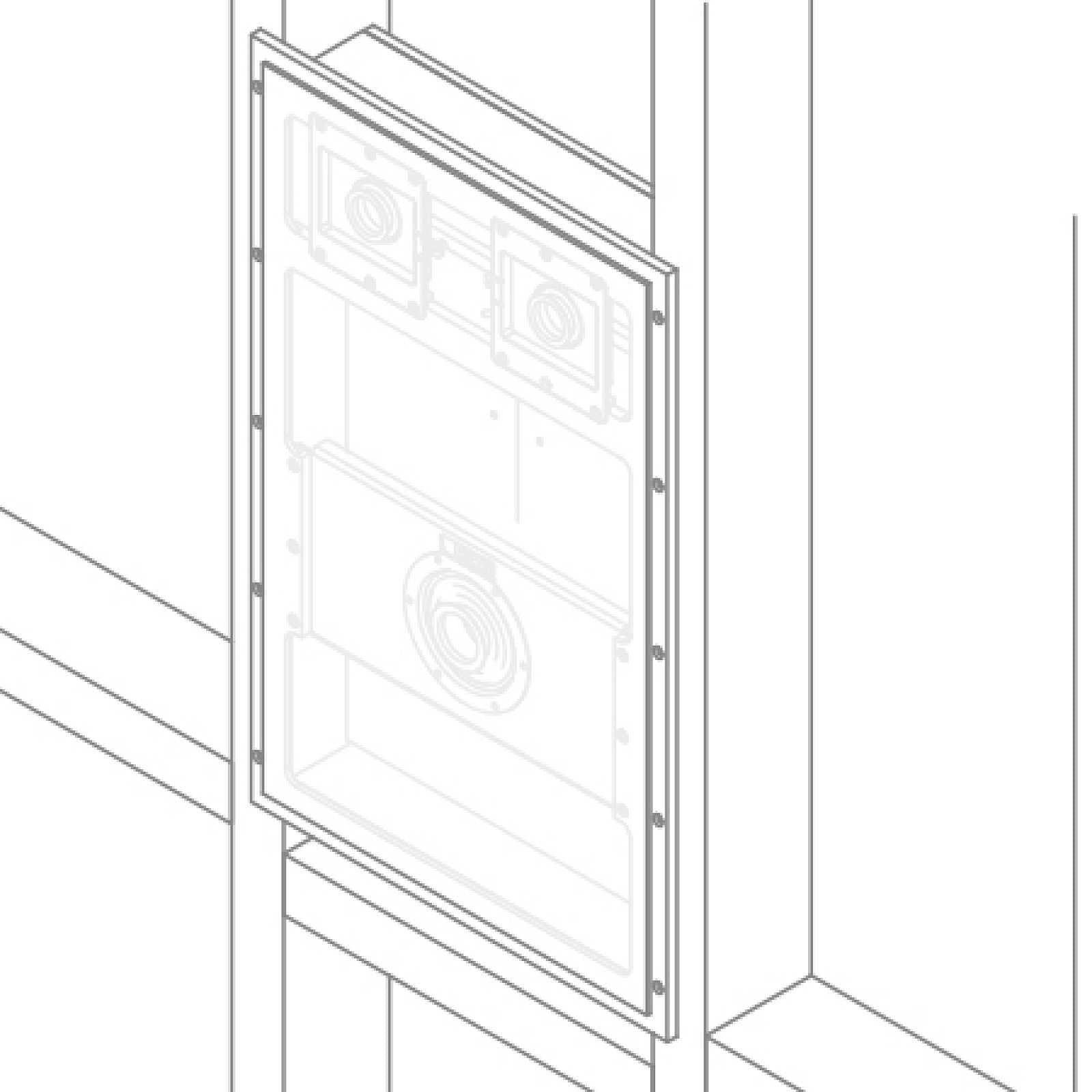

Invisible architectural speaker designed to be installed into the wall or ceiling and finished over, leaving no visible grille in the completed room.
IV140 is for projects where the loudspeaker itself must disappear from view. Once installed and finished correctly, the visible room surface remains uninterrupted, which makes it useful in design-led interiors and spaces where conventional grilles are unacceptable.
Installation and System Planning
Invisible speakers demand more planning than a standard cut-in model. Position, substrate, finishing compound and installer technique all affect the finished result, so the speaker layout and installation method should be decided before the wall or ceiling is completed.
Key Features
- Brand: Monitor Audio
- Series: Specialist
- Drive Unit Complement: 1 x low-frequency transducer, 2 x high-frequency transducers
- Frequency Response (-6dB): 75Hz – 18kHz (CP sealed), 55Hz – 18kHz (Open back)
- Sensitivity: 82dB (when installed as directed)
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | IV140 |
| Product Type | Invisible In-Wall / In-Ceiling Speaker |
| Series | Specialist |
| Drive Unit Complement | 1 x low-frequency transducer, 2 x high-frequency transducers |
| Frequency Response (-6dB) | 75Hz – 18kHz (CP sealed), 55Hz – 18kHz (Open back) |
| Sensitivity | 82dB (when installed as directed) |
| Nominal Impedance | 8 ohms |
| Maximum SPL | 102.8dBA |
| Power Handling (RMS) | 50W full range |
| Music Program Power | 100W with minimum 80Hz high-pass filter |
| Recommended Amplifier Power | 20 – 50W full range / 20 – 100W with minimum 80Hz high-pass filter |
| Overall Dimensions | 642 x 401.5mm |
| Overall Depth | 106mm |
| Cut-Out Dimensions | 591 x 350.5mm |
| Mounting Depth | 94mm |

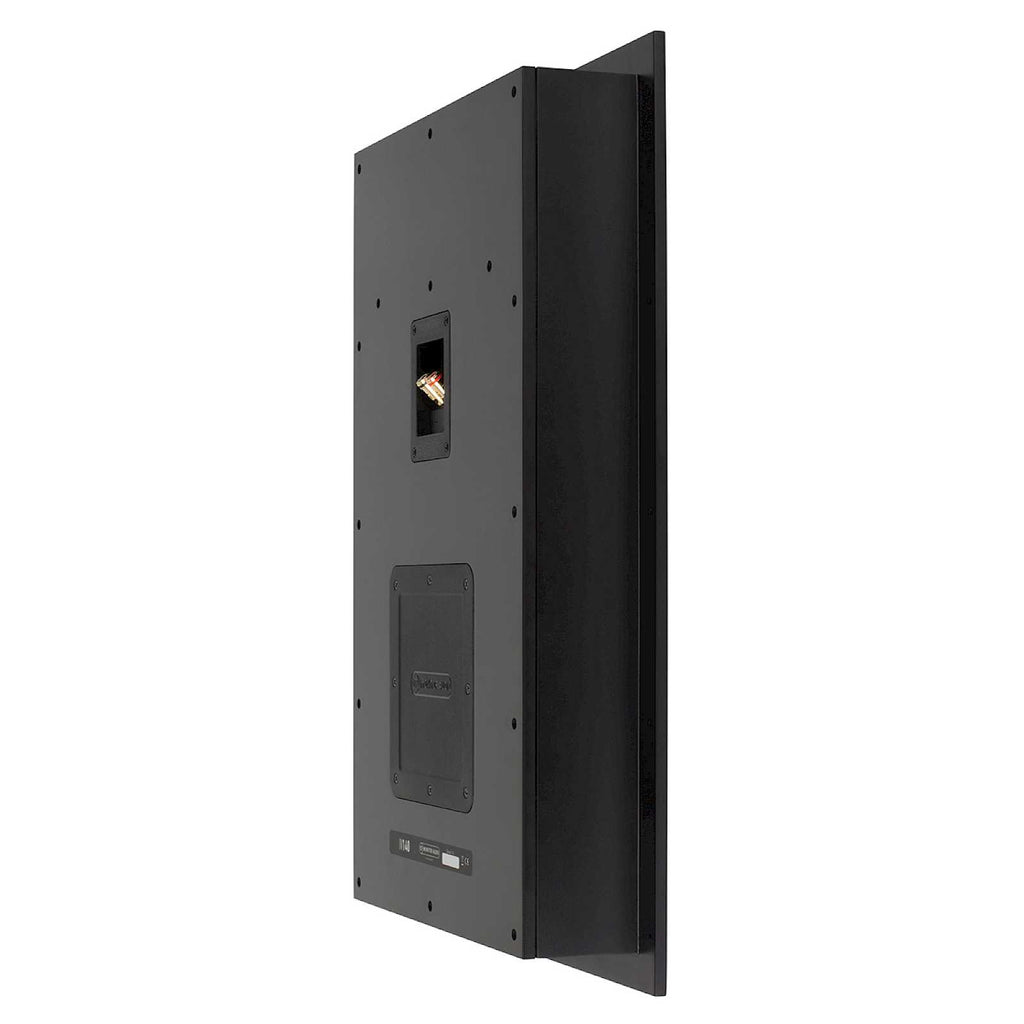

| Connection | Sprung push type terminals, gold plated |
| Fixing Type | Self-tapping screw |
| Construction Material | 9mm MDF |
| Colour / Finish | Black painted frame, white membrane |
| Pre-Construction Bracket | WBIV140 |
| Weight | 9kg |
| Sold As | Single unit |
| Warranty | 5 years |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- Invisible in-wall / in-ceiling speaker
- Monitor Audio Specialist range
- Designed for concealed architectural audio

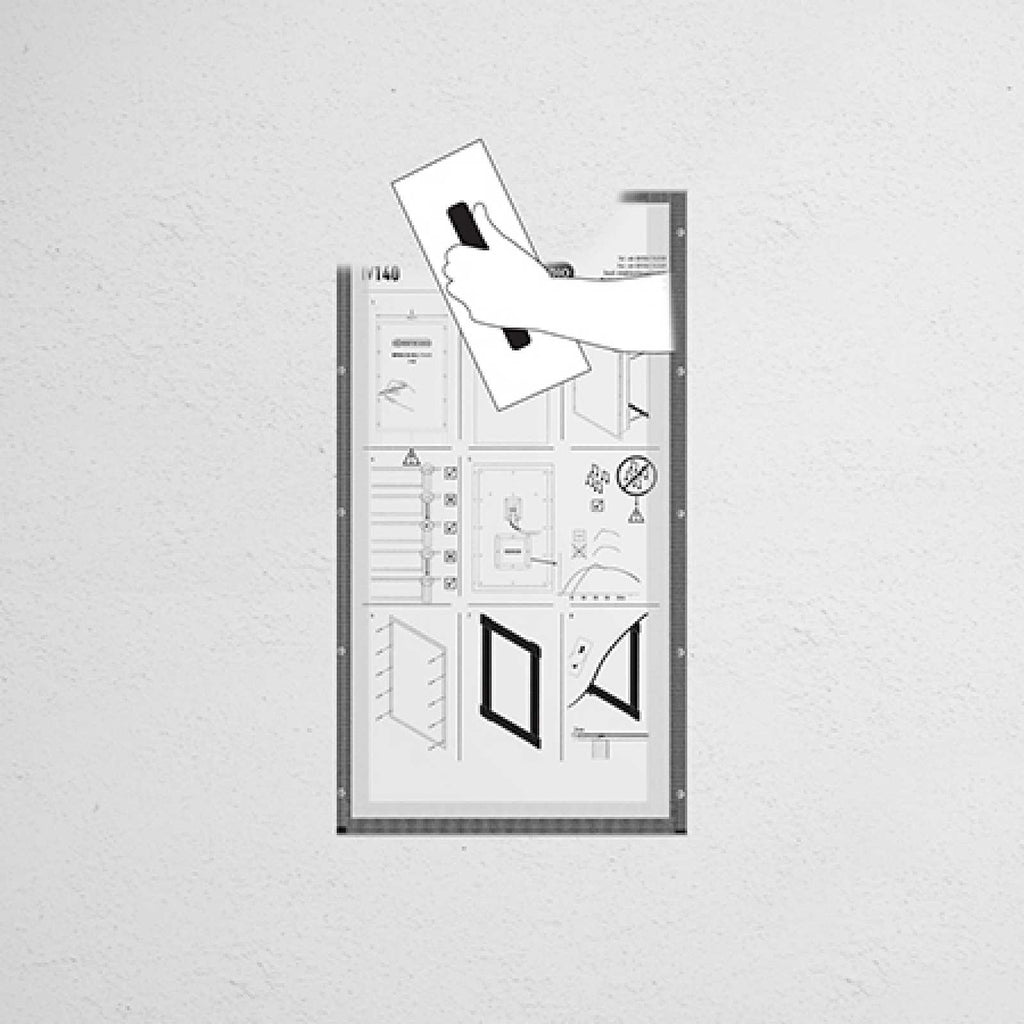

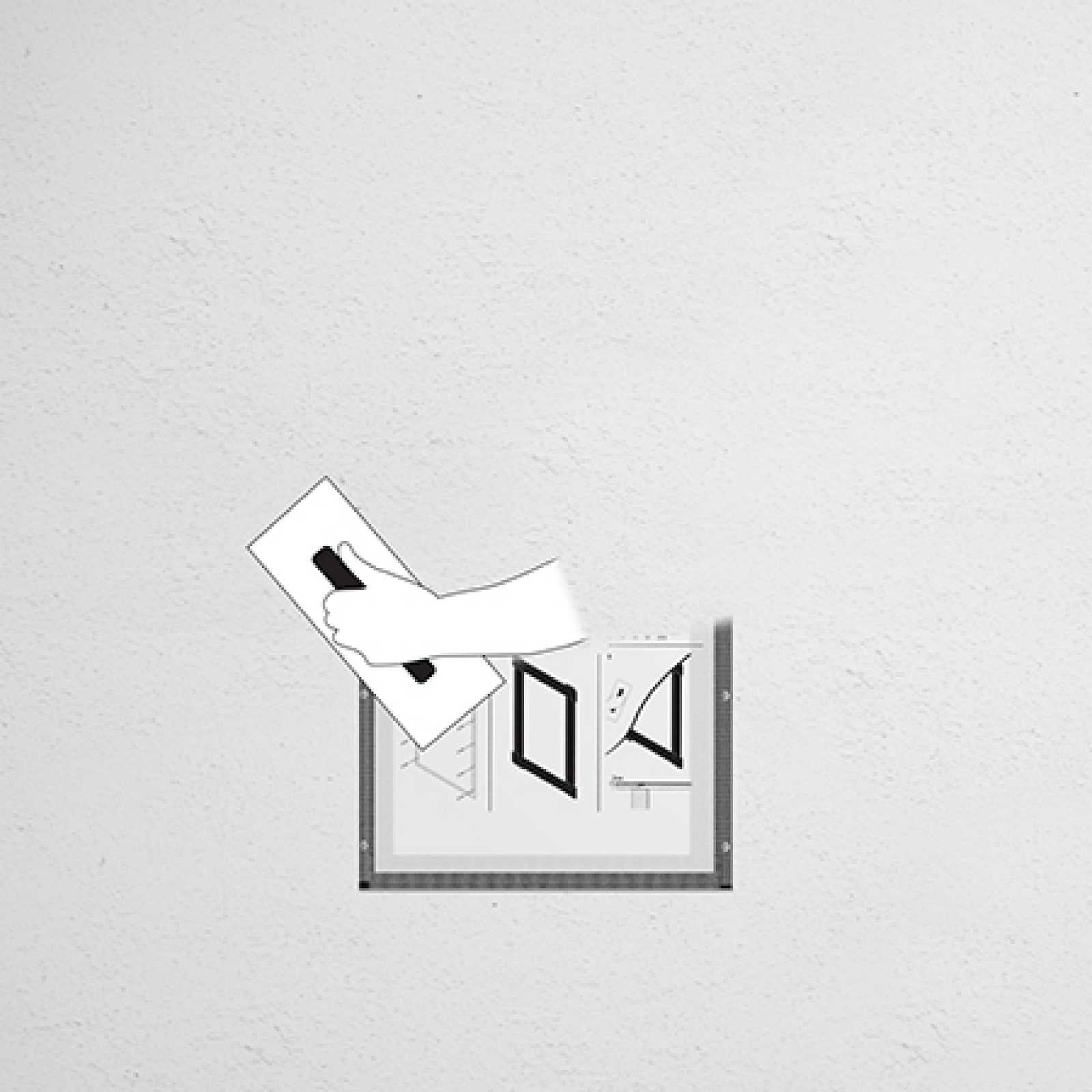

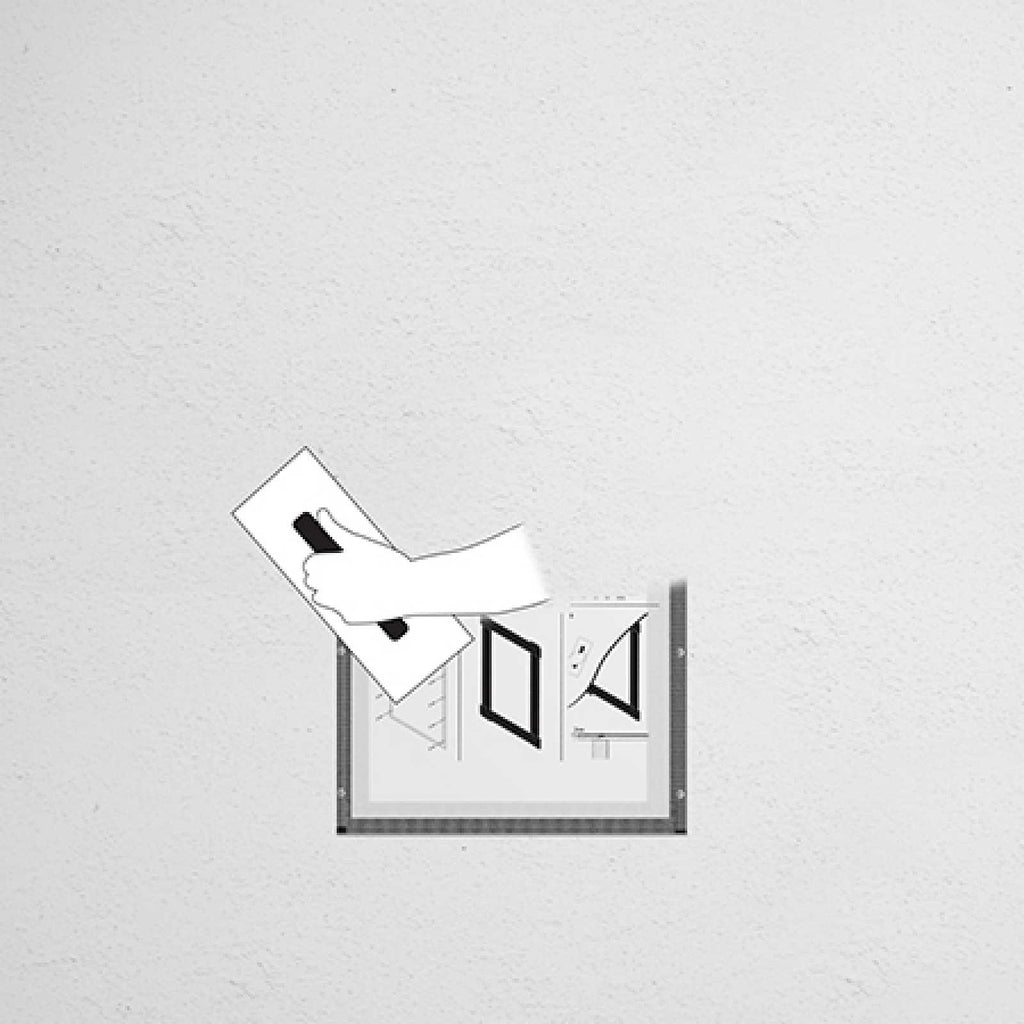

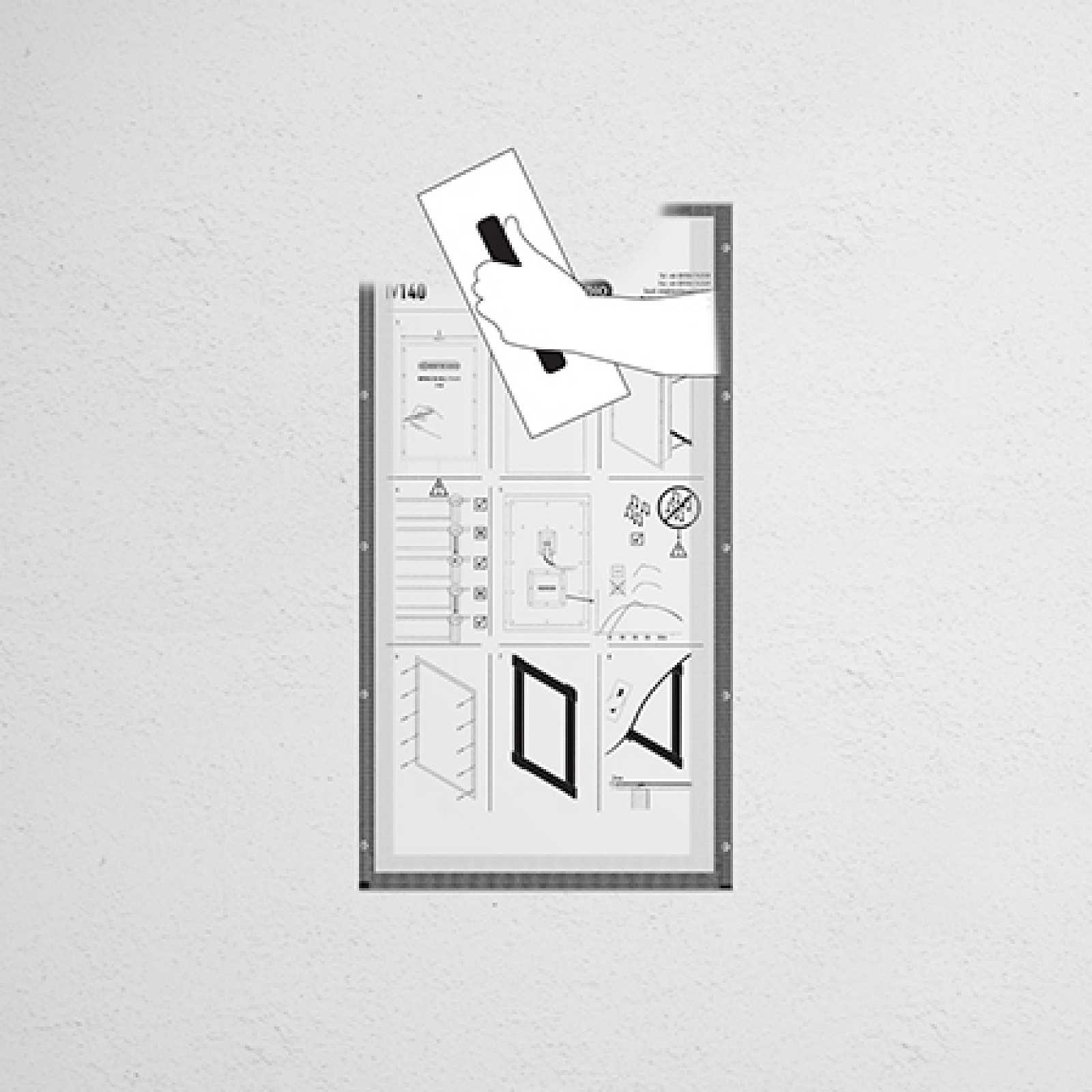

- Intended to be plastered over and finished into the wall or ceiling
Drive Unit Complement
- 1 x low-frequency transducer
- 2 x high-frequency transducers
Performance
- Frequency response (-6dB): 75Hz – 18kHz (CP sealed) 55Hz – 18kHz (Open back)
- Sensitivity: 82dB
- Nominal impedance: 8 ohms
- Maximum SPL: 102.8dBA
- Power handling: 50W RMS full range 100W music program with minimum 80Hz high-pass filter
Amplifier Matching
- Recommended amplifier requirements: 20 – 50W full range 20 – 100W with minimum 80Hz high-pass filter
Installation and Construction
- Overall dimensions: 642 x 401.5mm
- Overall depth: 106mm
- Cut-out dimensions: 591 x 350.5mm
- Mounting depth: 94mm
- Fixing type: self-tapping screw
- Construction material: 9mm MDF
- Connection: gold-plated sprung push terminals
- Pre-construction bracket: WBIV140
Finish and Weight
- Black painted frame
- White membrane
- Weight: 9kg
Packaging and Warranty
- Sold as a single unit
- 5-year warranty
The Audio Experts Take
The IV140 is for projects where the speaker grille itself is unacceptable and the loudspeaker needs to disappear beneath the finished surface. The installation and finishing process are critical, so this is a product to plan with the wall construction and installer before work begins. Contact The Audio Experts if you are considering an invisible system and want the speaker layout reviewed first.
Brand new. Contact us for current availability, system design advice, and installation guidance.
