Monitor Audio ICS-8 In-ceiling Subwoofer

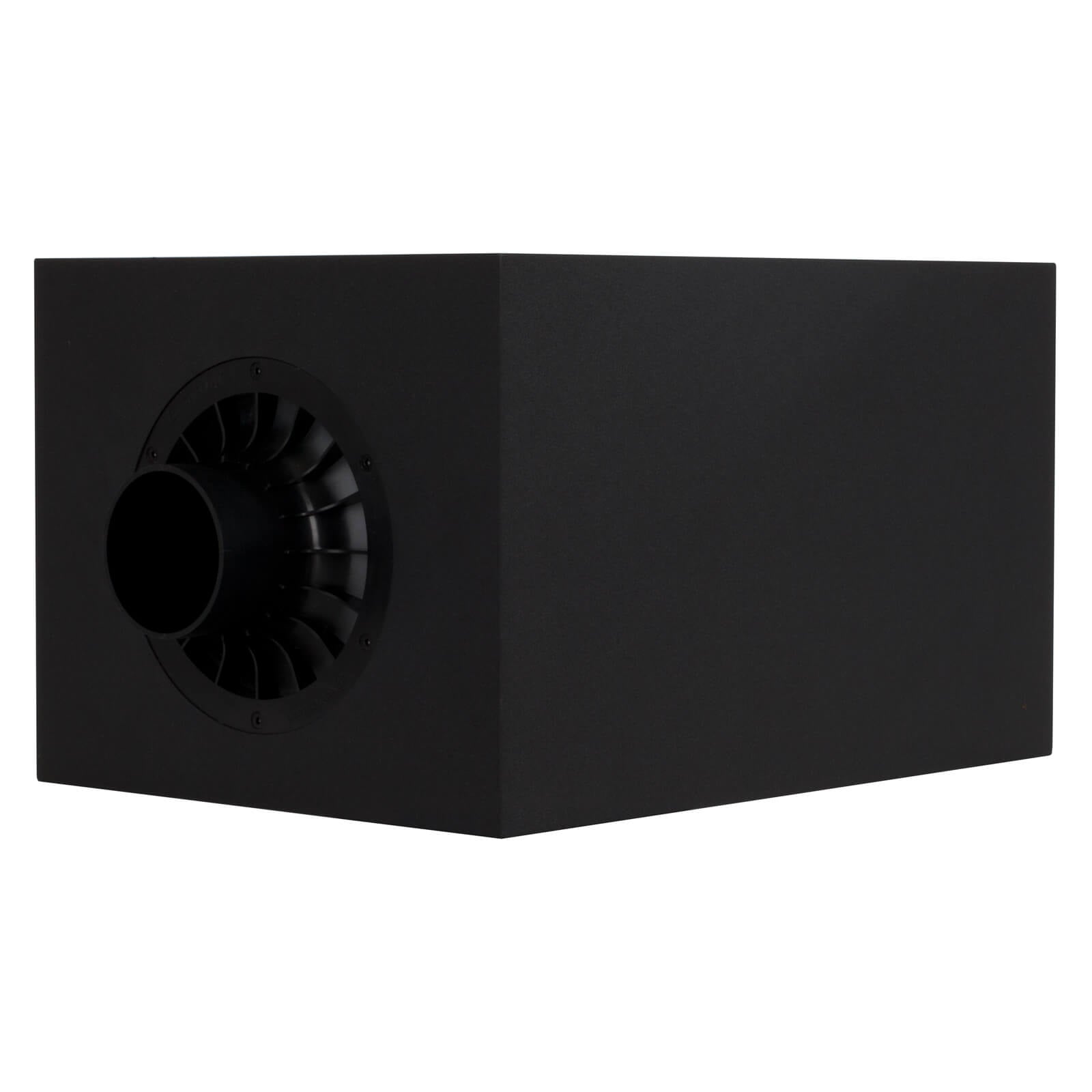

Monitor Audio ICS-8 In-Ceiling / In-Wall Custom Subwoofer

Discreet custom-install subwoofer designed to deliver punchy bass from ceiling, wall, or under-floor cavities while keeping the visual footprint almost invisible.

The Monitor Audio ICS-8 is a specialist custom-install subwoofer built for projects where a conventional sub box is not welcome, but proper low-frequency support is still needed. Monitor Audio describes it as a visually discreet subwoofer designed primarily to complement the CF230 speaker system, fitting into ceiling and wall cavities or under floors to add bass from 40Hz to 120Hz.

That makes it a very different sort of product to a normal lounge-room subwoofer. The ICS-8 is really about architectural integration, tidy installation, and getting useful bass into a space without dropping a large cabinet into the room. For the right project, that is exactly the point.

Discreet Bass Without a Big Box

A subwoofer solution for projects where clean visuals matter

The ICS-8 is designed for customers who want the low-frequency support of a subwoofer without seeing a conventional cabinet in the room. Monitor Audio’s product story leans heavily into this, positioning it as a custom-install answer for clean interiors where visible speakers and subwoofers would compromise the design.

That makes it especially useful in architectural living spaces, multi-room audio zones, media rooms, and more design-sensitive projects where the brief is to keep the room visually calm while still adding weight and impact to the sound.

Built Around a Long-Throw 20cm C-CAM Driver

Punchy bass performance from a much smaller visible opening

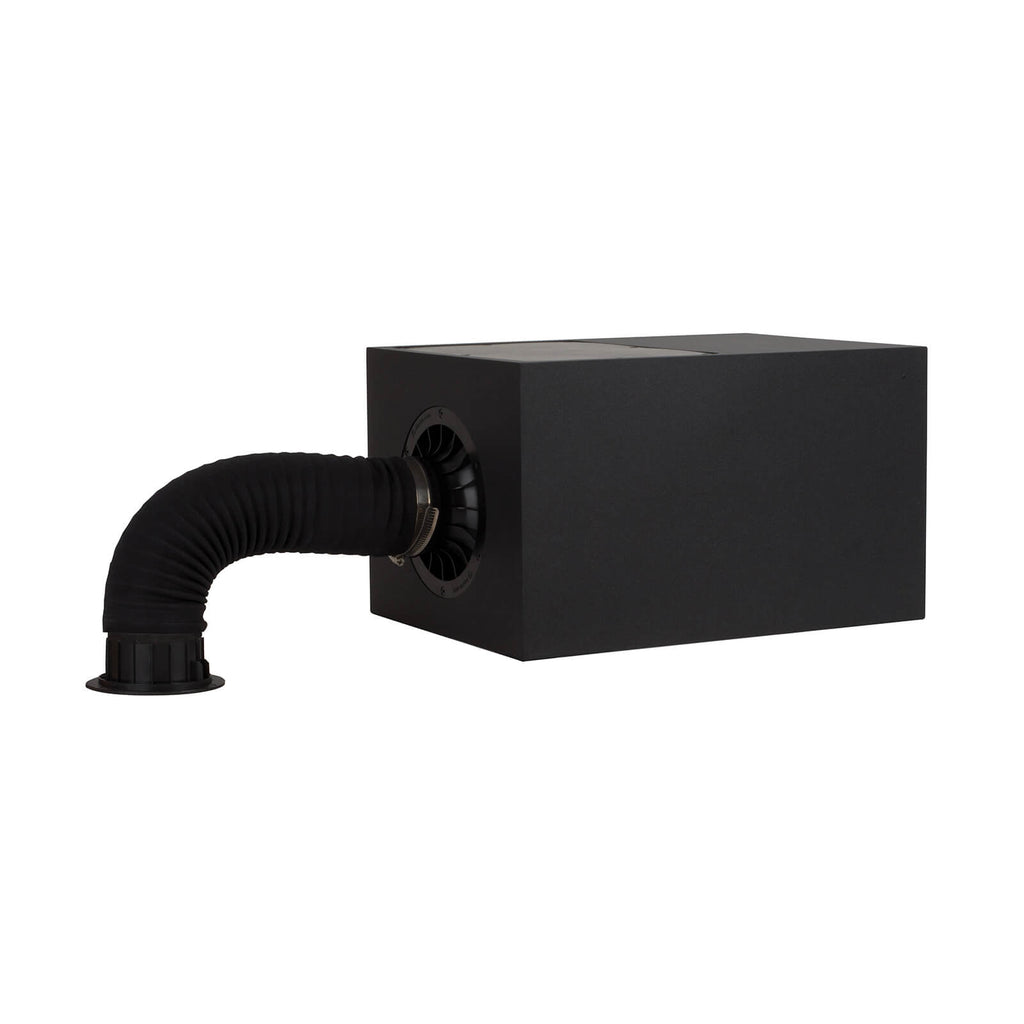

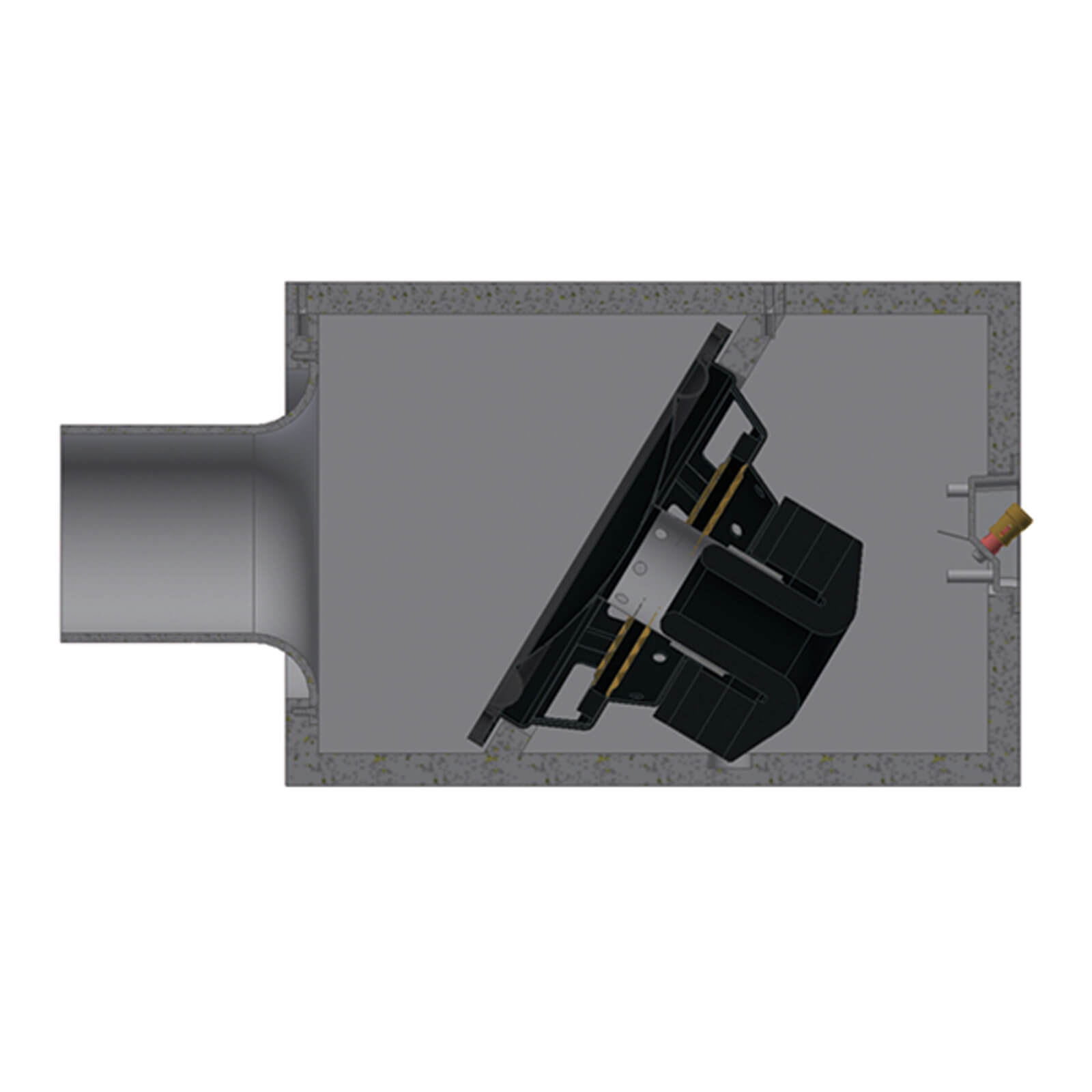

At the core of the ICS-8 is a 20cm long-throw bass driver using Monitor Audio’s C-CAM cone technology. The product page notes that the driver is mounted internally at an angle inside a rigid MDF enclosure to reduce the overall box height, and that the design delivers the performance of a 20cm subwoofer from a 10cm grille opening.

That matters because this is not just a hidden bass unit for background fill. It is clearly engineered to provide usable, tuneful low-end output while still fitting into the sort of construction spaces that custom installers actually have to work with.

Designed for Pre-Construction and Proper Integration

Best suited to projects where the install is planned properly from the start

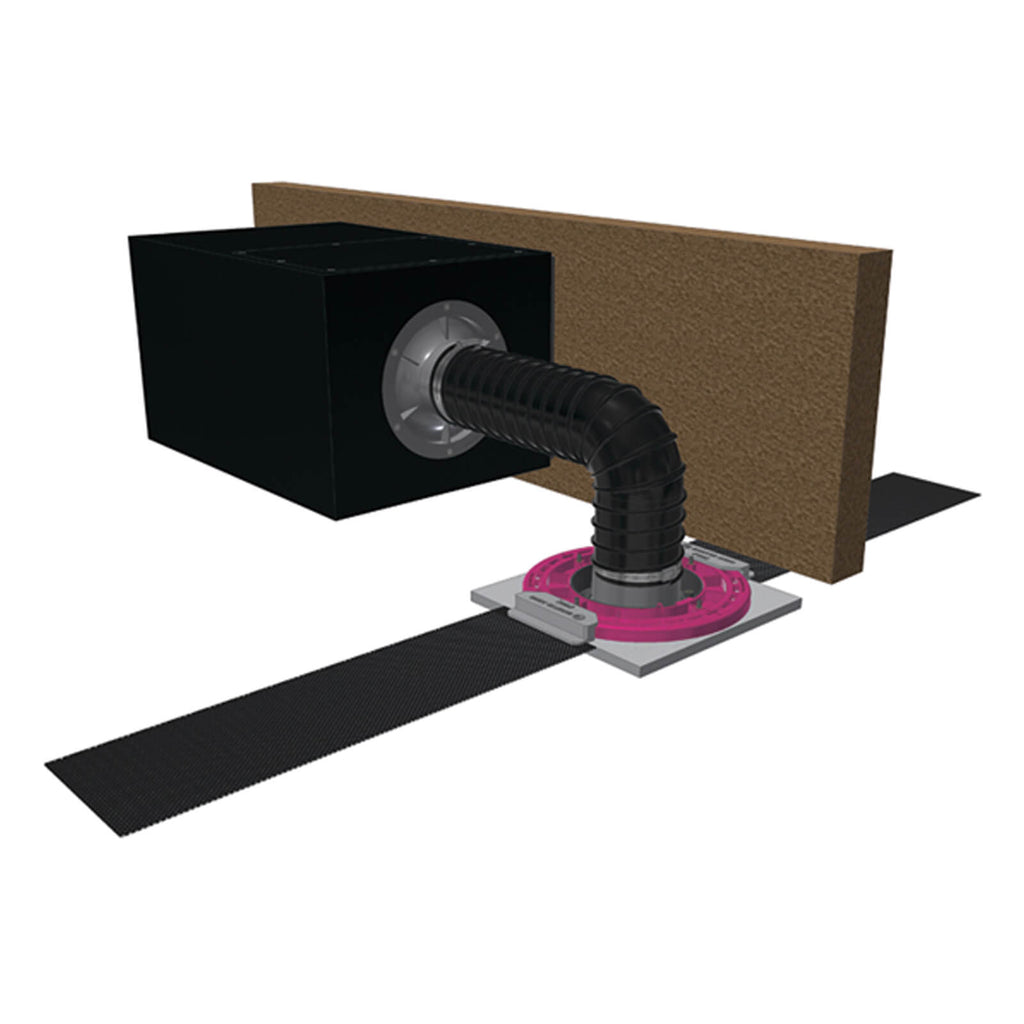

Monitor Audio says the ICS-8 is used mainly in pre-construction installations where access can be made, such as in basements or spaces with enough joist depth and spacing. The product also works with dedicated pre-construction brackets, including the CFB3-R and CFB3-SQ kits, which are designed to allow a neat plaster finish and matching round or square flush-fit grille options.

In practical terms, this is a product that rewards planning. It is not the sort of subwoofer you casually swap into an existing room on a whim. It makes the most sense when builder, plasterer, and AV installer are all working to the same brief from the outset.

A Strong Match for the CF230 System

Built to partner with Monitor Audio’s discreet architectural speaker range

Monitor Audio states that the ICS-8 was developed primarily to complement the CF230 speaker system, with visual and acoustic matching built into the design. The company notes that one ICS-8 can be combined with up to eight CF230 speakers, using a single mono amplifier channel for the subwoofer. It also highlights the IA150-8C eight-channel DSP amplifier as a particularly suitable partner, able to drive multiple CF230 speakers with spare channels available for one or even two ICS-8 subwoofers.

That gives the ICS-8 a very clear place in the range. It is not just a standalone oddity. It is part of a broader custom-install system designed for discreet, well-integrated architectural audio.

Specifications

Detailed Technical Specifications

For those who like to drag out all the useful bits

The Audio Experts Take

The ICS-8 makes sense when the project needs bass support but the room does not suit a traditional subwoofer box. That could be because of the design brief, the space limitations, or the fact that the whole system is being built around discreet architectural audio from the start. In that sort of job, a product like this is a very clever solution.

What we like here is that it has a clear role. It is not pretending to be a one-size-fits-all subwoofer. It is a specialist custom-install product, and when it is used in the right project alongside the right speakers and amplifier, it can add the sort of low-end weight that makes a discreet system feel much more complete.

Brand new. Contact us for current availability, system design advice, and custom-install guidance.
