Description

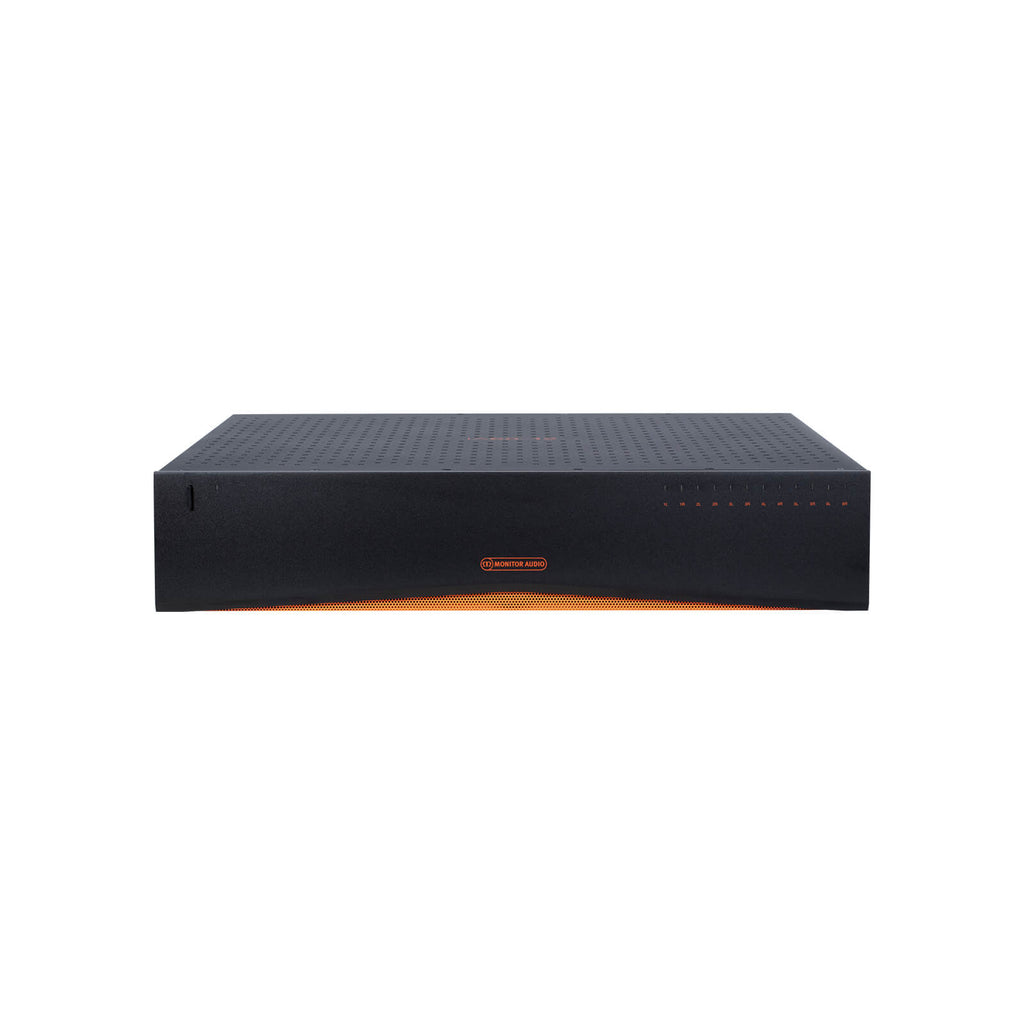

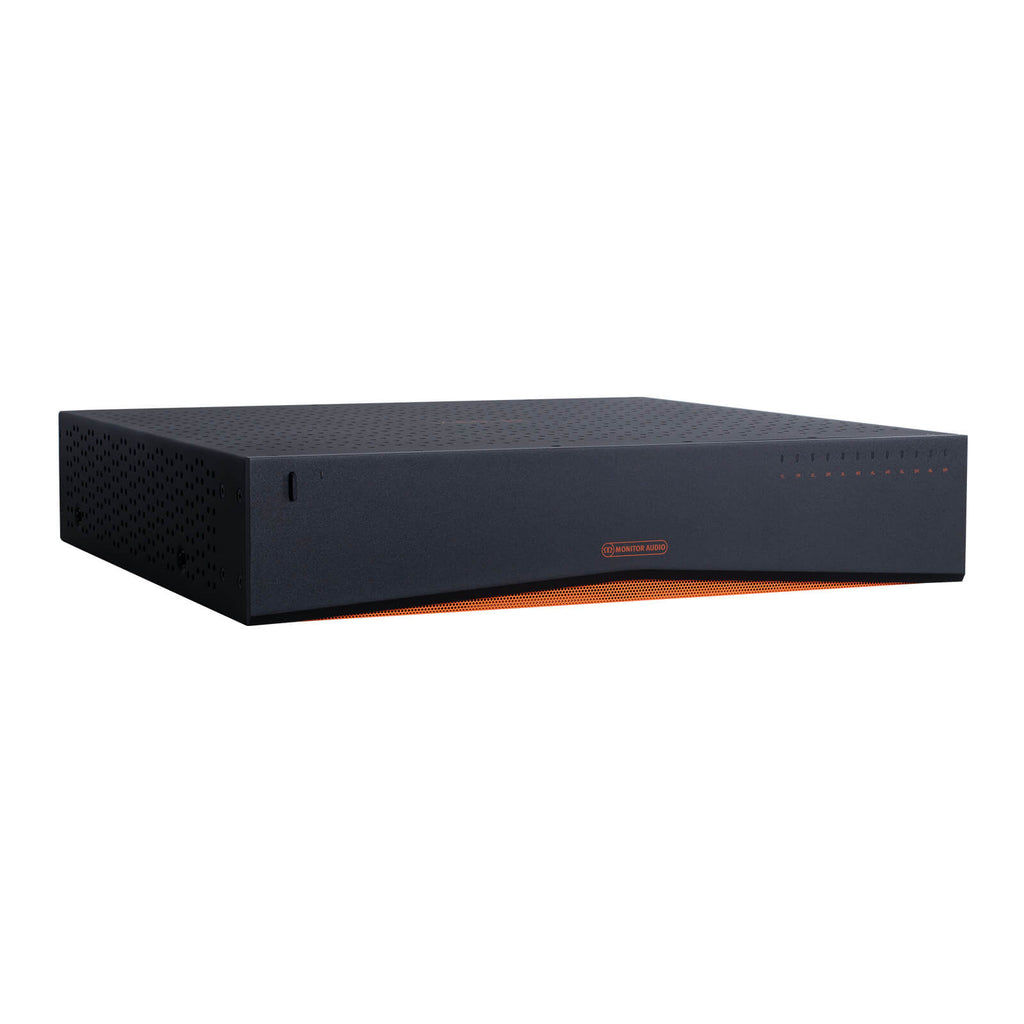

Monitor Audio IA60-12 Distribution Amplifier
12-channel installation amplifier with Hypex amplifier technology, 60 watts per channel into 4 ohms, bridgeable output options, and a 2U rack-friendly chassis for multi-room or home cinema distribution systems.
The IA60-12 makes sense when the brief is straightforward: you need lots of amplifier channels, tidy rack integration, and a product built for distribution duties rather than a conventional hi-fi integrated amp.
It powers up to 12 channels, or 6 stereo pairs, and can be configured to 1, 2, 3, 4, 5, 6, or 12 channels, which gives installers a lot of flexibility depending on how the project is being built.
Built for Multi-Room and Cinema Distribution
A sensible option when the job needs channels, flexibility, and proper rack integration
The IA60-12 is positioned as a distribution amplifier for home cinema or multi-room installation. That gives it a very clear place in the range. This is not the product for someone chasing streaming features or a living-room one-box solution.
It is for structured AV systems where multiple speaker zones or multiple passive channels need to be driven cleanly from one rackmount amp.
Hypex Amplifier Technology and Real Installation Power
Enough output for serious distributed-audio duties without overcomplicating the product
The IA60-12 uses Hypex amplifier technology and delivers 60 watts per channel at 4 ohms, 45 watts per channel at 8 ohms, and 100 watts per channel bridged into 8 ohms across 6 channels.
That makes it commercially useful because it covers a lot of common custom-install speaker duties without being excessive or awkward to deploy.

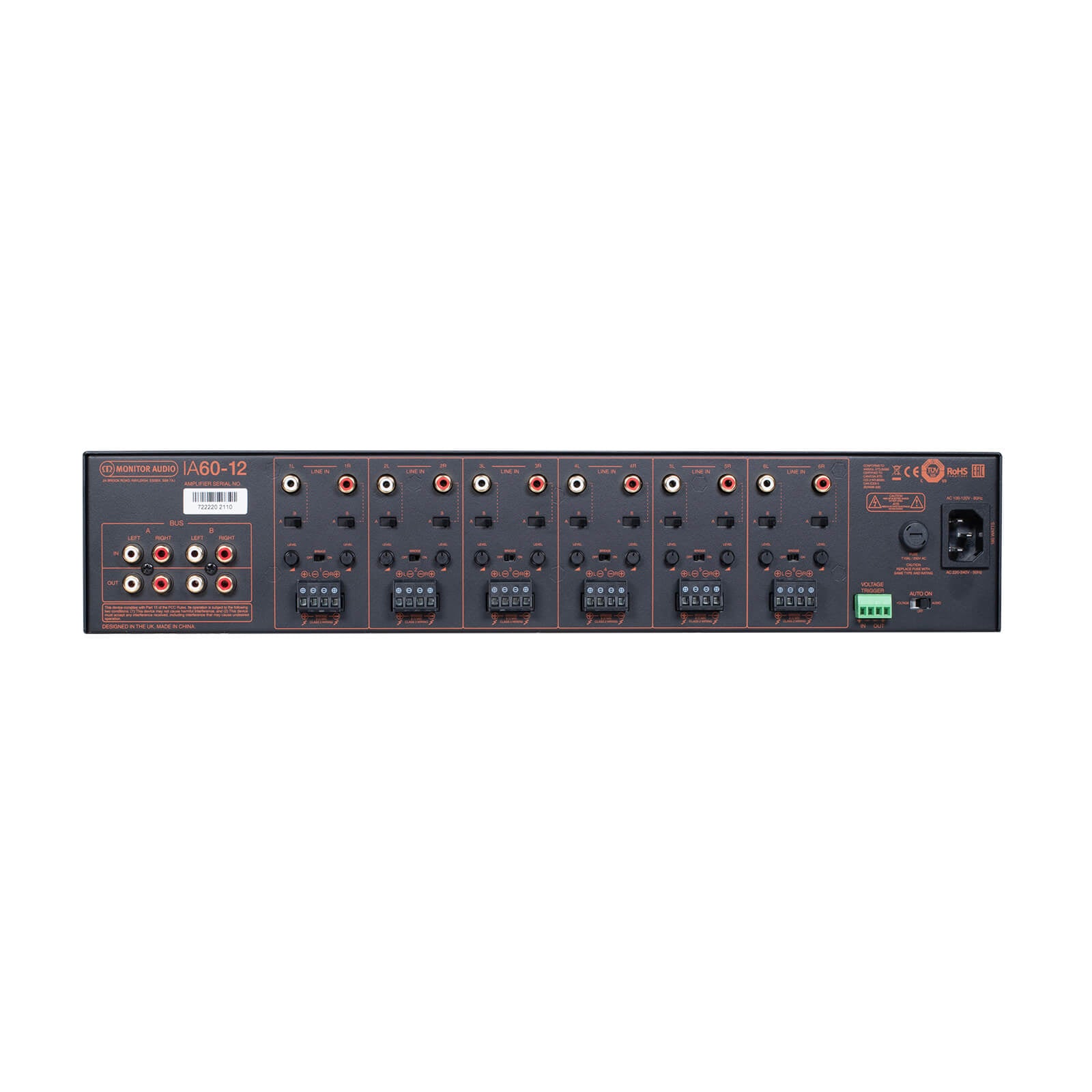

Buss Inputs and A/B Loop Outputs
Useful flexibility when the system needs to be expanded
The IA60-12 offers Buss Inputs and A/B Loop Outputs. The loop outputs are non-buffered, which means the number of amplifiers that can be looped together depends on the output capability of the source component.
That matters because amps like this often live in bigger systems, not standalone setups. Having loop outputs gives more flexibility for expansion, while still requiring proper system planning.
Practical Rack-Friendly Installation
Clean fitment for AV racks and structured systems
The IA60-12 is a 2U amplifier with dimensions of 86.8 x 438 x 427 mm excluding feet, 97.2 x 438 x 427 mm including feet, and 482 mm width including rack brackets.
It is clearly built to slot into a proper equipment rack and do a job cleanly rather than sit out as a showpiece amplifier.
Straightforward Integration Specs
Useful custom-install details without unnecessary fluff
The IA60-12 has 20 K ohms input impedance, 600 ohms loop RCA output impedance, 100 mV / 1 W input sensitivity, 700 mV for full power, 2.9 V maximum input voltage, -100 dB signal-to-noise ratio, 5 Hz – 50 kHz frequency response, and 0.03% THD + N at 1 kHz.
It also supports 100–120 V @ 60 Hz and 220–240 V @ 50 Hz mains operation, with standby power consumption below 0.5 W in green mode.
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | IA60-12 |
| Product Type | Distribution Amplifier |
| Channel Number | 12 (6 Stereo Pairs) |
| Configurable Channel Modes | 1, 2, 3, 4, 5, 6, or 12 channels |
| Amplifier Technology | Hypex amplifier technology |
| Power (W / Channel) @ 4 ohms | 60 W |
| Power (W / Channel) @ 8 ohms | 45 W |
| Power (W / Channel) Bridge @ 8 ohms | 100 W (6CH) |
| Power (W / Channel) @ 70V | N/A |
| Input Impedance | 20 K ohms |
| Output Impedance (Loop RCA) | 600 ohms |
| Input Sensitivity | 100 mV / 1 W, 700 mV – Full power |
| Maximum Input Voltage | 2.9 V |
| Signal to Noise (SN:R) | -100 dB (20 Hz – 20 kHz) |
| Frequency Response | 5 Hz – 50 kHz |
| Total Harmonic Distortion THD + N @ 1 KHz | 0.03% |
| Rack Height | 2U |
| Dimensions (Excluding Feet) | 86.8 x 438 x 427 mm |
| Dimensions (Including Feet) | 97.2 x 438 x 427 mm |
| Width (Including Rack Brackets) | 482 mm (19") |
| IP Communication | N/A |
| Connect IP Control | N/A |
| Trigger Input | 3 – 30 V AC or DC |
| Mains Operating Voltage | 100–120 V @ 60 Hz / 220–240 V @ 50 Hz |
| Fuse Rating | 10 A (T10AL ~ 250VAC) |
| Standby Power Consumption | <0.5 W (green mode) |
| Networked Standby Power Consumption | N/A |
| Weight | 7.34 kg |
| Sold As | Single Unit |
| Warranty | 5 years |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- Distribution amplifier
- Part of Monitor Audio’s installation amplifier range
- 12 channels / 6 stereo pairs
- Configurable to 1, 2, 3, 4, 5, 6, or 12 channels
- Hypex amplifier technology
- 2U rack format
- 5-year warranty
Power and Output
- 60 W per channel into 4 ohms
- 45 W per channel into 8 ohms
- 100 W per channel bridged into 8 ohms (6CH)
- 70V output: N/A
Signal and Performance
- Input impedance: 20 K ohms
- Loop RCA output impedance: 600 ohms
- Input sensitivity: 100 mV / 1 W
- Full power input: 700 mV
- Maximum input voltage: 2.9 V
- Signal to noise: -100 dB (20 Hz – 20 kHz)
- Frequency response: 5 Hz – 50 kHz
- THD + N at 1 kHz: 0.03%
Installation and Integration
- Buss Inputs
- A/B Loop Outputs
- Loop outputs are non-buffered
- Front-mounted power switch
- Trigger input: 3 – 30 V AC or DC
- Width including rack brackets: 482 mm (19")
Power and Chassis
- Rack height: 2U
- Dimensions excluding feet: 86.8 x 438 x 427 mm
- Dimensions including feet: 97.2 x 438 x 427 mm
- Mains voltage: 100–120 V @ 60 Hz / 220–240 V @ 50 Hz
- Fuse rating: 10 A (T10AL ~ 250VAC)
- Standby power consumption: <0.5 W
- Weight: 7.34 kg
The Audio Experts Take
The IA60-12 makes a lot of sense when the brief is a proper distribution amplifier rather than a living-room hi-fi piece. The 12-channel layout, Hypex amplifier technology, rack-friendly chassis, and loop-output flexibility all point to a product designed to solve real custom-install problems cleanly.
What we like here is that it looks commercially honest. It is not loaded with gimmicks, and it is not pretending to be something it is not. It is a straightforward install amplifier for multi-room and cinema-distribution duties, and that is exactly why it makes sense.
Brand new. Contact us for current availability, speaker-load advice, and system matching guidance.
