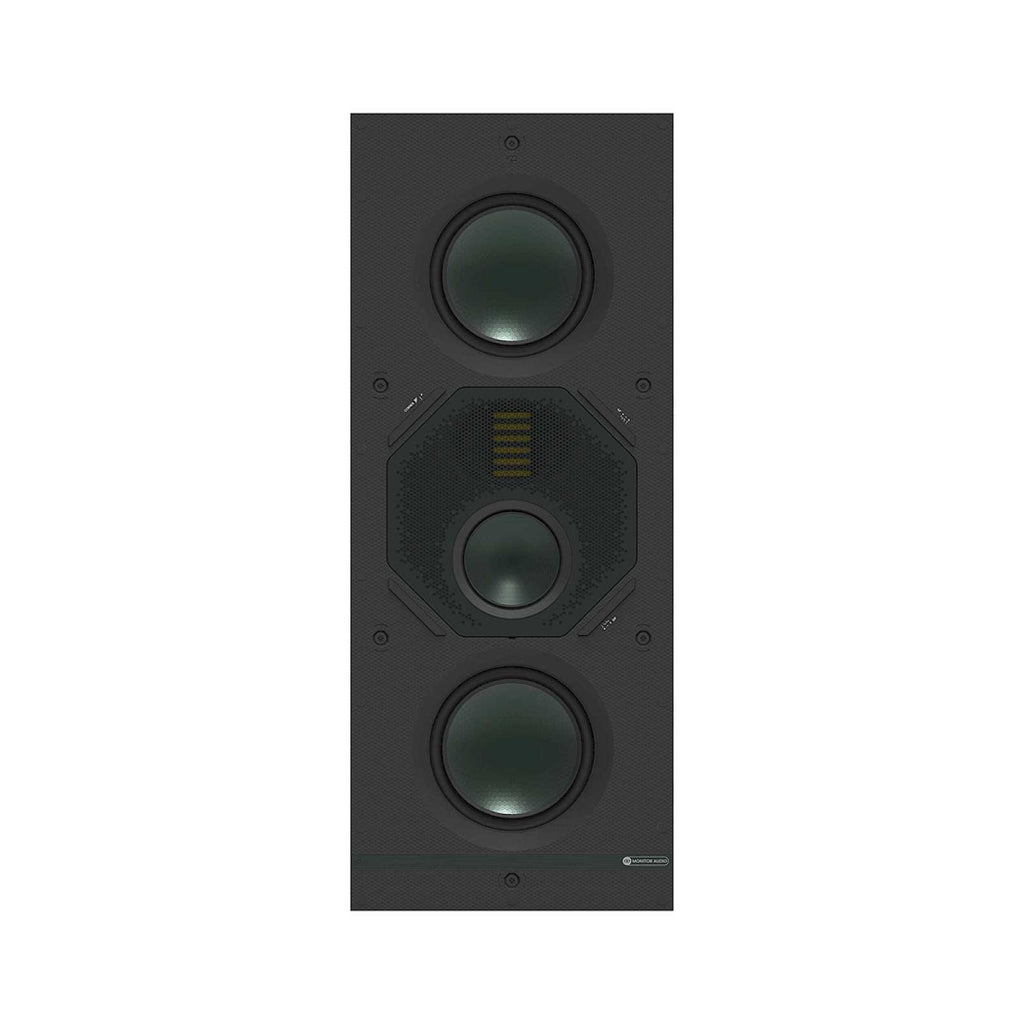

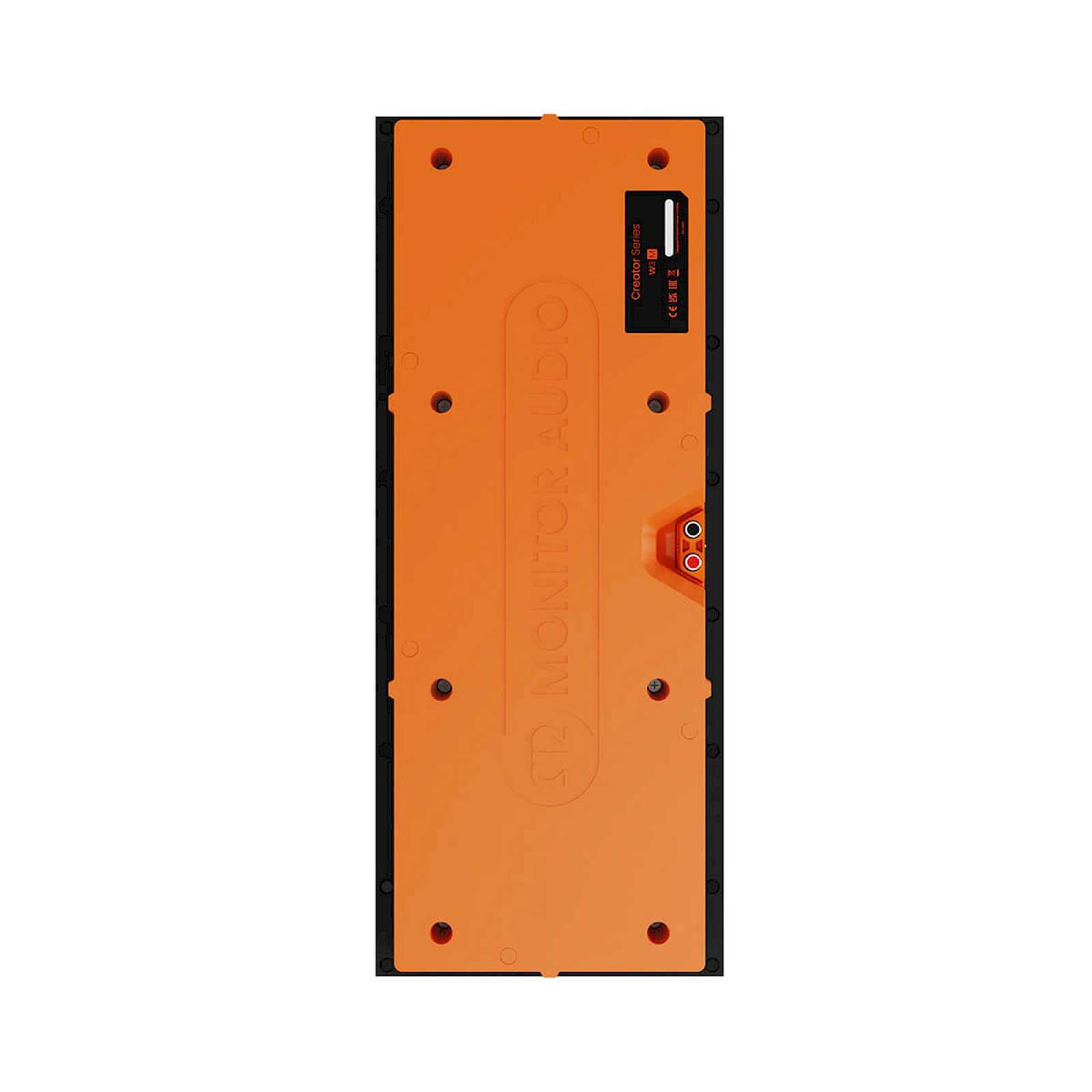

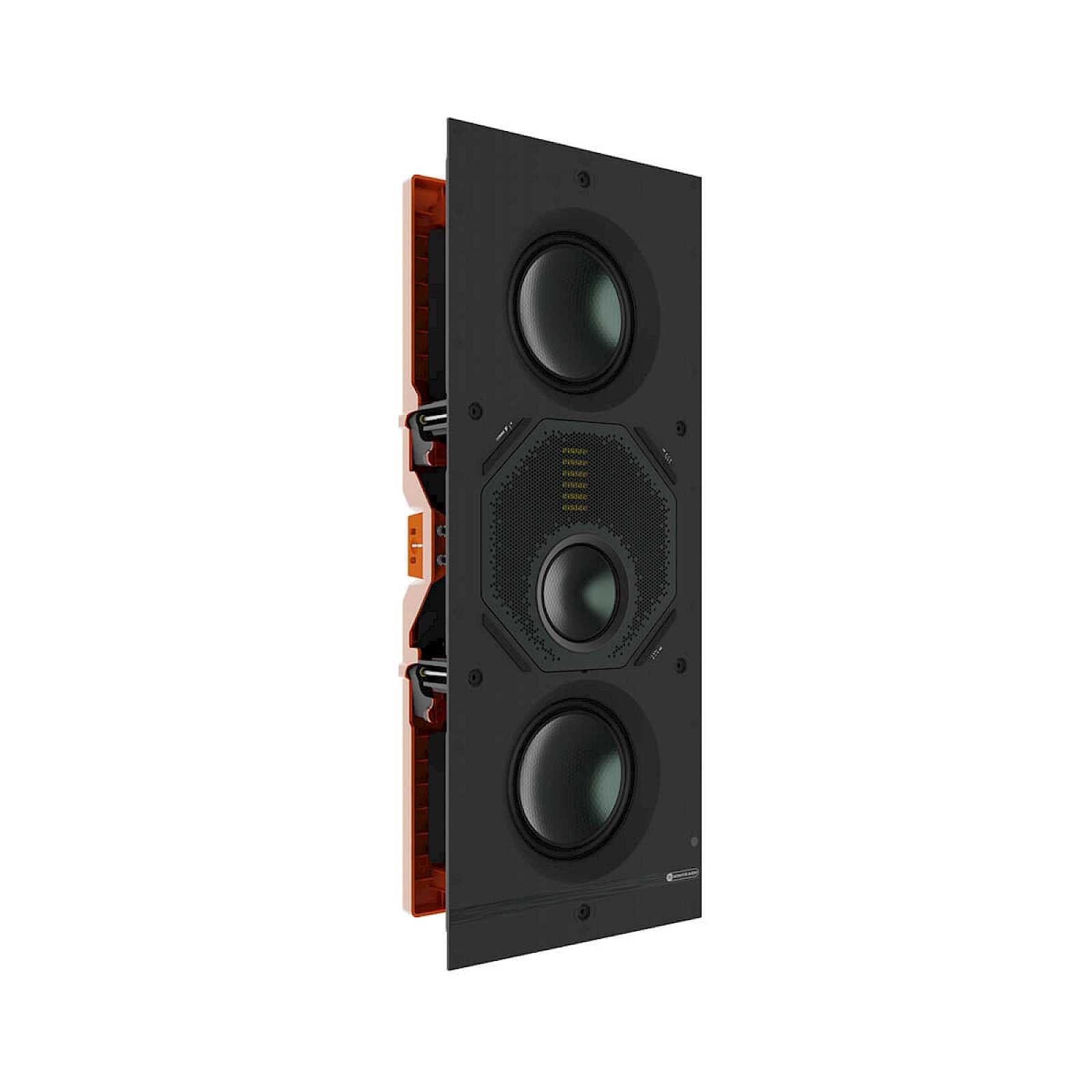

Monitor Audio Creator Series W3M In-Wall Medium Speaker
Medium Tier 3 Creator Series in-wall speaker with RDT III bass drivers, C-CAM midrange and MPD II high-frequency transducer for premium systems with limited wall space.
W3M is the more compact route into Monitor Audio’s top Creator Series technology. It suits rooms where the W3L footprint is impractical but the main channels still need to meet a higher performance brief than the W1 or W2 ranges.
Installation and System Planning
It can work in a high-quality stereo installation or as part of a concealed cinema front stage. If both W3M and W3L physically fit, room size and required output are better selection criteria than simply choosing the higher-priced model.
Key Features
- Brand: Monitor Audio
- Series: Creator Series
- Tier: Tier 3
- System Format: 3-Way
- Channels: 1
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | W3M |
| Product Type | In-Wall Speaker |
| Series | Creator Series |
| Tier | Tier 3 |
| System Format | 3-Way |
| Channels | 1 |
| Frequency Response, Installed (-6dB) | 45 Hz – 60 kHz |
| Sensitivity (2.83Vrms@1m, Installed) | 88 dB |
| Nominal Impedance | 6 ohm |
| Minimum Impedance (20Hz to 20kHz) | 4.8 Ohm @ 150 Hz |
| Maximum Peak SPL (single speaker @ 1m Z-Weighted) | 122 dB |
| Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor) | 150 W |
| Recommended Amplifier Power (RMS into 8 OHM, Music Signal) | 60 – 225 W |
| Drive Unit Complement | 2 x 5-inch (127 mm) RDT III bass driver, 1 x 3-inch (76 mm) C-CAM midrange driver, 1 x MPD II transducer |
| Crossover Frequency | LF/HF: 650 kHz, MF/HF: 3.5 kHz |
| Mounting Depth | 85 mm |
| Cut-Out Dimensions | 527 x 198 mm |
| External Dimensions (Including Grille) | 560 x 231 x 90 mm |
| Weight | 4.7 kg each |
| Pre-Construction Bracket | WM-B |
| Cabinet Finish | Matte black & Orange & Green |
| Corner Switch | On / Off |
| MF Switch | - / 0 / + |
| HF Switch | - / 0 / + |
| Sold As | Single Unit |
| Warranty | Contact The Audio Experts for current Australian warranty details |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- In-wall speaker
- Creator Series
- Tier 3 architectural speaker
- 3-way system format
- Medium-format in-wall design
- Sealed cabinet alignment
Driver Configuration
- 2 x 5-inch (127mm) RDT III bass drivers
- 1 x 3-inch (76mm) C-CAM midrange driver
- 1 x MPD II transducer
Performance
- Frequency response, installed (-6dB): 45Hz – 60kHz
- Sensitivity: 88dB
- Nominal impedance: 6 ohm
- Minimum impedance: 4.8 Ohm at 150Hz
- Maximum peak SPL: 122dB
- Continuous power handling: 150W
- Recommended amplifier power: 60–225W
- Crossover frequency: LF/HF: 650 kHz MF/HF: 3.5 kHz
Installation
- Quik-Link speaker cable connector
- Tri-Grip II fixing system
- Mounting depth: 85mm
- Cut-out dimensions: 527 x 198mm
- External dimensions including grille: 560 x 231 x 90mm
- Pre-construction bracket: WM-B
Tuning and Adjustment
- Corner switch: On / Off
- MF switch: - / 0 / +
- HF switch: - / 0 / +
Accessories
- WM-B Pre-Construction Bracket
- WM Mount Box
- WM-BOX
Finish and Warranty
- Cabinet finish: Matte black & Orange & Green
- Sold as a single unit
- Warranty: contact The Audio Experts for current Australian terms
The Audio Experts Take
The W3M brings the top Creator Series driver technology into a more manageable wall footprint than the W3L. It suits premium rooms where the installation needs to stay discreet but the main channels still deserve a serious loudspeaker. If space permits both W3M and W3L, the room size and required scale are the better deciding factors than specifications alone.
Brand new. Contact us for current availability, installation advice, and amplifier matching guidance.
