Description

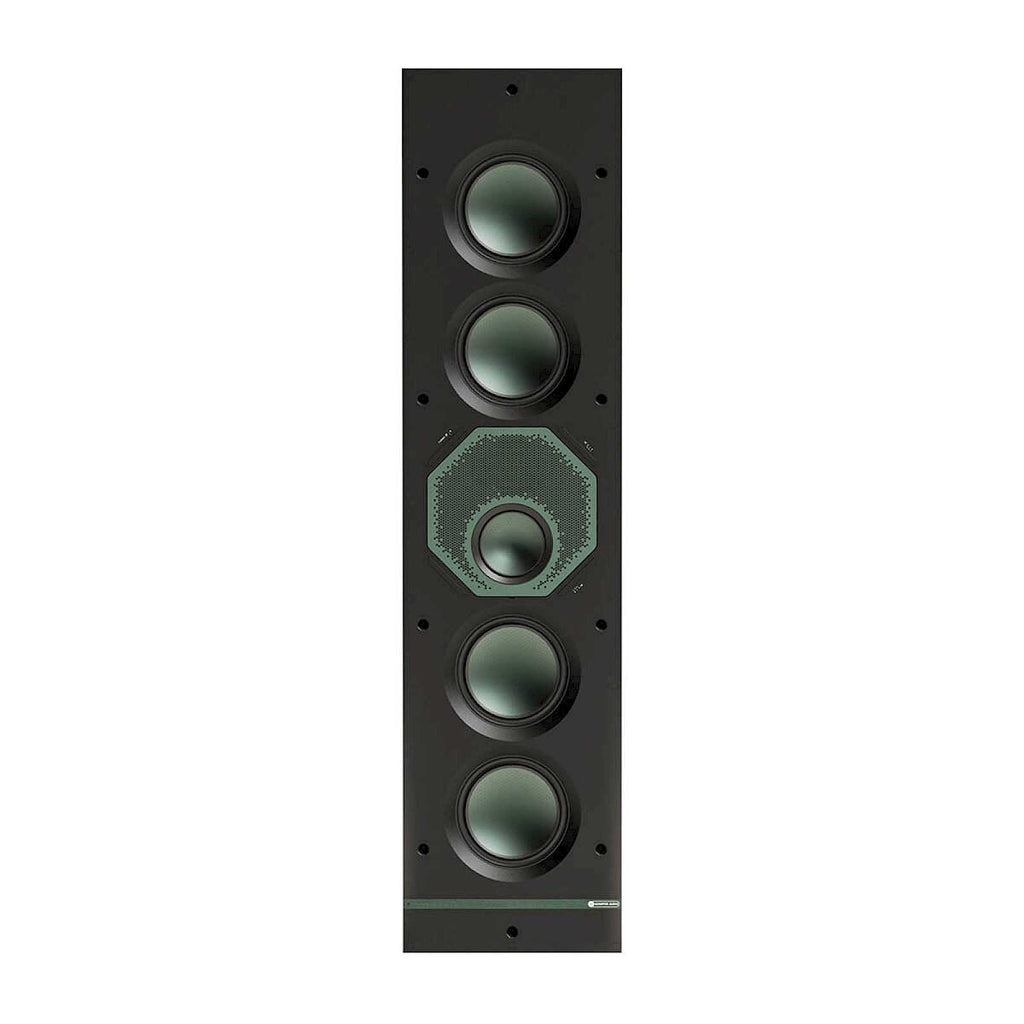

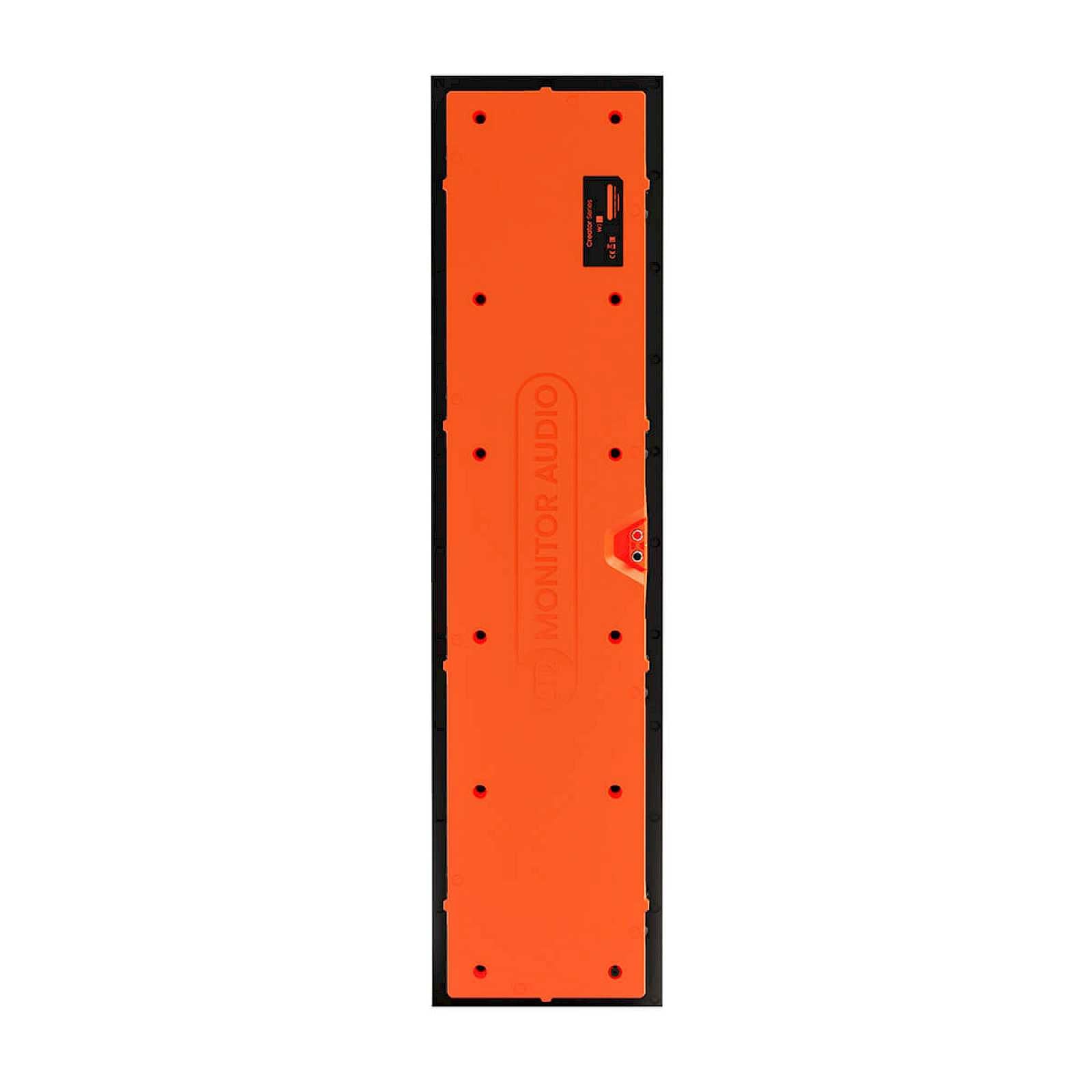

Monitor Audio Creator Series W3L In-Wall Large Speaker
Large Tier 3 Creator Series in-wall speaker using RDT III bass drivers, a dedicated C-CAM midrange and MPD II high-frequency transducer for premium hidden stereo and cinema systems.
W3L sits at the top of the Creator Series large in-wall range. It brings Monitor Audio technology from its higher-end box speakers into an architectural format intended for front-channel and stereo duties where the room cannot accommodate visible loudspeakers.
Installation and System Planning
This is a product to specify as part of the complete room. Speaker positions, subwoofers, amplification, wall construction and acoustic treatment all influence the result, and they are much easier to coordinate before the room is finished.
Key Features
- Brand: Monitor Audio
- Series: Creator Series
- Tier: Tier 3
- System Format: 3-Way
- Frequency Response, Installed (-6dB): 36 Hz – 60 kHz
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | W3L |
| Product Type | In-Wall Speaker |
| Series | Creator Series |
| Tier | Tier 3 |
| System Format | 3-Way |
| Frequency Response, Installed (-6dB) | 36 Hz – 60 kHz |
| Sensitivity (2.83Vrms@1m, Installed) | 89 dB |
| Nominal Impedance | 4 Ohms |
| Minimum Impedance (20Hz to 20kHz) | 4.5 Ohms @ 1.2 kHz |
| Maximum Peak SPL (AES75, Z-weighted) | 123 dB |
| Continuous Power Handling (CTA 426-B) | 300 W |
| Recommended Amplifier Power | 150–600 W into 4 ohms / 75–300 W into 8 ohms |
| Bass Alignment | Sealed |
| Drive Unit Complement | 4 x 5-inch (127 mm) RDT III bass driver, 1 x 3-inch (76 mm) C-CAM midrange driver, 1 x MPD II transducer |
| Crossover Frequency | LF/HF: 700 kHz, MF/HF: 3.25 kHz |
| Mounting Depth | 85 mm |
| Cut-Out Dimensions | 880 x 202 mm |
| External Dimensions with Accessories Fitted | 909 x 231 x 93 mm |
| Weight | 12.4 kg each |
| Pre-Construction Bracket | WL-B |
| Cabinet Finish | Matte black & Orange & Green |
| Sold As | Single Unit |
| Warranty | Contact The Audio Experts for current Australian warranty details |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- In-wall speaker
- Creator Series
- Tier 3 architectural speaker
- 3-way system format
- Large-format in-wall design
- Sealed cabinet alignment
Driver Configuration
- 4 x 5-inch (127mm) RDT III bass drivers
- 1 x 3-inch (76mm) C-CAM midrange driver
- 1 x MPD II transducer
Performance
- Frequency response, installed (-6dB): 36Hz – 60kHz
- Sensitivity: 89dB
- Nominal impedance: 4 Ohms
- Minimum impedance: 4.5 Ohms at 1.2kHz
- Maximum peak SPL: 123dB
- Continuous power handling: 300W
- Recommended amplifier power: 150–600W into 4 ohms 75–300W into 8 ohms
- Crossover frequency: LF/HF: 700 kHz MF/HF: 3.25 kHz
Installation
- Quik-Link speaker cable connector
- Tri-Grip II fixing system
- Mounting depth: 85mm
- Cut-out dimensions: 880 x 202mm
- External dimensions with accessories fitted: 909 x 231 x 93mm
- Pre-construction bracket: WL-B
Accessories
- WL-B Pre-Construction Bracket
- WL-BOX
Finish and Warranty
- Cabinet finish: Matte black & Orange & Green
- Sold as a single unit
- Warranty: contact The Audio Experts for current Australian terms
The Audio Experts Take
The W3L belongs in a high-end hidden-speaker system where the front channels need the scale of a large loudspeaker without putting cabinets in the room. It is the model to consider for a substantial stereo installation or a premium cinema front stage when wall space allows. At this level we would plan speaker positions, subwoofers and amplification as one system, so talk to The Audio Experts before the walls are finished.
Brand new. Contact us for current availability, installation advice, and amplifier matching guidance.
