Description

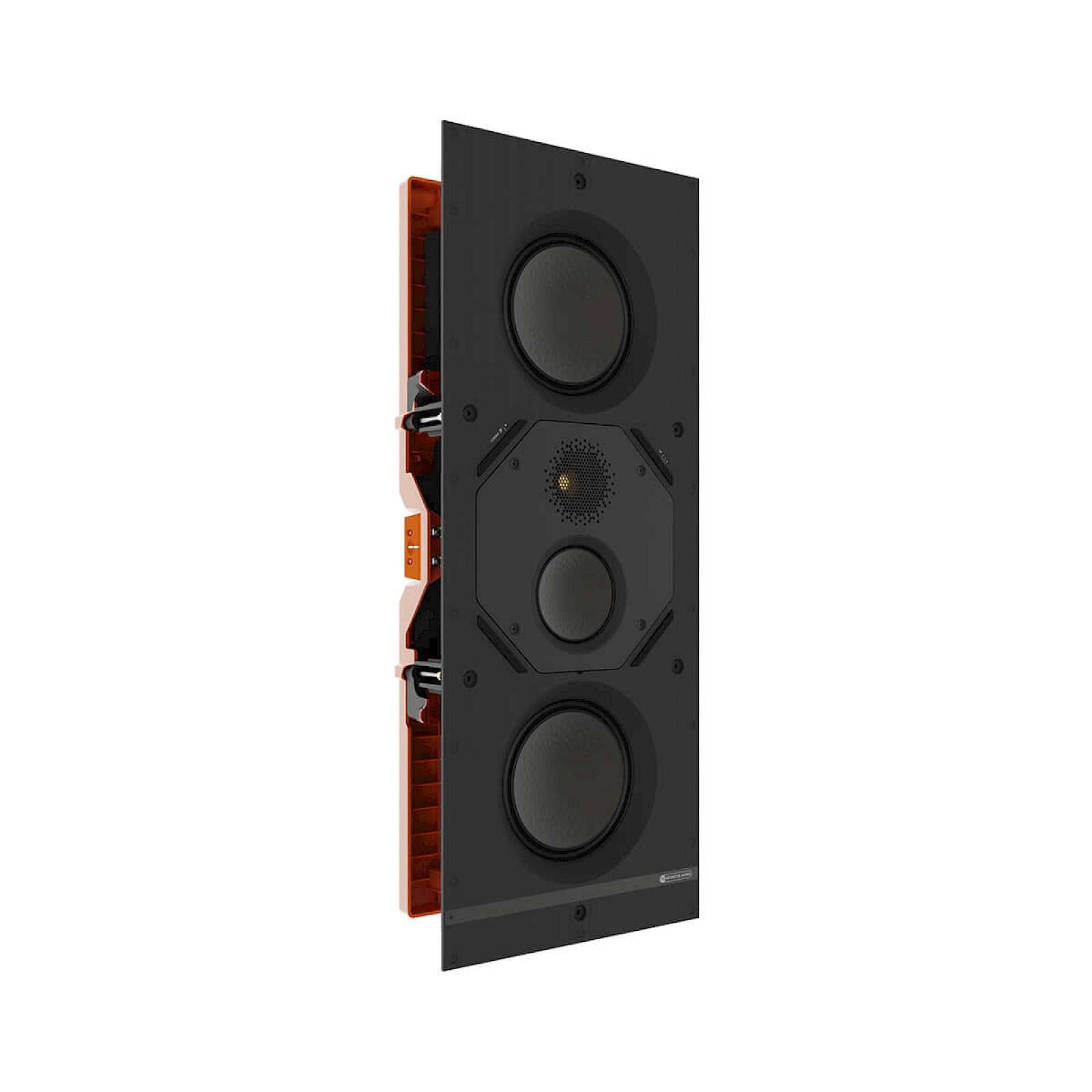

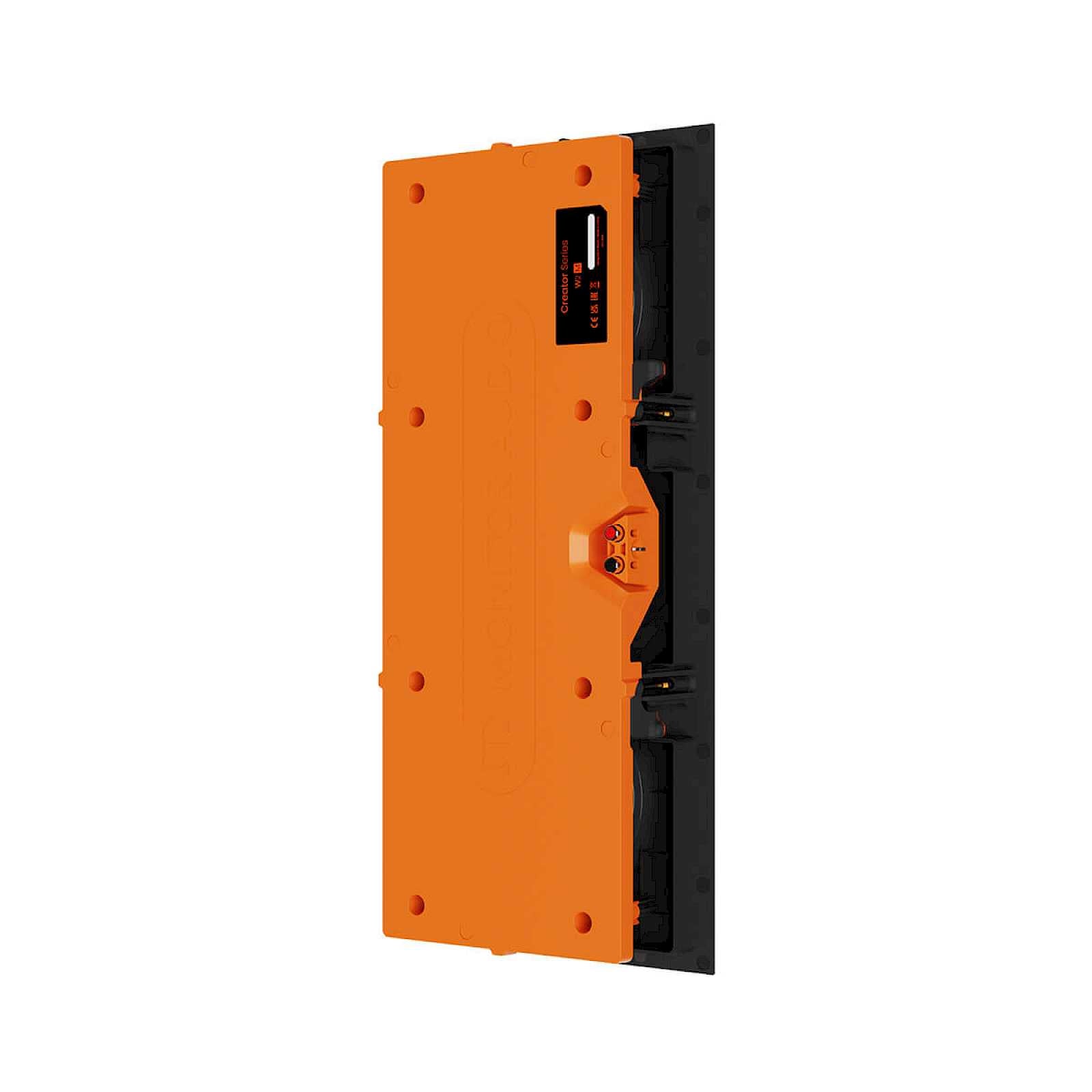

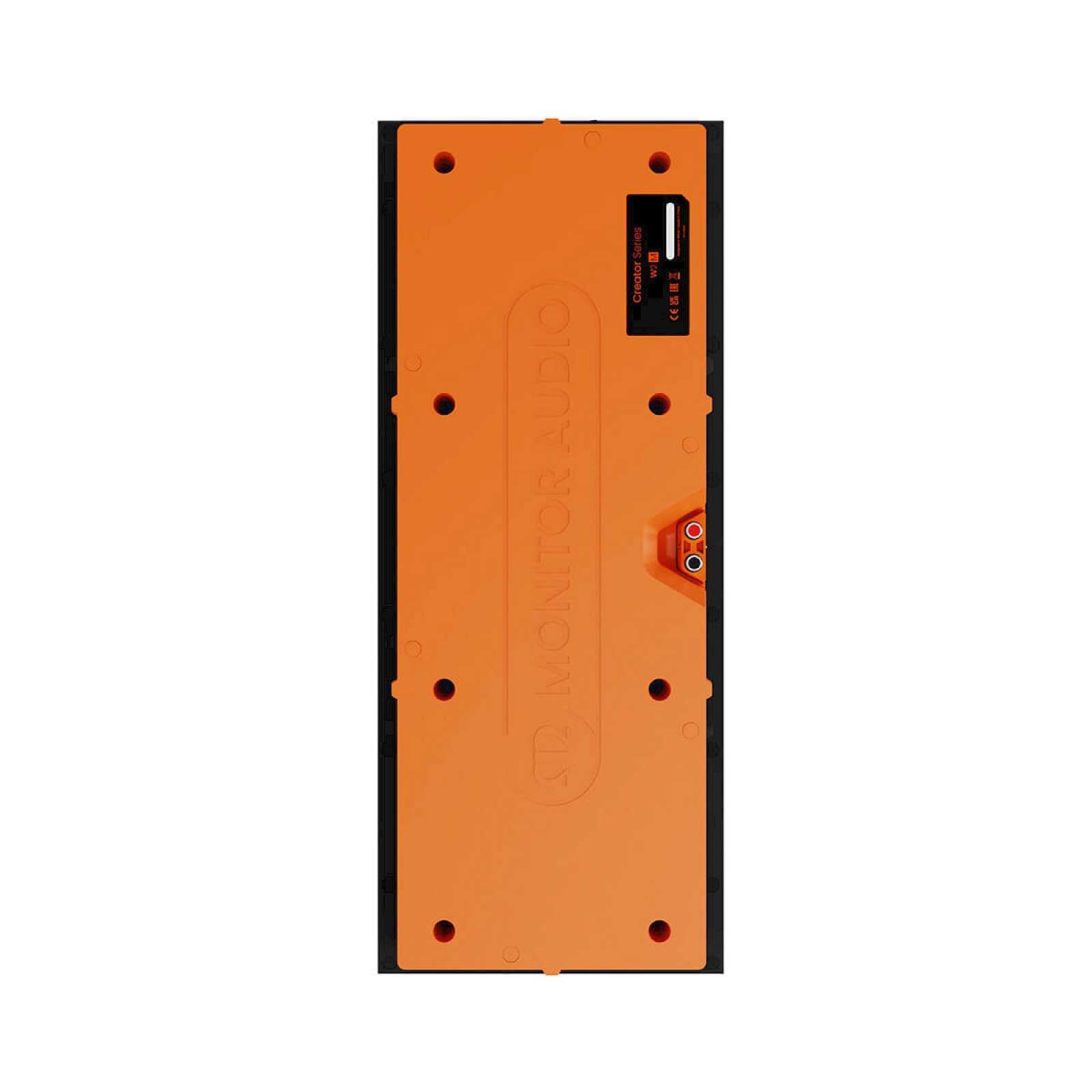

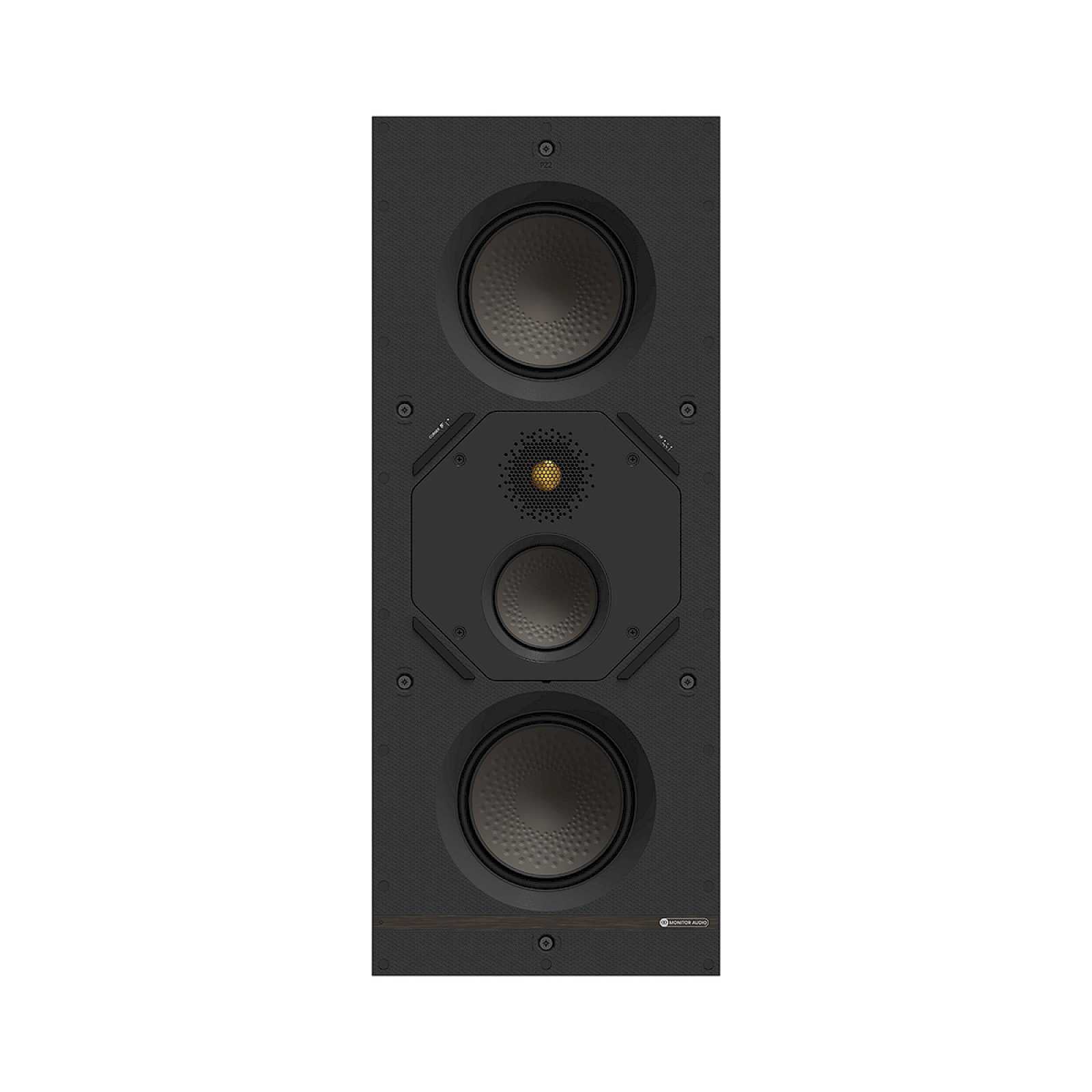

Monitor Audio Creator Series W2M In-Wall Medium Speaker
Medium Tier 2 three-way Creator Series in-wall speaker with twin 5-inch RST II bass drivers, 3-inch midrange and C-CAM tweeter for higher-quality stereo and cinema installations.
W2M brings a three-way driver layout into a medium wall footprint. That makes it useful when the main speakers need to stay hidden but the room does not have the space or need for the larger W2L.
Installation and System Planning
Quik-Link and Tri-Grip II are designed to simplify connection and fixing during installation. The speaker still needs the same planning as any built-in main channel: wall position, cavity depth, listening area and subwoofer integration should be settled before the cut-outs are made.
Key Features
- Brand: Monitor Audio
- Series: Creator Series
- Tier: Tier 2
- System Format: 3-Way
- Channels: 1
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | W2M |
| Product Type | In-Wall Speaker |
| Series | Creator Series |
| Tier | Tier 2 |
| System Format | 3-Way |
| Channels | 1 |
| Frequency Response, Installed (-6dB) | 40Hz – 35kHz |
| Nominal Impedance | 6 ohm |
| Minimum Impedance (20Hz to 20kHz) | 4.8 Ohm @ 1kHz (4.1 Ohm @ 15kHz) |
| Sensitivity (2.83Vrms@1m, Installed) | 87dB |
| Maximum Peak SPL (single speaker @ 1m Z-Weighted) | 116dB |
| Continuous Power Handling | 120W |
| Recommended Amplifier Power | 45–180W |
| Drive Unit Complement | 2 x 5-inch (127mm) RST II bass driver, 1 x 3-inch (76mm) RST II midrange driver, 1 x 1-inch (25mm) C-CAM tweeter |
| Crossover Frequency | LF/HF: 650 kHz, MF/HF: 3kHz |
| Bass Alignment | Sealed |
| Mounting Depth | 85mm |
| Cut-Out Dimensions | 527 x 198mm |
| External Dimensions (Including Grille) | 560 x 231 x 90mm |
| Weight | 3.9kg each |
| Pre-Construction Bracket | WM-B |
| Cabinet Finish | Matte black & Orange & Bronze |
| Corner Switch | On / Off |
| HF Switch | - / 0 / + |
| Sold As | Single Unit |
| Warranty | Contact The Audio Experts for current Australian warranty details |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- In-wall speaker
- Creator Series
- Tier 2 architectural speaker
- 3-way system format
- Medium-format in-wall design
- Sealed cabinet alignment
Driver Configuration
- 2 x 5-inch (127mm) RST II bass drivers
- 1 x 3-inch (76mm) RST II midrange driver
- 1 x 1-inch (25mm) C-CAM tweeter
- UD Waveguide II integration
Performance
- Frequency response, installed (-6dB): 40Hz – 35kHz
- Sensitivity: 87dB
- Nominal impedance: 6 ohm
- Minimum impedance: 4.8 Ohm at 1kHz 4.1 Ohm at 15kHz
- Maximum peak SPL: 116dB
- Continuous power handling: 120W
- Recommended amplifier power: 45–180W
- Crossover frequency: LF/HF: 650 kHz MF/HF: 3kHz
Installation
- Quik-Link speaker cable connector
- Tri-Grip II fixing system
- Mounting depth: 85mm
- Cut-out dimensions: 527 x 198mm
- External dimensions including grille: 560 x 231 x 90mm
- Pre-construction bracket: WM-B
Accessories
- WM-B Pre-Construction Bracket
- WM Mount Box
- WM-BOX
Finish and Warranty
- Cabinet finish: Matte black & Orange & Bronze
- Sold as a single unit
- Warranty: contact The Audio Experts for current Australian terms
The Audio Experts Take
The W2M is a good fit when you want a serious three-way in-wall speaker but do not have the wall space for the larger W2L. It can work as a main stereo speaker or as part of a higher-quality cinema installation where the speakers need to disappear visually. If you are choosing between W1, W2 and W3 models, talk to The Audio Experts about the room and the level of system you are building.
Brand new. Contact us for current availability, installation advice, and amplifier matching guidance.
