Description

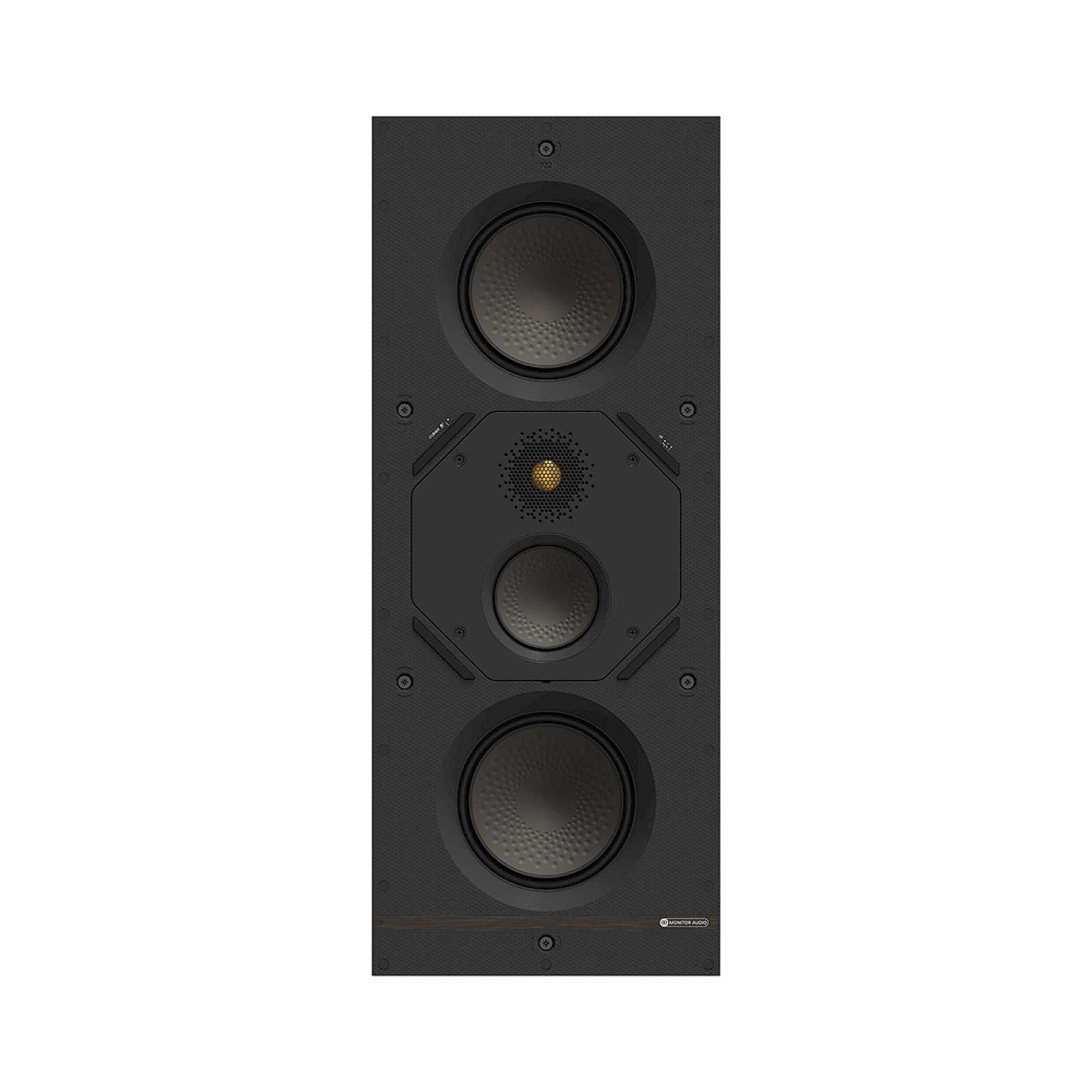

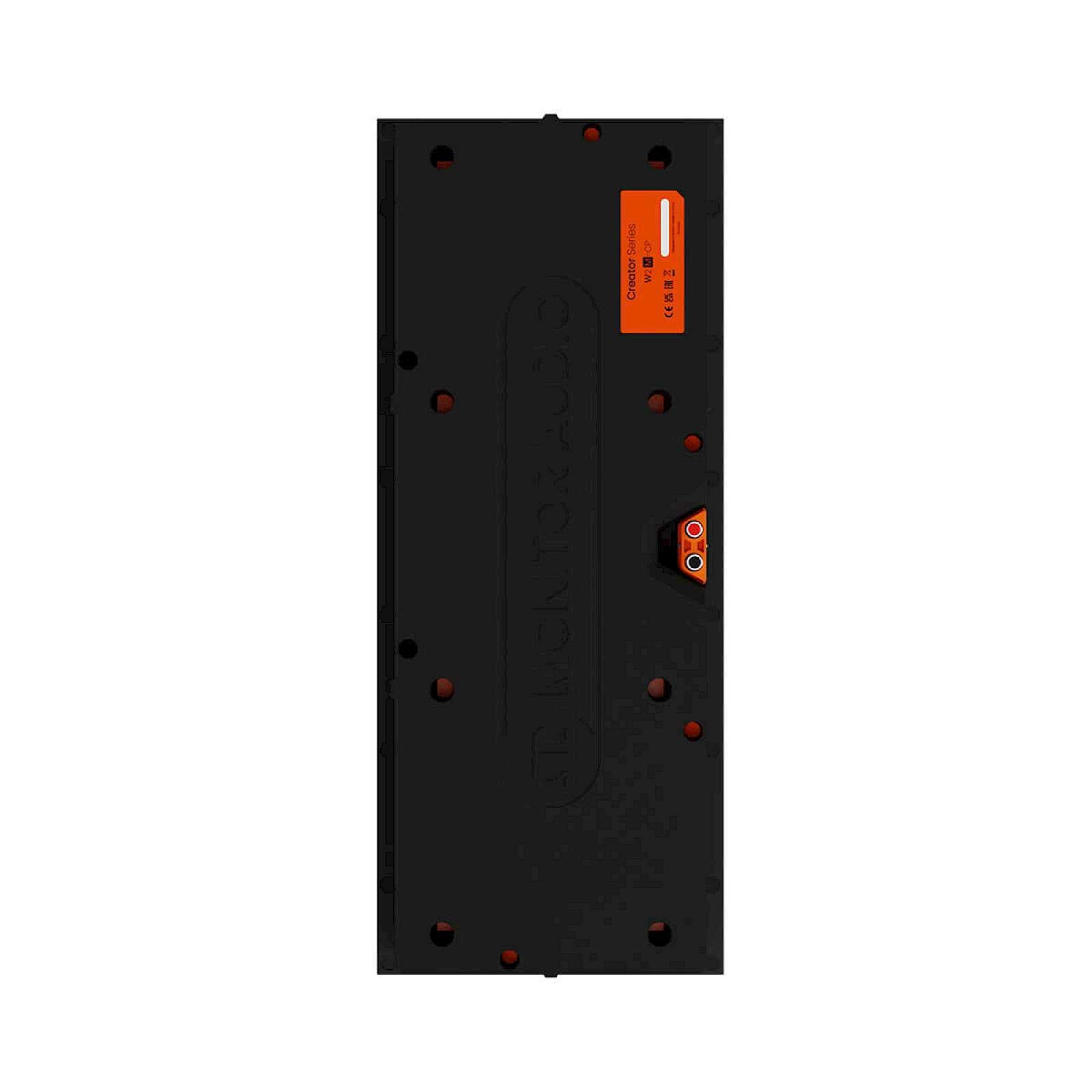

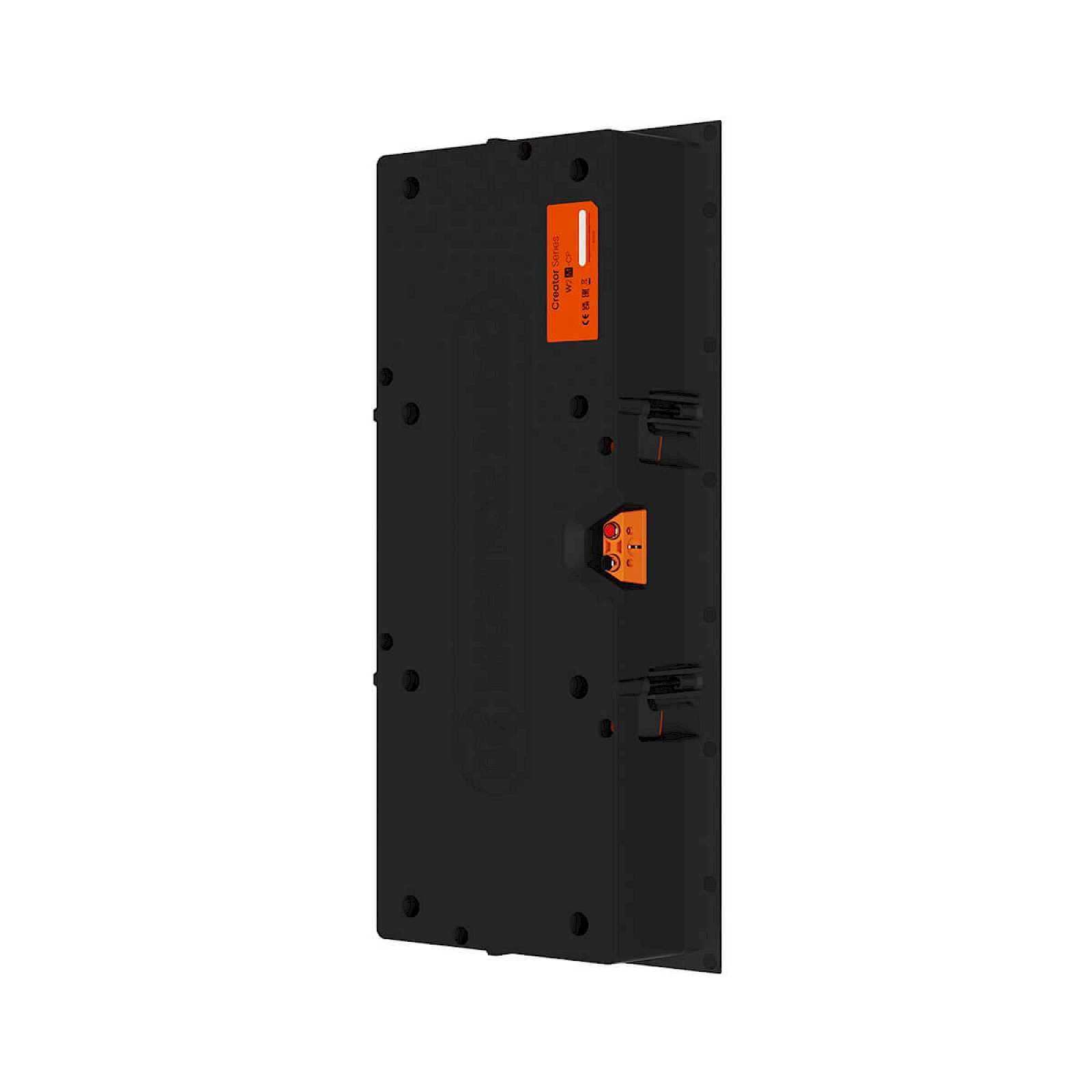

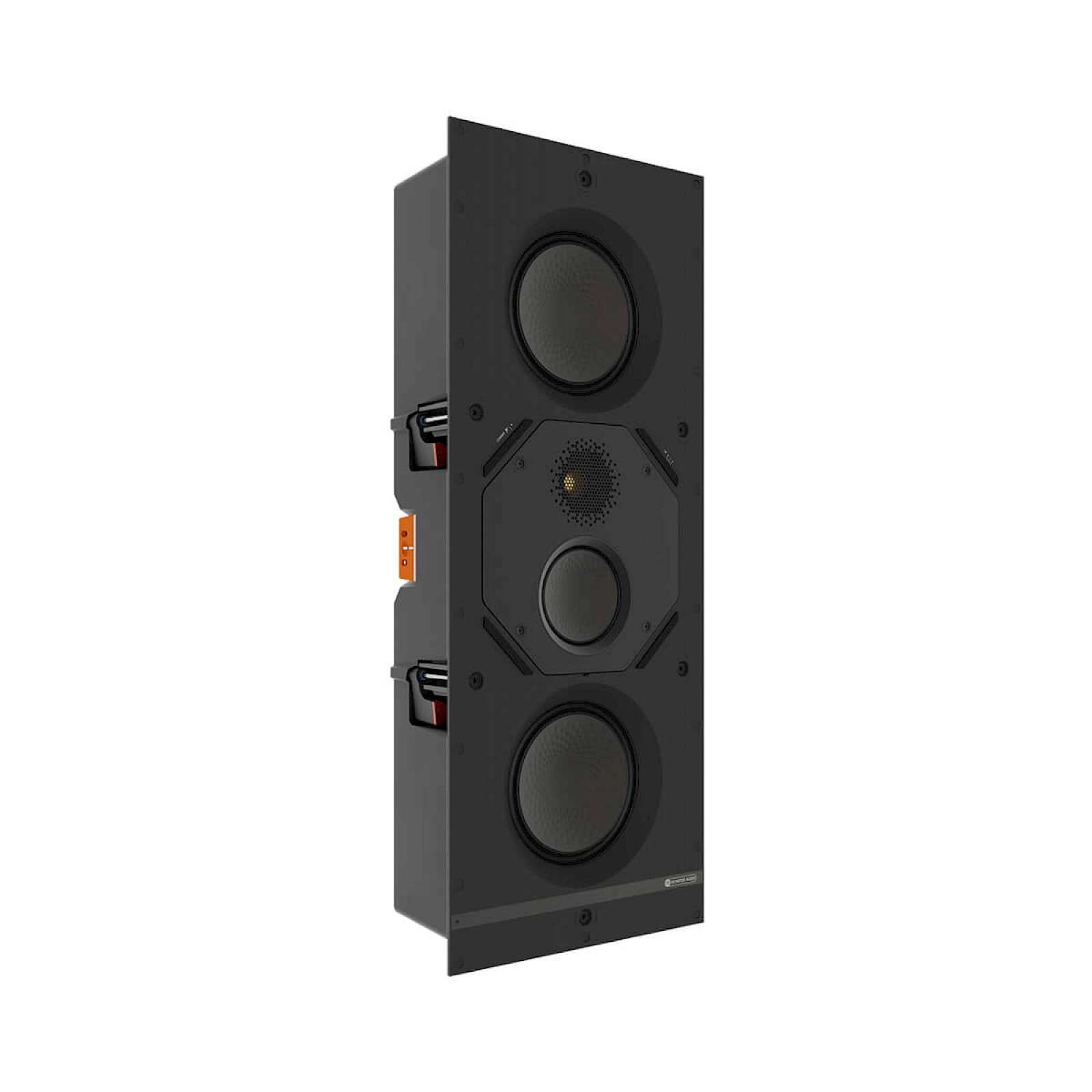

Monitor Audio Creator Series W2M-CP Controlled Performance In-Wall Medium Speaker
Controlled-performance version of the Creator Series W2M, combining a three-way driver layout with an integral sealed enclosure for more predictable in-wall performance.
W2M-CP is the version to consider when the medium W2M format suits the room but the installation needs a controlled rear enclosure. The sealed construction reduces dependence on the size and shape of the wall cavity and can also help limit sound travelling into adjoining spaces.
Installation and System Planning
The enclosure makes wall depth and framing especially important, so this is best specified before construction is complete. It is a useful choice for premium rooms, adjoining bedrooms or multi-room projects where consistency between locations matters.
Key Features
- Brand: Monitor Audio
- Series: Creator Series
- Tier: Tier 2
- System Format: 3-Way
- Channels: 1
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | W2M-CP |
| Product Type | In-Wall Speaker |
| Series | Creator Series |
| Tier | Tier 2 |
| System Format | 3-Way |
| Channels | 1 |
| Frequency Response, Installed (-6dB) | 60 Hz – 35 kHz |
| Nominal Impedance | 6 ohm |
| Minimum Impedance (20Hz to 20kHz) | 4.8 Ohm @ 1 kHz (4.3 Ohm @ 15 kHz) |
| Sensitivity (2.83Vrms@1m, Installed) | 87 dB |
| Maximum Peak SPL (single speaker @ 1m Z-Weighted) | 118 dB |
| Continuous Power Handling | 100 W |
| Recommended Amplifier Power | 40 – 150 W |
| Drive Unit Complement | 2 x 5-inch (127 mm) RST II bass driver, 1 x 3-inch (76 mm) RST II mid-range driver, 1 x 1-inch (25 mm) C-CAM tweeter |
| Crossover Frequency | LF/HF: 550 kHz, MF/HF: 3 kHz |
| Bass Alignment | Sealed |
| Mounting Depth | 97 mm |
| Cut-Out Dimensions | 527 x 198 mm |
| External Dimensions (Including Grille) | 560 x 231 x 102 mm |
| Weight | 4.4 kg each |
| Pre-Construction Bracket | WM-B |
| Cabinet Finish | Matte black & Orange & Bronze |
| Corner Switch | On / Off |
| HF Switch | - / 0 / + |
| Sold As | Single Unit |
| Warranty | Contact The Audio Experts for current Australian warranty details |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- In-wall speaker
- Creator Series
- Tier 2 architectural speaker
- Controlled Performance model
- Fully sealed back box
- 3-way system format
Driver Configuration
- 2 x 5-inch (127mm) RST II bass drivers
- 1 x 3-inch (76mm) RST II mid-range driver
- 1 x 1-inch (25mm) C-CAM tweeter
- UD Waveguide II integration
Sealed Back Box Benefits
- Fully sealed enclosure
- Ideal air load for the drivers
- Optimised mid-range and bass performance
- More consistent sound regardless of wall construction
- Around 30dB reduction of rear-radiated sound
- Better sound isolation between rooms and floors
Performance
- Frequency response, installed (-6dB): 60Hz – 35kHz
- Nominal impedance: 6 ohm
- Minimum impedance: 4.8 Ohm at 1kHz 4.3 Ohm at 15kHz
- Sensitivity: 87dB
- Maximum peak SPL: 118dB
- Continuous power handling: 100W
- Recommended amplifier power: 40 – 150W
- Crossover frequency: LF/HF: 550 kHz MF/HF: 3 kHz
Installation
- Quik-Link speaker cable connector
- Tri-Grip II fixing system
- Mounting depth: 97mm
- Cut-out dimensions: 527 x 198mm
- External dimensions including grille: 560 x 231 x 102mm
- Pre-construction bracket: WM-B
Tuning and Adjustment
- Corner switch: On / Off
- HF switch: - / 0 / +
Finish and Warranty
- Cabinet finish: Matte black & Orange & Bronze
- Sold as a single unit
- Warranty: contact The Audio Experts for current Australian terms
The Audio Experts Take
Choose the W2M-CP when the W2M format suits the room but you also want the more predictable behaviour of a controlled enclosure. That is particularly useful when wall cavities vary or when reducing sound transfer behind the speaker matters. It is best planned early so the enclosure, wall depth and cable path can all be checked before installation.
Brand new. Contact us for current availability, installation advice, and amplifier matching guidance.
