Description

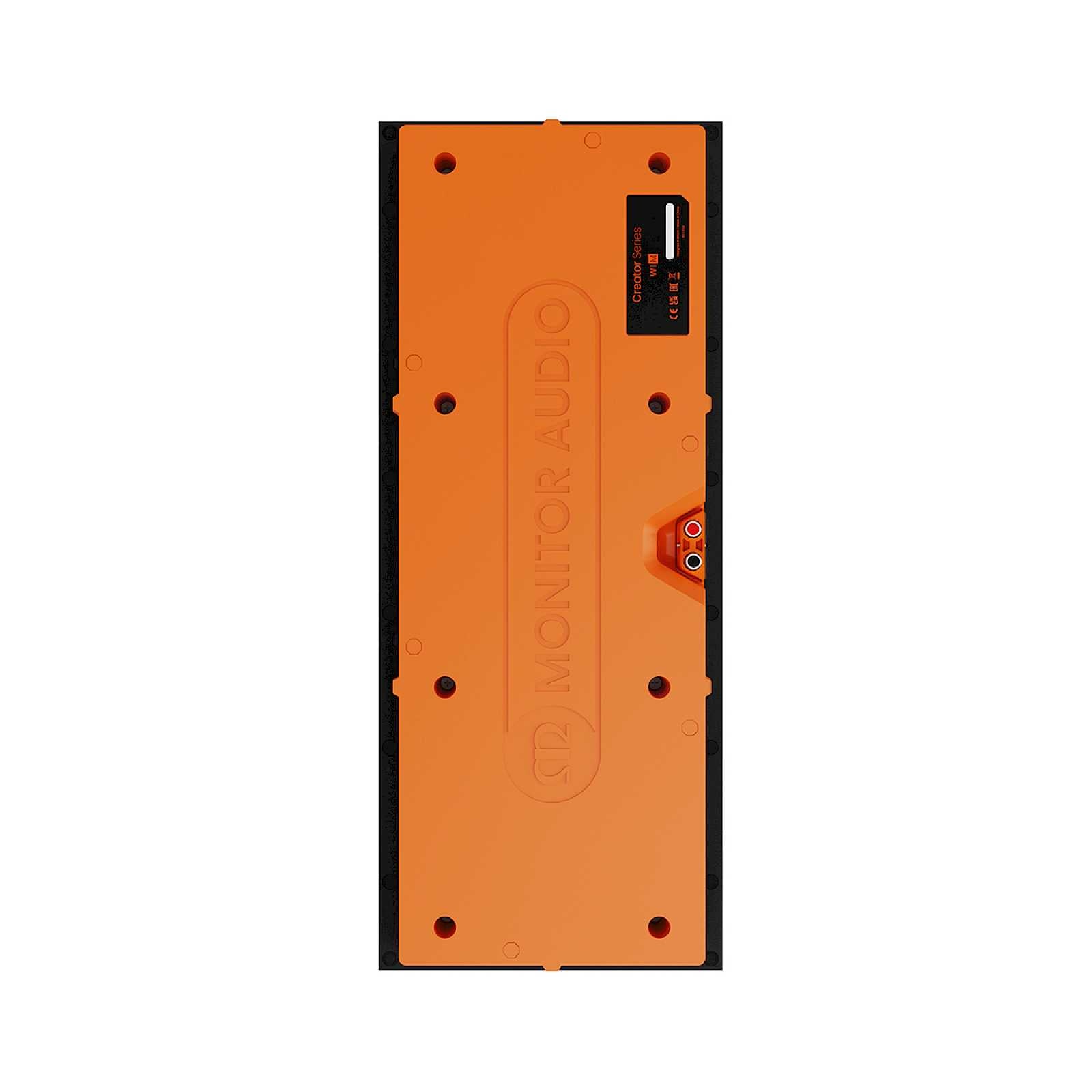

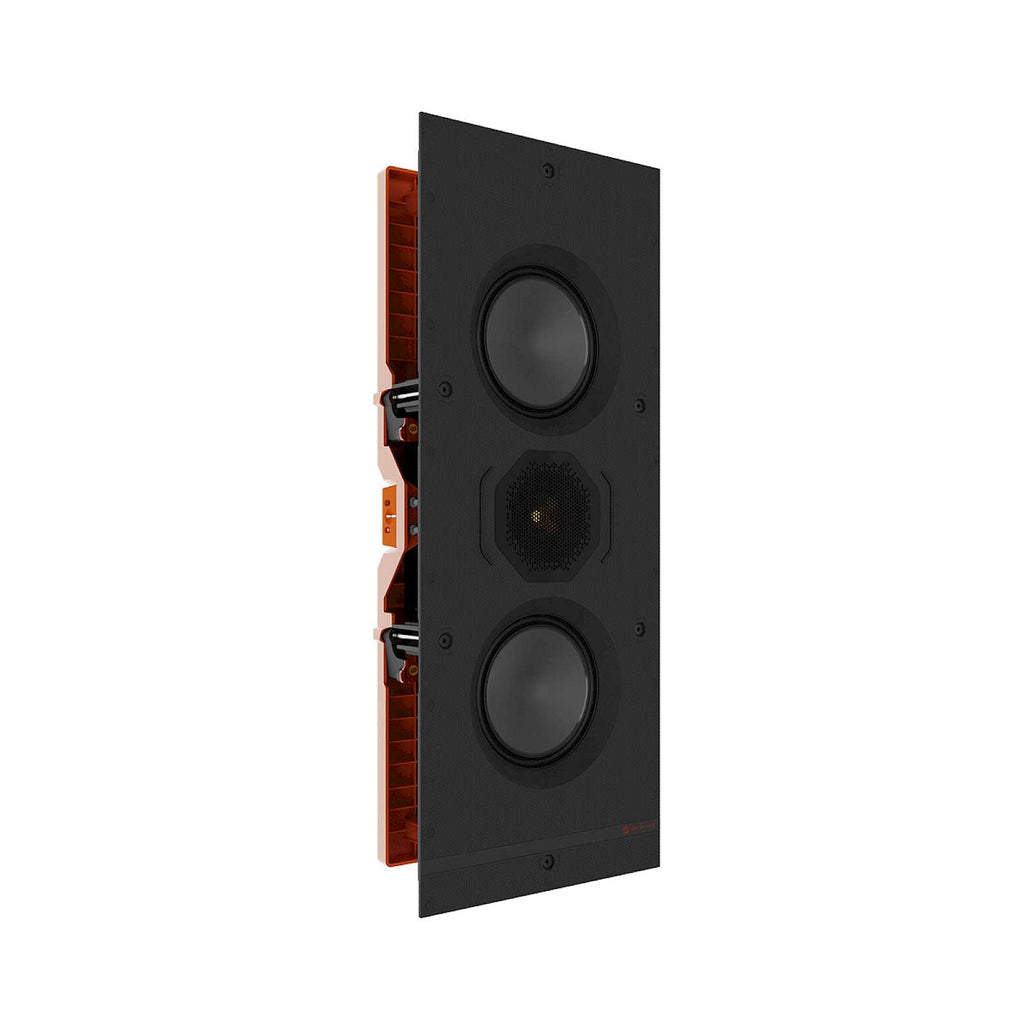

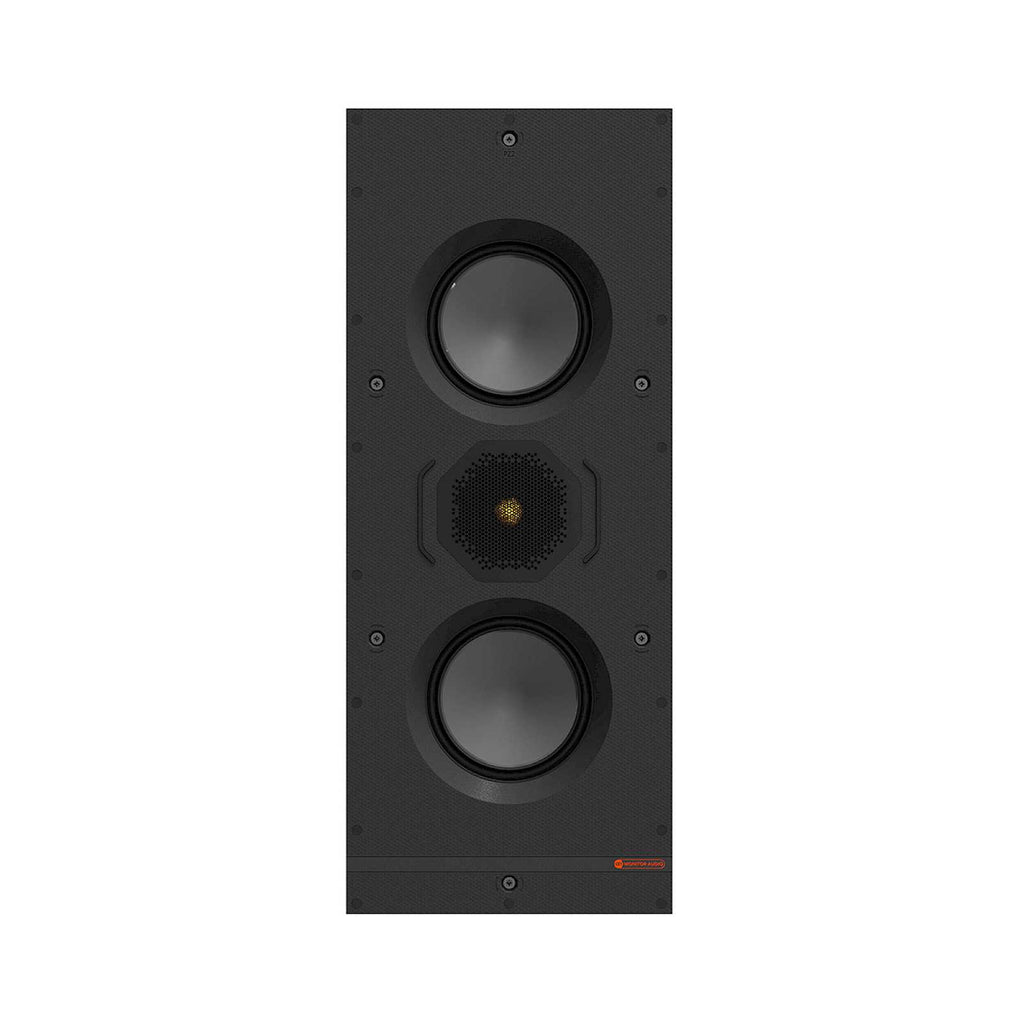

Monitor Audio Creator Series W1M In-Wall Medium Speaker
Medium Tier 1 Creator Series in-wall speaker with twin 5-inch C-CAM bass-mid drivers and a C-CAM tweeter for stereo, surround and distributed-audio applications.
W1M is a versatile medium-format architectural speaker. It gives you more radiating area than the entry W1M-E while remaining easier to place than the large W1L, which makes it useful across a wide range of rooms.
Installation and System Planning
For stereo or front-channel use, position should be planned around the listening area and screen or cabinetry. For distributed audio, speaker spacing and quantity are usually more important than pushing each speaker to a higher level.
Key Features
- Brand: Monitor Audio
- Series: Creator Series
- Tier: Tier 1
- System Format: 2-Way
- Channels: 1
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | W1M |
| Product Type | In-Wall Speaker |
| Series | Creator Series |
| Tier | Tier 1 |
| System Format | 2-Way |
| Channels | 1 |
| Frequency Response, Installed (-6dB) | 40Hz – 30kHz |
| Nominal Impedance | 6 ohm |
| Minimum Impedance (20Hz to 20kHz) | 4.8 Ohm @ 15kHz |
| Sensitivity (2.83Vrms@1m, Installed) | 87dB |
| Maximum Peak SPL | 113dB |
| Continuous Power Handling | 75W |
| Recommended Amplifier Power | 30 – 110W |
| Drive Unit Complement | 2 x 5-inch (127mm) C-CAM mid-bass driver, 1 x 1-inch (25mm) C-CAM tweeter |
| Crossover Frequency | LF/HF: 2.75kHz |
| Mounting Depth | 85mm |
| Cut-Out Dimensions | 527 x 198mm |
| External Dimensions (Including Grille) | 560 x 231 x 90mm |
| Weight | 3.4kg each |
| Pre-Construction Bracket | WM-B |
| Cabinet Finish | Matte black & Orange |
| Sold As | Single Unit |
| Warranty | Contact The Audio Experts for current Australian warranty details |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- In-wall speaker
- Creator Series
- Tier 1 architectural speaker
- 2-way system format
- Medium-format in-wall design
Driver Configuration
- 2 x 5-inch (127mm) C-CAM mid-bass drivers
- 1 x 1-inch (25mm) C-CAM tweeter
- UD Waveguide integration
Performance
- Frequency response, installed (-6dB): 40Hz – 30kHz
- Nominal impedance: 6 ohm
- Minimum impedance: 4.8 Ohm at 15kHz
- Sensitivity: 87dB
- Maximum peak SPL: 113dB
- Continuous power handling: 75W
- Recommended amplifier power: 30 – 110W
- Crossover frequency: LF/HF: 2.75kHz
Installation
- Quik-Link speaker cable connector
- Tri-Grip II fixing system
- Mounting depth: 85mm
- Cut-out dimensions: 527 x 198mm
- External dimensions including grille: 560 x 231 x 90mm
- Pre-construction bracket: WM-B
Accessories
- WM-B Pre-Construction Bracket
- WM Mount Box
- WM-BOX
Finish and Warranty
- Cabinet finish: Matte black & Orange
- Sold as a single unit
- Warranty: contact The Audio Experts for current Australian terms
The Audio Experts Take
The W1M is a useful general-purpose in-wall speaker for stereo, surround or distributed-audio systems where the wall needs to stay clean. Its medium format is easier to place than the larger Creator models while still giving the system more substance than an entry-level architectural speaker. Talk to The Audio Experts if you want help choosing quantity, position or amplification for the room.
Brand new. Contact us for current availability, installation advice, and amplifier matching guidance.
