Description

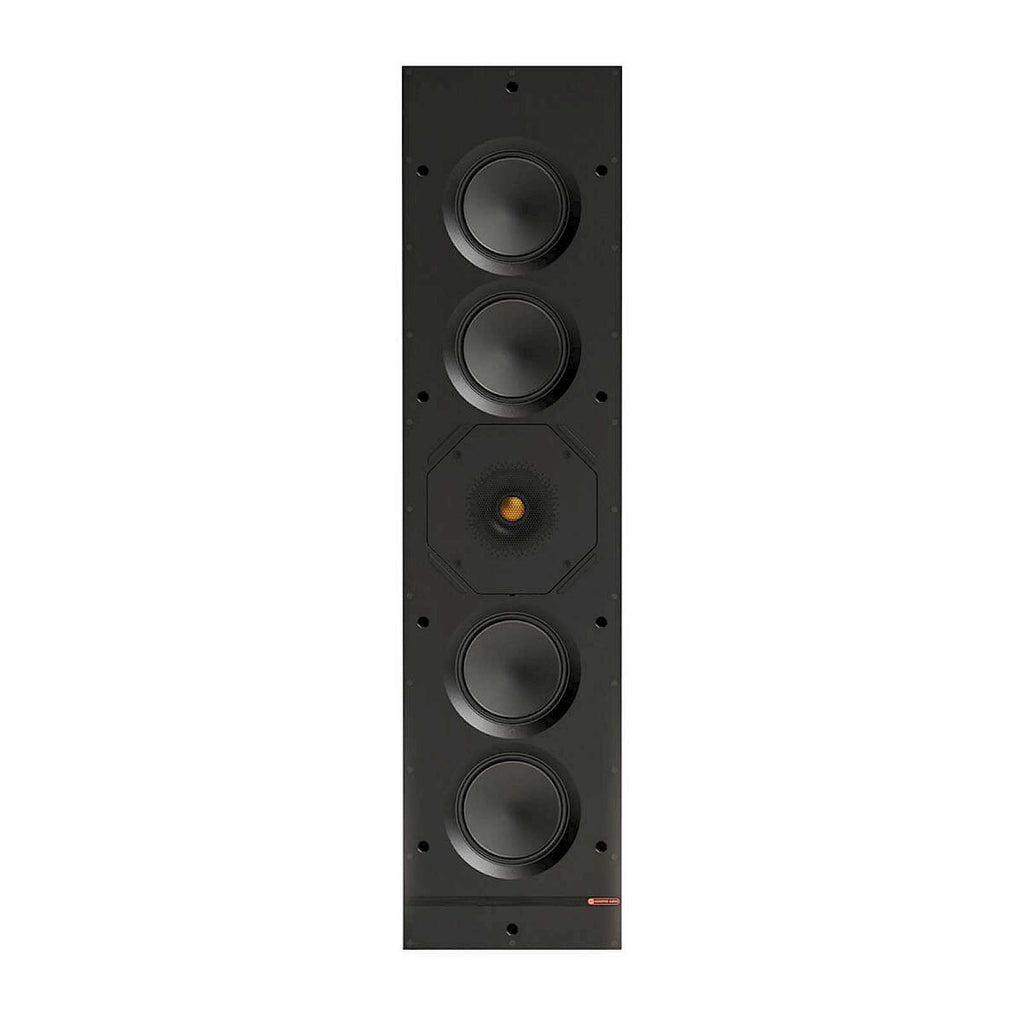

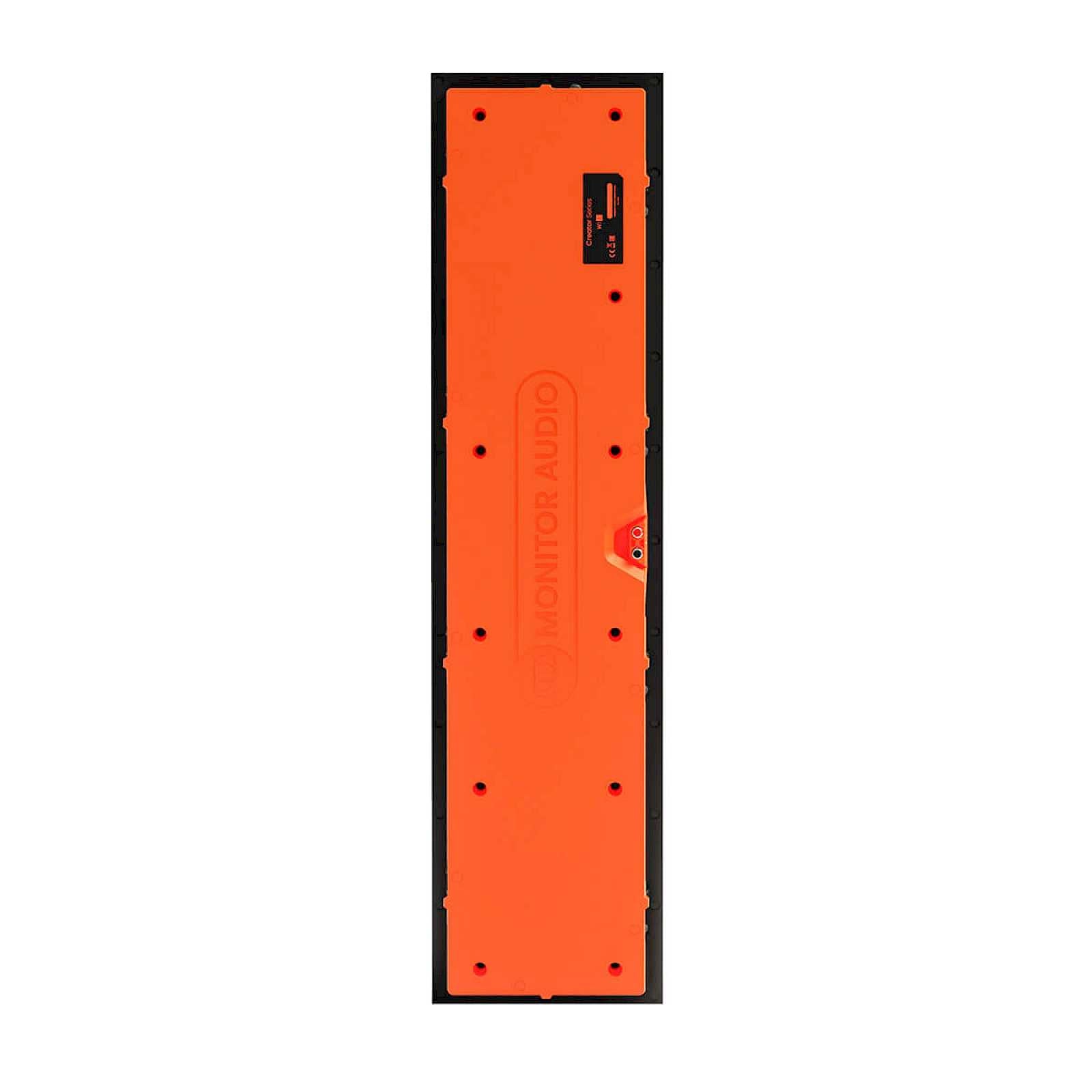

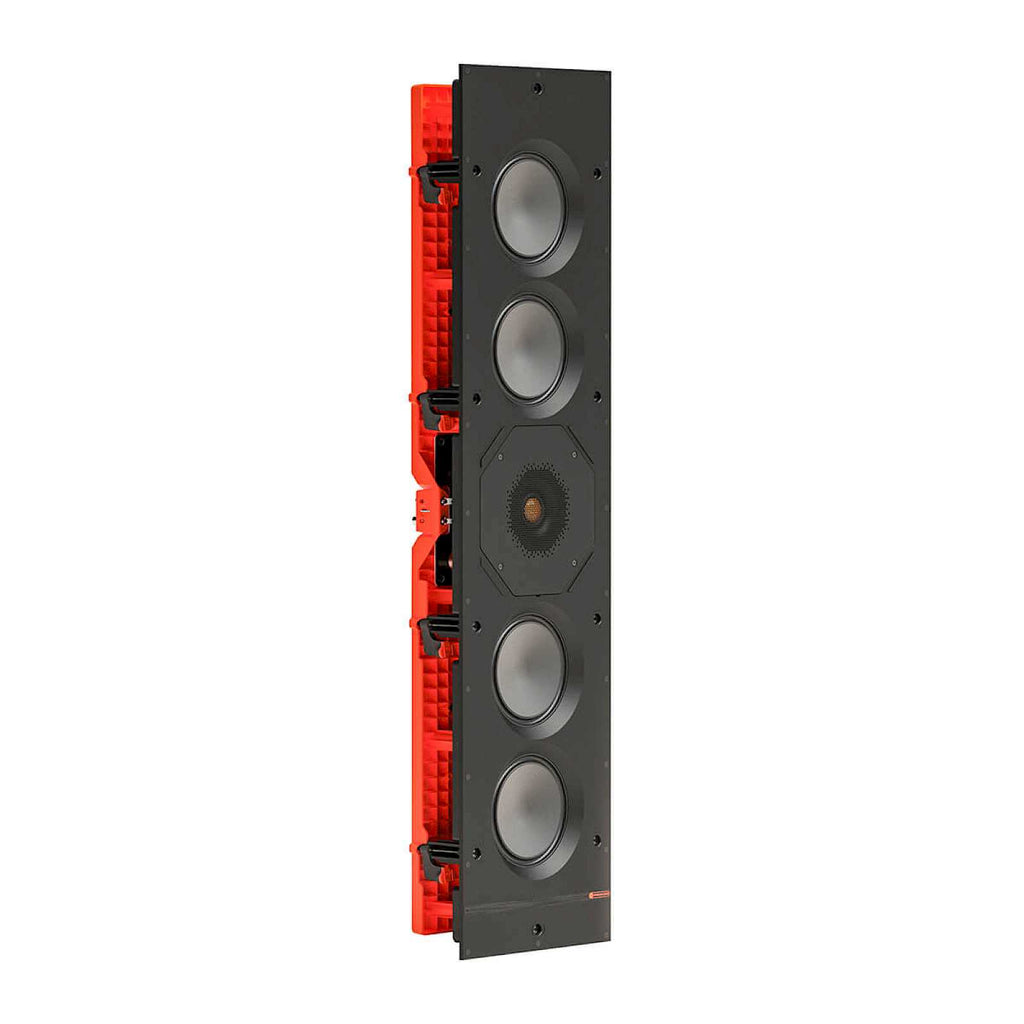

Monitor Audio Creator Series W1L In-Wall Large Speaker
Large Tier 1 Creator Series in-wall speaker with four 5-inch C-CAM bass-mid drivers and a C-CAM tweeter for larger hidden stereo, cinema and distributed-audio systems.
W1L is the large-format entry point into the Creator Series in-wall range. The extra driver area makes it useful where a smaller in-wall speaker would struggle to cover the room comfortably, while the wall remains visually clean.
Installation and System Planning
It suits front left/right duties, larger music zones and cinema systems where the speakers need to disappear. Installation should be planned around the wall cavity, cut-out position and nearby structure before the plasterboard is opened.
Key Features
- Brand: Monitor Audio
- Series: Creator Series
- Tier: Tier 1
- System Format: 2-Way
- Frequency Response, Installed (-6dB): 38 Hz – 30 kHz
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | W1L |
| Product Type | In-Wall Speaker |
| Series | Creator Series |
| Tier | Tier 1 |
| System Format | 2-Way |
| Frequency Response, Installed (-6dB) | 38 Hz – 30 kHz |
| Sensitivity (2.83Vrms@1m, Installed) | 88 dB |
| Nominal Impedance | 6 Ohms |
| Minimum Impedance (20Hz to 20kHz) | 5.2 Ohms @ 13 kHz |
| Maximum Peak SPL (AES75, Z-weighted) | 114 dB |
| Continuous Power Handling | 100 W |
| Recommended Amplifier Power | 80–300 W into 4 Ohms / 30–150 W into 8 Ohms |
| Bass Alignment | Sealed |
| Crossover Frequency | LF/HF: 2.7 kHz |
| Drive Unit Complement | 4 x 5-inch (127 mm) C-CAM mid-bass driver, 1 x 1-inch (25 mm) C-CAM tweeter |
| Mounting Depth | 85 mm |
| Cut-Out Dimensions | 880 x 202 mm |
| Pre-Construction Bracket | WL-B |
| External Dimensions with Accessories Fitted | 909 x 231 x 93 mm |
| Weight | 6.69 kg with grille / 5.84 kg without grille |
| Cabinet Finish | Matte black & Orange |
| Sold As | Single Unit |
| Warranty | Contact The Audio Experts for current Australian warranty details |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- In-wall speaker
- Creator Series
- Tier 1 architectural speaker
- 2-way system format
- Large-format in-wall design
- Sealed cabinet alignment
Driver Configuration
- 4 x 5-inch (127mm) C-CAM mid-bass drivers
- 1 x 1-inch (25mm) C-CAM tweeter
- UD Waveguide integration
Performance
- Frequency response, installed (-6dB): 38Hz – 30kHz
- Sensitivity: 88dB
- Nominal impedance: 6 Ohms
- Minimum impedance: 5.2 Ohms at 13kHz
- Maximum peak SPL: 114dB
- Continuous power handling: 100W
- Recommended amplifier power: 80–300W into 4 Ohms 30–150W into 8 Ohms
- Crossover frequency: LF/HF: 2.7kHz
Installation
- Quik-Link speaker cable connector
- Tri-Grip II fixing system
- Mounting depth: 85mm
- Cut-out dimensions: 880 x 202mm
- External dimensions with accessories fitted: 909 x 231 x 93mm
- Pre-construction bracket: WL-B
Accessories
- WL-B Pre-Construction Bracket
- WL-BOX
Finish and Warranty
- Cabinet finish: Matte black & Orange
- Sold as a single unit
- Warranty: contact The Audio Experts for current Australian terms
The Audio Experts Take
The W1L suits a larger room or front-stage position where a basic in-wall speaker would be too small, but the project does not need the higher Creator tiers. Its larger driver area gives the installation more scale while keeping the speaker visually hidden. We recommend planning wall position, cavity depth and amplification together before the cut-outs are made.
Brand new. Contact us for current availability, installation advice, and amplifier matching guidance.
