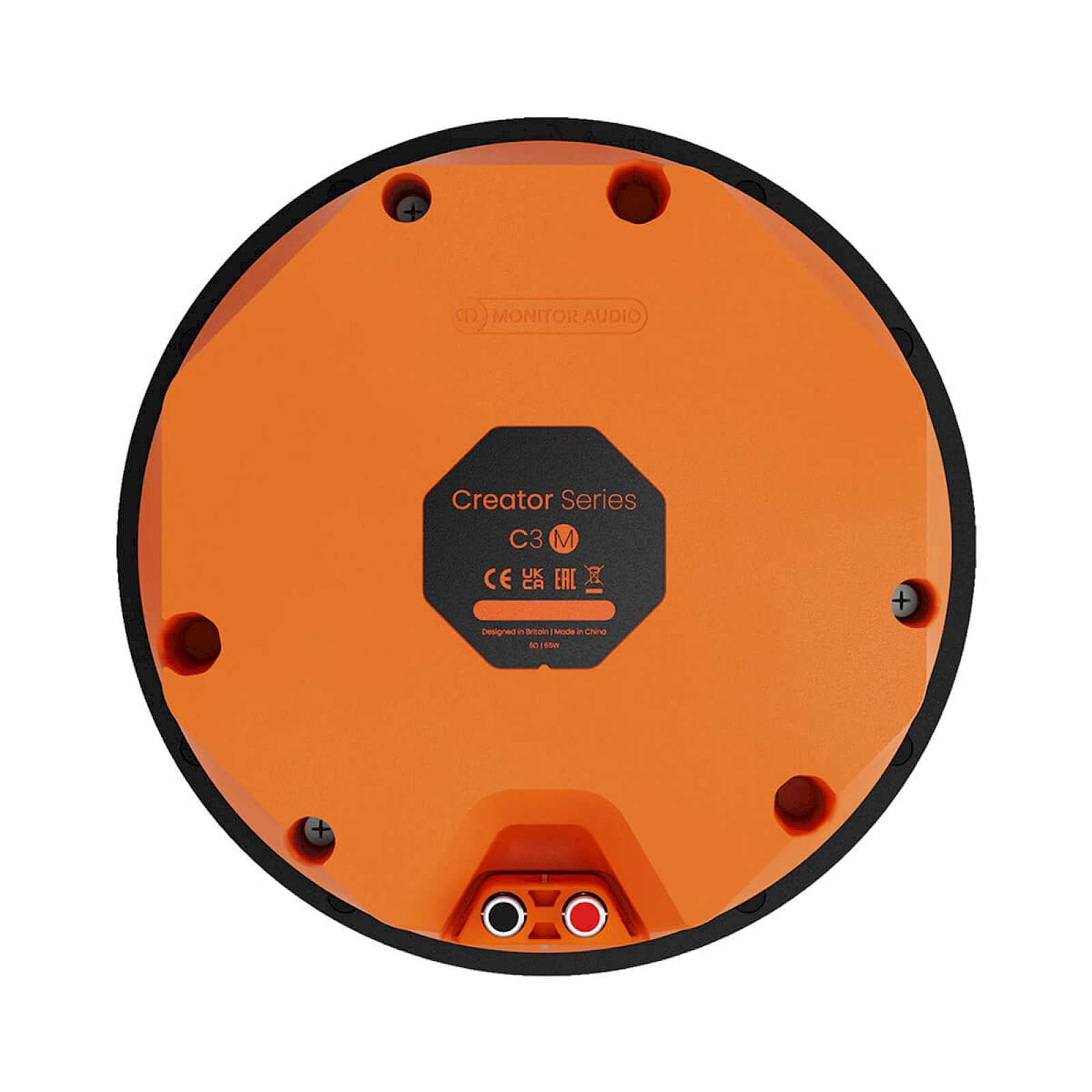

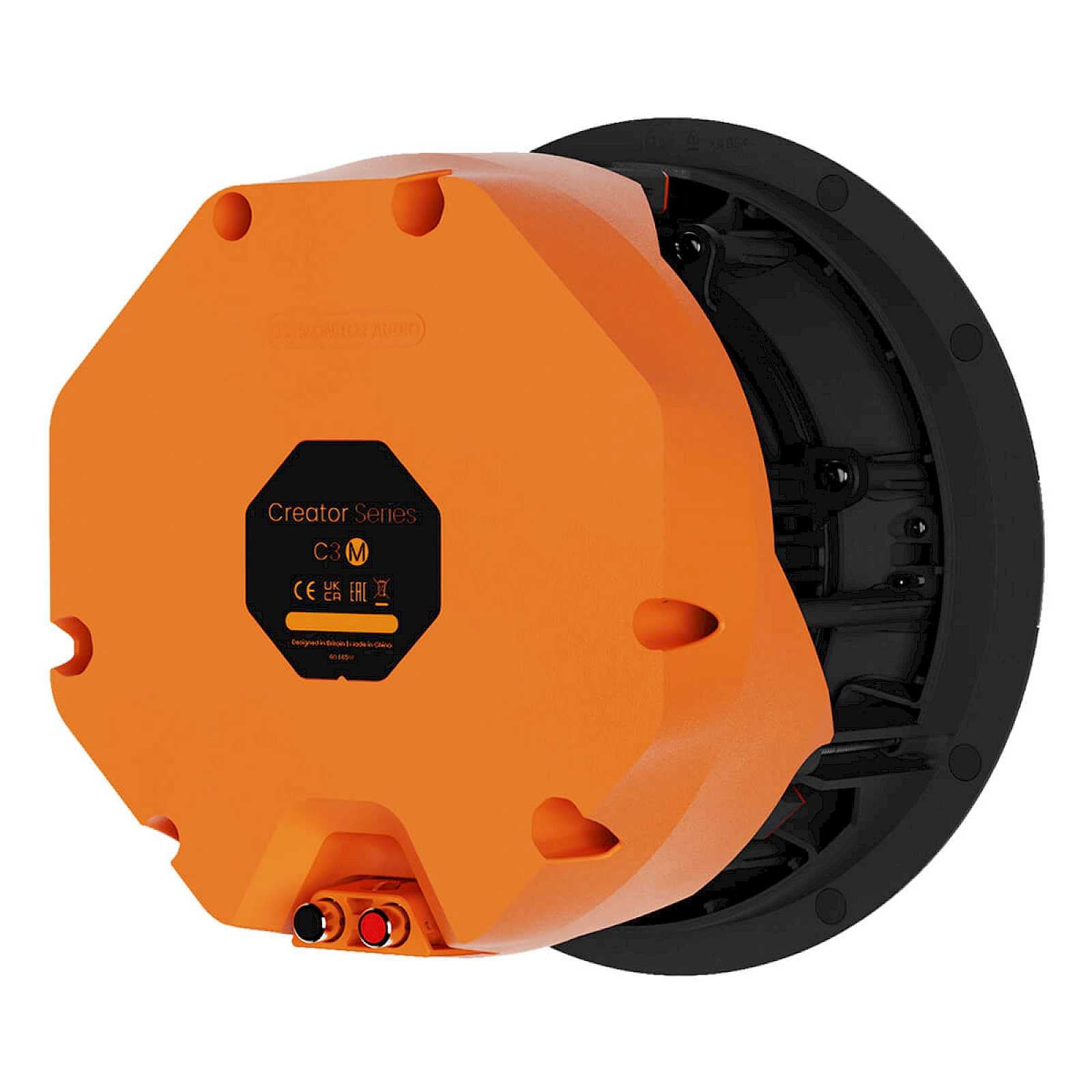

Monitor Audio Creator Series C3M In-Ceiling Medium Speaker

Monitor Audio C3M In-Ceiling Speaker

Medium Tier 3 in-ceiling speaker with a 7-inch RDT III bass driver, 4-inch IDC II midrange, and 1-inch IDC II tweeter, built for high-performance architectural audio where serious sound quality is the brief.

The Monitor Audio C3M sits in the upper end of the Creator Series range and is aimed at rooms where a ceiling speaker needs to do more than just disappear visually. It also needs to sound deliberate, dynamic, and properly resolved. Monitor Audio describes it as a high-performance, medium-sized Tier 3 in-ceiling loudspeaker with a three-way design, using premium acoustic technologies drawn from its higher-end loudspeaker ranges.

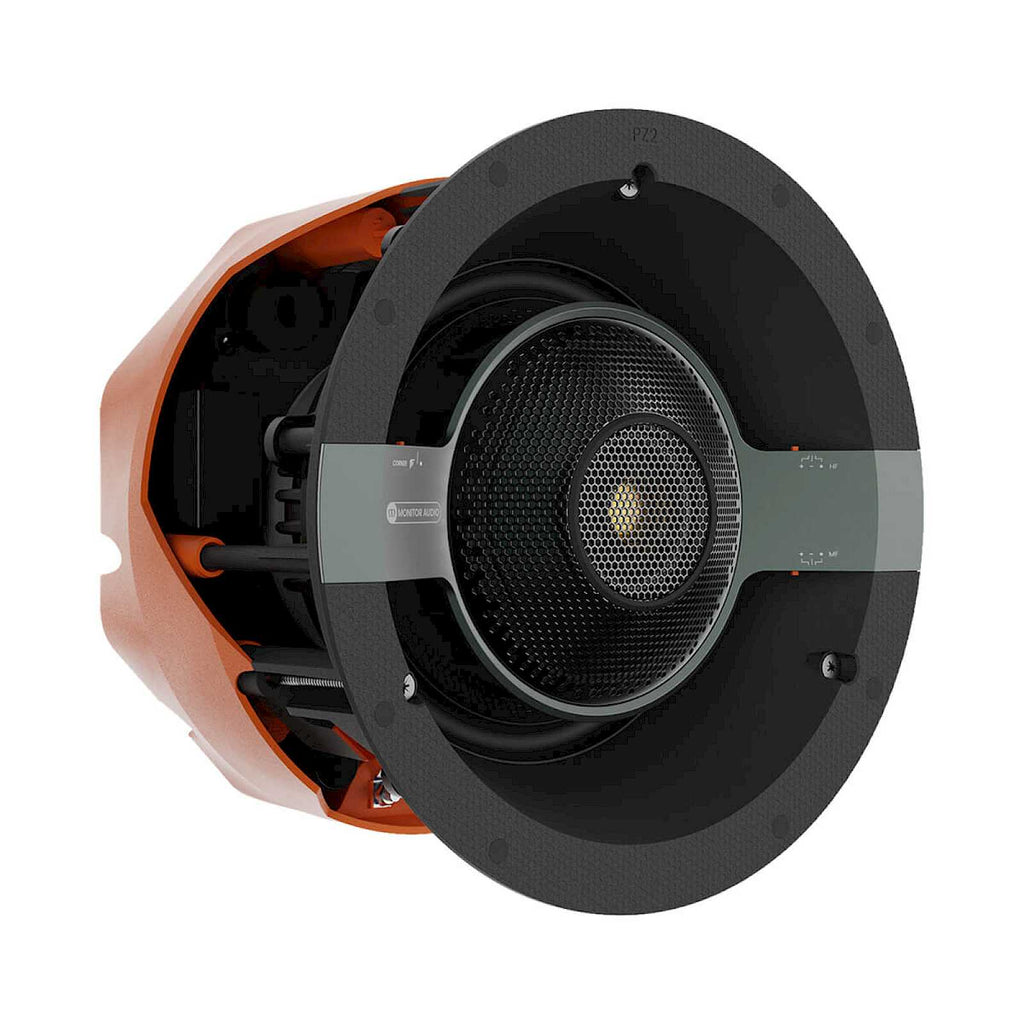

The C3M uses a 7-inch RDT III bass driver, a 4-inch IDC II midrange driver, and a 1-inch IDC II tweeter with UD Waveguide II. That is a substantial driver layout for an in-ceiling speaker, and it is there for a reason. It gives the speaker more structure through the mids, better scale than a typical two-way ceiling model, and a more refined top end for rooms where the sound needs to feel more like a proper speaker system than background fill.

Proper Three-Way Design

A more serious architectural speaker for rooms where performance matters

Monitor Audio positions the C3M as a high-performance medium in-ceiling model designed to deliver pristine, engaging acoustics. That is the right brief for a speaker like this. A medium architectural model should not just be louder than the smaller models. It should sound more complete, more convincing, and more capable across a broader listening area.

This is clearly not aimed at simple distributed-audio background duty. It is meant for better rooms and more ambitious custom-install systems where architectural speakers still need to sound properly resolved.

Tier 3 Performance in a Medium Format

A premium step up when you want serious ceiling sound without moving to the larger C3L

The C3M is the medium-sized Tier 3 option in the Creator Series. That gives it a useful place in the range. It offers a more substantial acoustic platform than the smaller C2-series models, but without the larger footprint of the C3L. With a cut-out diameter of 212mm and mounting depth of 148mm, it is a strong fit for premium living spaces, media rooms, better bedrooms, and higher-spec multi-room zones where space is still a consideration.

The published figures back that up too. Frequency response is listed at 45Hz to 35kHz, sensitivity at 87dB, nominal impedance at 6 ohms, continuous power handling at 120W, and recommended amplifier power at 45 to 180W. In real terms, that points to a speaker designed for genuinely capable architectural audio rather than light-duty background use.

Quik-Link and Tri-Grip II for Easier Installation

Serious performance, but still designed to be practical on site

Monitor Audio highlights the Quik-Link speaker cable connector as a major installation feature, designed to improve the ease and speed of speaker installation. It also says Tri-Grip II is there for quick, simple, reliable, and strong fitment.

That matters because a speaker at this level still has to be workable for installers. The C3M is clearly aimed at premium custom-install projects, but it is still built around a sensible installation workflow rather than being awkward for the sake of complexity.

Creator Series Grille and Accessory Options

White as standard, with black and square alternatives available

All Creator Series in-ceiling speakers come with white grilles as standard, and optional black grilles are available in round and square designs for darker décor. The C3M also supports an optional square or premium grille, which is useful in design-led projects where the grille finish matters just as much as the speaker choice.

The page also lists the CM-B pre-construction bracket, CSM-BOX, CML-BOX, CM-Square Grilles, and CM-Round Grilles as related accessories, making the C3M easier to work into a properly planned install.

Specifications

Detailed Technical Specifications

For those who like to drag out all the useful bits

The Audio Experts Take

The C3M makes sense when the brief is genuinely premium ceiling audio, but the room does not necessarily need the larger C3L. It gives you a proper three-way design, serious driver hardware, and a more refined acoustic target than the more everyday end of the category. That is exactly what better media rooms, living spaces, and higher-spec distributed-audio systems tend to benefit from.

What we like here is that it feels like a proper high-end architectural speaker rather than just a dressed-up ceiling model. The 7-inch RDT III driver, IDC II midrange and tweeter, tuning switches, and lifetime warranty all point to a product that is meant for serious custom-install work. For the right room, it is a very strong option when you want ceiling audio to sound deliberate, capable, and properly resolved.

Brand new. Contact us for current availability, grille options, and system design advice.
