Monitor Audio Creator Series C3L-A Fixed Angle In-Ceiling Large Speaker

Monitor Audio C3L-A In-Ceiling Speaker

Large Tier 3 in-ceiling speaker with an angled IDC II driver array, 9-inch RDT III bass driver, 4-inch midrange, and 1-inch tweeter, designed to focus sound directly into the listening area for higher-performance architectural audio.

The Monitor Audio C3L-A is one of the more specialised speakers in the Creator Series. The “A” stands for angle, and Monitor Audio says the fixed-angle IDC II array is there to direct midrange and high-frequency sound into the listening area for improved intelligibility and clarity. The driver array is set at 25 degrees, which gives the speaker a more deliberate, “spotlight” style presentation than a standard straight-down firing ceiling speaker.

That makes the C3L-A especially useful in rooms where the listening position matters and a normal in-ceiling speaker would fire too much of its energy into the wrong part of the room. Monitor Audio explicitly calls it ideal as an in-ceiling LCR speaker where in-wall speakers are not possible, and also positions it as a discreet home theatre and multi-channel music solution with detail, clarity, and deep controlled bass.

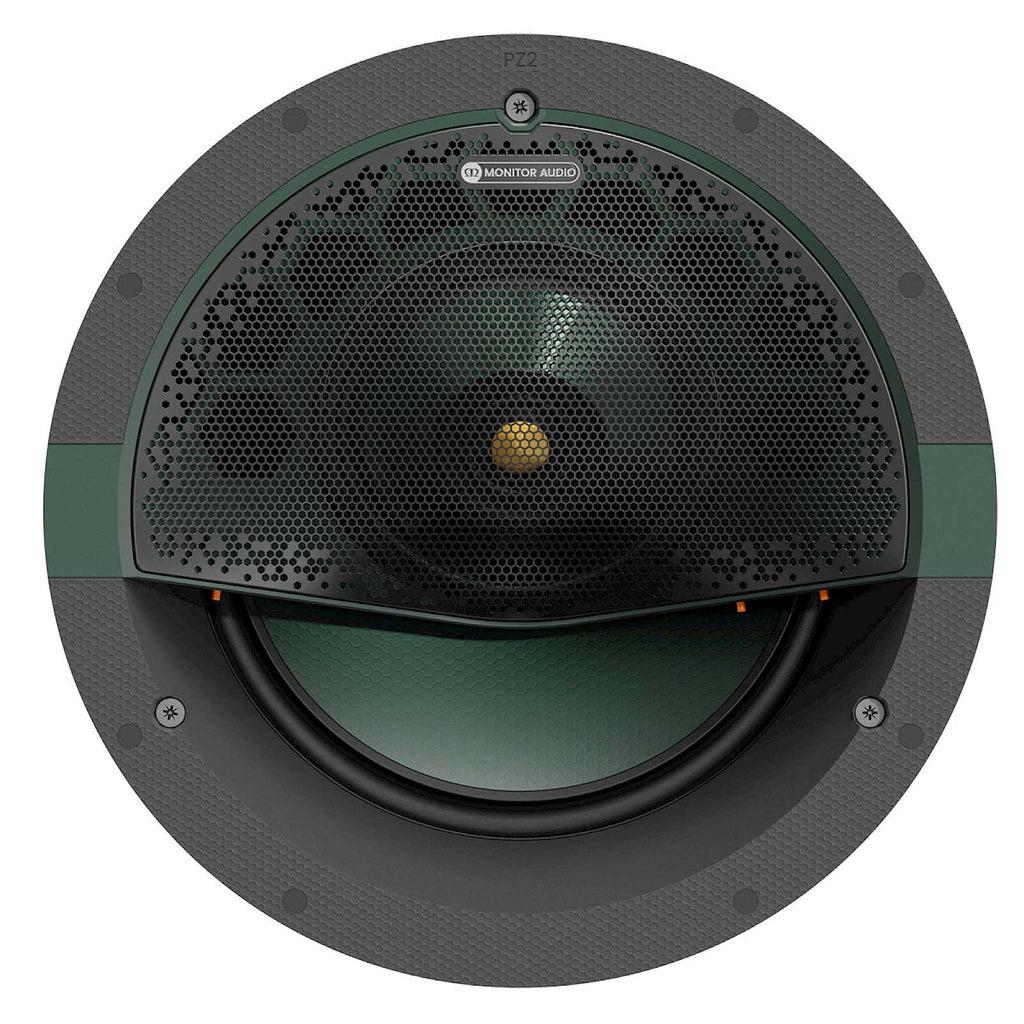

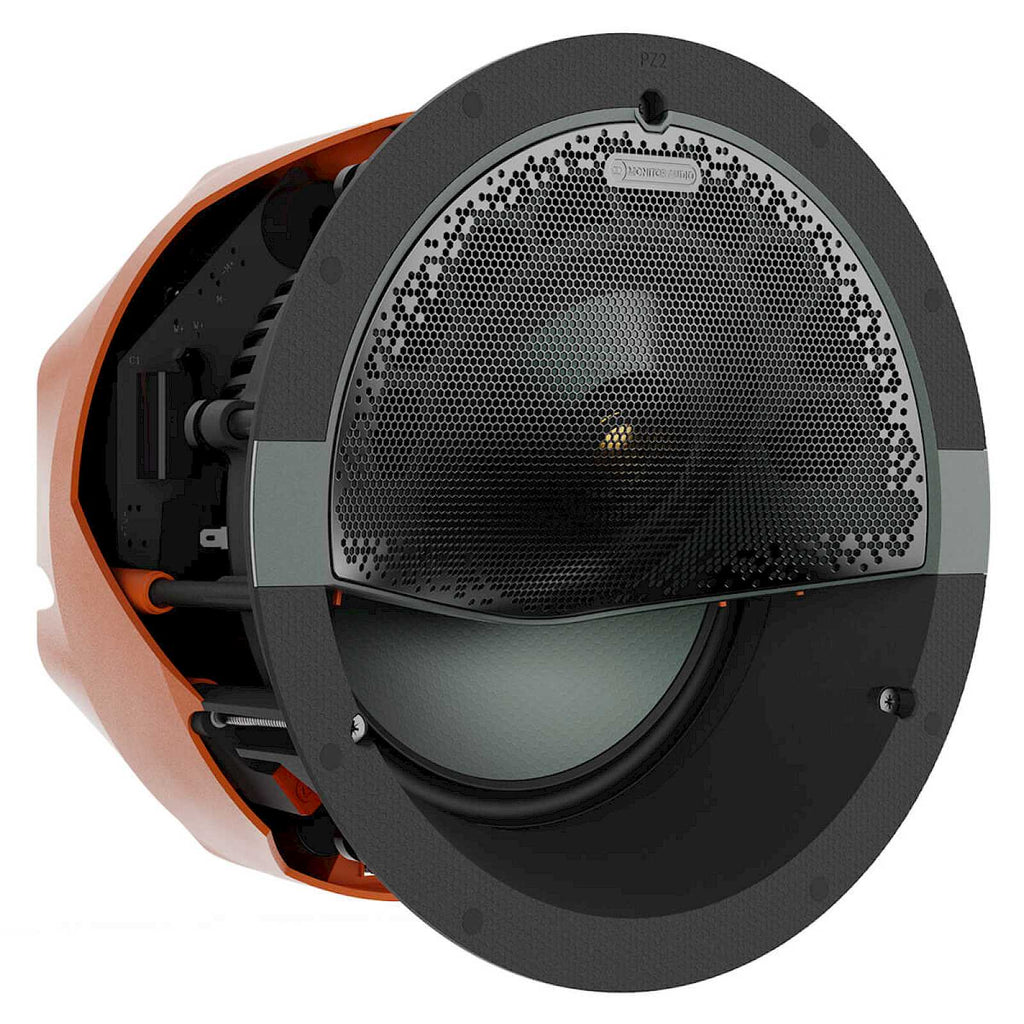

Angled IDC II Driver Array

Focused sound into the room rather than a general ceiling wash

The biggest story with the C3L-A is the angled IDC II assembly. Monitor Audio says it focuses midrange and high-frequency sound into the listening area for better intelligibility and clarity, and describes the effect as a spotlight into the room.

In practical terms, that is what separates this speaker from a more generic architectural model. It is built for systems where you want a clearer listening window and more deliberate sound placement, especially in cinema rooms, media spaces, or seating-focused areas where conventional ceiling speakers can sound a bit vague.

Proper Three-Way Design

More serious driver architecture for higher-performance architectural sound

The C3L-A is a three-way design using a 9-inch RDT III bass driver, a 4-inch IDC II midrange driver, and a 1-inch IDC II tweeter with UD Waveguide II. Monitor Audio describes it as a large Tier 3 model for installations where high-performance acoustics are desired.

That driver layout matters because this is not just a ceiling speaker trying to cover a room with broad background fill. It is clearly aimed at projects where the speaker needs to sound more structured, more dynamic, and more precise, with a better sense of focus through the listening position.

Strong Fit for Discreet Cinema and LCR Use

A clever solution when in-wall speakers are not practical

Monitor Audio specifically says the 25-degree angled array makes the C3L-A ideal as an in-ceiling LCR speaker where in-wall speakers are not possible. It also describes it as ideal for discreet home theatre and multi-channel music systems.

That gives the C3L-A a very clear role. It is a strong option when the room or build brief rules out visible wall speakers, but the customer still wants a more deliberate front-stage result than a conventional ceiling speaker would normally deliver.

Quik-Link and Tri-Grip II for Easier Installation

Serious performance, but still designed to be practical on site

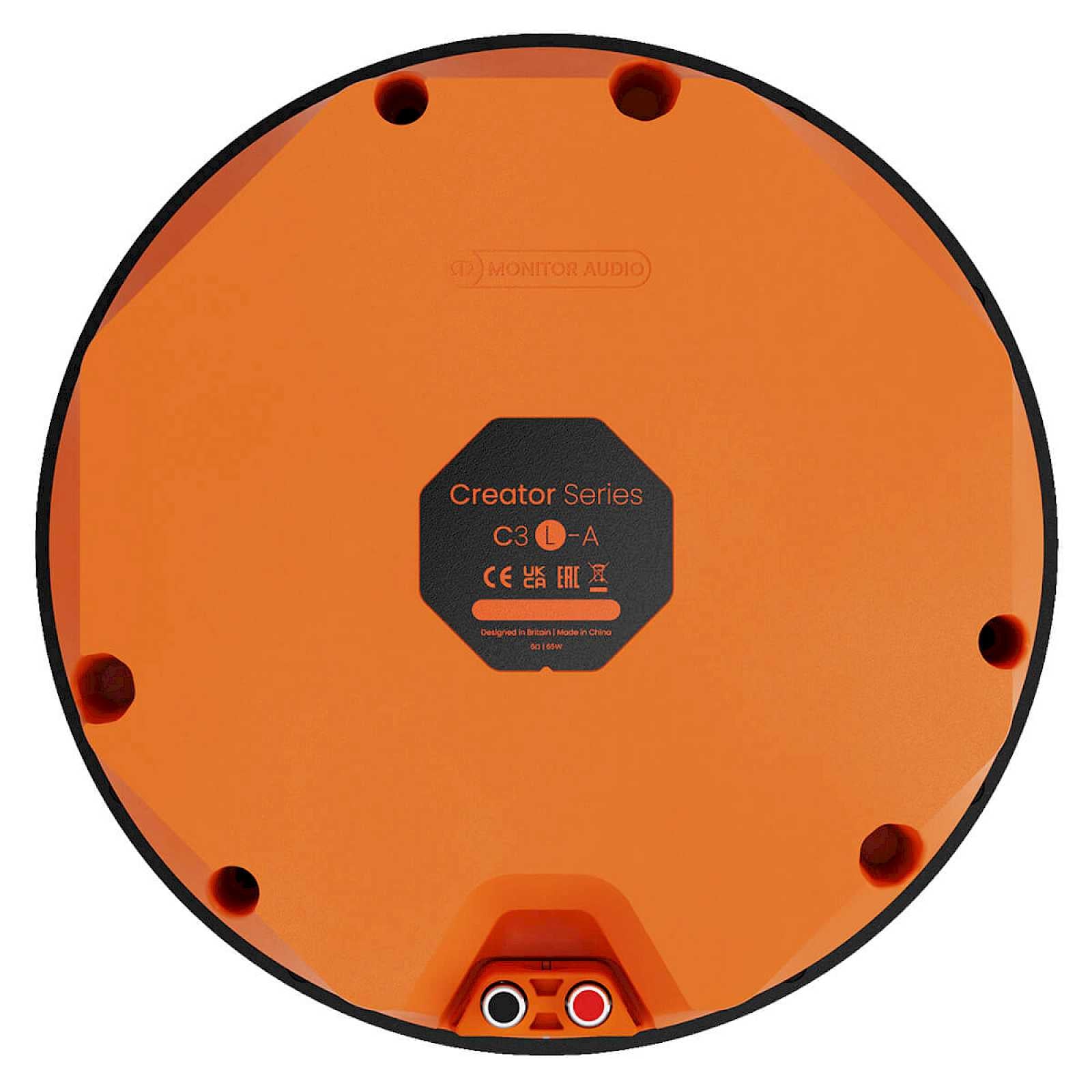

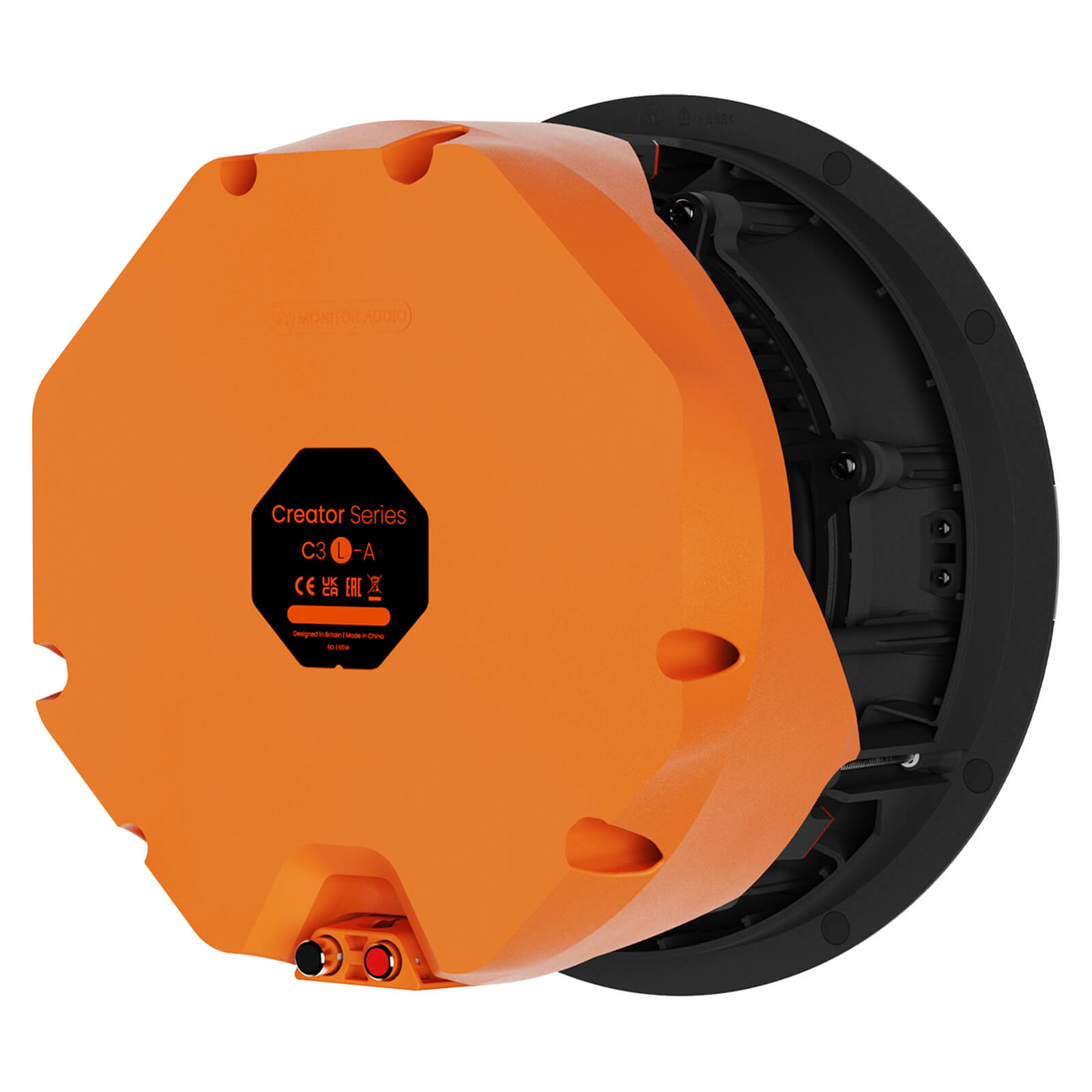

Monitor Audio says the C3L-A uses its Quik-Link speaker cable connector to improve installation speed and its Tri-Grip II system for quick, simple, reliable, and strong fitment. The cut-out is 248mm and mounting depth is 157mm, with the CL-B listed as the matching pre-construction bracket.

That matters because a speaker at this level still needs to be workable for installers. The C3L-A is clearly aimed at higher-spec custom-install jobs, but it is still built around efficient fitting and proper accessory support.

Specifications

Detailed Technical Specifications

For those who like to drag out all the useful bits

The Audio Experts Take

The C3L-A makes a lot of sense when the brief is not just discreet ceiling audio, but directed, deliberate sound into a listening position. That is the whole point of the angled IDC II array. It gives you a much more purposeful result than a standard straight-down firing ceiling speaker, especially in cinema rooms or media spaces where focus and intelligibility matter.

What we like here is that it feels like a proper problem-solver. If in-wall speakers are off the table but the room still needs a serious front-stage or high-performance ceiling solution, the C3L-A is one of the smarter ways to get there. The three-way design, 25-degree angle, larger driver array, and tuning switches all point to a speaker that is meant for premium custom-install work.

Brand new. Contact us for current availability, grille options, and system design advice.
