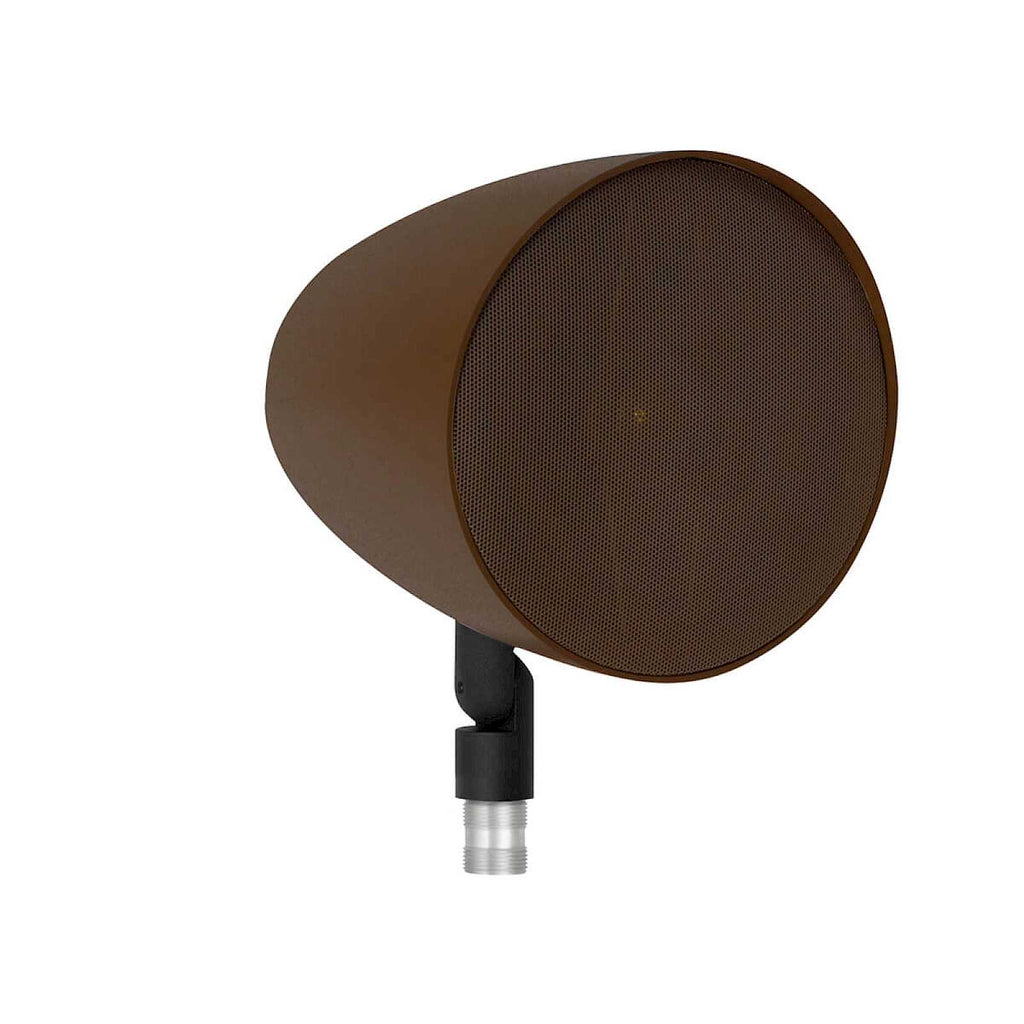

Monitor Audio Climate Garden CLG160 Weatherproof Satellite Speaker
Larger weather-resistant Climate Garden satellite speaker for distributed outdoor systems that need more coverage or output from each position.
CLG160 follows the same landscape-audio approach as the CLG140 but with a larger driver format. It is useful where each satellite needs to cover a wider area or where the outdoor zone calls for a little more scale.
Installation and System Planning
The best results still come from distribution rather than volume. Use enough satellites to cover the space evenly, add a suitable landscape subwoofer for low bass and plan amplifier loading and cable runs as part of the system design.
Key Features
- Brand: Monitor Audio
- Frequency Response (-6 dB): 80 Hz, 30 kHz
- Sensitivity (1W@1M): 89 dB
- Line Level Voltage: 70/100 Volt line level
- Maximum SPL: 107 dBA
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | CLG160 |
| Product Type | Climate Garden Speaker |
| Frequency Response (-6 dB) | 80 Hz, 30 kHz |
| Sensitivity (1W@1M) | 89 dB |
| Line Level Voltage | 70/100 Volt line level |
| Maximum SPL | 107 dBA |
| Power Handling (RMS) | 60 Watts (crossover set to minimum 80 Hz @12 dB/Octave) |
| Recommended Amplifier Requirements | 10-60 W per speaker |
| Drive Unit Complement | 1 x 6-inch MMP II cone bass-mid driver, 1 x 25 mm C-CAM Gold Dome tweeter – Coaxially oriented |
| Crossover Frequency | 80 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum) |
| External Dimensions (Excluding Spike and Mount) | 190 x 220 mm |
| Total Bracket Pivot Angle | 180 degrees |
| Connection | Encapsulated cable connection |
| Environmental Protection Rating | IP55 |
| Operating Temperature Range | -20° to 70° C / -4° to 158° F |
| Colour / Finish | Dark Brown |
| Dispersion | 60 degrees |
| Weight | 2.76 kg |
| Sold As | Single Unit |
| Warranty | 5 years |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- Climate Garden outdoor speaker
- Suitable for ground-level installation in the garden and around decking areas
- Can also be mounted to a tree, pole, or garden fence
- Dark brown finish
- Paintable cabinet finish
- 5-year warranty
Driver Configuration
- 1 x 6-inch MMP II cone bass-mid driver
- 1 x 25 mm C-CAM Gold Dome tweeter
- Coaxially oriented tweeter
Performance
- Frequency response: 80 Hz, 30 kHz
- Sensitivity: 89 dB
- Maximum SPL: 107 dBA
- Power handling: 60 Watts RMS
- Recommended amplifier power: 10-60 W per speaker
- 70/100 Volt line level
- Crossover frequency: 80 Hz minimum at 12 dB/Octave, 24 dB/Octave optimum
- Dispersion: 60 degrees
Installation and System Design
- Encapsulated cable connection
- Concealed cable management
- Can be wired in mono from one amplifier channel
- System can also be designed for stereo left/right zones
- Compatible with CLG-SPIKE R

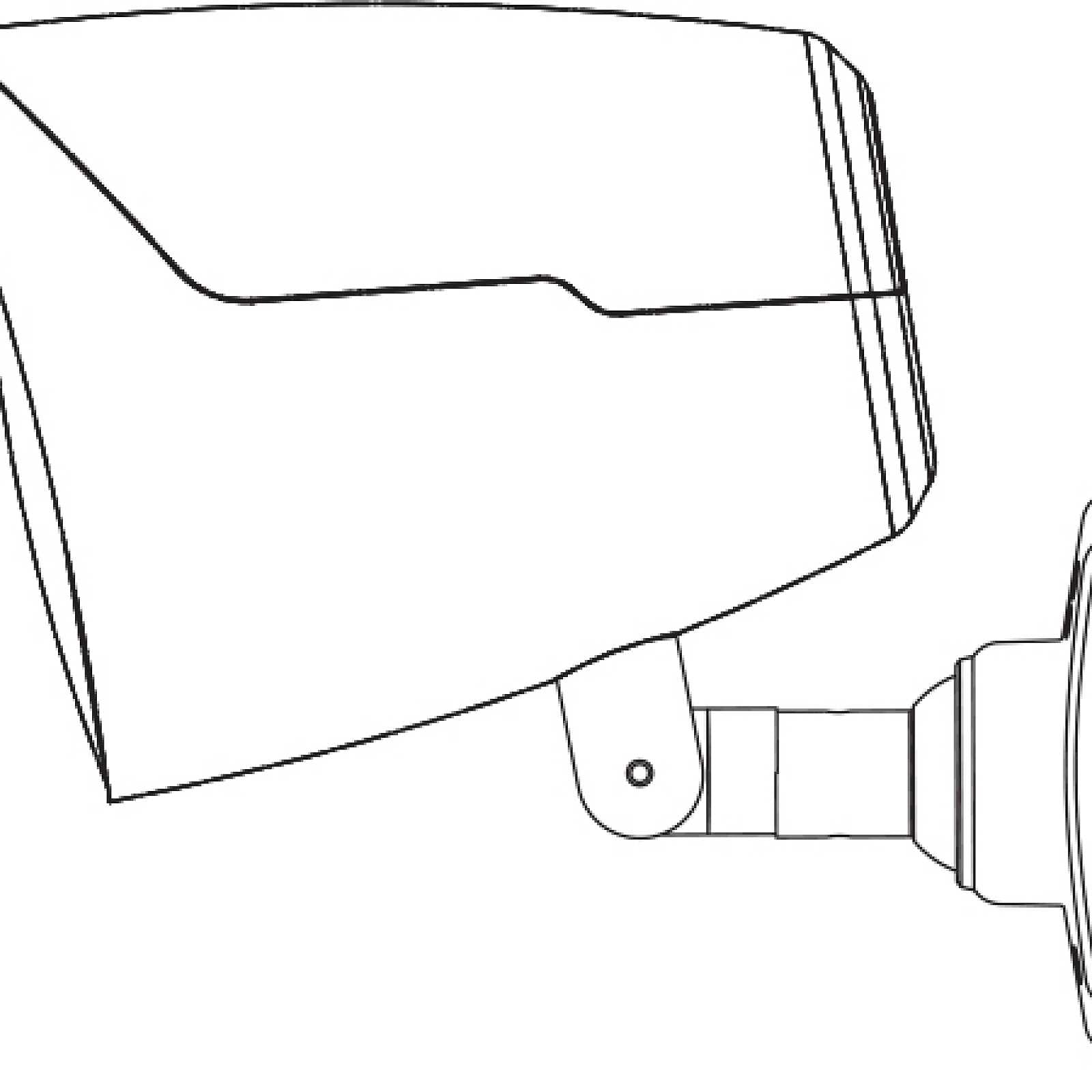

- Compatible with CLG-MOUNT

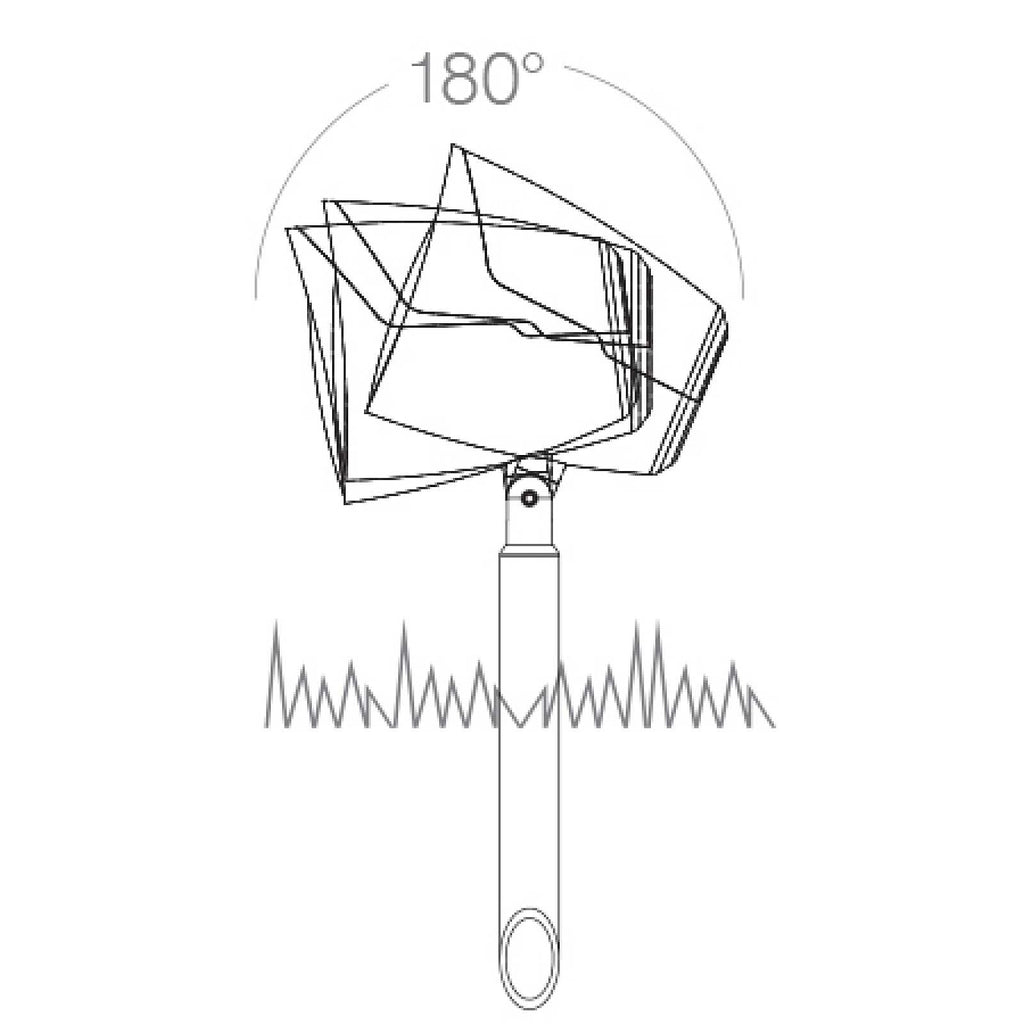

- Total bracket pivot angle: 180 degrees
Weather Resistance and Build
- IP55 environmental protection rating
- Operating temperature range: -20° to 70°C / -4° to 158°F
- Rigid, high-impact polymer cabinet
- PTC overload protection
Dimensions and Weight

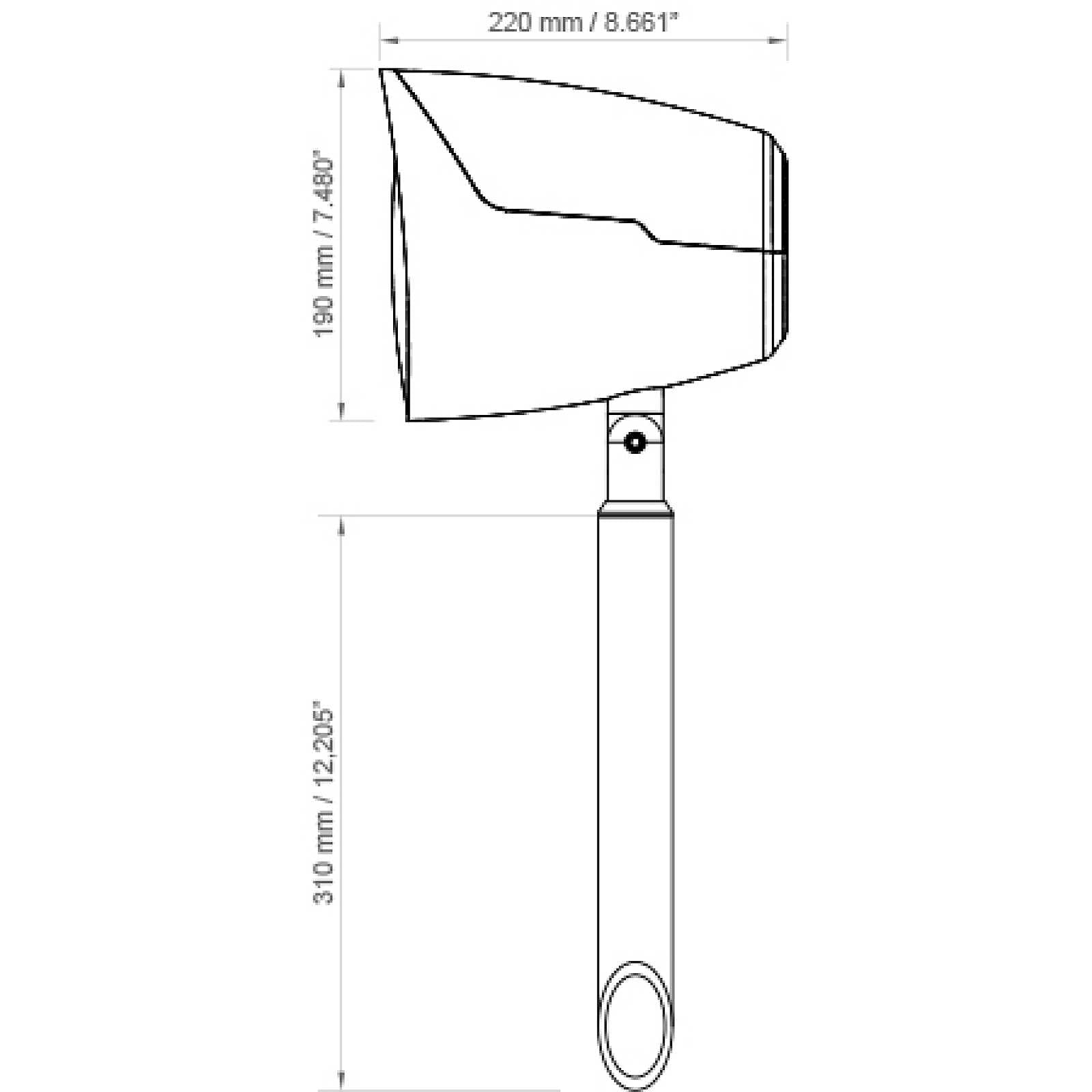

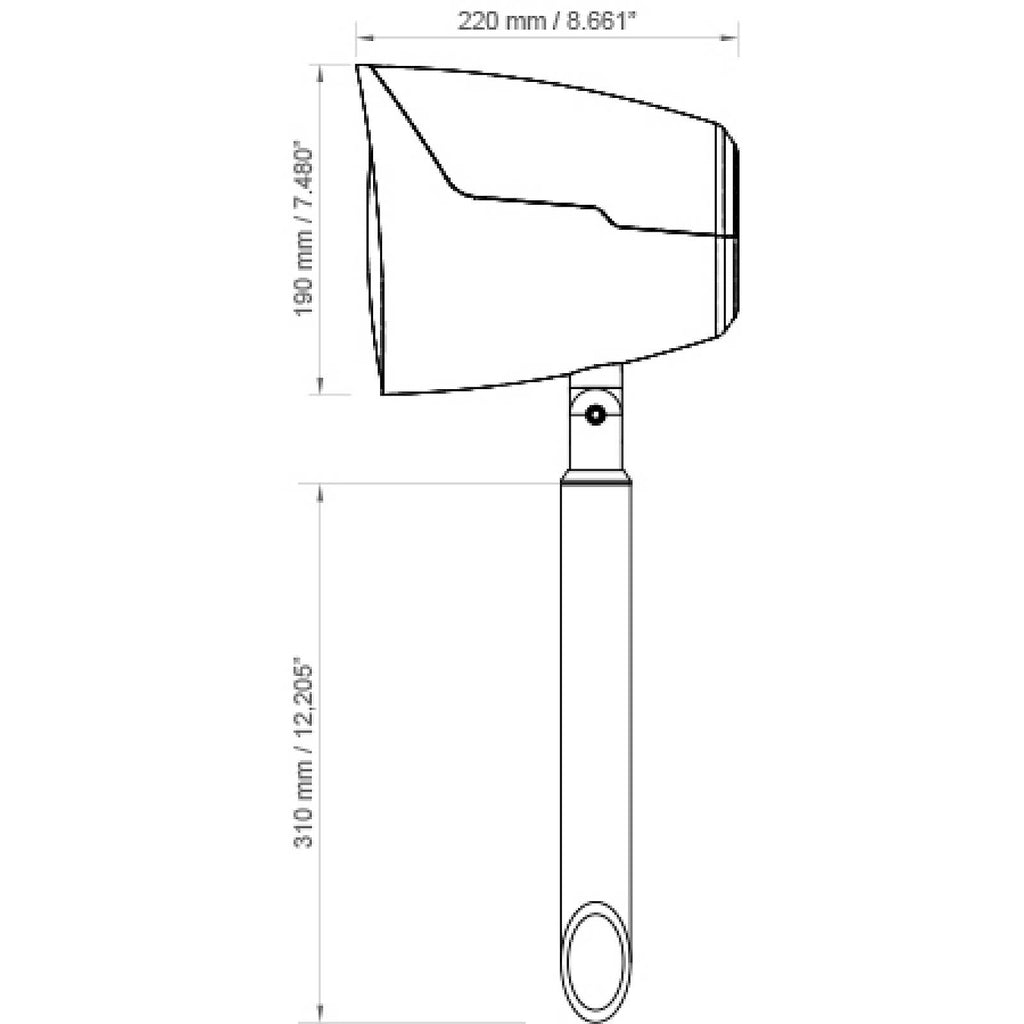

- External dimensions excluding spike and mount: 190 x 220 mm
- Weight: 2.76 kg
- Sold as a single unit
The Audio Experts Take
The CLG160 is the larger Climate Garden satellite and suits outdoor layouts that need more coverage or output from each speaker position. As with any landscape system, the result depends on using enough speakers at sensible levels rather than trying to cover the garden from one or two very loud points. The Audio Experts can help plan the satellites, subwoofer and amplification as a complete system.
Brand new. Contact us for current availability and Climate Garden system matching advice.
