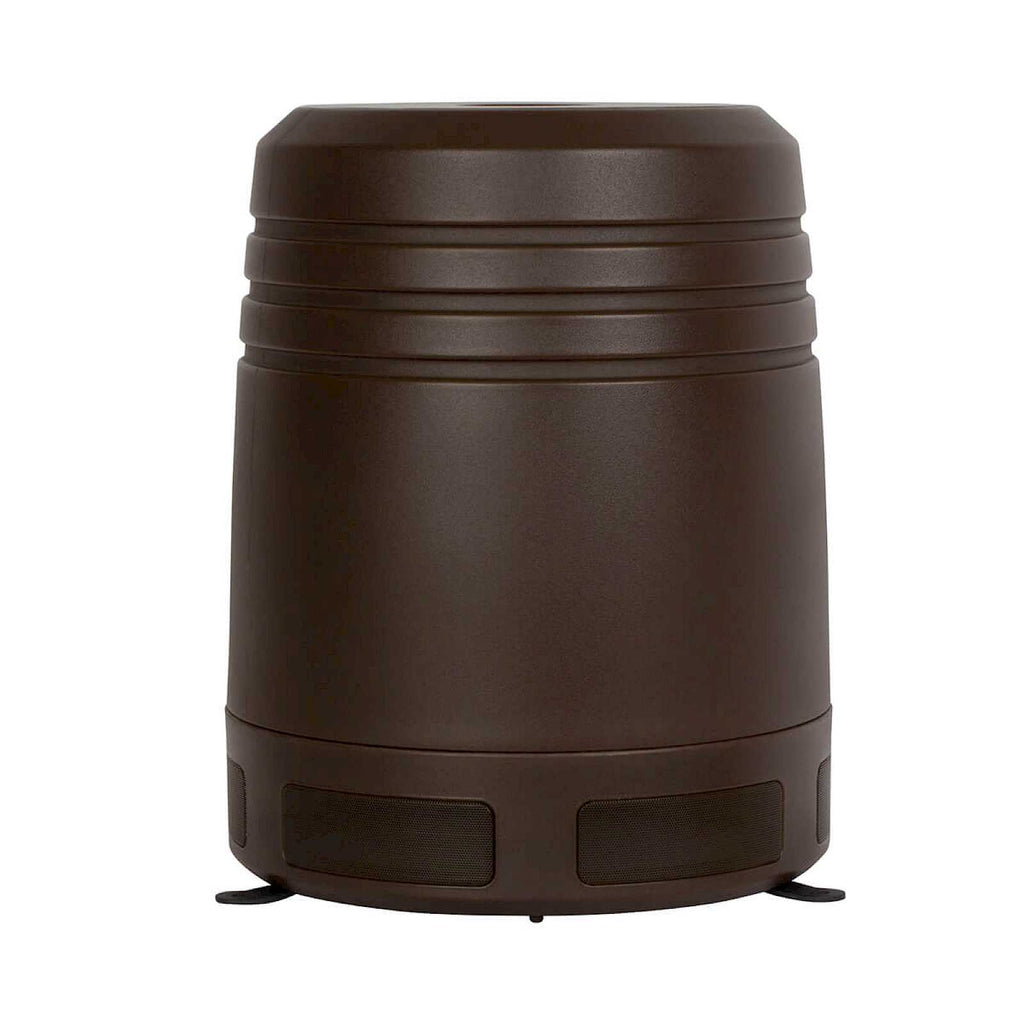

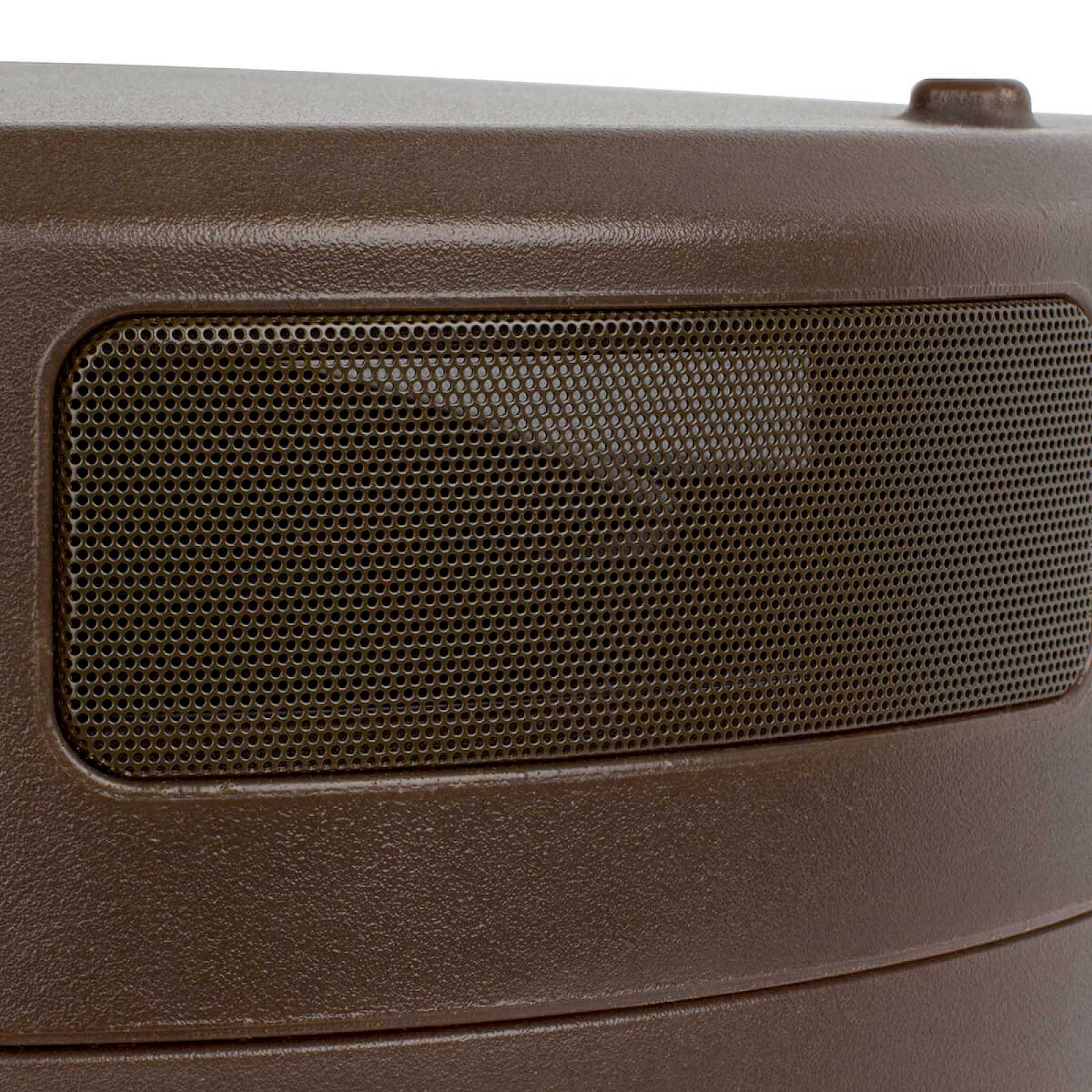

Monitor Audio CLG-W10 Climate Subwoofer
Passive 10-inch Climate Garden subwoofer for concealed outdoor bass support in distributed landscape-audio systems.
CLG-W10 is designed to support outdoor satellite speakers without placing a conventional indoor-style subwoofer cabinet on a patio or deck. It forms part of a distributed landscape system where bass and mid/high coverage come from different locations.
Installation and System Planning
The subwoofer needs suitable amplification and a planned crossover with the satellites. Position it where the bass can spread through the listening area without creating an obvious single bass source, and plan cable routes before landscaping is finished.
Key Features
- Brand: Monitor Audio
- Frequency Response (-6 dB): 35 Hz, 150 Hz
- Sensitivity (1W@1M): 85 dB
- Nominal Impedance: 4 ohms or 70/100 Volt line level (cable select)
- Maximum SPL: 105 dBA
Specifications
| Specification | Details |
|---|---|
| Brand | Monitor Audio |
| Model | CLG-W10 |
| Product Type | Climate Garden Subwoofer |
| Frequency Response (-6 dB) | 35 Hz, 150 Hz |
| Sensitivity (1W@1M) | 85 dB |
| Nominal Impedance | 4 ohms or 70/100 Volt line level (cable select) |
| Maximum SPL | 105 dBA |
| Power Handling (RMS) | 150 W |
| Recommended Amplifier Requirements | 100-150 W |
| Drive Unit Complement | 1 x 10-inch C-CAM cone, long throw sub-bass driver |
| Crossover Recommendation | 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum) |
| External Dimensions (H x W x D) | 340 x 340 x 434.5 mm |
| Connection | Encapsulated cable connection |
| Environmental Protection Rating | IP54 |
| Colour / Finish | Brown |
| Weight | 11.8 kg |
| Sold As | Single Unit |
| Warranty | 5 years |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
Core Design
- Climate Garden outdoor subwoofer
- Designed to bring bass into outdoor spaces

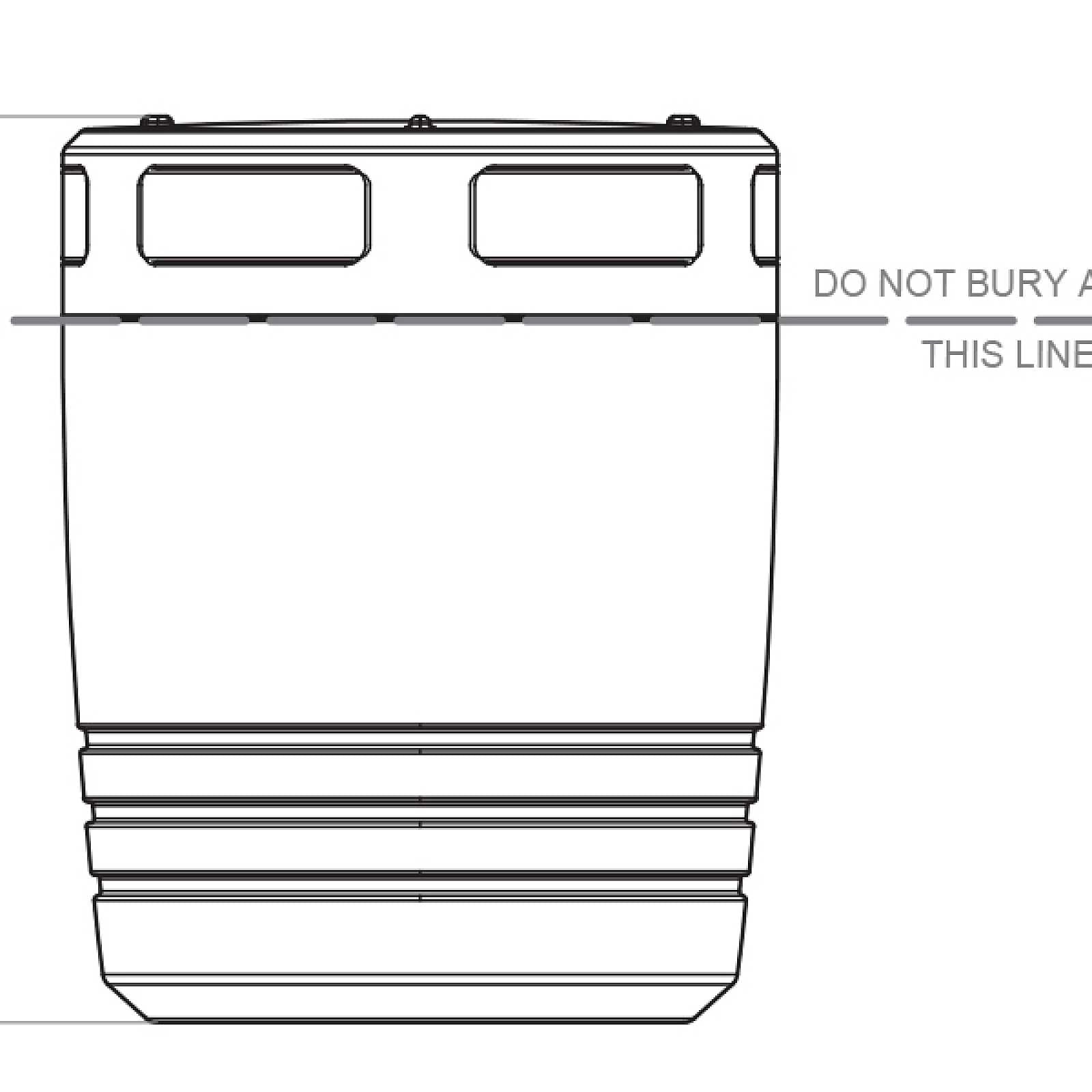

- Can be partially buried in a garden border
- Can be positioned on a deck or patio area
- Brown finish
- 5-year warranty
Driver Configuration
- 1 x 10-inch C-CAM cone, long throw sub-bass driver
- Bespoke inverted cone driver design
- Dual spider configuration for alignment under load
Performance
- Frequency response: 35 Hz, 150 Hz
- Sensitivity: 85 dB
- Maximum SPL: 105 dBA
- Power handling: 150 W RMS
- Recommended amplifier power: 100-150 W
- Nominal impedance: 4 ohms or 70/100 Volt line level (cable select)
- Crossover recommendation: 100 Hz minimum at 12 dB/Octave, 24 dB/Octave optimum
Installation and System Design
- Designed to augment low frequencies in Climate Garden systems
- Compact dimensions for versatile installation

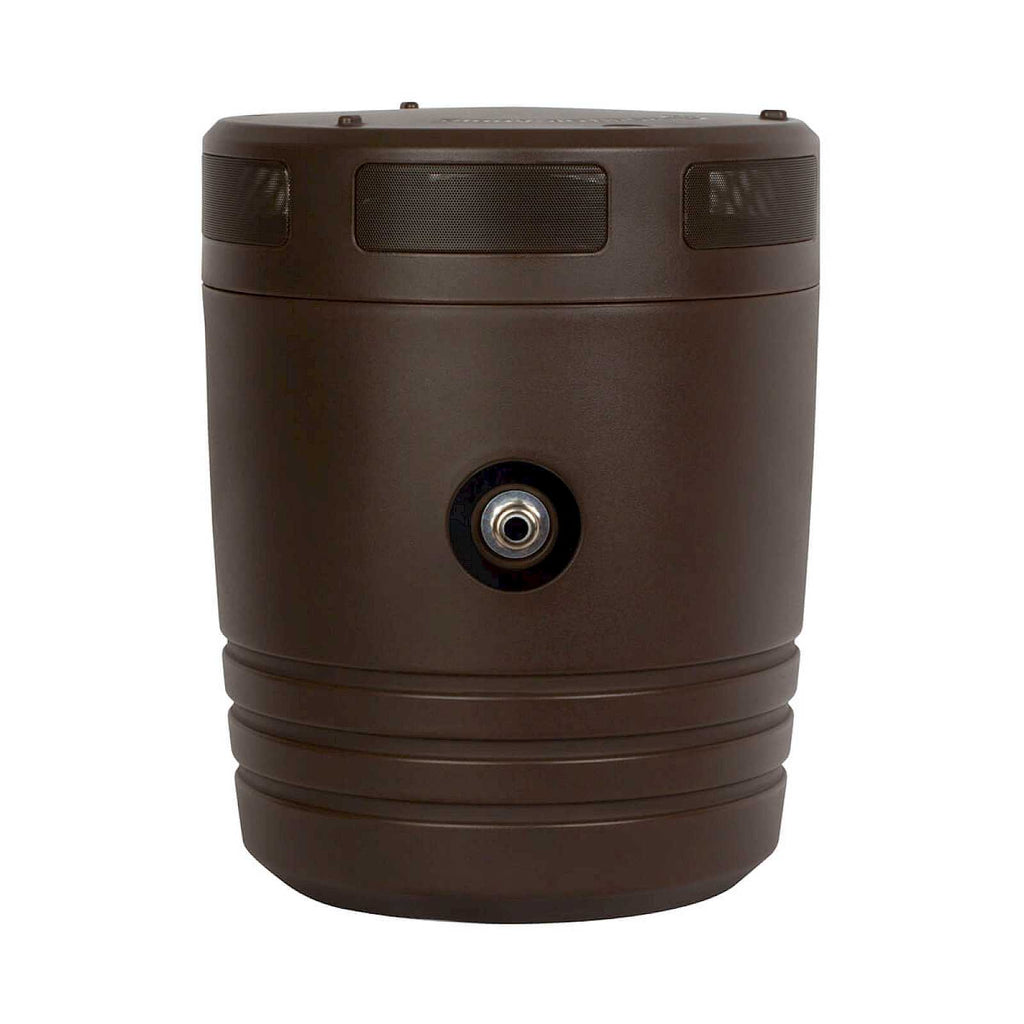

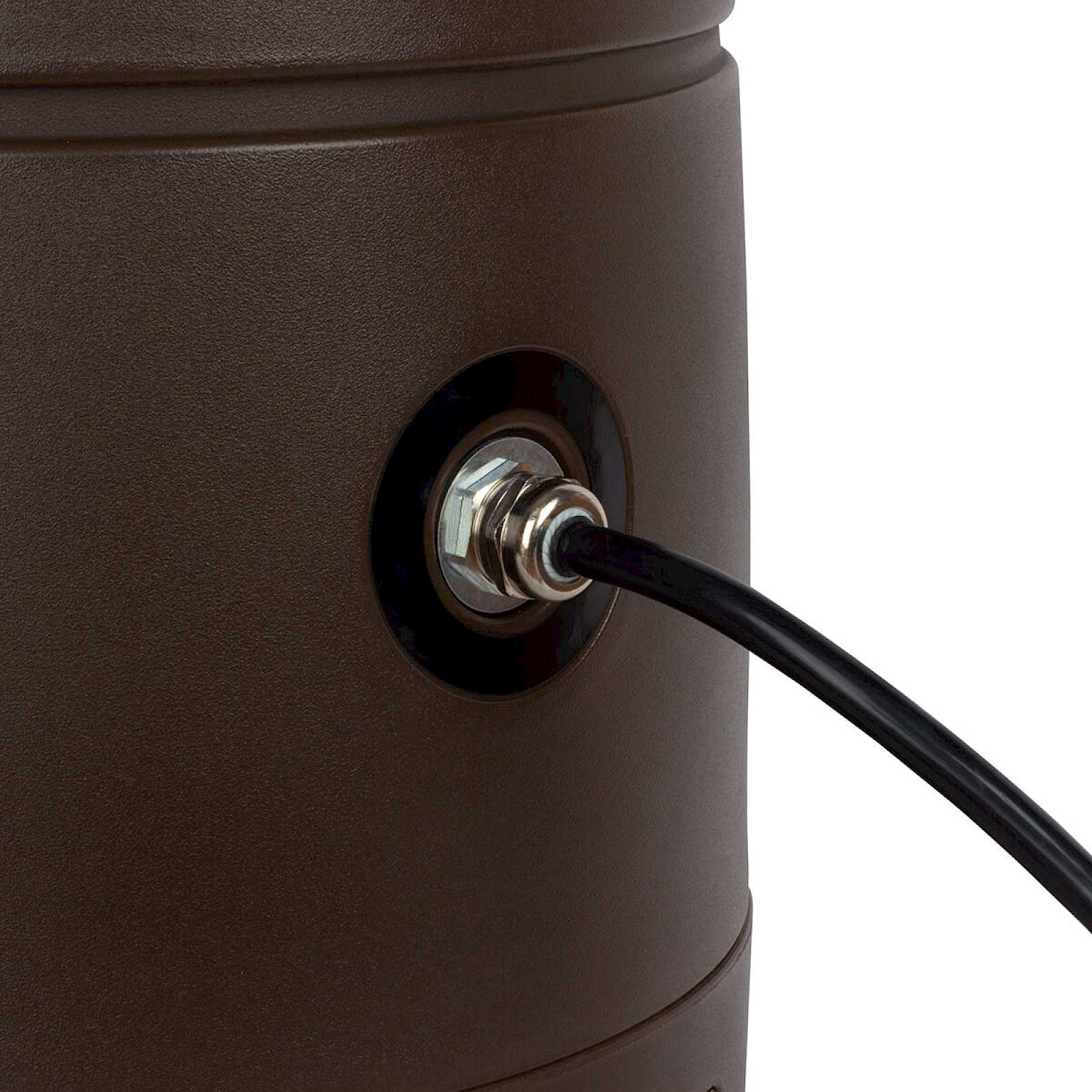

- Encapsulated cable connection
- Can be used in expandable systems with CLG140, CLG160, CLG-W10, and CLG-W12
- Supports larger systems with IA800-2C in 70/100 V line array configurations
Weather Resistance and Build
- IP54 environmental protection rating
- Weather resistant
- Tough and durable in extreme conditions
- Joint-free design to resist water ingress
- Dark brown finish is not painted or coated, so it will not chip or deteriorate
- Operating temperature range: -20° to +70° C / -4° to +158° F
- C-CAM diaphragm is impervious to moisture and tough environmental conditions
Dimensions and Weight

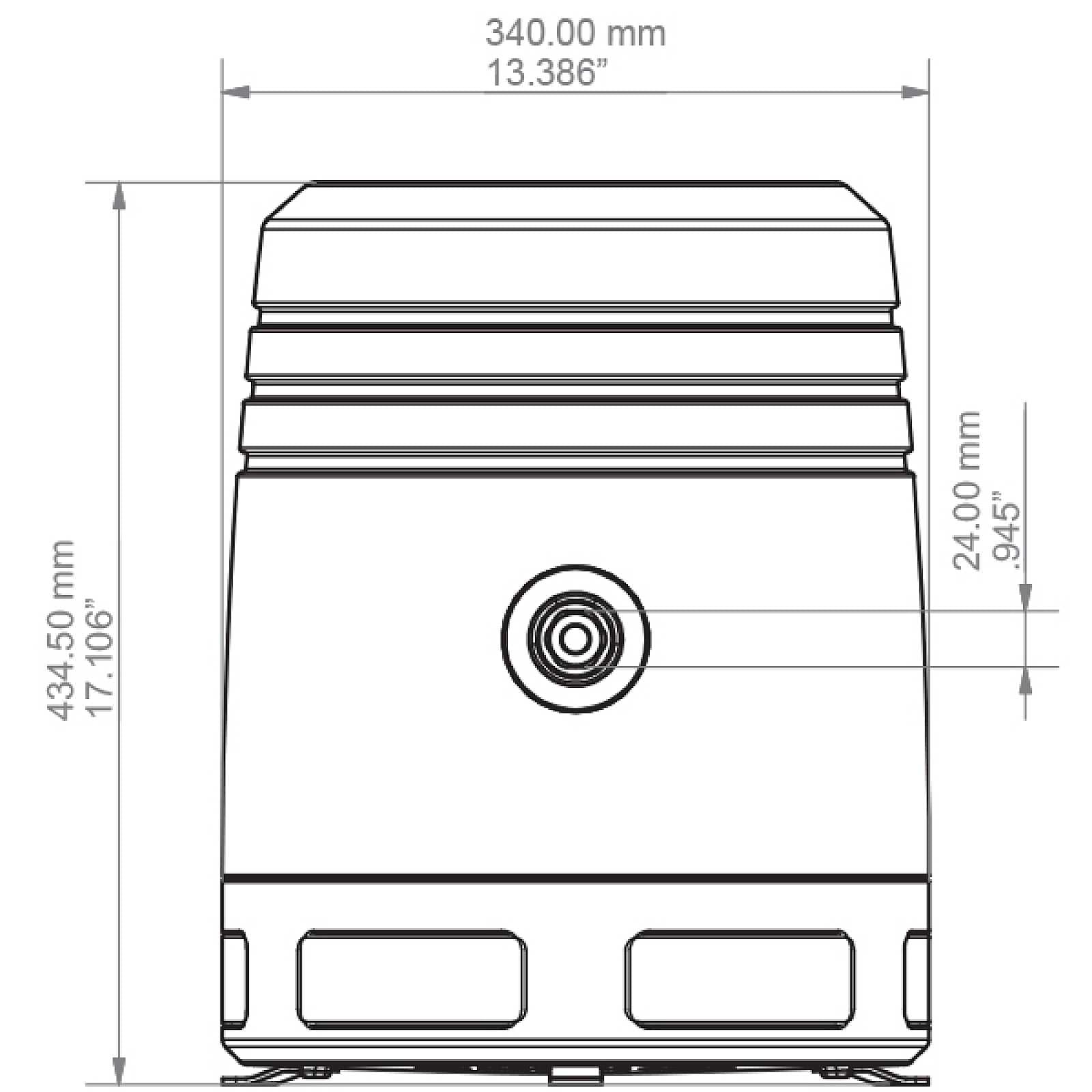

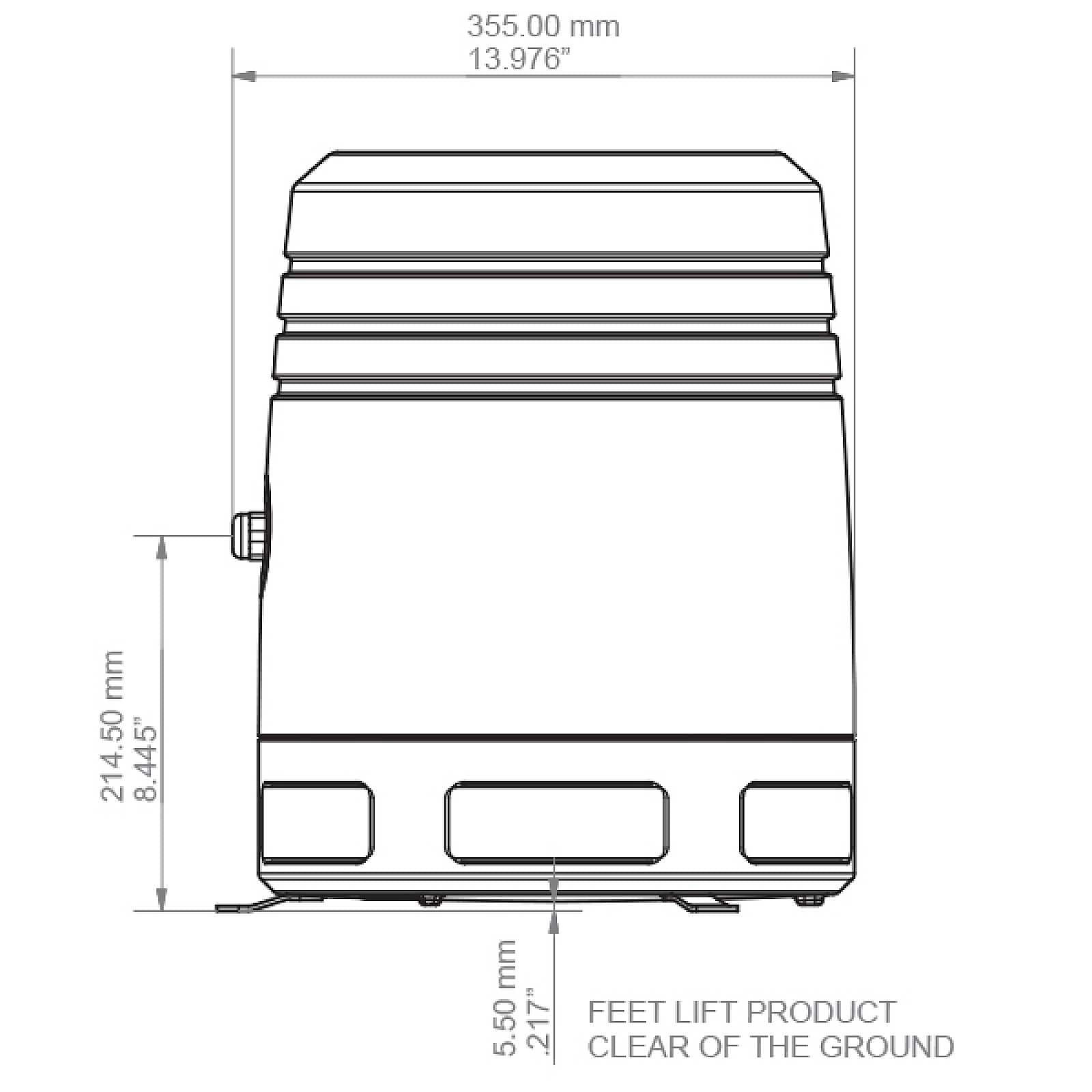

- External dimensions: 340 x 340 x 434.5 mm
- Weight: 11.8 kg
- Sold as a single unit
The Audio Experts Take
The CLG-W10 is a passive outdoor subwoofer for a planned landscape-audio system rather than a standalone plug-in sub. Position, burial or concealment, amplifier choice and crossover strategy all need to be considered with the satellite speakers. The Audio Experts can help design the complete Climate Garden layout so the bass supports the coverage rather than drawing attention to one location.
Brand new. Contact us for current availability and Climate Garden system matching advice.
