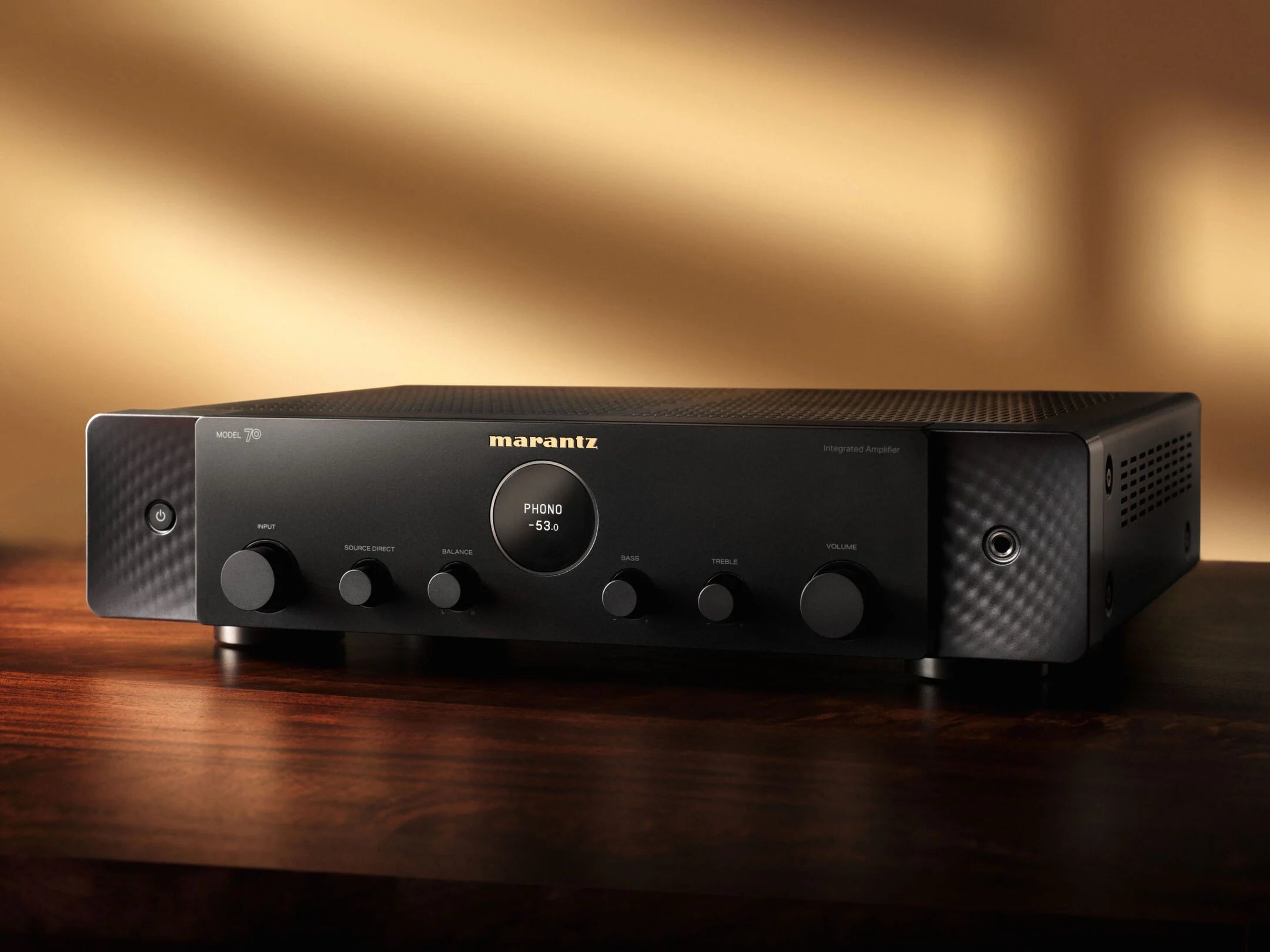

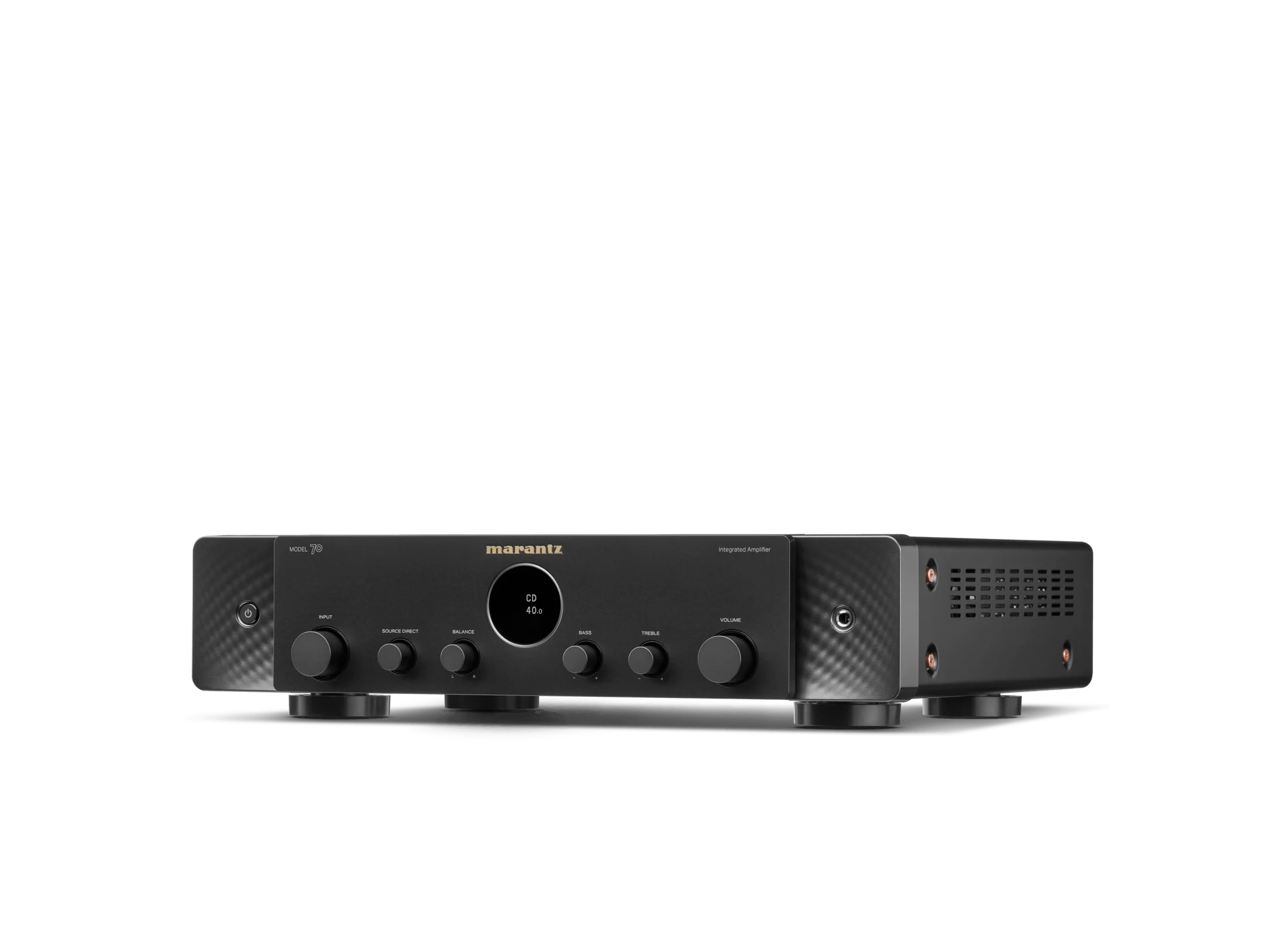

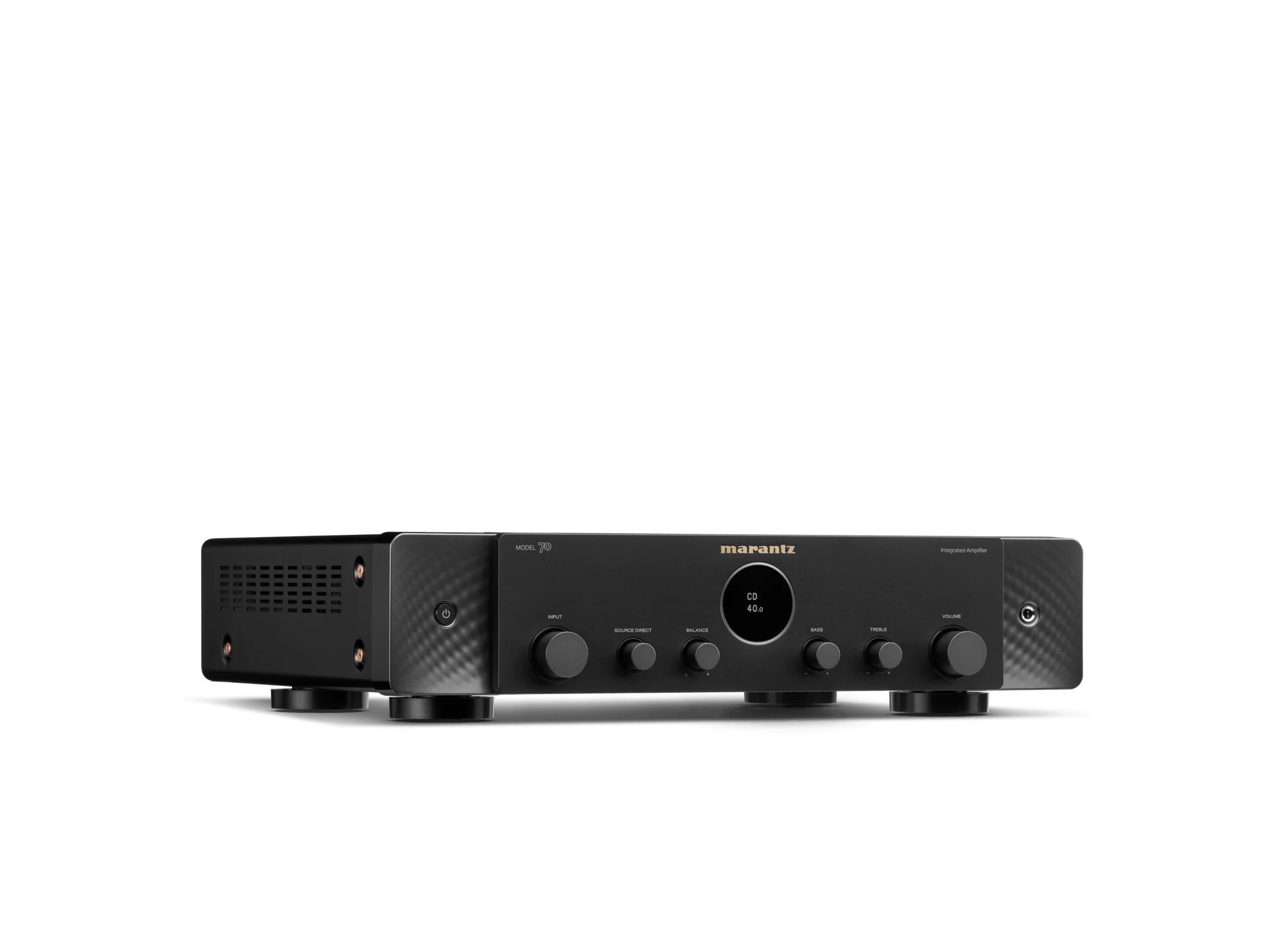

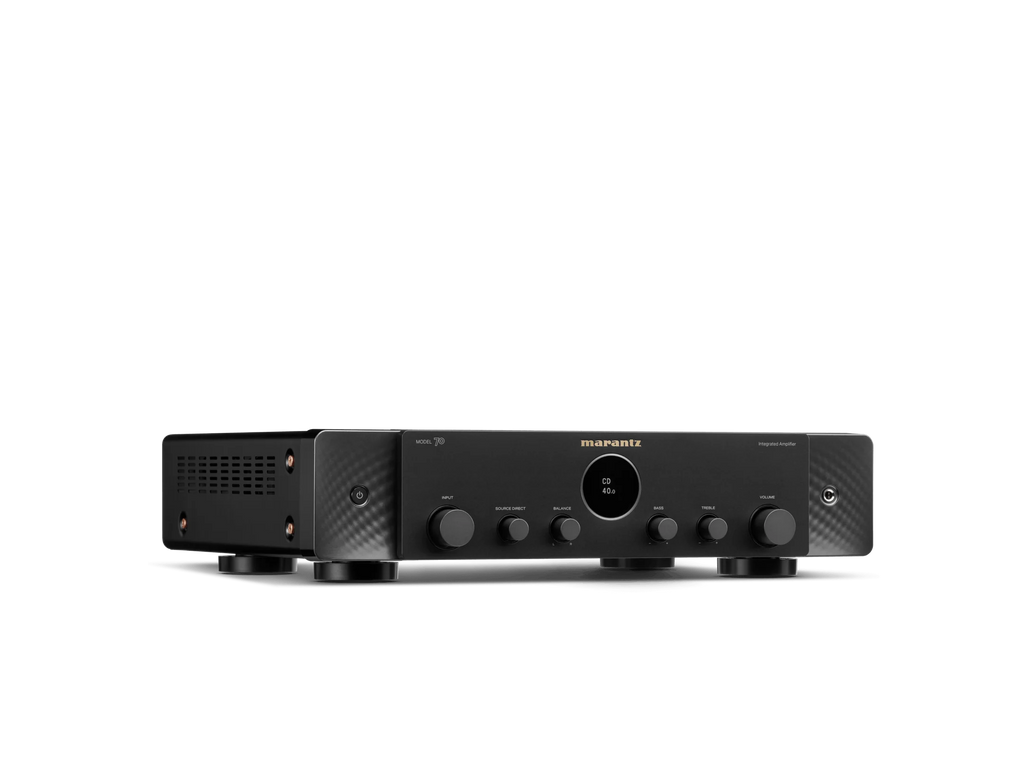

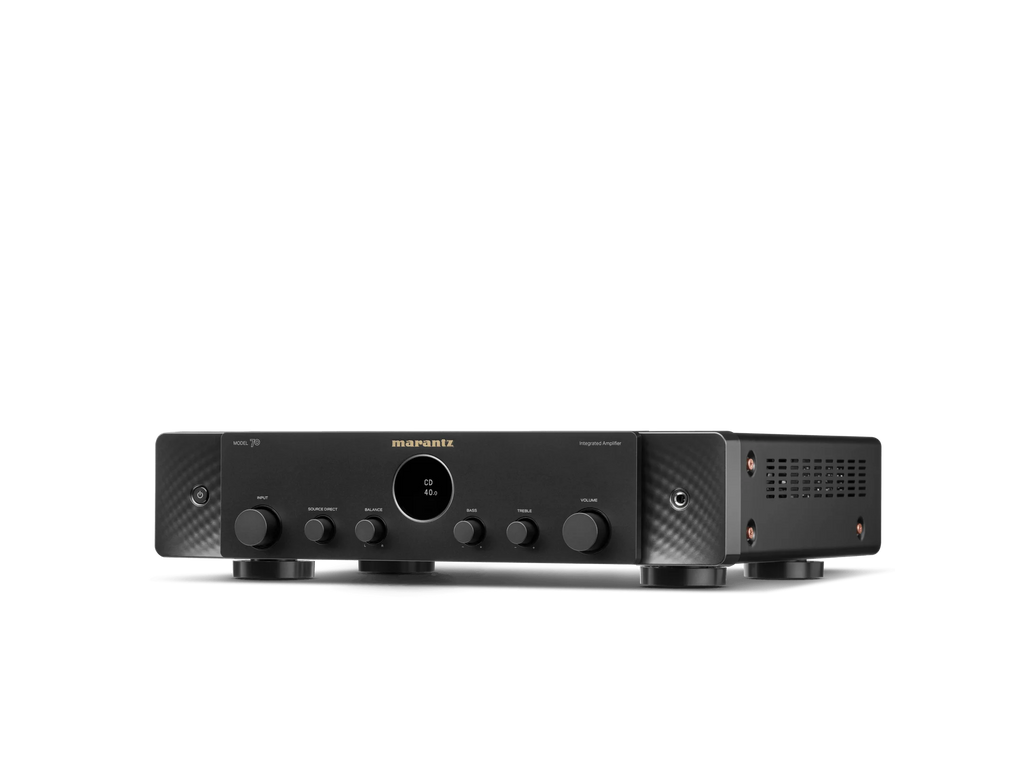

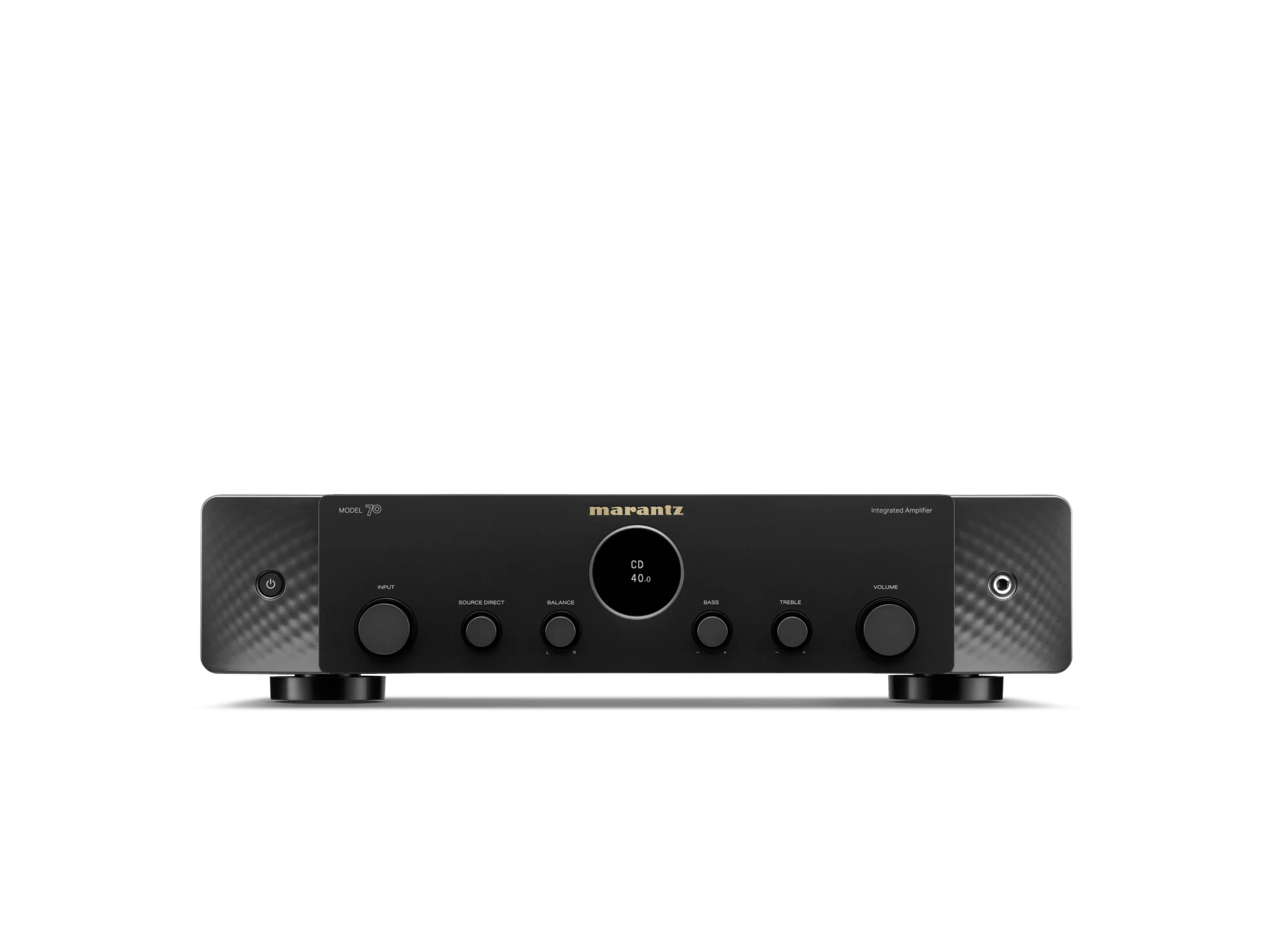

Marantz MODEL 70 Integrated Stereo Amplifier

Marantz MODEL 70 Integrated Stereo Amplifier with HDMI ARC and Bluetooth

The Marantz MODEL 70 is a two-channel integrated amplifier combining 50W-per-channel Class A/B amplification with HDMI ARC, an MM phono stage, digital inputs and aptX Adaptive Bluetooth for a flexible music and television system.

The whole point here is simple: the MODEL 70 covers the sources many modern two-channel systems actually use without becoming a network receiver or a surround-sound product. A turntable, CD player, television, digital source and Bluetooth device can all feed one conventional stereo amplifier.

Its relatively slim chassis also makes it easier to accommodate than a full-height amplifier. That does not remove the need for ventilation, but it gives the MODEL 70 a clear role in living rooms and cabinetry where a traditional hi-fi system still needs to coexist neatly with a television.

Two-Channel Amplification

Sensible power backed by a high-current design.

The MODEL 70 delivers 50W per channel into 8 ohms and 65W per channel into 4 ohms. It uses a current-feedback Class A/B amplifier topology, HDAM-SA3 circuitry, a toroidal transformer and a linear-drive power supply.

The quoted output is not intended to win a specification-sheet contest. Its practical appeal is that the amplifier has been designed as a proper two-channel component rather than treating the stereo section as an afterthought. For suitable standmount and floorstanding speakers in small to medium-sized rooms, that gives it a very clear role.

Speaker matching still matters. Loudspeaker sensitivity, impedance behaviour, room size and intended listening level should be considered together rather than judging suitability from the 50W figure alone.

HDMI ARC for Television Sound

A cleaner way to bring a TV into a stereo system.

A single HDMI ARC connection allows audio from a compatible television to play through the MODEL 70 and the connected stereo speakers.

That makes a lot of sense when the brief is better television, film and streaming sound without adding a soundbar or building a full surround system. It also keeps the system centred on the main left and right speakers, which can be particularly appealing in rooms used more for music than cinema.

This is HDMI ARC rather than a bank of HDMI video inputs. Sources still connect to the television, with compatible audio returned to the amplifier.

Vinyl, Analogue and Digital Sources

Enough connectivity for a focused hi-fi system.

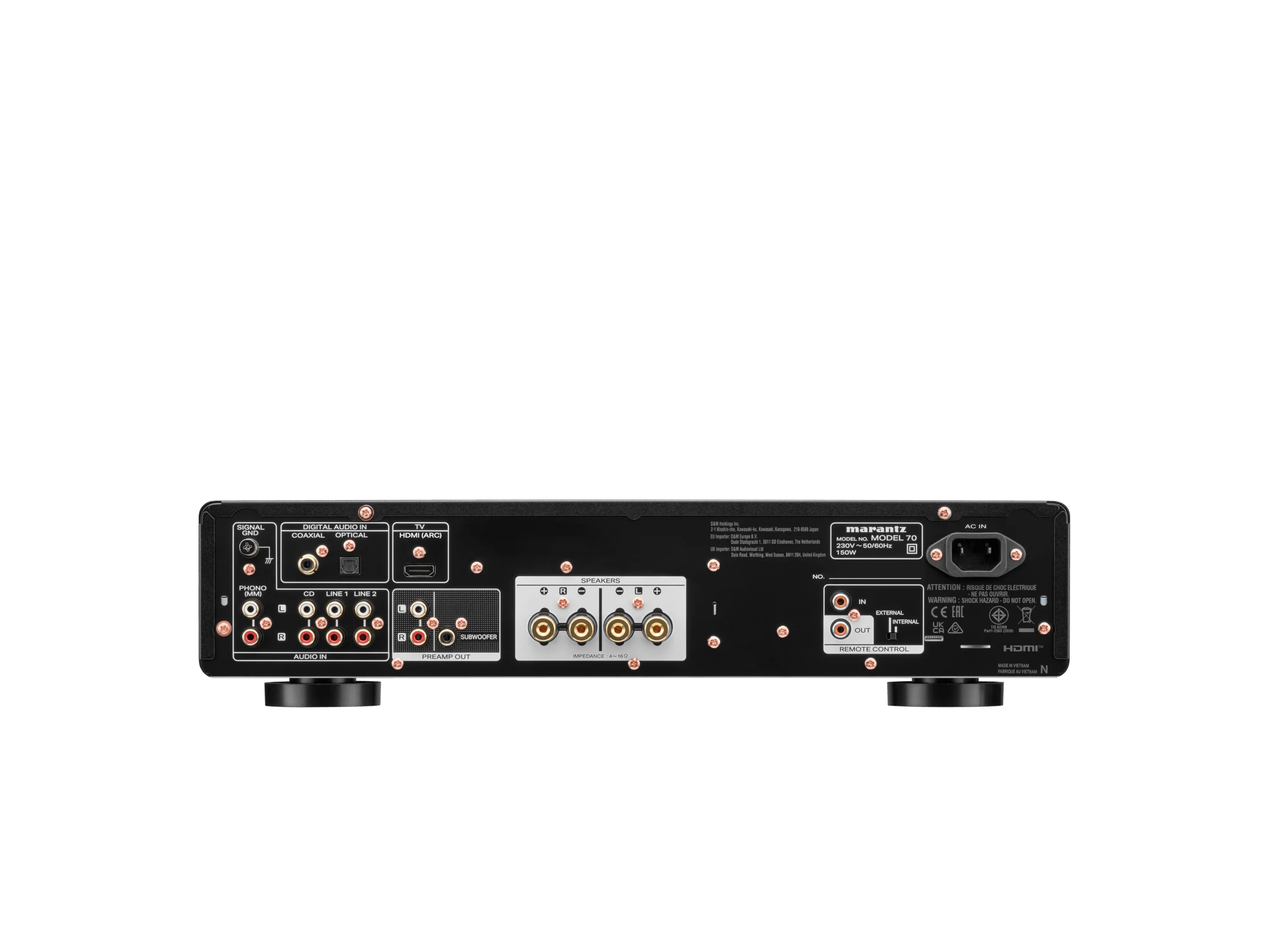

The built-in moving-magnet phono stage allows a compatible MM turntable cartridge to connect directly. Four line-level analogue inputs provide room for sources such as a CD player, tuner, streamer or external DAC.

Digital equipment can be connected through one optical and one coaxial input. These feed an ES Sabre DAC and accept signals up to 192kHz/24-bit.

This mix is commercially honest. The MODEL 70 is not pretending to be an all-in-one network streamer, but it gives a conventional stereo system the inputs needed to combine older components with current televisions and digital sources.

Bluetooth with aptX Adaptive

Convenient wireless playback without building the amplifier around an app.

Bluetooth playback supports aptX, aptX HD and aptX Adaptive alongside standard Bluetooth compatibility. That gives phones, tablets and compatible computers a straightforward wireless route into the system.

The MODEL 70 can also transmit to compatible Bluetooth headphones, with headphone volume control provided by the amplifier.

Bluetooth is useful for casual playback and guests, but it does not replace a dedicated network streamer where app-controlled services, multi-room playback or high-resolution network libraries are central to the system. That distinction makes the MODEL 70 better suited to customers who want to choose their own streamer rather than have one permanently built in.

Pre-Out, Subwoofer and Headphone Connections

Room to extend the system.

A stereo pre-out allows the MODEL 70 to feed an external power amplifier or another compatible downstream component. A dedicated subwoofer output provides a straightforward route to an active subwoofer.

The subwoofer output is useful where smaller speakers need support or where the room and listening habits call for greater low-frequency weight. Subwoofer crossover and integration settings will also depend on the controls available on the connected subwoofer.

A dedicated front-panel headphone output provides private listening without requiring a separate headphone amplifier for everyday use.

Source Direct and Tone Control

Choose between a short signal path and useful everyday adjustment.

Source Direct bypasses the balance and tone-control circuitry when the most direct signal path is preferred. Bass, treble and balance controls remain available when the room, recording or speaker placement benefits from some correction.

That flexibility is useful in a real living room. A purist setting is available, but the amplifier does not assume that every recording and every room will behave perfectly.

Compact Marantz Design

Easier to integrate, but still deserving of ventilation.

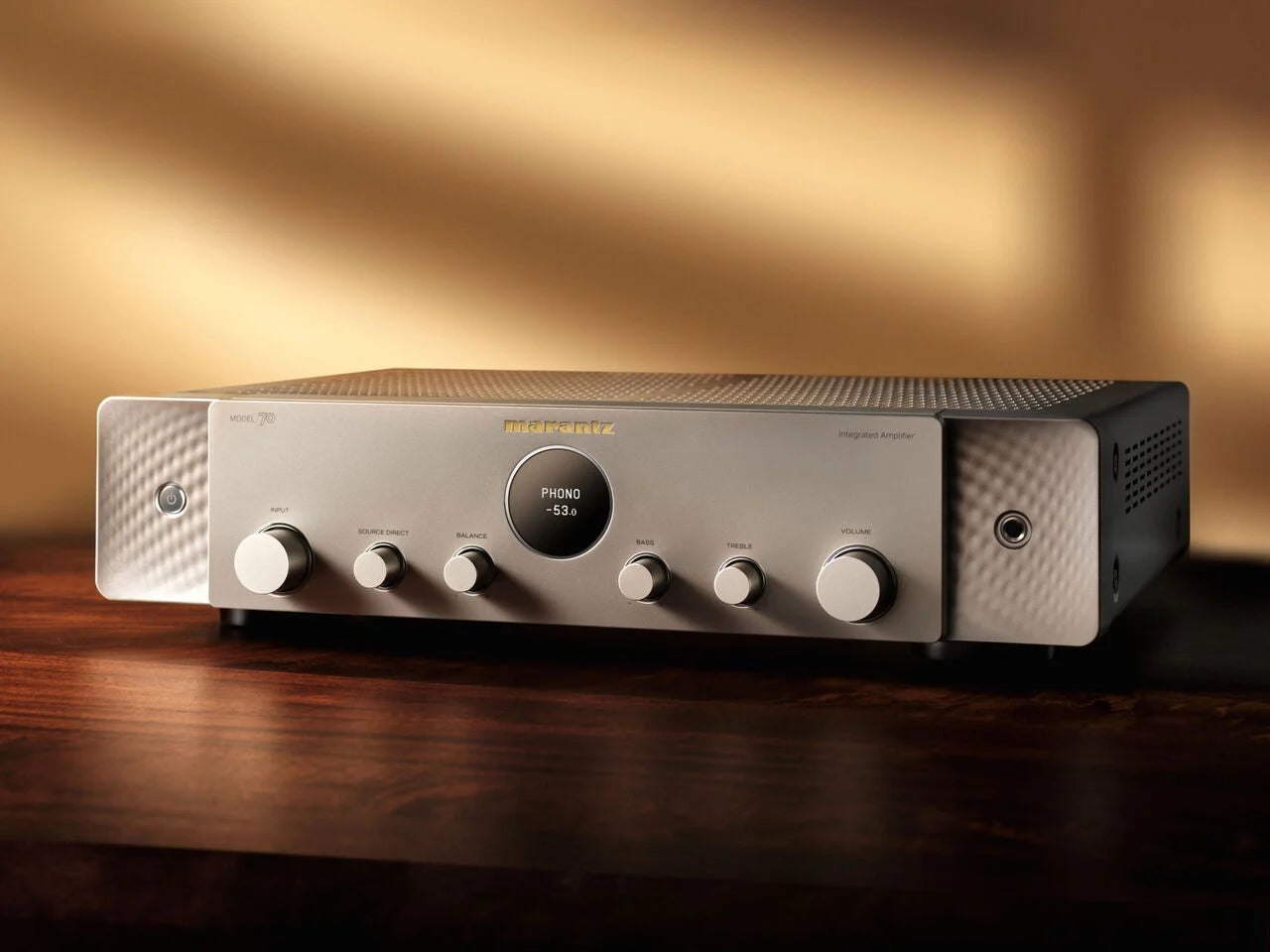

The MODEL 70 measures 442mm wide, 375mm deep and 109mm high, with a weight of 7.9kg. It is available in Black and Silver-Gold.

The reduced height helps with placement, but the top ventilation openings must remain clear. Avoid tightly enclosed cabinets, stacking hot-running equipment directly on top, or treating the compact chassis as permission to ignore airflow.

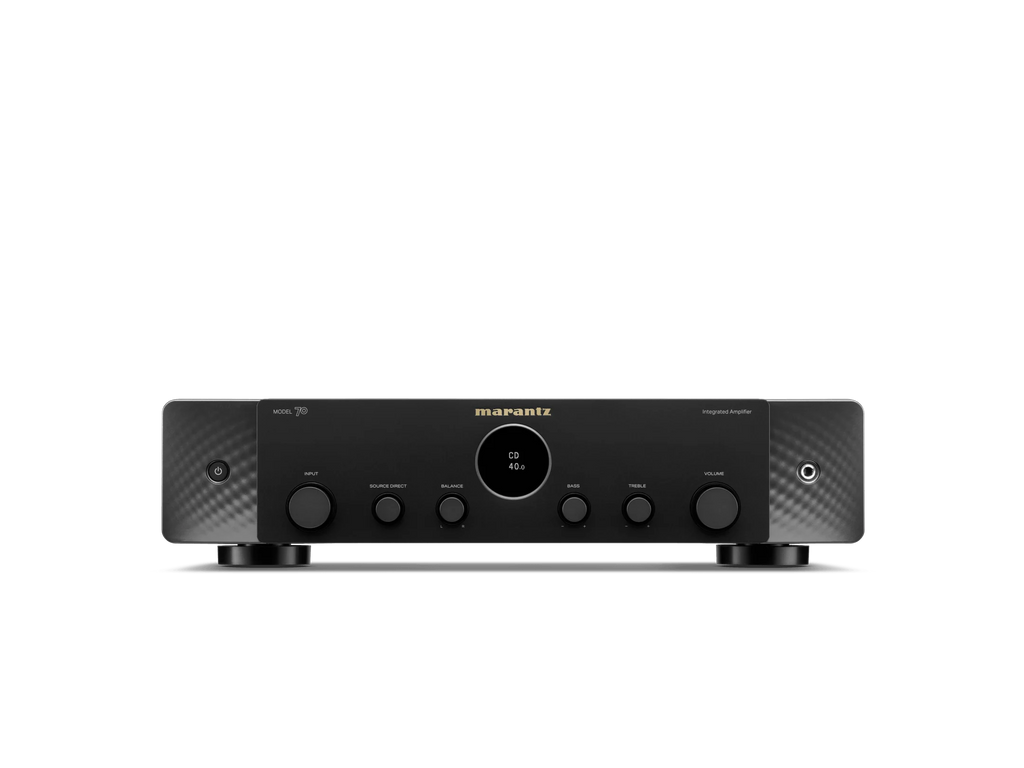

The circular OLED display and symmetrical front controls retain a recognisable Marantz appearance while keeping the operating layout straightforward.

Available Variants

The amplifier specification is shared between finishes.

Key Features

• Two-channel Class A/B integrated amplifier
• 50W per channel into 8 ohms
• 65W per channel into 4 ohms
• Current-feedback amplifier topology
• Marantz HDAM-SA3 circuitry
• Toroidal power transformer
• HDMI ARC connection
• MM phono stage
• Four line-level analogue inputs
• One optical and one coaxial digital input
• ES Sabre DAC with support up to 192kHz/24-bit
• Bluetooth with aptX Adaptive
• Bluetooth headphone transmission
• Stereo pre-out
• Dedicated subwoofer output
• Wired headphone output
• Source Direct
• Bass, treble and balance controls
• Black and Silver-Gold finishes

Specifications

Detailed Technical Specifications

For those who like to drag out all the useful bits

Important Notes

• The MODEL 70 does not include HEOS Built-in, Wi-Fi, Ethernet or app-based network streaming. Add a suitable external streamer where those features are required.
• HDMI is provided as a single ARC connection for compatible television audio. It is not an HDMI switching hub for multiple video sources.
• The phono input supports moving-magnet cartridges, not moving-coil cartridges.
• There is one stereo pair of speaker terminals rather than Speaker A/B outputs.
• Speaker suitability should be assessed from impedance, sensitivity, room size and listening level, not wattage alone.
• Leave adequate clearance around the ventilation openings, particularly when the amplifier is placed in cabinetry.
• Subwoofer filtering and level adjustment may depend on the connected subwoofer’s controls.
• Confirm current Australian warranty, price and availability before publication or ordering.

The Audio Experts Take

The MODEL 70 makes a lot of sense when the system is fundamentally about two-channel music but the television also deserves better sound. HDMI ARC keeps daily TV use simple, while the MM phono stage, digital inputs and conventional analogue connections cover the sources found in many real hi-fi systems.

Its 50W-per-channel rating places it in sensible small-to-medium-room territory rather than the heavy-duty end of the market. Pair it with appropriately efficient standmount or floorstanding speakers and it should form a tidy, focused system. Larger rooms, difficult speaker loads or very high playback levels may justify moving to a more powerful amplifier.

What we like here is that Marantz has resisted turning it into another all-in-one streaming platform. Customers can use Bluetooth for convenient playback and add the network streamer they prefer, while the amplifier remains useful as the system changes.

📦 Available in Black and Silver-Gold

🛡 Contact us for current Australian warranty details

📍 Contact The Audio Experts for current availability, speaker matching and system advice
