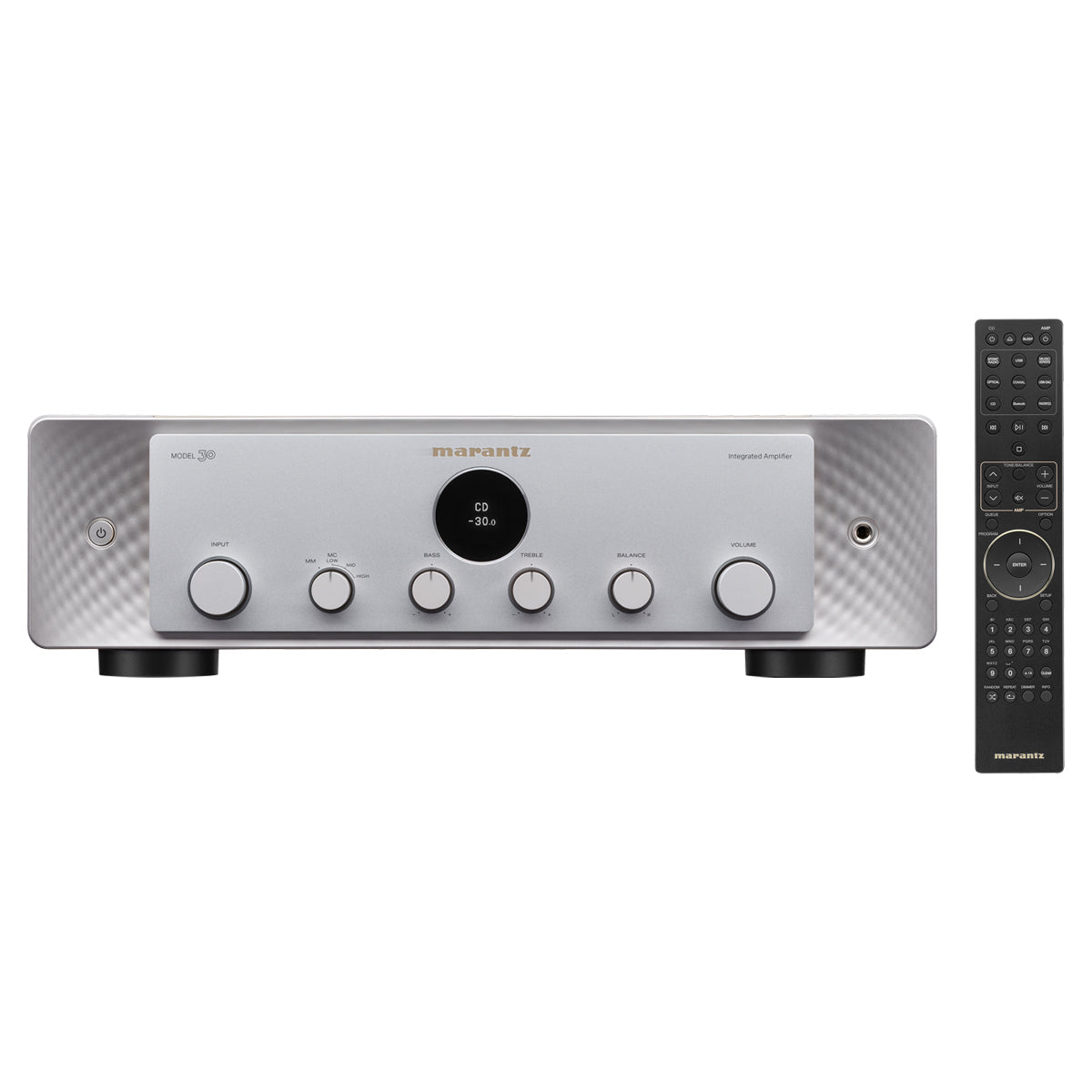

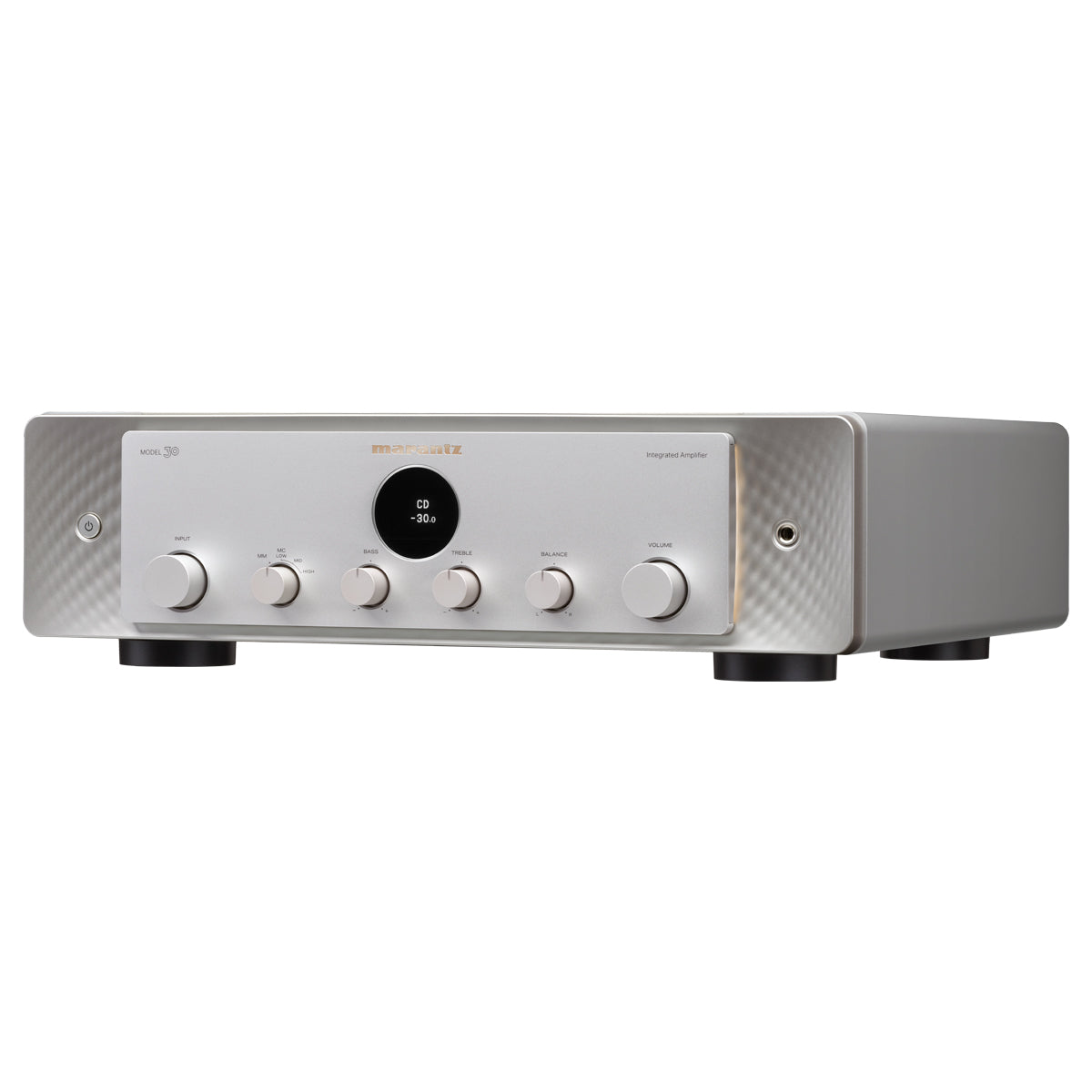

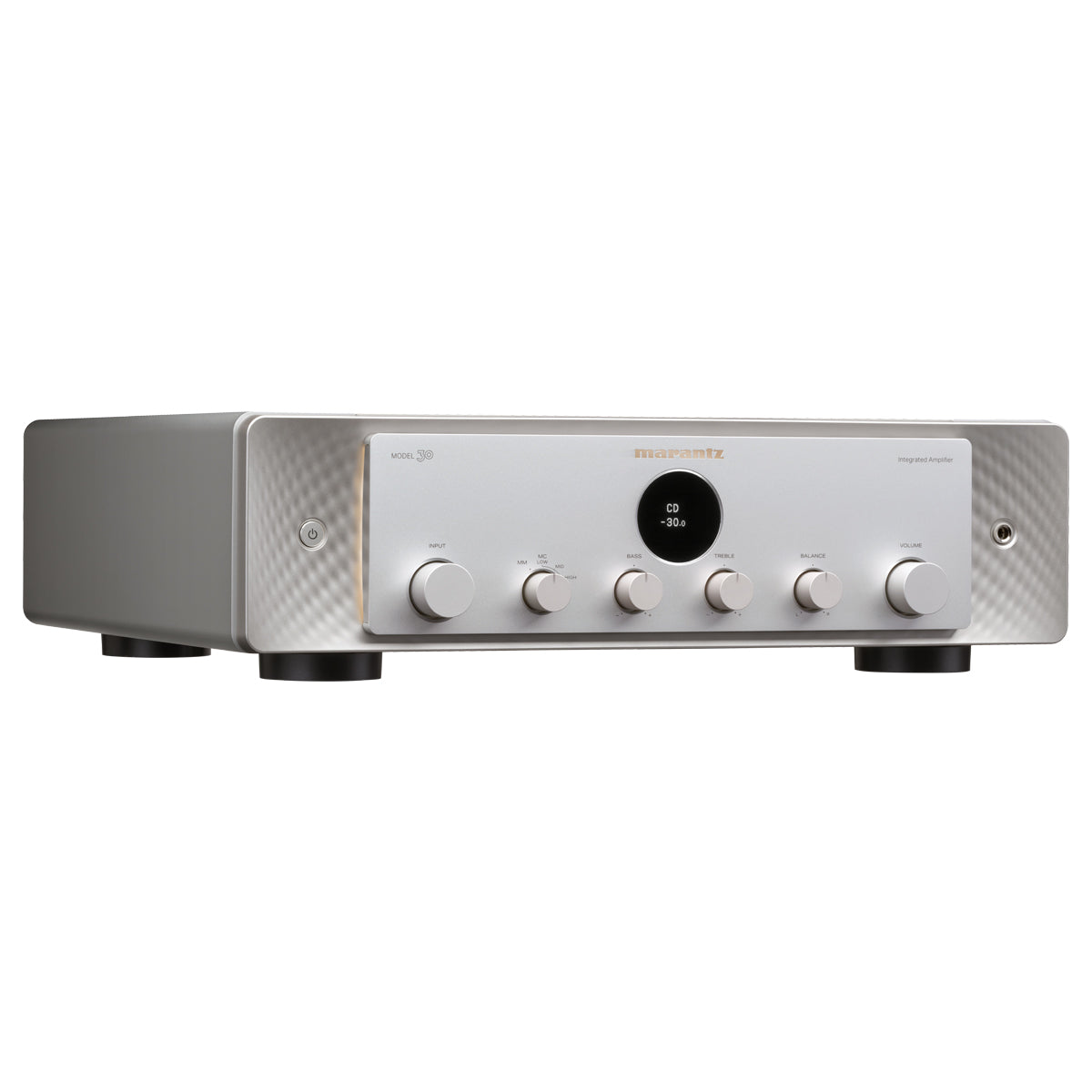

MARANTZ Model 30 Integrated Amplifier
Get the most musical sound possible from this beautiful, integrated amplifier. Exquisitely tuned by the Marantz Sound Master, the MODEL 30 integrated amplifier features a master-curated Marantz HDAM and a fully discrete design for luxurious Hi-Fi purity. Designed to last the test of time and make all your music unforgettable.
- Integrated Amplifier tuned with passion by the Marantz Sound Master.
- Independent pre-amplifier and power amplifier section.
- Toroidal transformer feed power supply dedicated to pre-amplifier.
- Current feedback pre-amplifier design for clarity and details.
- Marantz HDAM technology for low noise and extended frequency range.
- Linear volume control with new electric volume system for best linearity.
- Switching mode power amplifier with dedicated SMPS power supply.
- Solid output of 100W + 100W (8ohm), 200W + 200W (4ohm) to drive any speaker.
- Amplifier design inherited from our flagship models.
- Flat frequency response independent to connected speaker load.
- MM/MC Phono input with selectable MC input resistance.

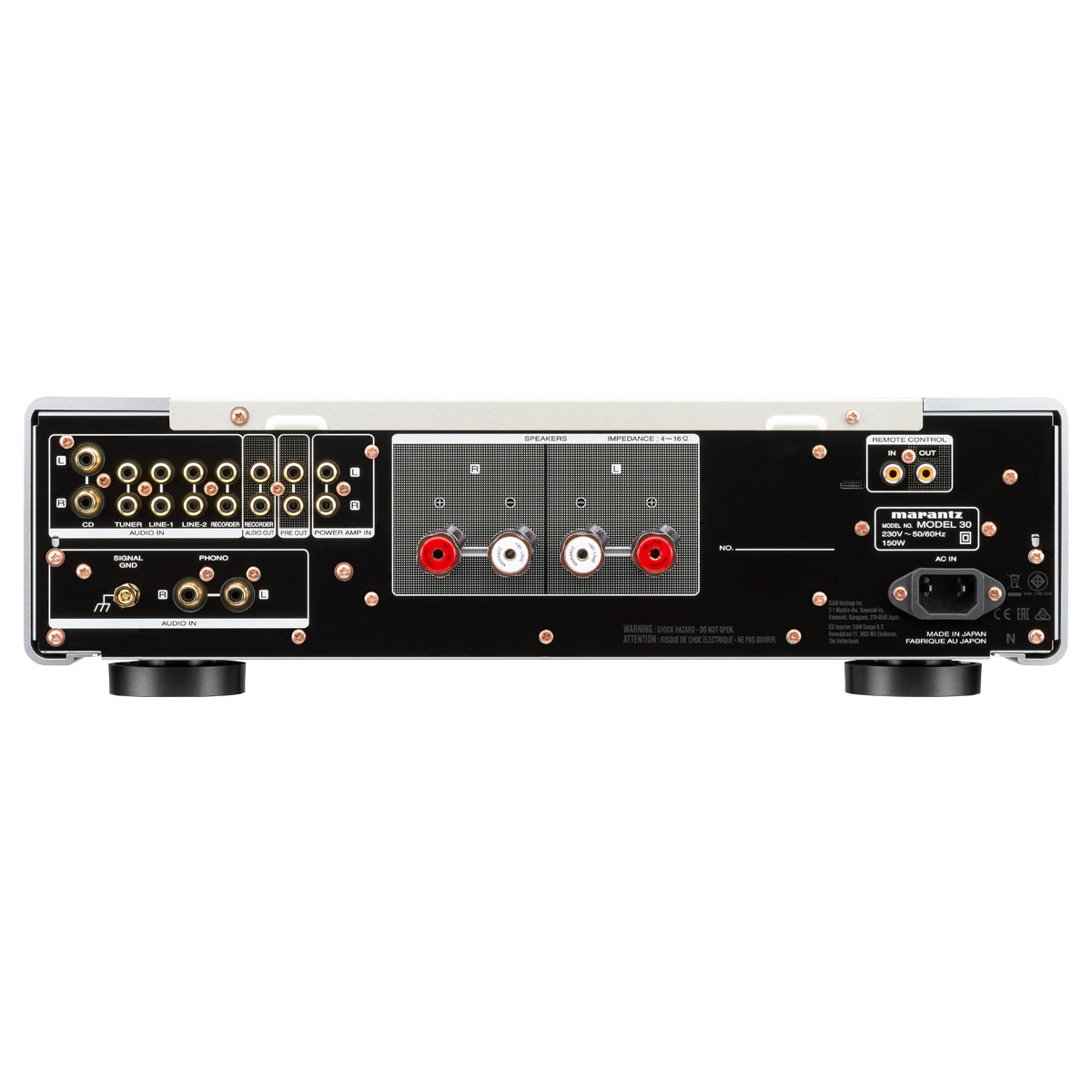

- Extra high quality, low resistant input terminals for CD and Phono.
- Marantz original high-quality/high-purity copper speaker terminals.
- Available in Black and Silver Gold.
Specifications
- Power Output (8 / 4 Ohm RMS) 100 W / 200 W
- Frequency Response 5 Hz - 50 kHz
- Total Harmonic Distortion 0.005 %
- Damping Factor 500
- Input Sensitivity: MM 2.3 mV / 39 kohm
- Input Sensitivity: MC 250 μV / 33/100/390 ohm
- Signal to Noise Ratio: MM/MC 88 / 75 dB
- Input Sensitivity: High level 220 mV / 13 kohm
- Signal to Noise Ratio: High level 107 dB (2V input/rated output)
- General
- Available colours: Black / Silver-Gold
- Power Consumption in W 130
- Standby Consumption in W 0.2
- Auto Power off •
- Detachable Power Cable •

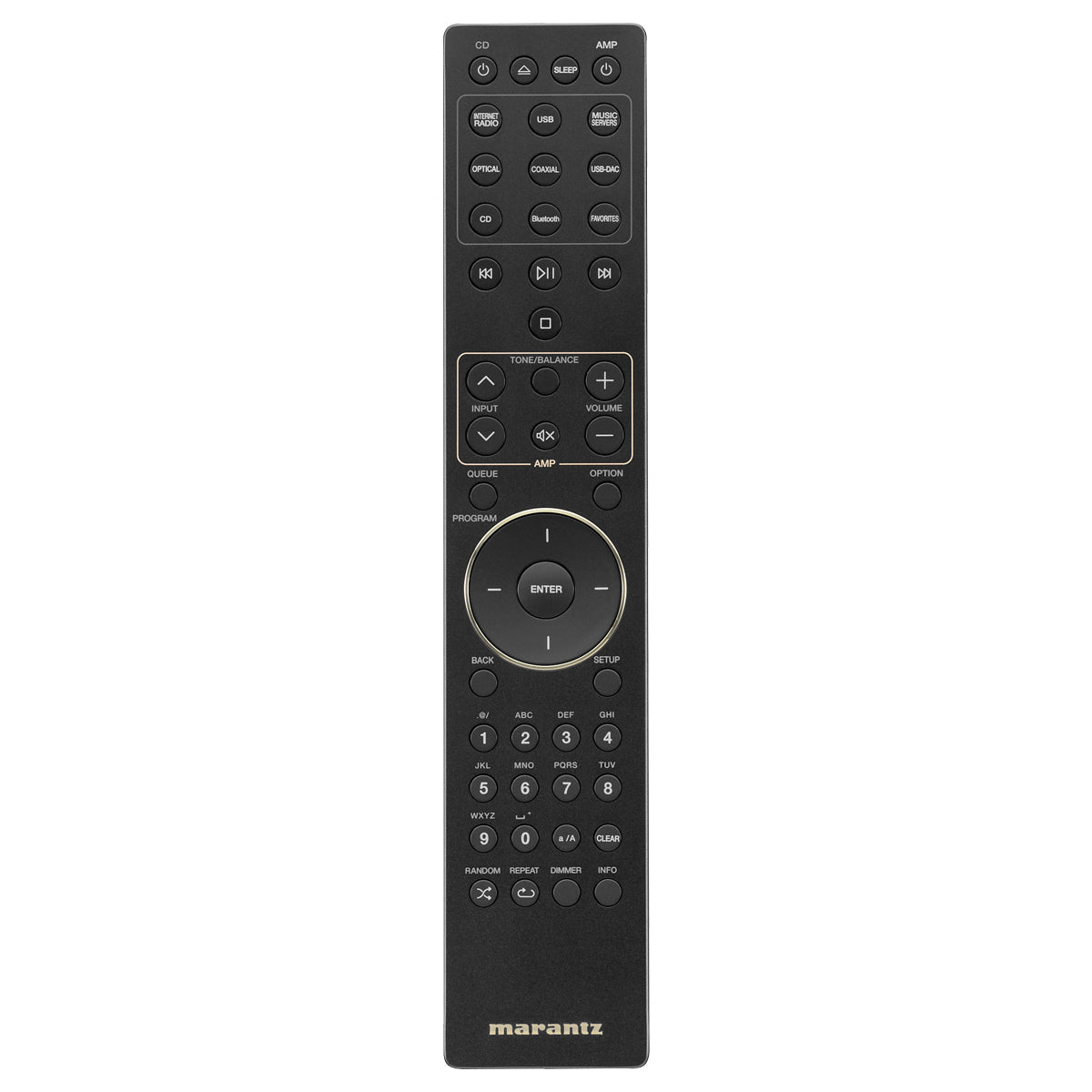

- Remote Control RC002PMND
- System Remote Function •
- Maximum Dimensions (W x D x H) in cm 443 x 431 x 130
- Weight in kg 14.6kg
- Carton Maximum Dimensions (W x D x H) in cm 534 x 522 x 255
- Carton Weight (incl. product) in kg 17kg
