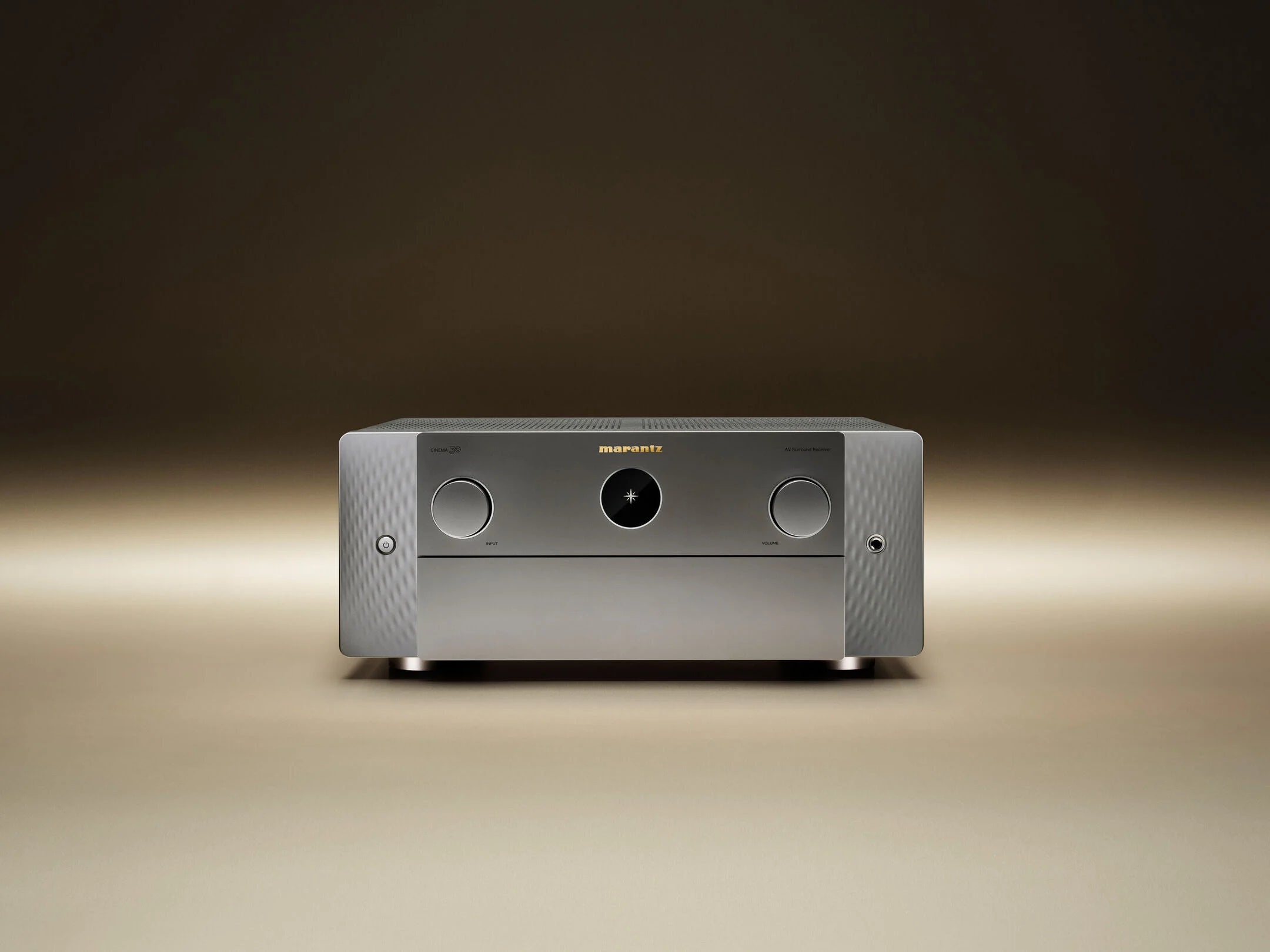

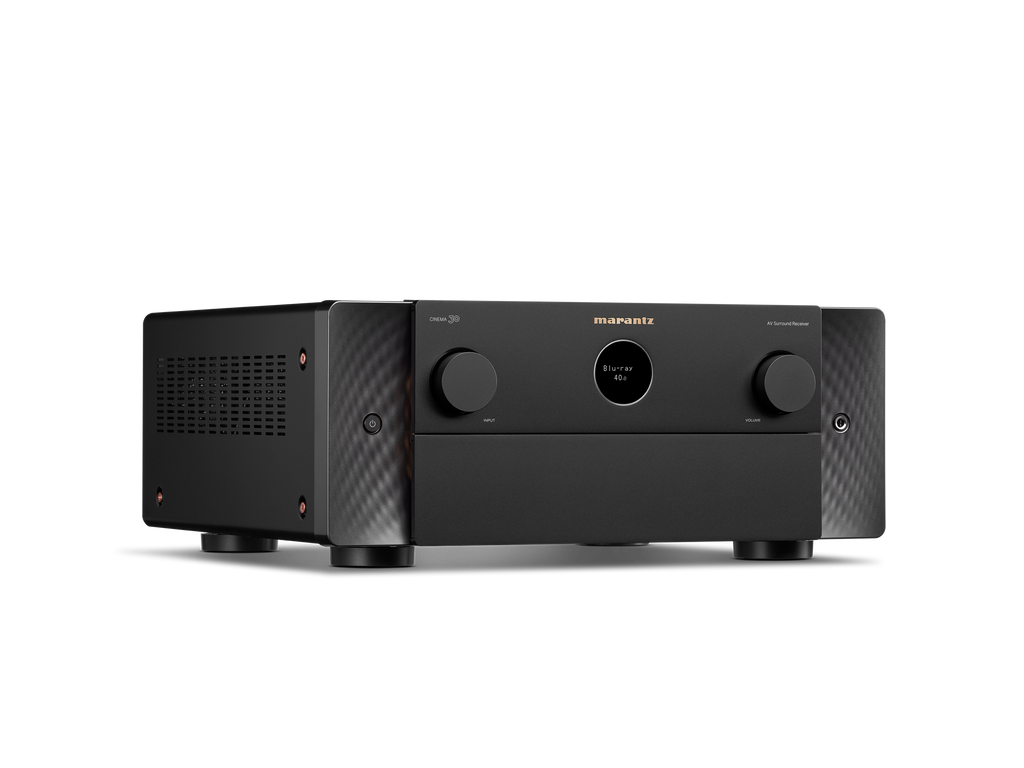

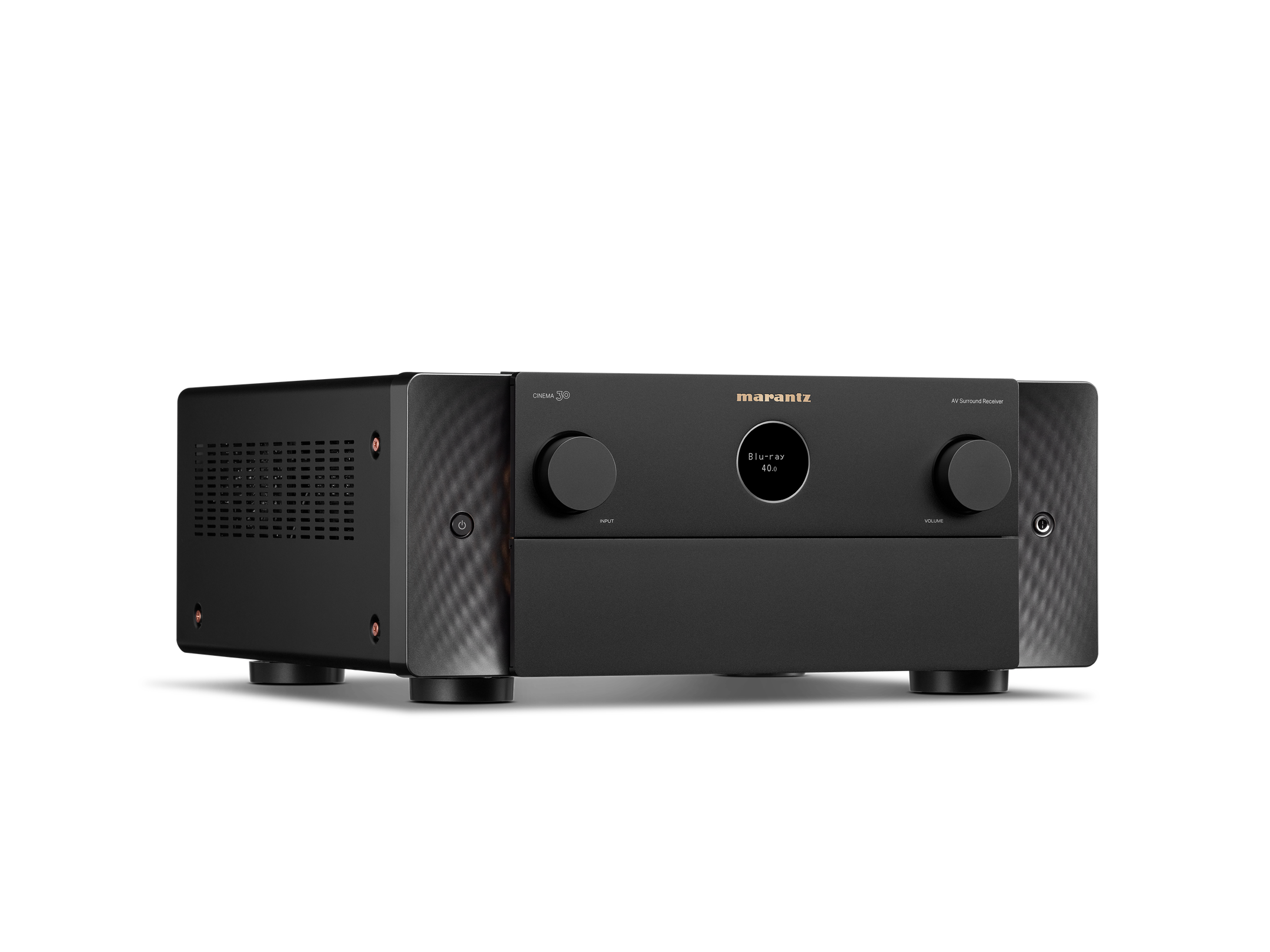

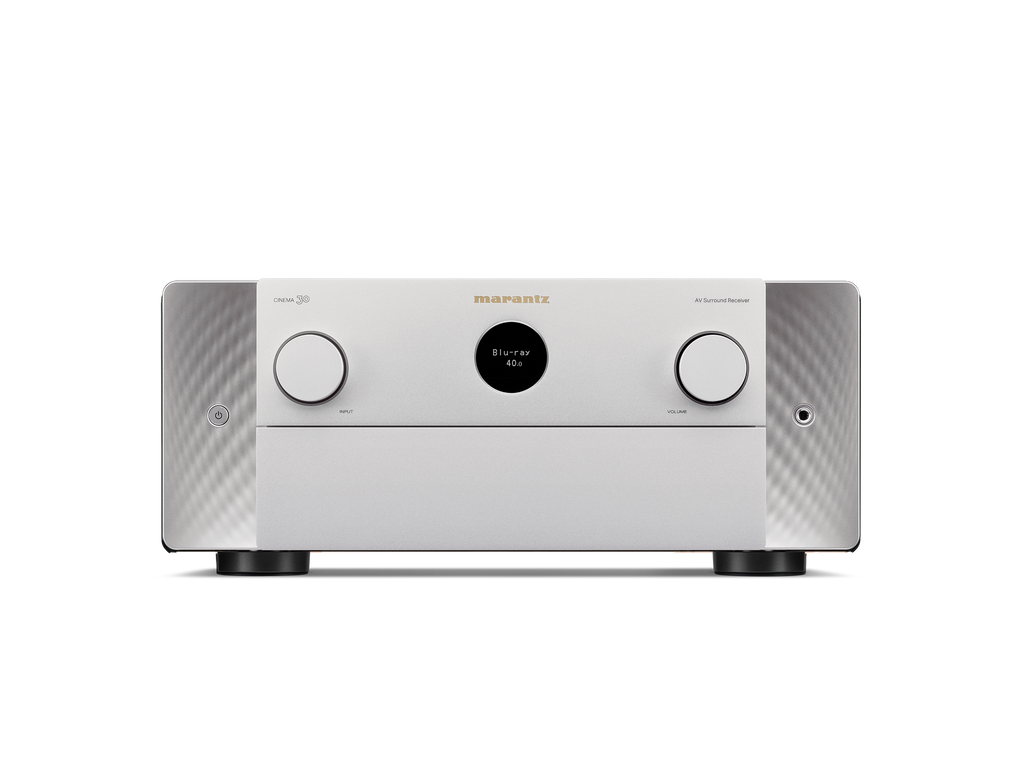

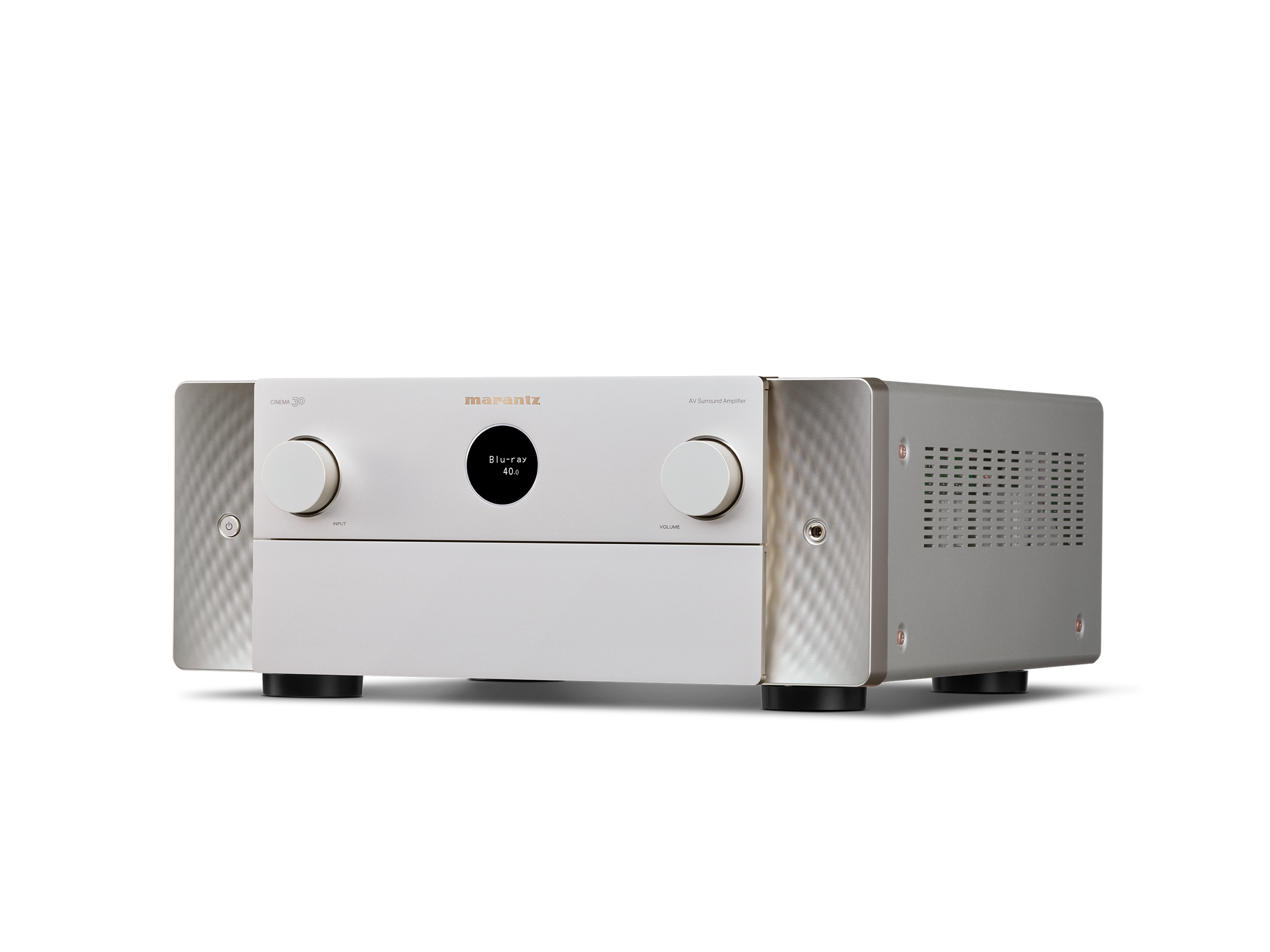

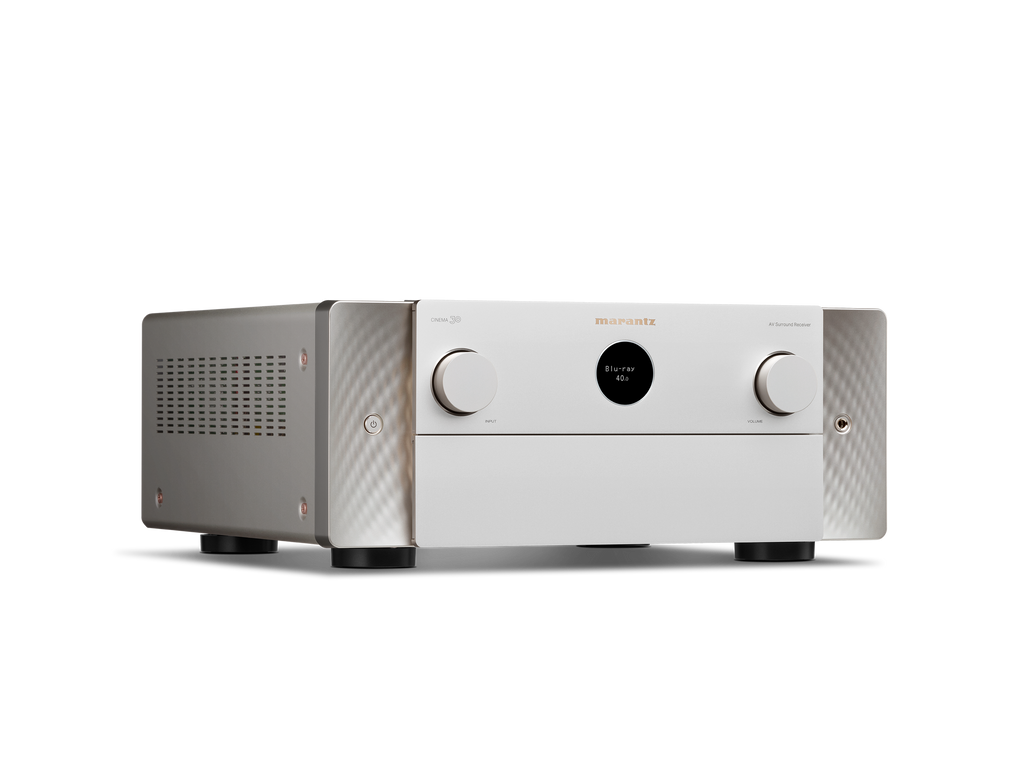

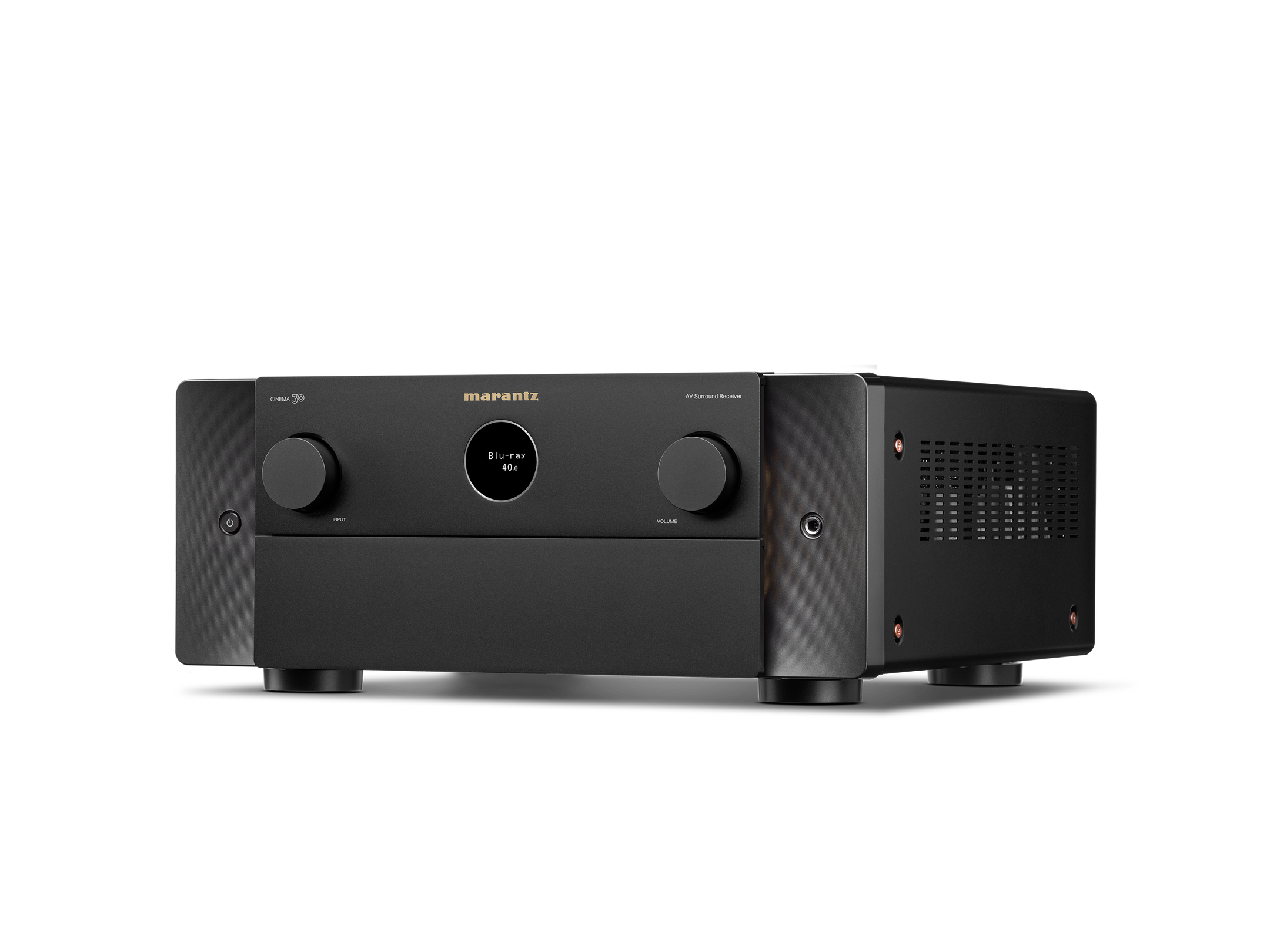

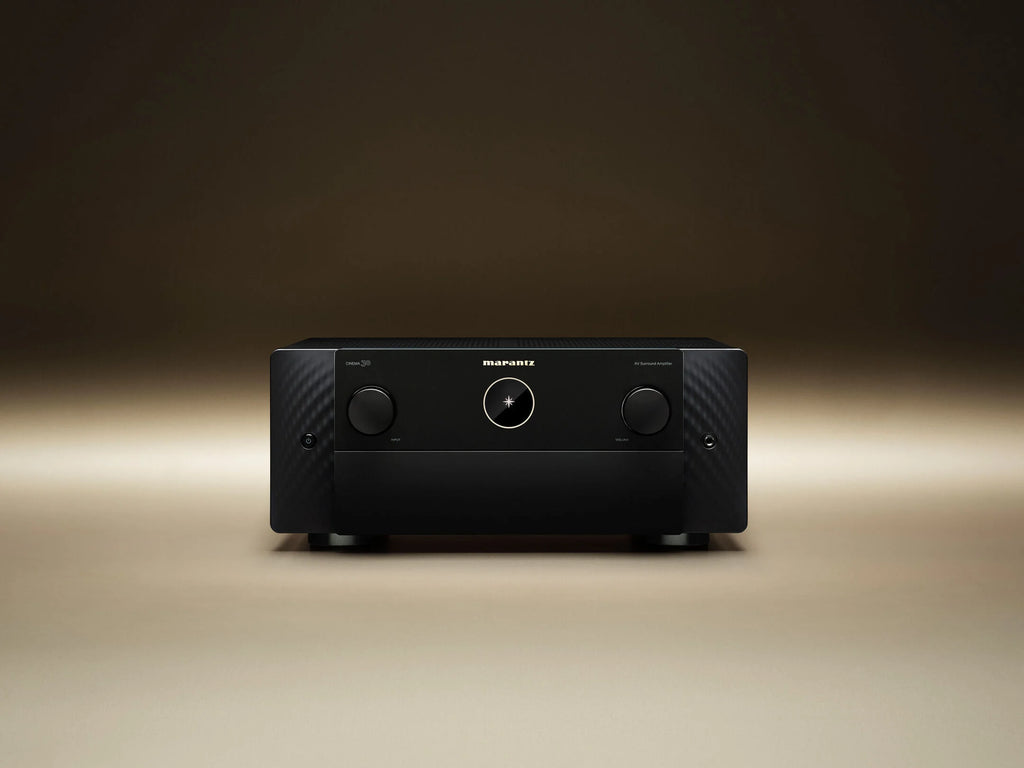

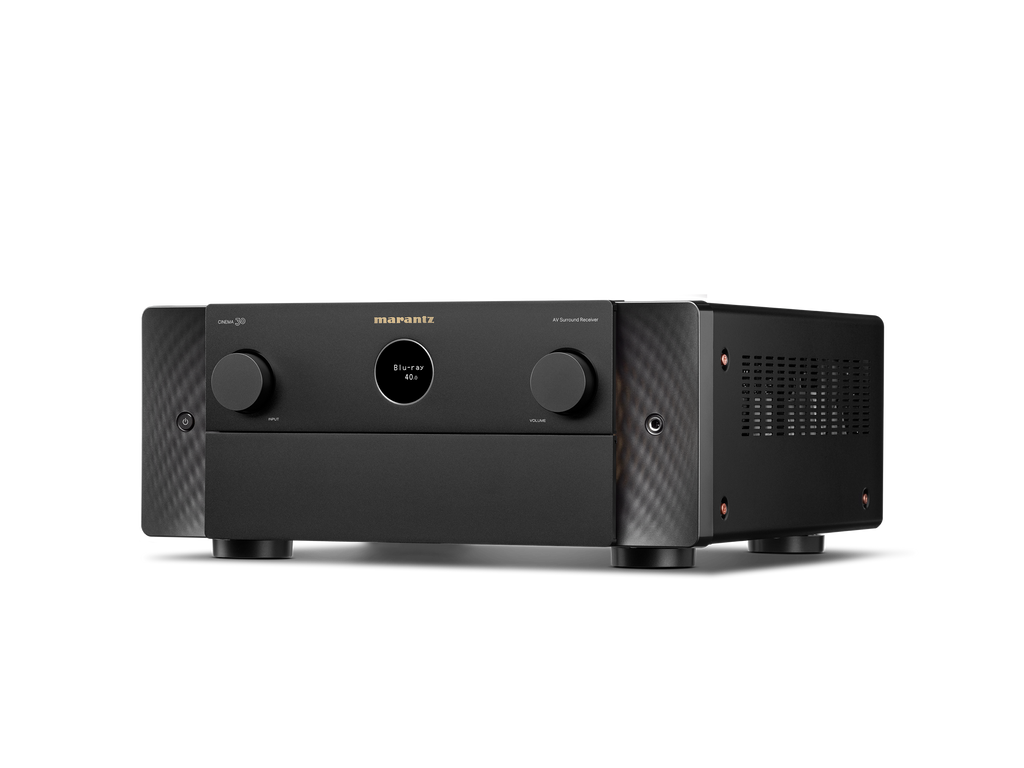

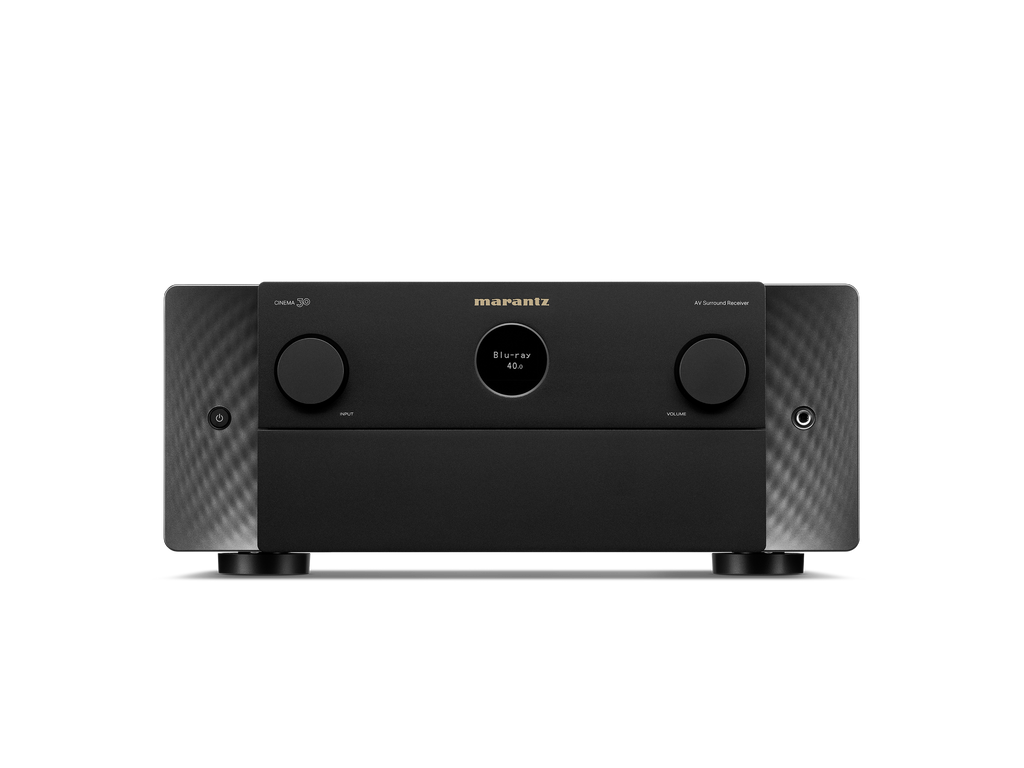

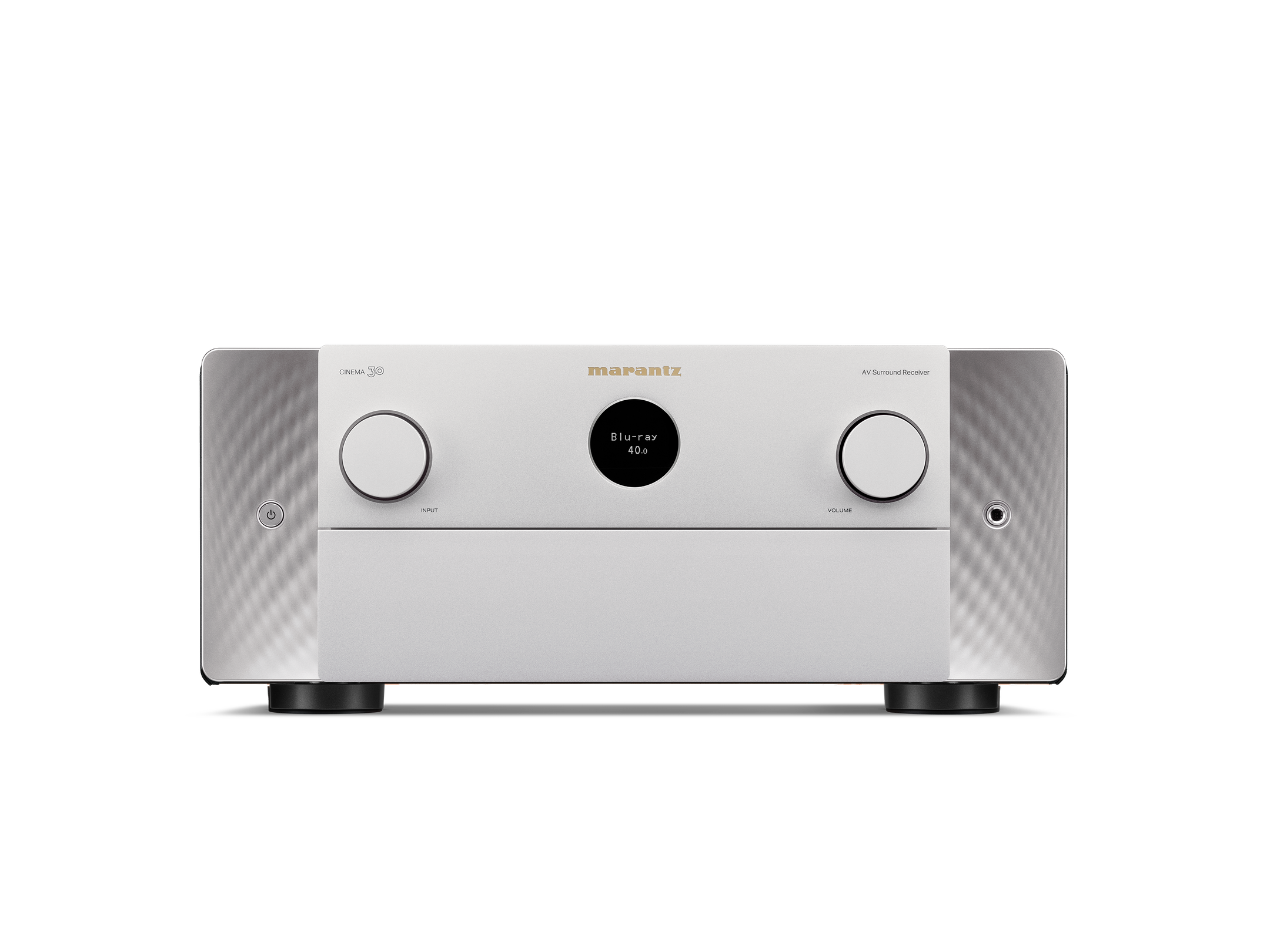

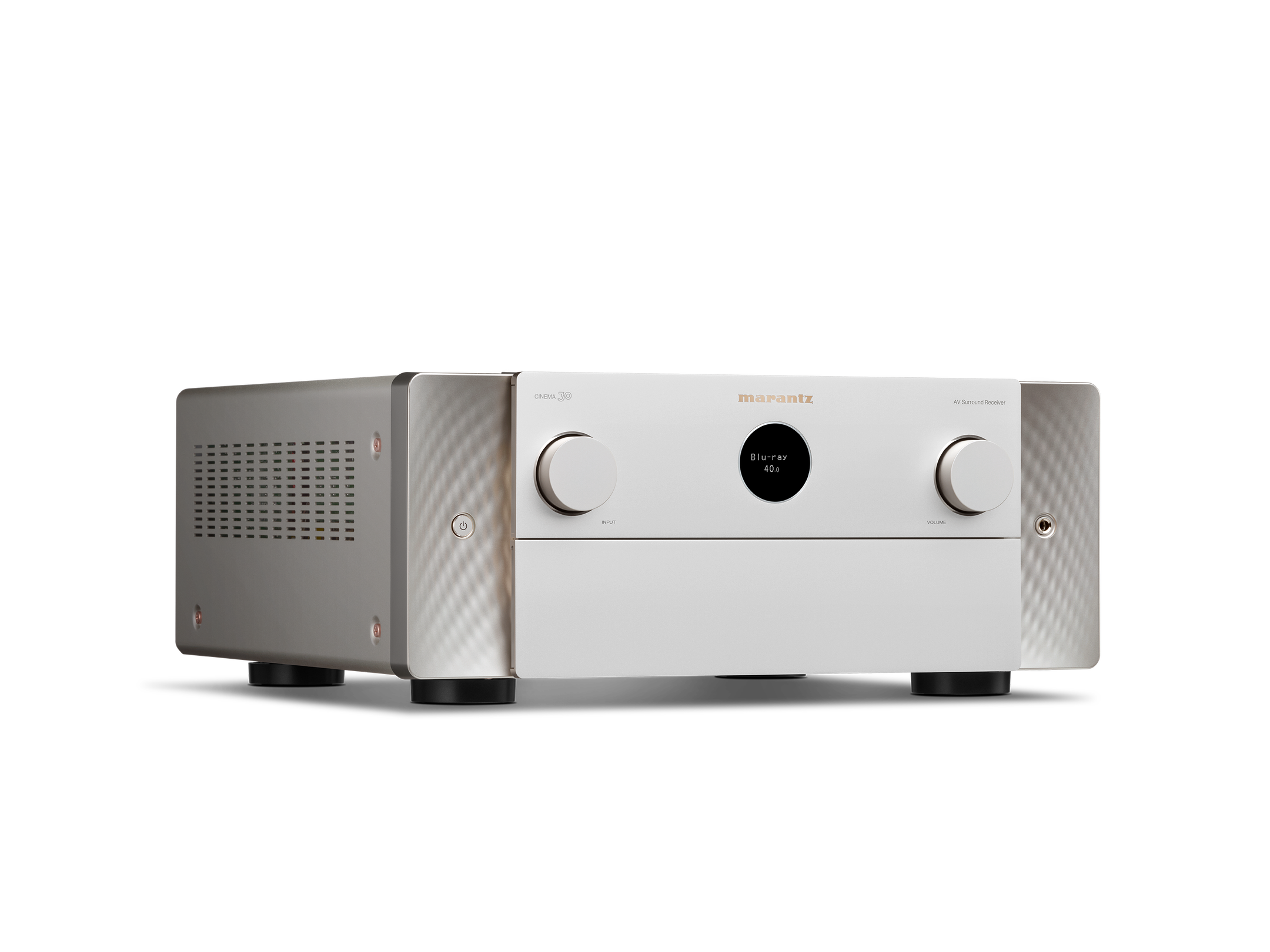

Marantz CINEMA 30 AV Receiver
Reference 11.4-Channel Home Theatre Hub with 140W per Channel, 8K HDMI and HEOS Built-In
Marantz CINEMA 30 is built for people who want a flagship-grade home theatre receiver that feels more like high-end separates than a typical AVR. It’s engineered and crafted in Japan, delivering serious amplification, advanced processing, modern HDMI capability and the flexibility to build anything from an elegant living-room system to a full-scale immersive cinema.
If you love the idea of one chassis doing the heavy lifting without losing refinement, CINEMA 30 is the “no compromises” model in the Marantz CINEMA range.
Built for Big Systems
11.4 Channels of Amplification, Ready to Expand
CINEMA 30 features 11.4 channels of built-in amplification and is designed to support ambitious speaker layouts. For customers building larger systems or planning future upgrades, it also supports 13.4 pre-outs, making it easy to add external power amplification later without replacing the receiver.
This is the ideal foundation for immersive audio layouts where you want height channels, wide channels, multiple subwoofers and the power to keep everything controlled when the movie goes from whisper-quiet to “the building is collapsing.”
Reference-Class Amplification
140 Watts per Channel with Low Distortion
Power matters, but control matters more. CINEMA 30 is rated at 140 W per channel into 8 ohms (20 Hz – 20 kHz at 0.05% THD), with a 6-ohm rating also specified. Speaker load support is listed as 4–16 ohms.
This level of wide-band power is designed to keep dynamics clean and punchy while preserving detail, especially in real-world home theatre systems where multiple speakers and subwoofers are working at once.
HDMI and Video Performance
7 HDMI Inputs, 3 HDMI Outputs, 8K Ready
CINEMA 30 is ready for modern sources with 7 HDMI inputs (all 8K) and 3 HDMI outputs, including eARC support.
This makes it a clean solution for systems that combine a TV or projector with multiple sources like a streaming box, UHD Blu-ray player, game console and media server.
Streaming, Multi-Room and Daily Use
HEOS Built-In, Network Features, Wireless Convenience
HEOS Built-In is integrated for streaming and multi-room audio, with modern network feature support designed for everyday use.
- Wi-Fi: IEEE 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz, with modern security support including WPA3-SAE (AES)
- Bluetooth: Version 5.4, Power Class 1, approx. 30 m line-of-sight range (conditions dependent), codec support listed as SBC, receiver and transmitter functions supported
Specifications Table
| Specification | Details |
|---|---|
| Product Type | AV Receiver |
| Amplified Channels | 11.4 channels |
| Expandability | 13.4 pre-outs supported |
| Power Output (8Ω) | 140 W per channel (20 Hz – 20 kHz, 0.05% THD) |
| Supported Speaker Impedance | 4 – 16Ω |
| HDMI | 7 inputs (all 8K), 3 outputs, eARC |
| Streaming Platform | HEOS Built-In |
| Wi-Fi | 802.11 a/b/g/n/ac, 2.4/5 GHz, WPA3-SAE (AES) |
| Bluetooth | Version 5.4, SBC codec listed |
| Power Consumption | 780 W (standby 0.2 W noted under specific conditions) |
| Weight | 42 lb 8 oz (19.4 kg) |
Detailed Technical Specifications
For those who like to see exactly how it’s built and how it works
View full technical specifications
Amplification and Audio Performance
- Rated output (Front): 140 W + 140 W (8Ω, 20 Hz – 20 kHz, 0.05% THD)
- Rated output (Front): 175 W + 175 W (6Ω, 1 kHz, 0.7% THD)
- Rated output (Center): 140 W (8Ω, 20 Hz – 20 kHz, 0.05% THD)
- Rated output (Center): 175 W (6Ω, 1 kHz, 0.7% THD)
- Rated output (Surround): 140 W + 140 W (8Ω, 20 Hz – 20 kHz, 0.05% THD)
- Rated output (Surround): 175 W + 175 W (6Ω, 1 kHz, 0.7% THD)
- Rated output (Surround Back / Height / Front Wide): 140 W + 140 W (8Ω, 20 Hz – 20 kHz, 0.05% THD)
- Rated output (Surround Back / Height / Front Wide): 175 W + 175 W (6Ω, 1 kHz, 0.7% THD)
- Output connectors / supported load: 4 – 16Ω
Analogue Audio Section
- Input sensitivity: 200 mV
- Frequency response (Direct mode): 10 Hz – 100 kHz (+1, –3 dB)
- S/N (Direct mode): 102 dB (IHF-A weighted)
- Distortion (Direct mode): 0.005% (20 Hz – 20 kHz)
- Rated output: 1.2 V
Digital Audio Section
- D/A output rated output: 2 V (at 0 dB playback)
- Total harmonic distortion: 0.004% (1 kHz at 0 dB)
- S/N ratio: 104 dB
- Dynamic range: 104 dB
- Digital input format: Digital audio interface
Phono Equaliser
- Input sensitivity: 2.5 mV
- RIAA deviation: ±1 dB (20 Hz to 20 kHz)
- S/N: 74 dB (IHF-A)
- Distortion factor: 0.03% (1 kHz, 3 V)
Video Section
- Standard video connectors input level/impedance: 1 Vp-p, 75Ω
- Standard video connectors frequency response: 5 Hz – 10 MHz (0, –3 dB)
- Component video (Y) input level/impedance: 1 Vp-p, 75Ω
- Component video (PB/CB) input level/impedance: 0.7 Vp-p, 75Ω
- Component video (PR/CR) input level/impedance: 0.7 Vp-p, 75Ω
- Component video frequency response: 5 Hz – 60 MHz (0, –3 dB)
Wireless LAN
- Wi-Fi standard: IEEE 802.11 a/b/g/n/ac
- Security: WEP 64/128, WPA/WPA2-PSK (AES/TKIP), WPA3-SAE (AES)
- Frequency bands: 2.4 GHz, 5 GHz
Bluetooth
- Bluetooth version: 5.4
- Power class: Class 1
- Max range: approx. 30 m line-of-sight (environment dependent)
- Profiles: A2DP 1.4, AVRCP 1.5 (receiver), A2DP 1.4 (transmitter)
- Codec listed: SBC
- Transmission range (A2DP): 20 Hz – 20,000 Hz
Tuner Section
- FM frequency range: 87.5 MHz – 107.9 MHz
- AM frequency range: 520 kHz – 1710 kHz
- FM effective sensitivity: 1.2 μV (12.8 dBf)
- AM effective sensitivity: 18 μV
- FM 50 dB sensitivity (MONO): 2.8 μV (20.2 dBf)
- S/N ratio (FM): MONO 70 dB, STEREO 67 dB (IHF-A weighted, Direct mode)
- Distortion (FM): MONO 0.7% (1 kHz), STEREO 1.0% (1 kHz)
General
- Operating temperature: 41°F – 95°F (5°C – 35°C)
- Power consumption: 780 W
- Standby power consumption: 0.2 W (noted under specific conditions)
- CEC standby power consumption: 0.5 W
- Weight: 42 lb 8 oz (19.4 kg)
The Audio Experts Take
CINEMA 30 is for the customer who wants a premium AVR that behaves like the command centre of a serious cinema. The power delivery is wide-band and properly specified, the connectivity is modern and the expansion path is real. Set it up properly, pair it with the right speakers and subs, and it becomes the kind of system that makes “one more scene” turn into “it’s 2am and I regret nothing.”
