Description

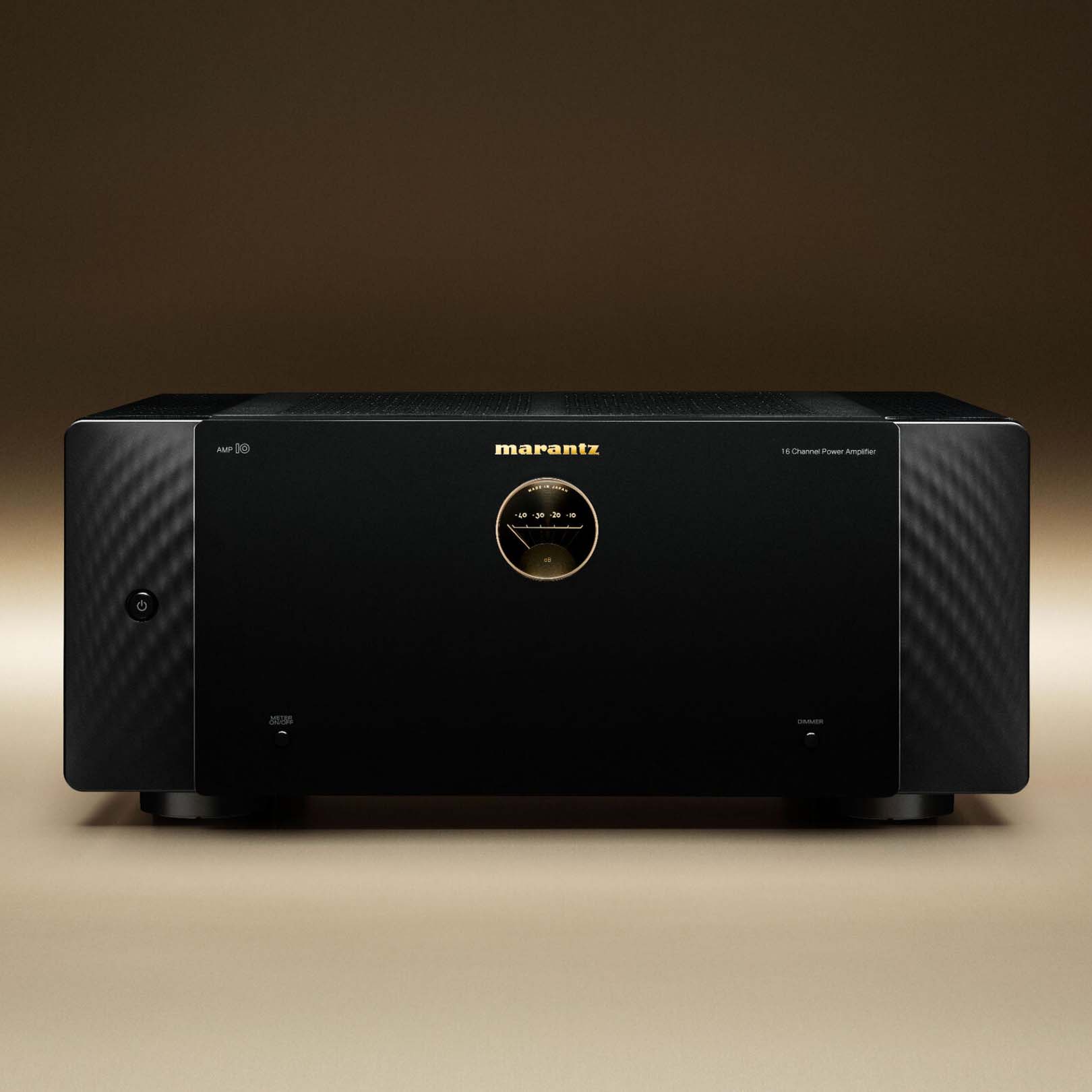

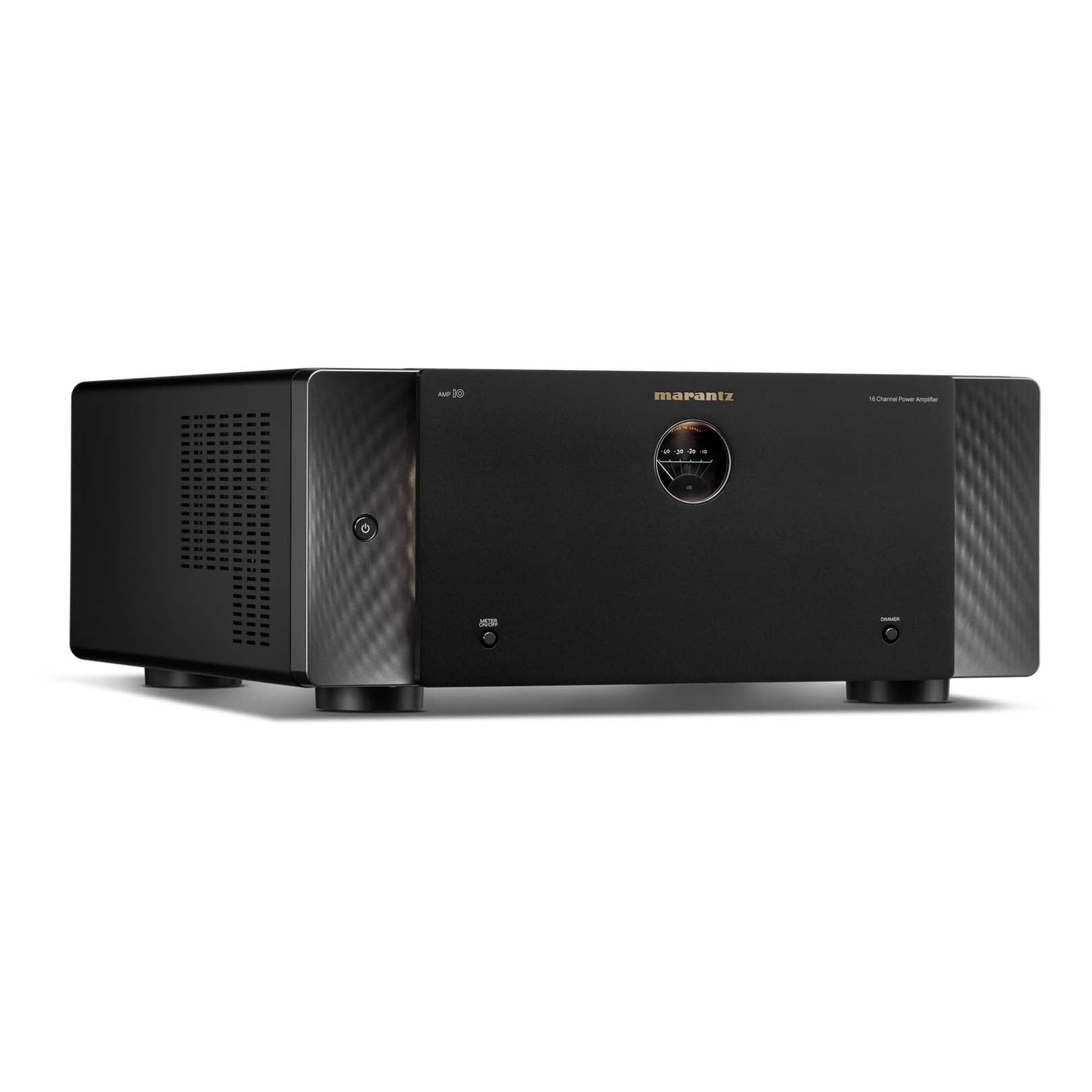

A Reference 16-channel 200-watt-per-channel amplifier. Pair with AV 10 to create an elite-level home theatre. Marantz HDAM, Current Feedback Amplification, and balanced line level input.
Key Features
Peerless performance: Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.
Technology leader: AMP 10 is engineered using best-in-class technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.
Exquisite design: A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.
Ultimate Performance: We developed custom Class D amplifiers and refined our own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.
Specification
| Multi-Room CI | |
| IP Control / RS232 Control / Web Control / App Control | No / Yes / No / No |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Input / Output | 1 / 1 |
| Others | |
| Front Display | Level Meter |
| Firmware Update by Network / USB / RS232C | No / No / Yes |
| Auto Power off | Yes |
| Inputs / Outputs | |
| Main Amplifier In | Balanced & Unbalanced: 16 Ch (Exclusive Use by a Selector Switch) |
| Speaker Terminal: Gold Plated Screw / Regular Screw | Brass Type (Same as MODEL 40n) |
| Number of Speaker Terminals | 16 |
| Bi-Amp Drive / BTL Drive | Yes / Yes |
| Level Meter | Yes |
| Chassis | Copper Plated |
| Specifications | |
| Number of Power Amps | 16 |
| Power Output (8 Ohm, 1 kHz, 0.05% THD, 2 Ch Driven): Normal / BTL | 200 W / 400 W |
| Power Output (4 Ohm, 1 kHz, 0.7% THD, 2 Ch Driven): Normal | 400 W |
| Power Output (8 Ohm, 1 kHz, 0.7% THD, 5 Ch Driven): Normal | 200 W |
| 70% Guarantee: Normal / Bi-Amp / BTL | Yes / Yes / Yes |
| 100% Guarantee: Normal / Bi-Amp | Yes / Yes |
ion
| General | |
| Metal Front Panel | Yes |
| Pre-Programmed / Learnable / LCD Display | No / No / No |
| Power Consumption | 500 W |
| Power Consumption No-Sound (ECO On/Off) | 140 W |
| Standby Consumption | 0.2 W |
| Dimensions (W x D x H) | 440 x 503 x 188 mm |
| Weight | 19.8 kg |
